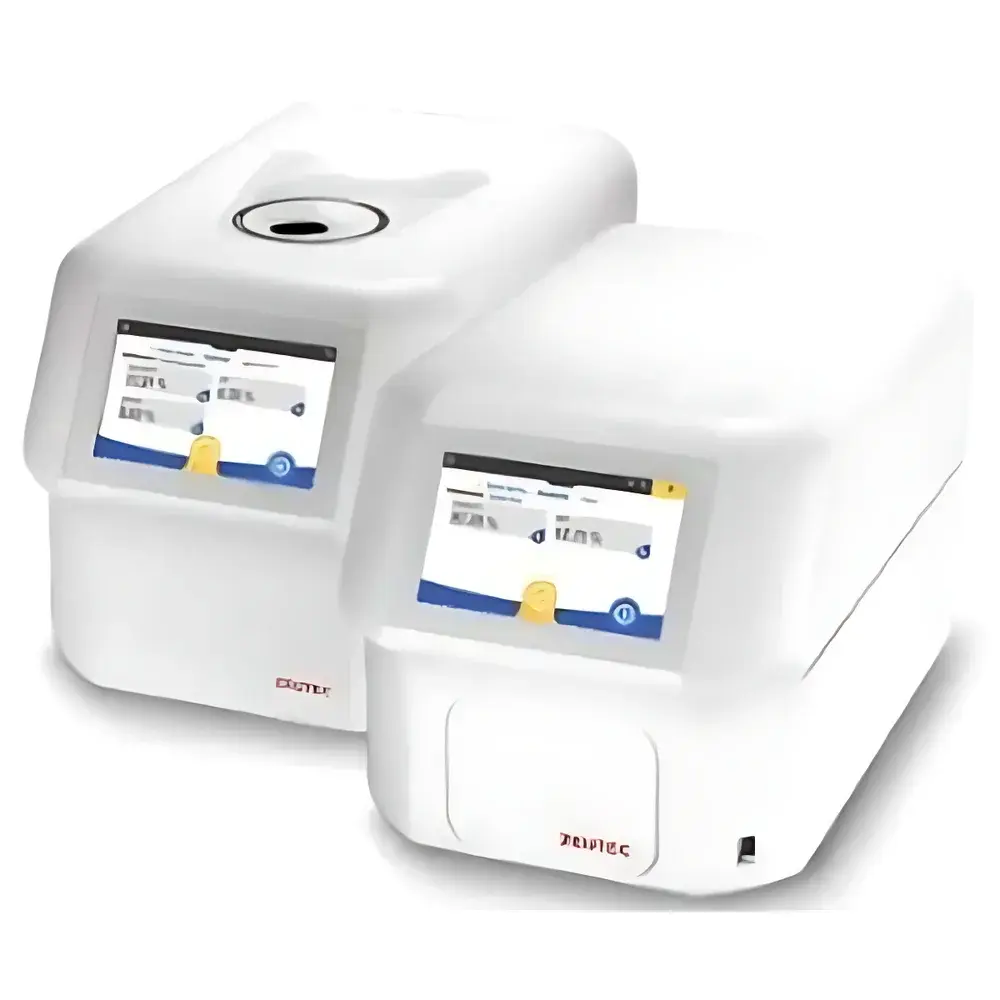

SpectraAlyzer FOOD Near-Infrared (NIR) Food Composition Analyzer

Overview

The SpectraAlyzer FOOD is a benchtop near-infrared (NIR) reflectance spectrometer engineered for rapid, non-destructive, and reagent-free quantitative analysis of key compositional parameters in food raw materials and finished products. Operating in the 900–2500 nm spectral range with a high-resolution InGaAs detector and thermoelectrically stabilized optical path, it applies multivariate calibration models—primarily Partial Least Squares (PLS) regression—to correlate spectral signatures with reference laboratory values (e.g., AOAC methods). Unlike wet chemistry or time-intensive chromatographic techniques, this analyzer delivers traceable, repeatable results in under 45 seconds without sample grinding, solvent extraction, or chemical reagents. Its optical architecture features dual-beam referencing with integrated white-light reference tile and temperature-compensated cuvette holder, minimizing drift from ambient thermal fluctuations—a critical requirement for continuous operation in production-floor environments.

Key Features

• Optical stability via internal reference tile and real-time dark-current correction, ensuring <±0.05% photometric repeatability over 8-hour shifts
• Ruggedized aluminum chassis with IP52-rated enclosure, tested for operation under industrial vibration (IEC 60068-2-6) and particulate exposure
• Pre-installed calibration libraries for >35 food matrices—including wheat flour, dairy powder, meat meal, soybean meal, and snack pellets—validated against AOAC 991.20, ISO 14489, and ICC 168 protocols
• Modular software architecture supporting user-developed calibrations using imported reference data (CSV, TXT) and cross-validation diagnostics (RMSEC, RMSEP, R²)
• Embedded Ethernet port enabling seamless integration into MES/SCADA systems; supports OPC UA and Modbus TCP for real-time parameter streaming
• Automated wavelength validation with NIST-traceable holmium oxide filter, performed at startup and on-demand

Sample Compatibility & Compliance

The SpectraAlyzer FOOD accommodates solid, semi-solid, and granular samples with minimal preparation: no homogenization or pelletizing required for most cereal-, dairy-, or meat-based matrices. Sample presentation uses a standardized 35-mm diameter quartz viewing window with pressure-controlled sample contact to ensure consistent optical path length and surface reflection geometry. The system complies with CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), conforms to RoHS 2011/65/EU restrictions on hazardous substances, and supports laboratory quality management systems aligned with ISO/IEC 17025:2017. When configured with the optional 21 CFR Part 11 module, it provides electronic signature enforcement, role-based access control, and immutable audit trails for regulated environments including FDA-audited facilities.

Software & Data Management

SpectraControl Suite v4.2 serves as the instrument’s native control and data analysis platform. It includes method editor for calibration transfer, outlier detection using Mahalanobis distance, and automated report generation compliant with GMP Annex 11 and EU GMP Chapter 4 documentation standards. All measurement metadata—including instrument ID, operator login, environmental sensor logs (temperature/humidity), and spectral raw data (.spc format)—are stored in an embedded SQLite database. Export options include PDF reports with embedded spectra, CSV for LIMS ingestion, and encrypted XML packages for inter-laboratory comparison. Remote monitoring and firmware updates are supported via secure HTTPS connection to JHX’s authorized service portal.

Applications

• Real-time moisture monitoring in cereal drying lines to prevent over-drying and energy waste
• In-process protein/fat ratio verification during meat emulsion formulation for sausage production
• Gluten quantification in gluten-free certification workflows per Codex Alimentarius STAN 118-1979
• Starch gelatinization degree assessment in extruded snack development
• Raw material acceptance testing for oilseed meals against contractual specifications (e.g., ISO 659 for oil content)
• Batch release analytics in infant formula manufacturing under strict USP and Ph. Eur. 2.2.42 guidelines

FAQ

Does the SpectraAlyzer FOOD require daily recalibration?
No—factory calibrations remain stable for ≥6 months under routine use; wavelength and photometric validation is recommended weekly using the built-in holmium oxide filter.
Can I develop my own calibration models?
Yes—SpectraControl Suite includes full PLS/PCR modeling tools with cross-validation, residual analysis, and leverage diagnostics; reference data must be generated via accredited wet chemistry methods.
Is the instrument compatible with existing LIMS or SAP QM modules?
Yes—via standard ODBC drivers, HL7 messaging, or custom API integration; JHX provides documented interface specifications and validation support packages.
What maintenance is required beyond routine cleaning?
Annual performance verification by JHX-certified field service engineers is recommended; optical components carry a 3-year warranty against coating degradation.
How is data integrity ensured during power interruption?
All measurements are auto-saved to non-volatile memory upon spectral acquisition completion; unsaved method edits are cached and recoverable post-reboot.
