Spectral Response Measurement System IPCE
| Brand | — |
|---|---|
| Origin | Japan |
| Manufacturer Type | General Distributor |
| Origin Category | Imported |
| Model | IPCE |
| Quotation | Upon Request |
| Measurement Mode | AC |
Overview

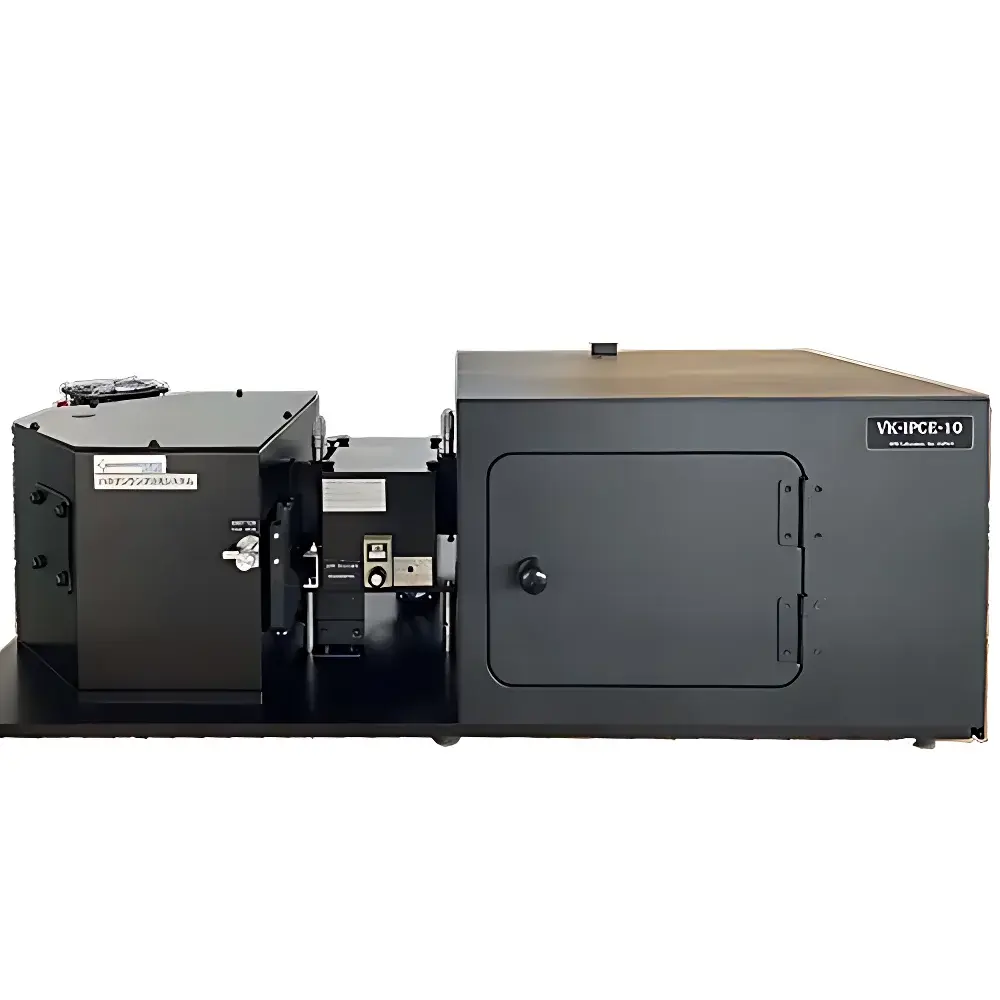

The Spectral Response Measurement System IPCE is a precision-engineered dual-beam optical characterization platform designed for quantitative evaluation of spectral responsivity (SR) and incident photon-to-current conversion efficiency (IPCE) in photovoltaic devices, including perovskite solar cells, organic photovoltaics (OPVs), dye-sensitized solar cells (DSSCs), and quantum dot-based absorbers. Operating on the principle of monochromatic photocurrent spectroscopy, the system employs a calibrated halogen lamp (3400 K color temperature) coupled with a high-resolution monochromator to deliver tunable single-wavelength illumination across a broad spectral range from 340 nm to 1000 nm. Its dual-beam architecture enables real-time referencing: one beam illuminates the device under test (DUT), while the second beam concurrently monitors source intensity fluctuations—effectively compensating for lamp drift, thermal instability, and mechanical jitter. This architecture ensures measurement repeatability better than ±1.5% over extended acquisition periods, critical for compliance with ASTM E1021 and IEC 60904-8 standards for spectral response validation.
Key Features
- Dual-beam synchronized detection architecture for real-time source intensity normalization and drift correction
- Three programmable illumination modes: Natural halogen spectrum, Constant Energy (fixed irradiance in µW), and Constant Photon Flux (fixed photon flux in photons/s)
- Monochromatic irradiance tunable from 1 µW to 100 µW (400–1000 nm), traceable to NIST-traceable reference detectors
- Integrated LED-based white-light bias source with digitally controlled output power for quasi-steady-state or transient biasing conditions
- Five-position high-order interference filter wheel for spectral purity enhancement and stray light suppression
- Automated sample stage with XYZ micrometer-driven alignment and rotational fine-tuning for precise active-area registration
- Bluetooth-enabled remote control interface supporting full instrument parameterization and data acquisition without physical cabling
- Single-power-button startup sequence with embedded firmware initialization and hardware self-calibration routines
Sample Compatibility & Compliance
The system accommodates standard photovoltaic samples up to 25 mm × 25 mm with planar or slightly curved geometries. Electrical interfacing supports two-terminal (cell-only) and three-terminal (with reference electrode) configurations via shielded BNC and banana-jack terminals. All optical and electronic components meet IEC 61000-6-3 (EMC emission) and IEC 61010-1 (safety) requirements. Data acquisition workflows are compatible with GLP/GMP documentation practices; software timestamps, user authentication logs, and raw signal metadata (including monochromator position, filter ID, and bias intensity) are embedded in each exported TXT file. While not pre-certified for FDA 21 CFR Part 11, the system’s audit trail capabilities—including immutable acquisition logs and versioned firmware—support validation under regulated R&D environments.
Software & Data Management

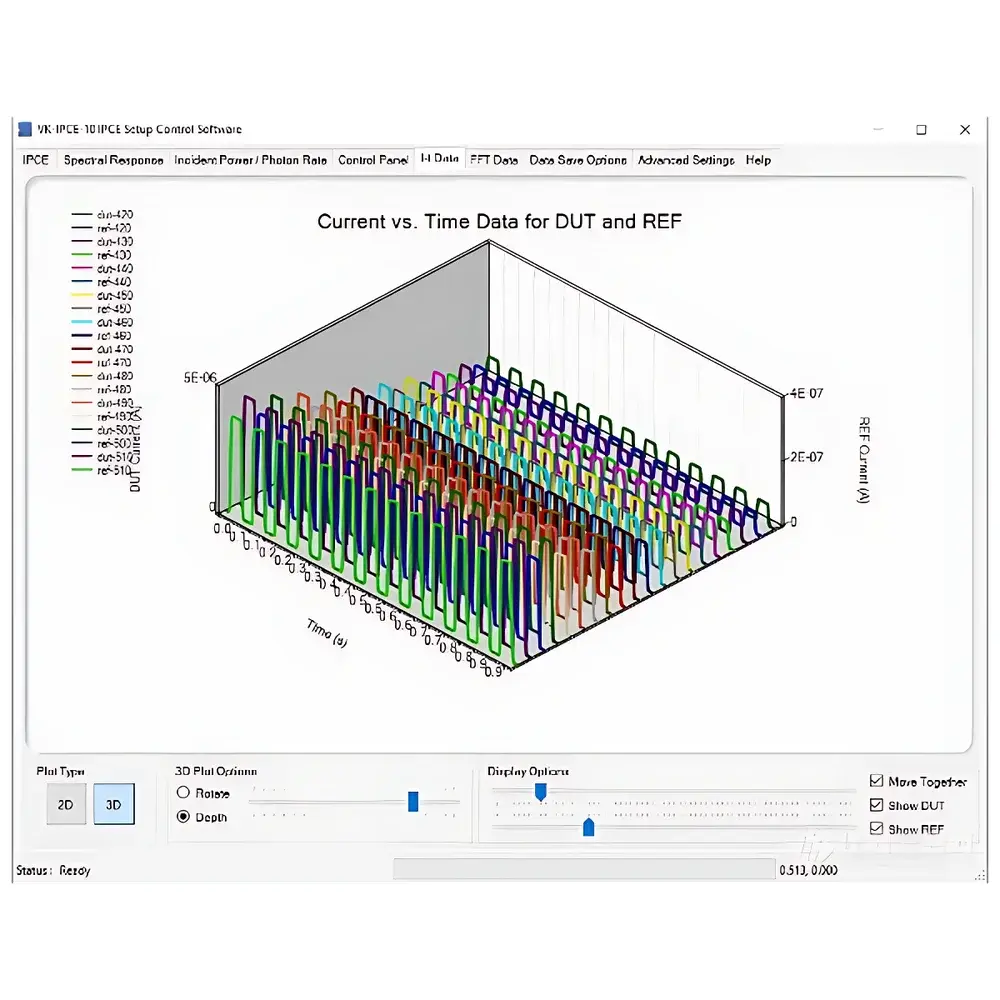

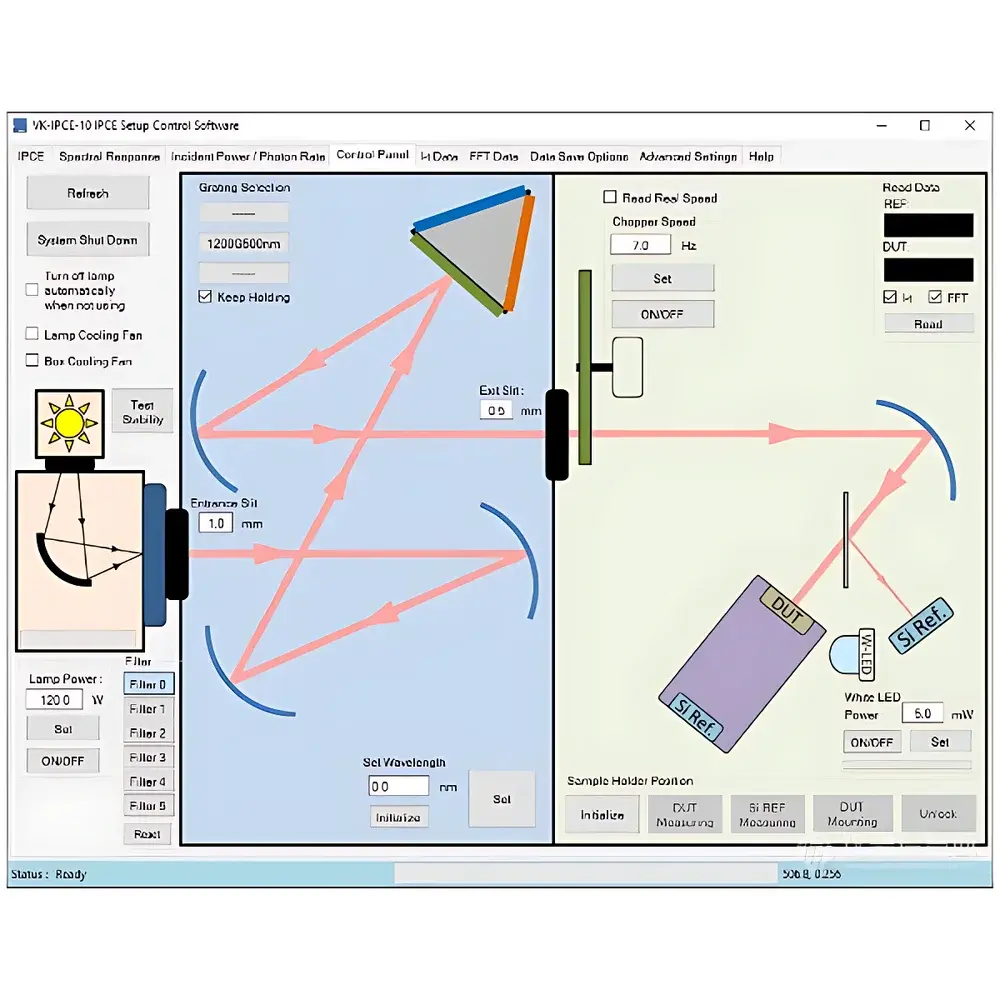

The proprietary control suite provides an intuitive GUI built on Qt framework, featuring tabbed navigation for IPCE mapping, SR curve generation, IV sweep integration, and FFT-based noise analysis. All measurements output ASCII-formatted TXT files containing wavelength (nm), photocurrent (A), reference detector signal (V), calculated IPCE (%), and SR (A/W), with optional inclusion of bias light intensity and filter selection status. Batch processing tools enable automated interpolation, baseline subtraction, and spectral mismatch factor (SMF) computation per IEC 60904-7. Raw time-domain signals support post-acquisition FFT transformation to identify low-frequency noise sources (e.g., 1/f flicker, thermal oscillations) affecting measurement fidelity.
Applications
- Quantitative IPCE mapping of multi-junction and tandem solar cells for current-matching optimization
- Identification of sub-bandgap absorption features and defect-related photocurrent contributions in emerging PV materials
- Validation of optical modeling assumptions (e.g., anti-reflection coating performance, parasitic absorption) against empirical SR data
- Stability assessment via time-resolved IPCE tracking under controlled illumination and environmental stressors
- Calibration transfer between reference cells and production-line spectroradiometers
- Teaching laboratory implementation for semiconductor optoelectronics and photovoltaics courses
FAQ
What illumination modes does the system support, and how are they calibrated?
The system offers three modes: Natural halogen spectrum (uncorrected spectral output), Constant Energy (maintains fixed radiant power in µW via real-time feedback to the monochromator slit and lamp current), and Constant Photon Flux (maintains fixed photon flux in photons/s using energy-wavelength compensation algorithms). Calibration is performed using a NIST-traceable silicon photodiode with spectral responsivity certificate.
Is the system compatible with external potentiostats or source-measure units (SMUs)?
Yes—via analog voltage input/output ports and TTL trigger lines, enabling synchronization with third-party SMUs (e.g., Keysight B2900 series, Keithley 2450) for bias-controlled or voltage-swept IPCE measurements.
Can the software export data in formats other than TXT?
Native export is ASCII TXT for long-term archival integrity; CSV and MATLAB .mat conversion utilities are provided as post-processing add-ons.
What maintenance is required for long-term accuracy?
Annual verification of monochromator wavelength accuracy (using Hg/Ne spectral lines) and reference detector responsivity drift is recommended. No consumables are required beyond standard laboratory-grade optical cleaning supplies.
