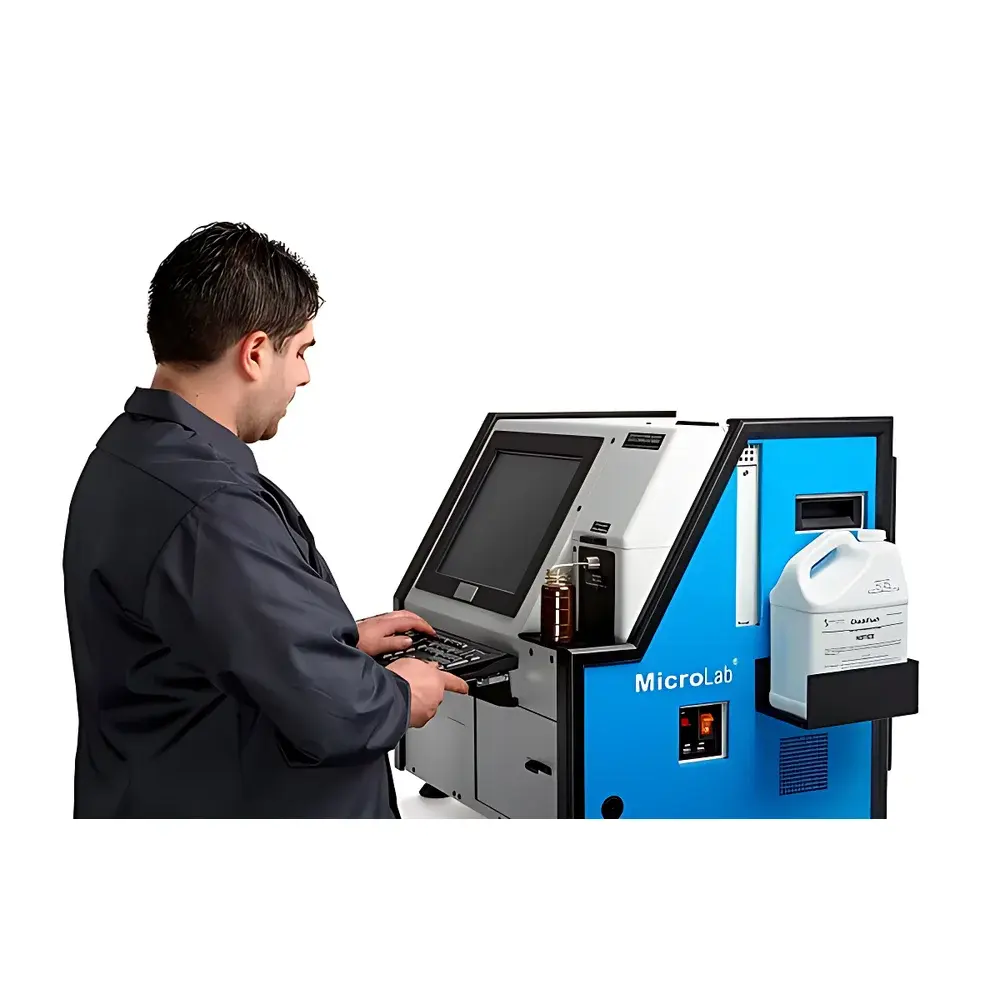

Spectro Scientific Microlab 40 Automated Oil Condition Monitoring System

Overview

The Spectro Scientific Microlab 40 is an integrated, benchtop oil condition monitoring system engineered for precision, reproducibility, and operational continuity in demanding industrial environments. It applies a multi-parameter analytical architecture grounded in standardized physical and spectrochemical measurement principles: rotary disc electrode atomic emission spectroscopy (RDE-AES) for elemental quantification (ASTM D6595), laser-based automatic particle counting per ISO 4406:2017 and ASTM D7690, capillary viscometry compliant with ASTM D445, and Fourier-transform infrared (FTIR) spectroscopy for oxidation, nitration, sulfation, total base number (TBN), soot, glycol, and water detection. Unlike single-test instruments, the Microlab 40 executes four concurrent, automated analyses on a single 4 mL sample—delivering comprehensive fluid health and machine wear assessment within 15 minutes. Designed specifically for fleets operating hydraulic systems, gearboxes, and power transmission components—including off-highway construction, mining, marine drilling, fire suppression, and municipal waste vehicles—the system bridges laboratory-grade accuracy with field-deployable robustness.

Key Features

• Fully automated workflow: Sample aspiration, reagent dispensing, measurement sequence execution, and report generation occur without manual intervention.
• Integrated RDE-AES spectrometer: Simultaneously quantifies up to 24 wear metals (e.g., Fe, Cu, Al, Cr, Pb), contaminants (Si, Na, B), and additive elements (Ca, Mg, Zn, P) at sub-ppm detection limits.
• ISO-certified optical particle counter: Provides real-time, size-resolved particle counts across 4–100 µm channels; reports ISO cleanliness codes and cumulative/differential histograms.
• Dual-mode viscosity module: Measures kinematic viscosity at 40 °C and 100 °C per ASTM D445 using calibrated glass capillaries and temperature-controlled baths.
• FTIR engine with chemometric calibration libraries: Enables quantitative analysis of oxidation, nitration, sulfation, TBN depletion, soot loading, glycol leakage, and free water concentration.
• Onboard expert diagnostic engine: A rules-based inference system comprising >10,000 validated logic scripts, trained on over two decades of field data from diesel engines, hydraulic pumps, gear sets, and turbine systems.

Sample Compatibility & Compliance

The Microlab 40 accepts used mineral-, synthetic-, and bio-based lubricants—including engine oils, hydraulic fluids, gear oils, turbine oils, and compressor oils—without solvent dilution or pre-treatment. Its analytical protocols are aligned with globally recognized standards: ASTM D6595 for elemental analysis, ASTM D7690 for particle counting, ASTM D445 for viscosity, ASTM D2896/D4739 for TBN, and ISO 4406:2017 for particulate contamination classification. The system supports GLP-compliant operation through full audit trail logging, user authentication, electronic signatures, and data integrity controls meeting FDA 21 CFR Part 11 requirements when deployed in regulated maintenance programs.

Software & Data Management

Microlab Connect software provides centralized fleet data aggregation, trend visualization, and predictive alerting. All raw spectra, chromatograms, particle histograms, and metadata are stored in a relational database with version-controlled calibration records. Reports export in PDF/XLSX formats with color-coded severity thresholds (green/yellow/red), annotated spectral overlays, and actionable maintenance directives. Historical comparisons support remaining useful life (RUL) estimation via statistical process control (SPC) charts and multivariate regression models. Remote firmware updates, method validation logs, and instrument self-diagnostics ensure long-term traceability and regulatory readiness.

Applications

The Microlab 40 serves as a primary condition monitoring tool across sectors where unplanned downtime incurs high operational risk: offshore drilling rigs evaluating hydraulic control fluid integrity; municipal fleets managing refuse truck transmission and brake system oils; mining OEMs validating gear oil life in haul trucks; marine operators assessing lube health in propulsion and auxiliary systems; and power generation facilities monitoring turbine oil oxidation kinetics. Its diagnostic scope extends beyond fluid parameters to infer component-level anomalies—such as bearing spalling (via Fe/Cr ratio trends), coolant ingress (Na/B/Glycol correlation), filter bypass (particle size distribution shifts), or thermal degradation (oxidation/nitration ratio divergence).

FAQ

Does the Microlab 40 require daily calibration or standardization?

No—calibration is performed automatically before each analysis using certified reference standards; full system verification is recommended weekly per ASTM D6595.
Can it analyze greases or solid-lubricated systems?

Not directly; the system is optimized for liquid lubricants. Grease samples must be solvent-extracted prior to testing.
Is method validation documentation available for ISO/IEC 17025 accreditation?

Yes—Spectro provides full validation packages including precision studies, linearity assessments, LOD/LOQ determinations, and interlaboratory comparison data.
How does the expert system handle equipment-specific failure modes?

It maps elemental, particle, and chemical data against a hierarchical ontology of equipment types, components, manufacturers, and failure physics—enabling context-aware interpretation without requiring domain expertise from the end user.
What network security protocols does Microlab Connect support?

TLS 1.2+ encryption, LDAP/Active Directory integration, role-based access control (RBAC), and encrypted local database backups meet NIST SP 800-53 and IEC 62443-3-3 requirements.
