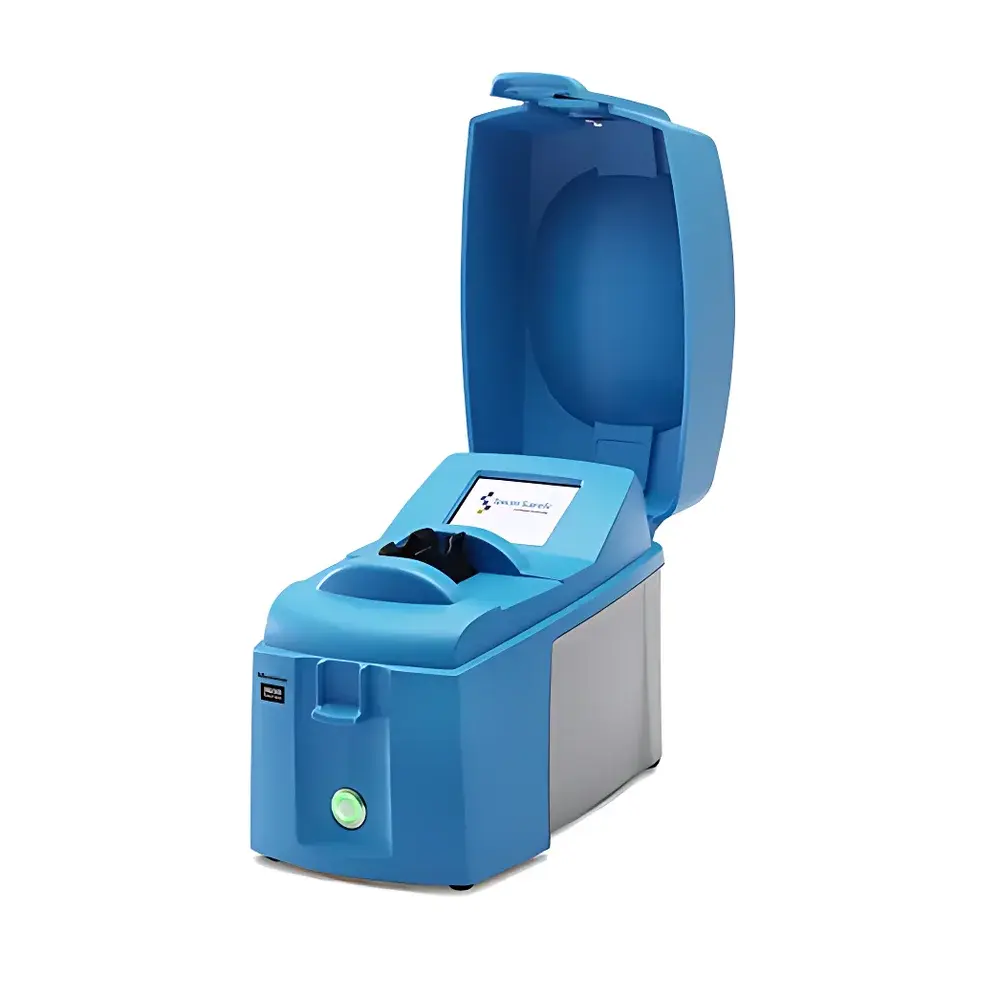

Spectro Scientific MiniVisc 3050 Portable Kinematic Viscosity Analyzer

Overview

The Spectro Scientific MiniVisc 3050 Portable Kinematic Viscosity Analyzer is a field-deployable, solvent-free instrument engineered for precise kinematic viscosity measurement of lubricating oils and hydraulic fluids under controlled thermal conditions. It operates on the fundamental principle of gravity-driven capillary flow—measuring the time required for a fixed volume of fluid to pass through a calibrated split-cell capillary at a rigorously maintained temperature of 40 °C. Unlike conventional viscometers requiring density input or external temperature baths, the MiniVisc 3050 delivers direct kinematic viscosity (mm²/s, or centistokes) without ancillary measurements. Its design adheres to ASTM D445 and ISO 3104 methodologies in principle, while enabling full compliance with on-site condition monitoring workflows under ISO 55001 and SAE JA1011 asset management frameworks.

Key Features

• Split-Cell Capillary Technology: Patented openable capillary geometry enables rapid sample loading, minimal residue retention, and solvent-free cleaning using lint-free tissue—eliminating hazardous solvent handling, waste disposal, and cross-contamination risks.
• Integrated Thermal Control: Dual-panel Peltier heating with high-resolution infrared temperature sensing maintains ±0.1 °C stability at 40 °C throughout measurement—no pre-equilibration or external bath required.
• Ultra-Low Sample Volume: Requires only 60 µL per test—sufficient for routine oil analysis without compromising equipment sump integrity or triggering top-up procedures.
• Self-Contained Operation: Built-in rechargeable lithium-ion battery supports >6 hours of continuous field use; integrated 7-inch capacitive touchscreen, ARM-based microprocessor, and embedded firmware eliminate dependency on external PCs or network infrastructure.
• Universal Fluid Compatibility: Validated for transparent, opaque, heavily sooted, and dark-colored oils—including engine oils, turbine oils, gear oils, and hydraulic fluids—without filtration or dilution.
• Extended Measurement Range: Covers 2–700 mm²/s (cSt) at 40 °C, with algorithmic extrapolation to equivalent 100 °C values per ASTM D341 standard viscosity-temperature correlation.

Sample Compatibility & Compliance

The MiniVisc 3050 accommodates undiluted, as-received oil samples—including highly contaminated, oxidized, or particle-laden fluids typical of in-service machinery lubricants. It meets functional equivalency requirements for field-tier viscosity verification under ISO 17359 (Condition Monitoring and Diagnostics of Machines) and supports alignment with OEM oil analysis specifications (e.g., Caterpillar SOS, Komatsu KOMTRAX, Siemens SINUMERIK). While not certified for regulatory submission alone, its traceable measurement chain—calibrated against NIST-traceable reference oils—enables data integration into GLP-compliant laboratory information management systems (LIMS) when paired with Spectro’s FluidScan or OilView platforms. The absence of solvents ensures full compatibility with OSHA HAZWOPER and EPA RCRA field-sampling protocols.

Software & Data Management

All measurement logic, calibration coefficients, and thermal compensation algorithms reside in flash memory with firmware upgradable via USB or optional Wi-Fi module. The touchscreen interface logs timestamped results with operator ID, sample ID, and environmental metadata (ambient temperature, battery level). Export formats include CSV and PDF reports compliant with 21 CFR Part 11 audit trail requirements when used with Spectro’s cloud-enabled OilView Connect service—supporting electronic signatures, user access controls, and immutable record retention. On-device data storage retains ≥1,000 test records with automatic overwrite protection.

Applications

• Field-based predictive maintenance: Rapid viscosity screening of critical assets (turbines, compressors, hydraulics) during scheduled rounds or unplanned inspections.
• Oil change optimization: Quantifying viscosity drift beyond OEM limits (e.g., ±10% from new oil baseline) to extend drain intervals safely.
• Contamination diagnostics: Detecting fuel dilution (viscosity depression), glycol ingress (abnormal shear thinning), or thermal degradation (viscosity rise).
• Used oil reclamation verification: Confirming viscosity stability post-filtration or centrifugation prior to reuse.
• Training and education: Portable demonstration platform for tribology labs and maintenance technician certification programs.

FAQ

Does the MiniVisc 3050 require calibration with reference oils?
Yes—initial factory calibration uses NIST-traceable mineral oil standards; users must perform periodic verification (recommended every 30 days or 100 tests) using supplied calibration fluids.
Can it measure viscosity at temperatures other than 40 °C?
No—the system is optimized exclusively for 40 °C operation per ASTM D445 field adaptation; 100 °C values are mathematically derived using the ASTM D341 equation and require input of the 40 °C result.
Is the device suitable for biodiesel or synthetic ester-based lubricants?
Yes—validated for Group III, IV, and V base stocks, including polyalphaolefins (PAOs), polyalkylene glycols (PAGs), and fatty acid methyl esters (FAME), provided no phase separation or gelation occurs at 40 °C.
How is measurement repeatability ensured across operators?
The guided workflow enforces standardized sample aspiration, capillary closure timing, and ambient temperature logging; inter-operator CV is ≤1.2% for homogeneous samples per internal validation per ISO 5725-2.
What maintenance does the split-cell capillary require?
After each test, wipe both inner surfaces with dry, low-lint tissue; no ultrasonic cleaning, solvent rinsing, or disassembly is needed—capillary lifetime exceeds 5,000 measurements under normal use.
