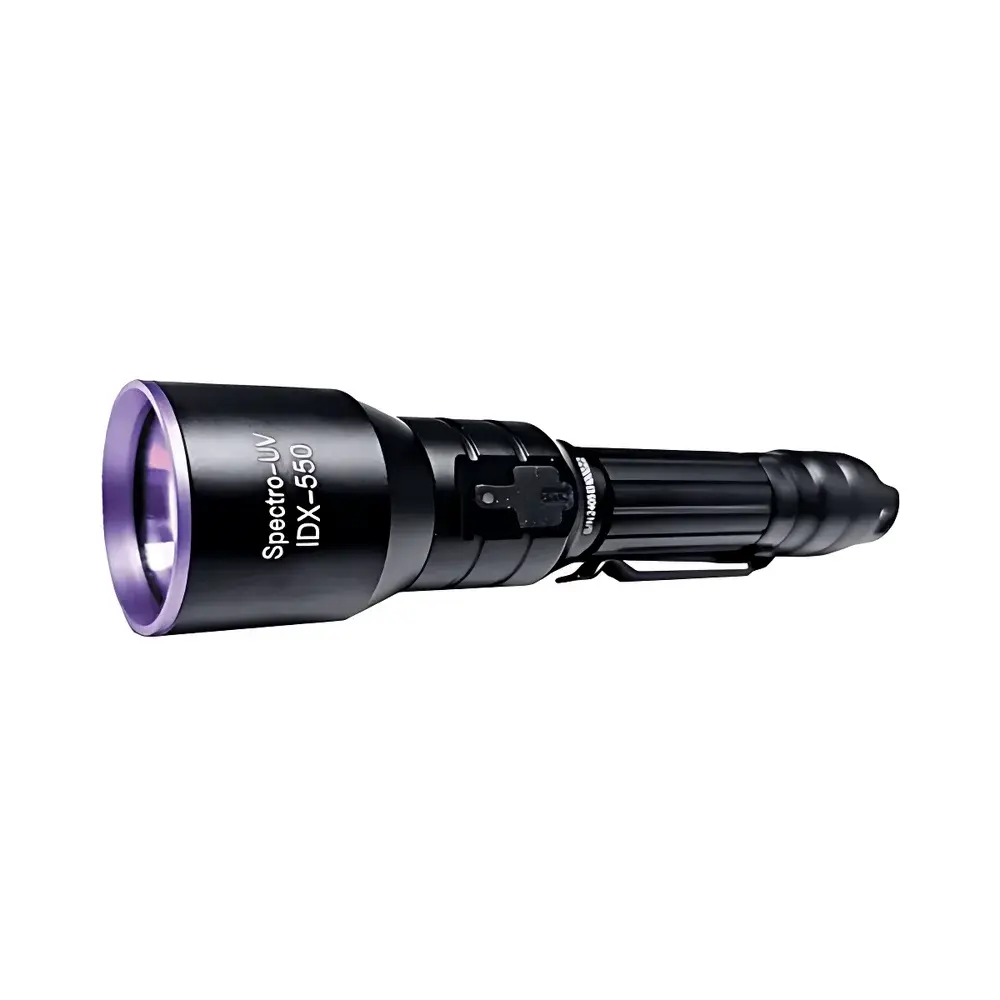

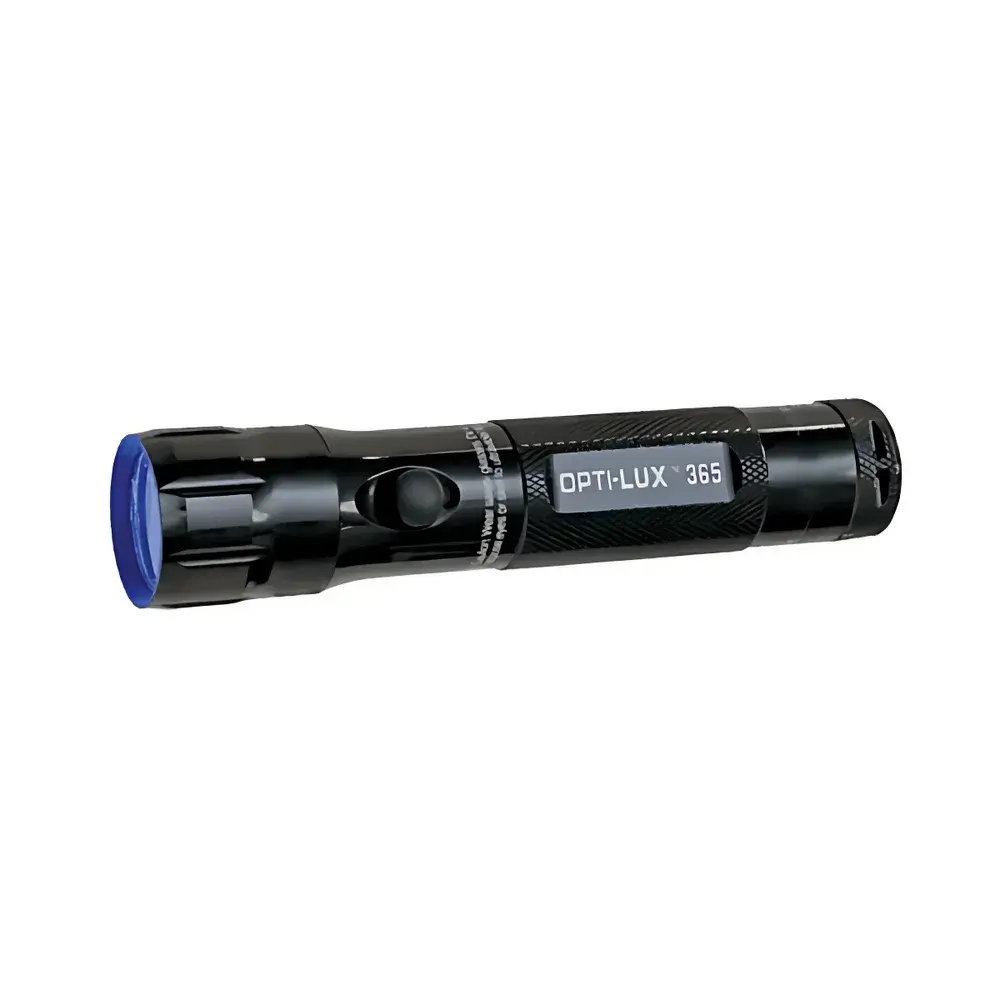

Spectro-UV OPTIMAX Clarity OPTI-LUX Nano Portable UV-A Flashlight

Overview

The Spectro-UV OPTIMAX, Clarity, OPTI-LUX, and Nano series represent a family of engineered portable UV-A flashlights designed for precision non-destructive testing (NDT), fluorescence inspection, UV-curing verification, and laboratory-based contaminant identification. These instruments utilize high-efficiency 365 nm UV-A LED arrays—selected for optimal excitation of common fluorescent dyes, penetrants, and phosphors—while eliminating the hazards, warm-up delays, and spectral instability associated with traditional mercury-vapor or xenon arc sources. Each model operates on a calibrated, narrowband UV-A output (center wavelength ±5 nm), ensuring consistent irradiance across the beam profile and compliance with ASTM E3022 (for aerospace liquid penetrant testing) and ISO 3059 (for surface crack detection). The flashlight form factor enables one-handed operation in confined spaces, overhead inspections, and field-deployed quality assurance workflows—without requiring external power supplies or cooling systems.

Key Features

• IP68-rated housing: Fully sealed against dust ingress and submersion up to 1.5 m for 30 minutes—validated per IEC 60529 for use in humid, oily, or washdown environments.
• Stable UV-A irradiance: Integrated thermal regulation and constant-current LED drivers maintain intensity stability within ±3% over full runtime (per model specifications).
• Dual-filter configuration option: Optional interchangeable bandpass filters (365/405 nm) enable selective excitation for multi-dye inspection protocols or cross-verification of fluorescence response.
• Modular power architecture: Supports swappable battery packs—including rechargeable NiMH (OPTIMAX), high-capacity Li-ion (Clarity, OPTI-LUX, Nano), and standard alkaline cells (Clarity BHAX)—with auto-sensing voltage regulation.
• Precision beam optics: Aspheric collimating lenses deliver uniform irradiance profiles with defined edge sharpness; beam diameters are certified at 38 cm per ASTM E3022 measurement geometry.
• Instant on/off switching: Zero warm-up or cooldown delay; full-intensity output achieved within 100 ms of activation.

Sample Compatibility & Compliance

These UV-A flashlights are compatible with industry-standard fluorescent penetrants (e.g., Zyglo, Magnaflux), magnetic particle suspensions, bio-contaminant indicators (e.g., ATP assay reagents), and UV-curable adhesives/resins. All models meet the minimum 1,200 µW/cm² UV-A irradiance threshold at 38 cm required by ASTM E3022 for aerospace NDT applications. Beam uniformity is verified using NIST-traceable radiometric sensors; each unit ships with a calibration certificate referencing ISO/IEC 17025-accredited measurement procedures. Device firmware and hardware design support GLP-compliant documentation: timestamped usage logs, battery cycle tracking, and irradiance decay alerts are recorded internally and exportable via USB-C interface. No regulatory submission (e.g., FDA 510(k)) applies, as these are Class 1 non-laser optical radiation devices per IEC 62471.

Software & Data Management

While standalone operation requires no software, optional Spectro-UV Connect™ desktop application (Windows/macOS) enables firmware updates, irradiance logging, runtime analytics, and batch reporting for audit-ready QA records. The application supports CSV export of time-stamped irradiance measurements (sampled at 1 Hz), battery health diagnostics, and user-defined inspection templates aligned with ASNT SNT-TC-1A or NAS 410 requirements. All data files include embedded device serial number, calibration date, and operator ID fields—facilitating traceability under FDA 21 CFR Part 11 when configured with electronic signature modules. No cloud storage is employed; all data remains local unless explicitly exported by the user.

Applications

• Aerospace & defense: Penetrant inspection of turbine blades, weld seams, and composite structures per AMS 2644 and MIL-STD-2132.
• Automotive manufacturing: Detection of machining fluid residues, sealant coverage verification, and adhesive bond-line inspection.
• Pharmaceutical QA: Visual confirmation of cleaning validation markers (e.g., ResiDye™) on stainless-steel surfaces under controlled white-light + UV dual-mode lighting.
• Academic research: Fluorescent protein localization in gel documentation, TLC plate visualization, and microfluidic channel integrity checks.
• Forensics & security: Latent fingerprint development with cyanoacrylate fuming, counterfeit document analysis, and fiber trace evidence excitation.

FAQ

What safety certifications do these UV-A flashlights carry?
All models comply with IEC 62471 (Photobiological Safety of Lamps) as Risk Group 1 (Exempt), and meet mechanical robustness requirements per MIL-STD-810G Method 516.6 (shock) and Method 514.6 (vibration). Eye protection (ANSI Z87.1 UV-blocking goggles) is mandatory during extended exposure.
Can these units be used for UV curing validation?
Yes—models delivering ≥8,000 µW/cm² at 38 cm (e.g., OPTIMAX OPX-365, Nano IDX-400/IDX-500X) are routinely deployed to verify minimum irradiance thresholds for acrylate-based adhesives per ISO 11607-2 Annex D.
Is radiometric recalibration available after purchase?
Spectro-UV offers biennial NIST-traceable recalibration services through its U.S.-based metrology lab, including full spectral power distribution (SPD) analysis and beam uniformity mapping.
Do any models support Bluetooth or wireless data transmission?
No—wireless connectivity is intentionally omitted to ensure electromagnetic compatibility (EMC) in sensitive environments such as avionics bays and MRI-adjacent labs. Data transfer occurs exclusively via encrypted USB-C interface.
Are replacement batteries and filters user-serviceable?
Yes—battery compartments and filter mounts are tool-free; OEM-certified spares (Li-ion P/N LBC-365-2200, filter set P/N FTR-365-BP) are stocked globally and ship with installation instructions compliant with ISO 9001 service documentation standards.
