Spectro-UV UV Lamp Series
| Brand | Spectro-UV |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model Series | UV Lamp Series |
| Light Source Type | Ultraviolet (UV-A/UV-B/UV-C) LED & Micro-Discharge Lamp (MDL) Systems |
| Compliance | ASTM E3022-18, ISO 3059:2012, RRES 90061:2014, AITM6-1001 Issue 15 |
| IP Rating | IP65 to IP68 |
| Beam Uniformity | ≥5″ diameter at ≥1,000 µW/cm² @ 38 cm |
| UV-A Peak Wavelength | 365 nm ±5 nm |
| FWHM | ≤15 nm (high-performance filtered), ≤30 nm (broadband) |
| Irradiance | 1,000–5,000 µW/cm² @ 38 cm |
| Visible Light Emission | ≤20 lux (ASTM-compliant) |
| Battery Runtime | 3.5–24+ hours (model-dependent) |
| Operating Voltage | 100–240 V AC (universal) or rechargeable Li-ion |
| Safety | Cool-to-touch housing, thermal cutoff, MDL mercury content <3% of HID standard |
Overview
Spectro-UV UV Lamp Series comprises a comprehensive portfolio of engineered ultraviolet light sources designed for precision fluorescence excitation, non-destructive testing (NDT), forensic evidence visualization, aerospace component inspection, and laboratory-based photobiological applications. These instruments operate across the full UV spectrum—UV-A (315–400 nm), UV-B (280–315 nm), and UV-C (100–280 nm)—with wavelength-specific configurations optimized for regulatory compliance and application fidelity. Core technologies include high-efficiency micro-discharge lamps (MDL) and solid-state UV LEDs, both engineered to deliver stable spectral output, minimal visible light leakage (<20 lux), and low thermal load—ensuring operator safety and sample integrity. All UV-A models meet or exceed the irradiance, spectral bandwidth (FWHM ≤15 nm), and beam uniformity requirements defined in ASTM E3022-18 for fluorescent penetrant and magnetic particle inspection, as well as ISO 3059:2012 for industrial NDT lighting validation.
Key Features

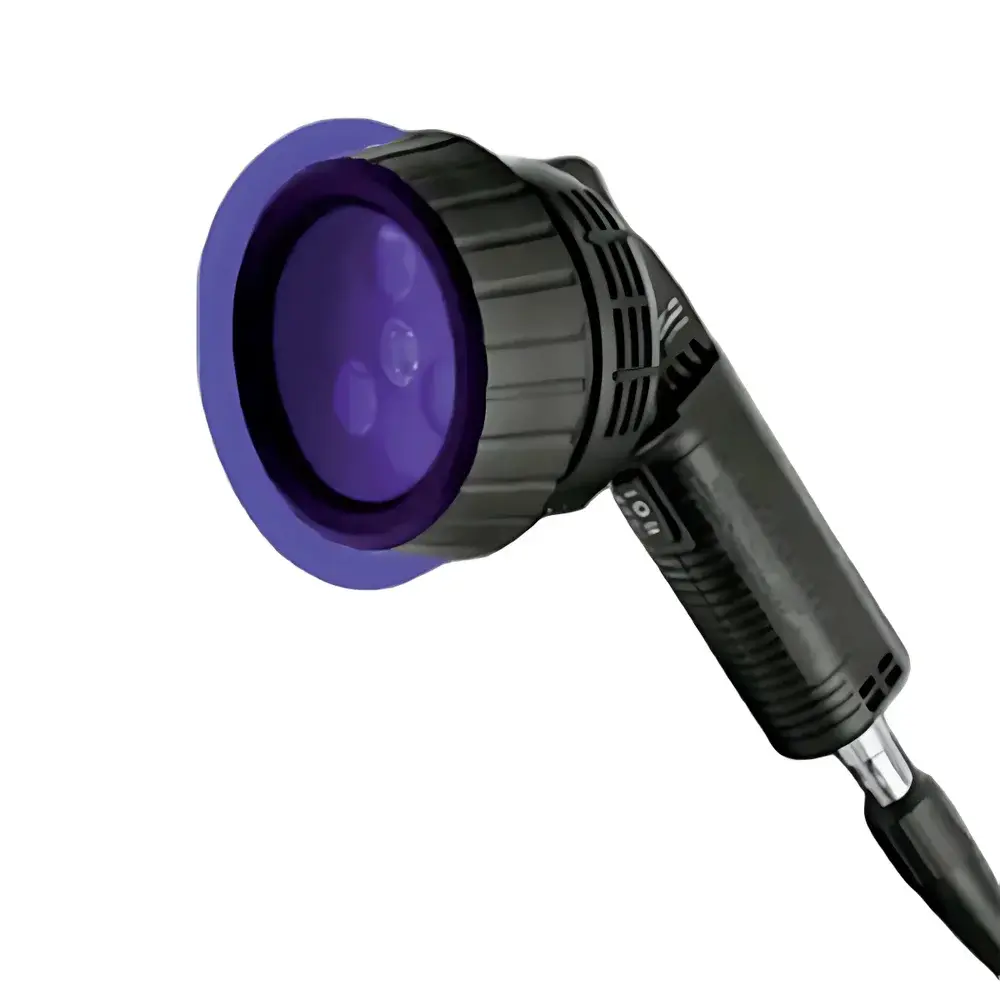

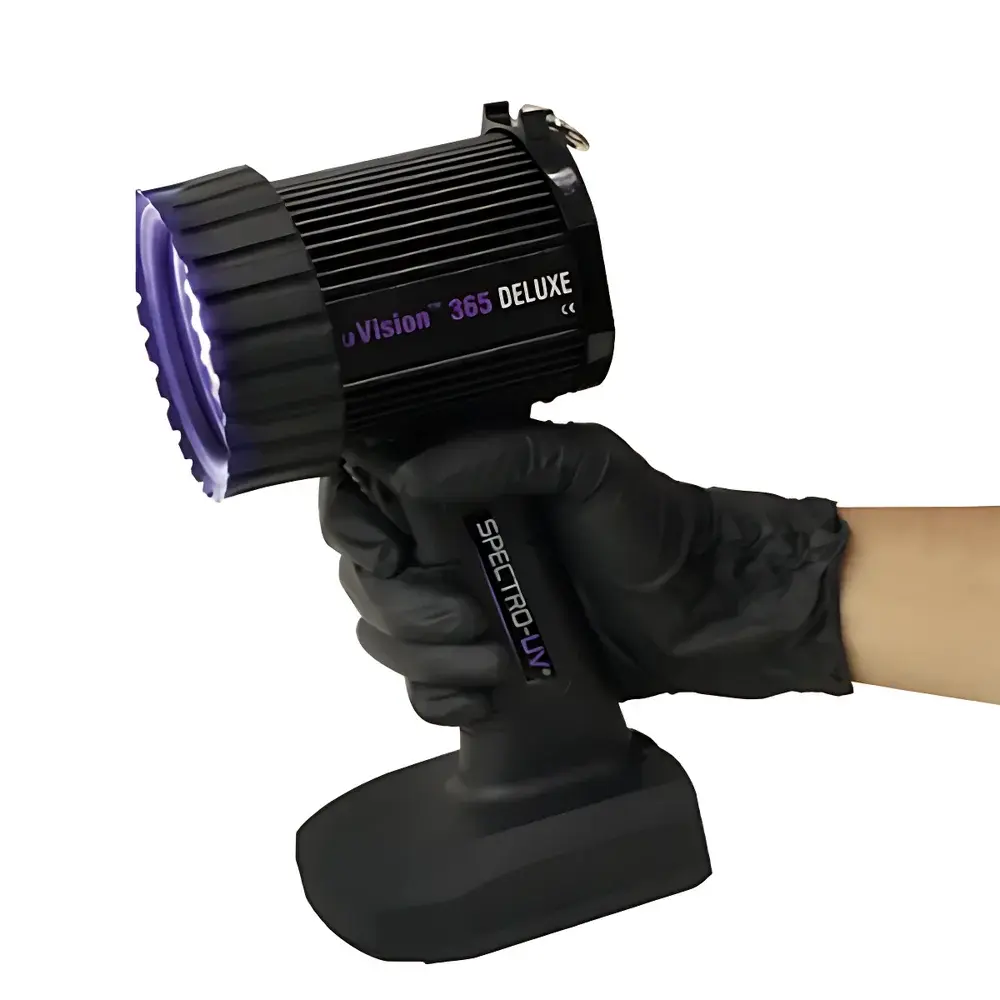

- Multi-platform form factors: handheld (fan-cooled and fanless), head-mounted (EagleEye II dual-mode), top-mounted (EDGE/PowerMAX), benchtop crosslinkers, and portable darkroom enclosures (CM Series)
- Advanced thermal management: passive aluminum heatsinking (fanless Tritan series), active thermal cutoff (Classic & PowerMAX), and cool-to-touch MDL housings eliminating burn risk
- Ruggedized ingress protection: IP65-rated for dust/water resistance; IP68-rated models (Classic, OPTIMAX, Nano) certified for submersion and field-deployable operation

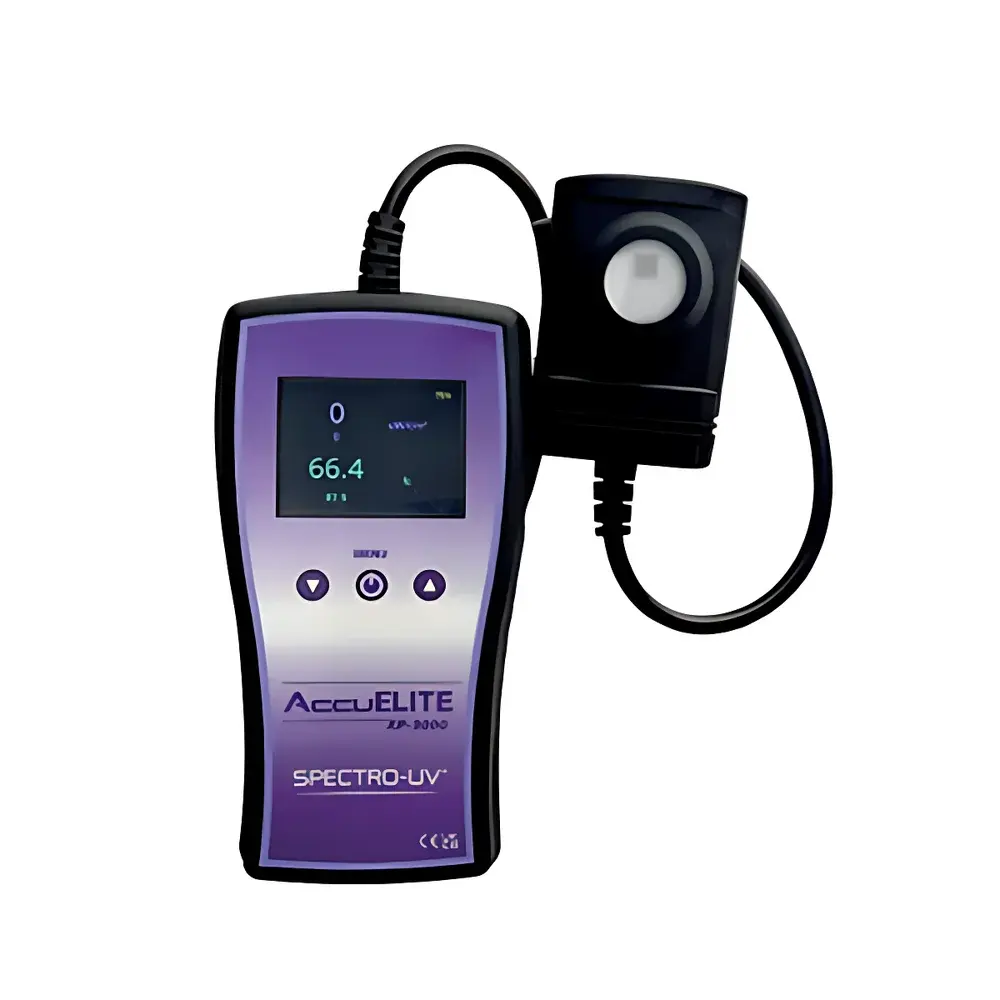

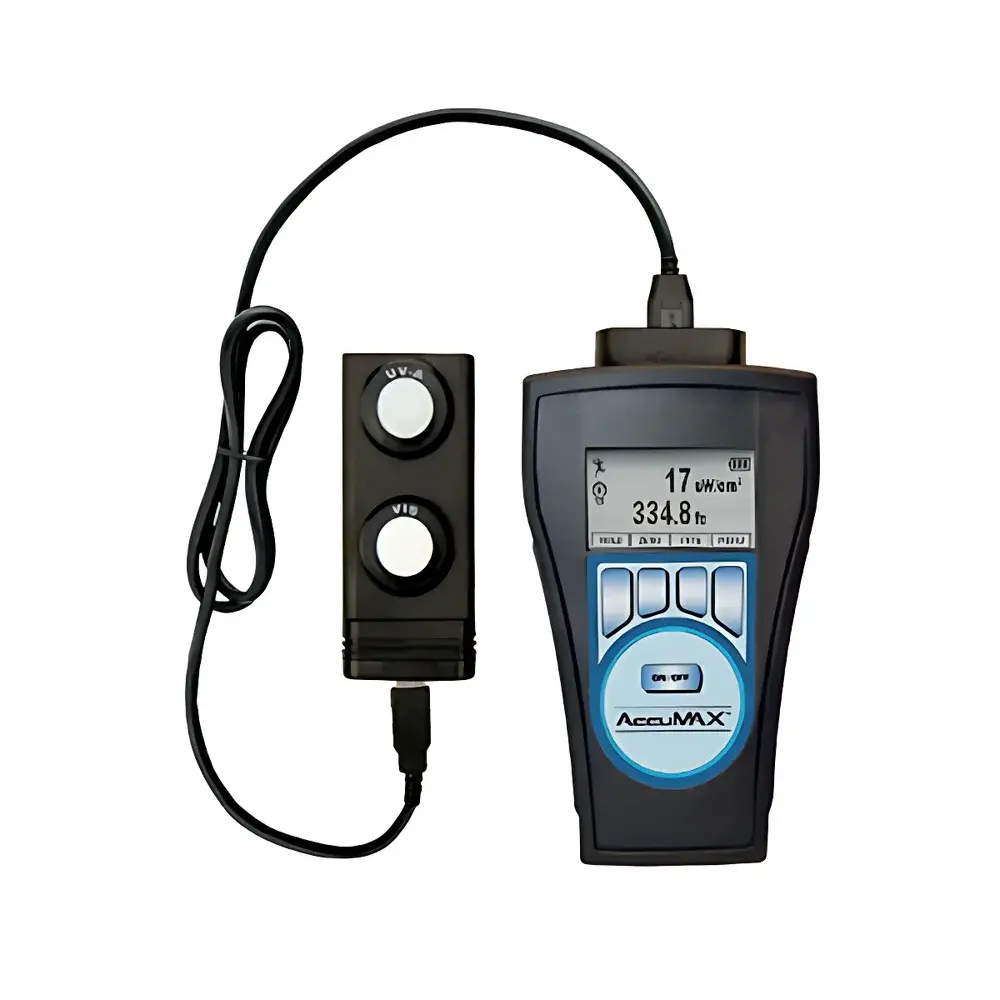

- NIST-traceable radiometric calibration: available on AccuMAX, AccuELITE, and AccuPRO meters with ±5% uncertainty at 365 nm, supporting GLP/GMP audit readiness
- Regulatory-aligned optical design: 365 nm peak output with FWHM ≤15 nm (filtered), irradiance ≥2,000 µW/cm² @ 38 cm, and visible emission ≤20 lux per ASTM E3022
- Flexible power architecture: universal AC input (100–240 V), wireless induction charging (Classic, OPTIMAX), swappable Li-ion batteries (3.5–24+ hr runtime), and hot-swappable lamp modules
- Dual-mode illumination: integrated white-light LEDs (Tritan, EagleEye II) for pre- and post-UV assessment without device switching
Sample Compatibility & Compliance
The Spectro-UV UV Lamp Series supports diverse sample types—from metallic aerospace components and composite laminates to biological specimens, forensic trace evidence (e.g., latent fingerprints, bodily fluids), and polymer films used in UV-curing processes. All UV-A inspection lamps comply with ASTM E3022-18, ISO 3059:2012, RRES 90061:2014, and AITM6-1001 Issue 15 for aerospace NDT validation. UV-C systems (RUVIS-compatible models) adhere to CDC and WHO guidelines for germicidal irradiation dosimetry when used in biosafety applications. The MDL-based lamps contain <3% mercury versus conventional HID sources, meeting RoHS Directive 2011/65/EU and reducing hazardous waste disposal burden. Each unit undergoes individual photometric verification, with test reports documenting spectral irradiance, spatial uniformity, and temporal stability—fully traceable to NIST standards where applicable.
Software & Data Management
While the core UV lamps operate as standalone optical tools, Spectro-UV’s AccuMAX, AccuELITE, and AccuPRO radiometers integrate with proprietary desktop software for irradiance logging, spectral profile comparison, and calibration certificate generation. Data export supports CSV and PDF formats compatible with LIMS and ELN platforms. All meter firmware complies with FDA 21 CFR Part 11 requirements for electronic records and signatures, including audit trails, user access controls, and immutable calibration history. Multi-language UI (English, Spanish, French, German, Chinese) ensures global lab interoperability without configuration overhead.
Applications
- Non-Destructive Testing: Fluorescent penetrant inspection (FPI) and magnetic particle testing (MT) per ASME BPVC Section V and ASTM E1417
- Forensic Science: Latent fingerprint development, bodily fluid detection (e.g., semen, saliva), and counterfeit document examination using RUVIS-grade UV-C sources
- Aerospace & Automotive: Composite delamination screening, adhesive bondline verification, and coating defect mapping under controlled UV-A exposure
- Life Sciences: DNA crosslinking (UV-C), protein gel documentation (UV-A transilluminators), and cell culture UV sterilization workflows
- Quality Control Labs: UV-curable ink/adhesive cure monitoring, fluorescence brightness validation, and material degradation studies
- Field Inspection: Portable CM-Series darkrooms and IP68-rated handheld units enable on-site NDT in hangars, shipyards, and remote infrastructure sites
FAQ
What UV wavelength ranges are supported across the Spectro-UV product line?
Spectro-UV offers discrete and broadband configurations across UV-A (315–400 nm), UV-B (280–315 nm), and UV-C (200–280 nm), with model-specific filtering to isolate 365 nm (ASTM-compliant), 254 nm (germicidal), or 312 nm (phototherapy) bands.
Are Spectro-UV lamps compliant with FDA or EU regulatory requirements for laboratory use?
Yes—UV-A inspection lamps meet ASTM E3022-18 and ISO 3059:2012, which are referenced in FDA guidance for medical device manufacturing inspections. Radiometers support 21 CFR Part 11 compliance via secure audit trails and electronic signature capability.
Can Spectro-UV lamps be used for UV curing applications?
Select models—including PowerMAX top-mount units and X-Series benchtop lamps—deliver irradiance profiles suitable for photoinitiator activation in adhesives, coatings, and 3D printing resins; spectral output must be matched to the initiator’s absorption peak (e.g., 365 nm for common acylphosphine oxides).
Do Spectro-UV products require annual recalibration?
Radiometers (AccuMAX/AccuPRO) require annual NIST-traceable recalibration per ISO/IEC 17025; UV lamps themselves do not require recalibration but should undergo periodic irradiance verification using a calibrated meter—recommended every 6 months in high-use environments.
Is technical support available for international customers?
Yes—Spectro-UV maintains authorized service centers in North America, Europe, and APAC regions, with multilingual engineering support and spare parts logistics aligned with ISO 9001-certified distribution channels.
