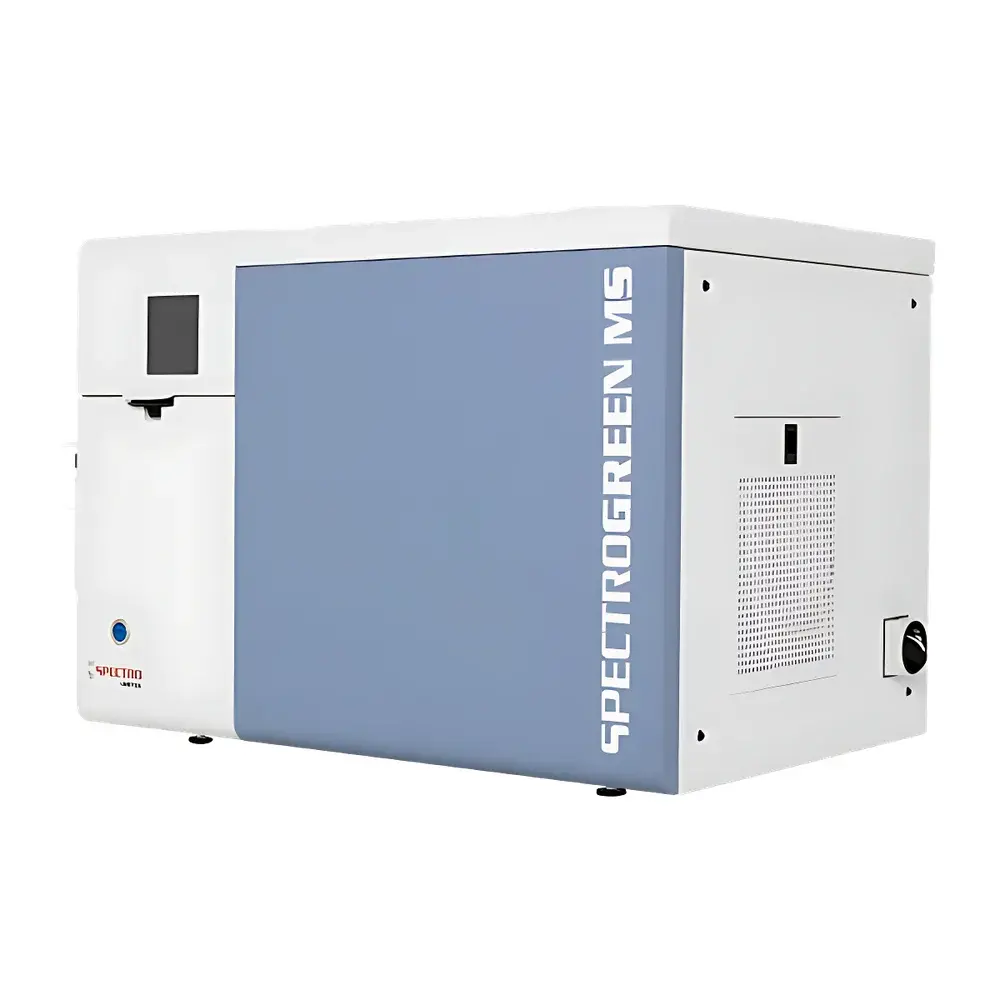

SPECTROGREEN MS Inductively Coupled Plasma Mass Spectrometer

Overview

The SPECTROGREEN MS is a high-performance quadrupole inductively coupled plasma mass spectrometer (ICP-MS) engineered for routine, high-throughput elemental analysis in regulated and research laboratory environments. It operates on the fundamental principle of ionizing sample aerosols in a high-temperature argon plasma (~7,000–10,000 K), followed by mass separation of resulting ions via a robust RF-driven quadrupole mass filter and detection using a high-gain electron multiplier. Designed specifically for laboratories requiring sub-trace quantification across complex matrices—such as environmental water, soil digests, pharmaceutical excipients, and consumer product leachates—the instrument delivers exceptional sensitivity, long-term reproducibility, and interference mitigation without compromising operational simplicity.

Key Features

• High-power LDMOS RF generator (≥1.6 kW) ensures stable plasma ignition and sustained energy coupling under variable matrix loads, minimizing signal drift during extended sequences.
• Advanced high-matrix interface with integrated aerosol dilution capability enables direct analysis of saline, acidic, or organic-rich samples—reducing polyatomic interferences (e.g., ⁴⁰Ar¹⁶O⁺, ⁴⁰Ar⁴⁰Ar⁺) and extending cone lifetime.
• Shielded torch assembly with quartz protective sleeve enhances thermal stability, reduces carbon deposition, and extends consumable service intervals—contributing to >95% instrument uptime in multi-shift operations.
• Optimized ion optics path with low-pressure collision/reaction cell (optional configuration) provides effective removal of isobaric and polyatomic overlaps while preserving transmission efficiency.
• Modular, tool-free sample introduction system allows rapid interchange of nebulizers, spray chambers, and torches—minimizing downtime during method transitions or maintenance.

Sample Compatibility & Compliance

The SPECTROGREEN MS supports aqueous solutions (0.1–5% HNO₃), digested solids (EPA Method 200.8, ISO 17294-2), and diluted organic extracts (after appropriate matrix removal). Its performance aligns with key regulatory frameworks including US EPA 200.8 and 6020B, ISO/IEC 17025:2017 requirements for measurement uncertainty estimation, and ASTM D5673 for trace metal analysis in drinking water. The system architecture supports full audit trail functionality, electronic signature compliance, and data integrity protocols consistent with FDA 21 CFR Part 11 and EU Annex 11 expectations for GLP/GMP environments.

Software & Data Management

Controlled by SPECTRO ICP-MS Analyzer Pro—a validated, role-based software platform—the instrument offers intuitive method setup, real-time spectral monitoring, automated mass calibration, and integrated interference correction algorithms (e.g., mathematical correction for ⁸⁷Rb/⁸⁷Sr overlap). All raw and processed data are stored in vendor-neutral formats (e.g., .csv, .mzML) with embedded metadata (instrument parameters, calibration history, operator ID, timestamp). The software includes built-in QC tracking (spike recovery, bracketing standards, blank monitoring), customizable reporting templates compliant with LIMS integration (via ASTM E1384 or HL7), and optional 21 CFR Part 11 module for electronic records management.

Applications

• Environmental monitoring: Quantification of As, Cd, Pb, U, and rare earth elements (REEs) in surface water, groundwater, and wastewater at sub-ppt levels per EPA 200.8.
• Pharmaceutical quality control: Elemental impurity screening per ICH Q3D guidelines—including catalyst residues (Pd, Pt, Rh) and toxic metals (Ni, V, Tl) in APIs and drug products.
• Consumer safety testing: Multi-element analysis of toys, cosmetics, and food contact materials per CPSIA, EU REACH, and China GB/T 23344 standards.
• Geochemical research: Isotopic ratio measurements (e.g., ⁸⁷Sr/⁸⁶Sr) with external standard bracketing for provenance studies.
• Materials science: Trace dopant profiling in semiconductor-grade silicon wafers and battery cathode precursors.

FAQ

What regulatory standards does the SPECTROGREEN MS support for routine compliance testing?

It meets method requirements for US EPA 200.8, ISO 17294-2, ASTM D5673, and ICH Q3D; software and data handling comply with 21 CFR Part 11 when configured with the optional validation package.
Can the instrument handle high-salt or organic matrices without extensive sample preparation?

Yes—the high-matrix interface and aerosol dilution system allow direct analysis of seawater, brines, and 10% methanol solutions with minimal signal suppression or cone clogging.
Is remote diagnostics and preventive maintenance scheduling supported?

The Analyzer Pro software includes predictive health monitoring, automated log-file upload to SPECTRO technical support servers, and calendar-based service reminders aligned with component lifetime specifications.
How is isotopic ratio precision achieved in routine operation?

Through real-time mass calibration using internal reference gases, high-stability RF tuning, and optional Faraday cup detector configuration for long-term ratio stability (RSD <0.15% over 8 h).
Does the system support method transfer from other ICP-MS platforms?

Yes—mass axis calibration files, interference correction tables, and report templates are exportable/importable in standardized formats to facilitate cross-platform validation and harmonization.
