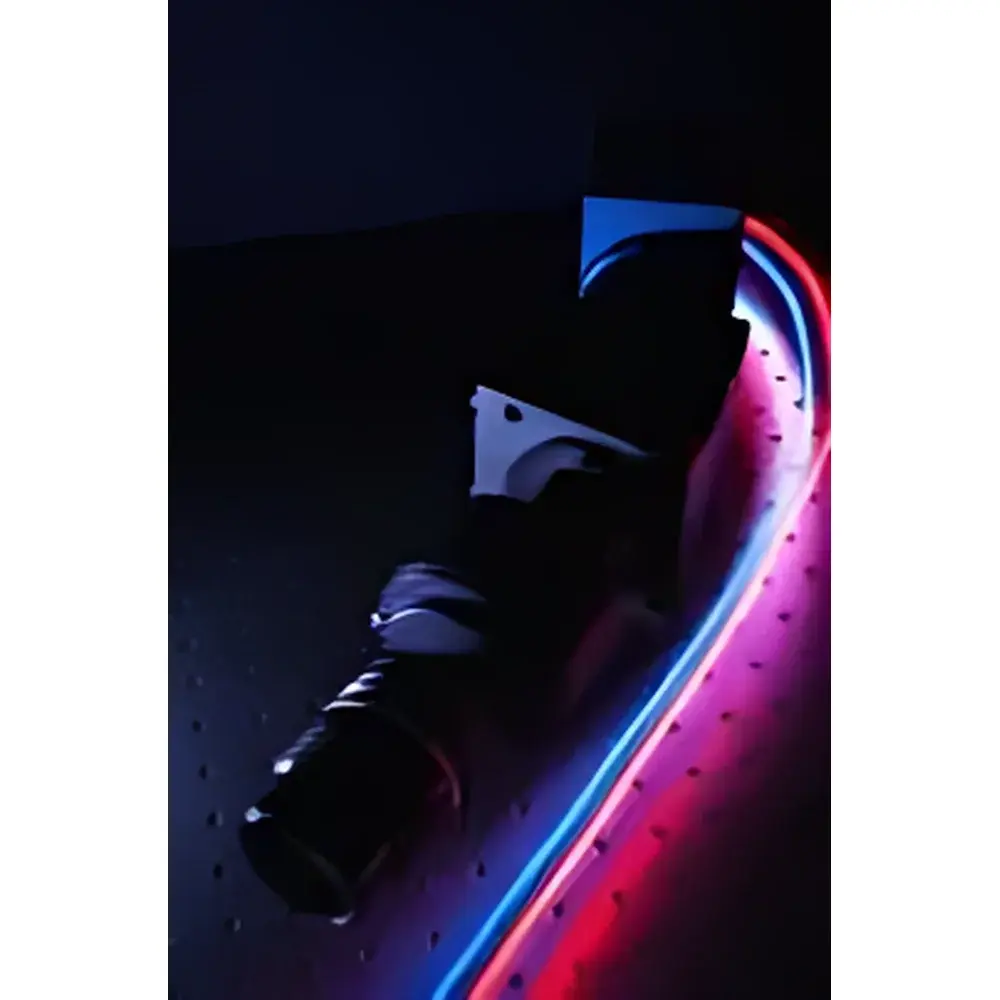

SPL Photonics Raman Spectrometer
| Origin | USA |
|---|---|
| Supplier Type | Authorized Distributor |
| Import Status | Imported |
| Model | Raman Spectrometer |
| Pricing | Available Upon Request |
Overview
The SPL Photonics Raman Spectrometer is a high-performance, non-scanning dispersive Raman spectroscopy system engineered for precision molecular fingerprinting across solid, liquid, gaseous, and heterogeneous samples. Based on inelastic light scattering—where incident monochromatic laser photons interact with molecular vibrational modes—the instrument captures Stokes and anti-Stokes Raman shifts (typically reported in cm⁻¹) to deliver chemically specific structural information without sample destruction or extensive preparation. Unlike FT-Raman systems requiring interferometric stability, this spectrometer employs a patented transmission-optics architecture combined with high-throughput Czerny–Turner spectrograph design and back-illuminated, deep-depletion CCD or CMOS detector arrays. The result is a robust, alignment-stable platform optimized for low-light conditions, enabling reliable detection of weak Raman signals even from dilute species or thermally sensitive materials.
Key Features
- Patented transmission-based optical path minimizing aberrations and maximizing throughput across 200–3500 cm⁻¹ spectral range (configurable via grating selection)
- Non-scanning acquisition architecture eliminating moving parts—ensuring long-term mechanical stability and measurement reproducibility
- High quantum efficiency detector (≥95% peak QE) cooled to –60°C for dark-current suppression and enhanced signal-to-noise ratio (SNR > 1000:1 at 1 s integration)
- Modular laser excitation options: 532 nm, 785 nm, and 1064 nm diode-pumped solid-state (DPSS) sources with integrated power stabilization and beam conditioning
- Compatible with standard microscope stages, fiber-coupled probes, and multi-position sample carousels for automated batch analysis
- Rugged aluminum alloy chassis with EMI-shielded enclosure meeting IEC 61326-1 for laboratory electromagnetic compatibility
Sample Compatibility & Compliance
The system supports direct analysis of powders, crystals, thin films, emulsions, gases in sealed cells, and biological tissues—without derivatization or labeling. Its open-beam and fiber-optic probe configurations comply with ASTM E1840-22 (Standard Guide for Raman Spectroscopy Data Acquisition and Processing) and ISO 8573-9 (for gas-phase impurity identification). When operated under controlled environmental conditions (20–25°C, <50% RH), the spectrometer meets GLP documentation requirements for routine QC testing. Optional NIST-traceable calibration standards (e.g., silicon, cyclohexane, sulfur) enable instrument performance verification per USP and FDA 21 CFR Part 11–compliant audit trails when paired with validated software modules.
Software & Data Management
Controlled via SPL SpectraSuite™—a Windows-based application supporting real-time spectral acquisition, baseline correction (Asymmetric Least Squares), peak deconvolution (Gaussian/Lorentzian fitting), and multivariate analysis (PCA, PLS regression). Raw data is saved in vendor-neutral HDF5 format with embedded metadata (laser wavelength, integration time, grating ID, detector temperature). The software includes built-in spectral libraries (SDBS, RRUFF, NIST Chemistry WebBook) and supports custom library creation with spectral matching algorithms (cosine similarity, Euclidean distance). For regulated environments, optional 21 CFR Part 11 compliance package provides electronic signatures, role-based access control, and immutable audit logs synchronized with network time protocol (NTP).
Applications
- Pharmaceutical solid-state characterization: polymorph identification, API-excipient interaction mapping, and counterfeit drug screening
- Materials science: stress/strain evaluation in 2D materials (graphene, MoS₂), carbon nanotube chirality assignment, and catalyst surface adsorption studies
- Environmental monitoring: microplastic identification in water filtrates, atmospheric particulate composition, and soil contaminant profiling
- Life sciences: label-free cellular imaging (Raman microscopy), protein secondary structure quantification, and real-time metabolic monitoring in bioreactors
- Forensics and art conservation: pigment authentication, ink differentiation, and degradation product analysis in historical manuscripts
FAQ
What laser excitation wavelengths are supported?
Standard configurations include 532 nm (visible), 785 nm (near-infrared), and 1064 nm (infrared) lasers—selected to balance Raman cross-section, fluorescence suppression, and detector sensitivity.
Is the system compatible with third-party microscopes?
Yes—via standardized C-mount or SM1-threaded couplers; full integration with Olympus, Nikon, and Zeiss upright/inverted platforms is documented in the OEM interface manual.
Can spectra be exported for use in MATLAB or Python?
Absolutely—HDF5 and ASCII CSV exports include calibrated wavenumber axes and intensity values, with Python API support (spl-rs-sdk) available for automated batch processing.
Does the system meet ISO/IEC 17025 requirements for accredited testing labs?
When deployed with certified reference materials, documented preventive maintenance logs, and validated SOPs, the platform satisfies technical competence criteria outlined in ISO/IEC 17025:2017 Clause 6.4 (Equipment) and 6.5 (Measurement Traceability).
What is the typical acquisition time for a single spectrum?
From 10 ms to 60 s depending on sample concentration, laser power, and required SNR—optimized via automatic exposure control algorithm embedded in SpectraSuite™.
