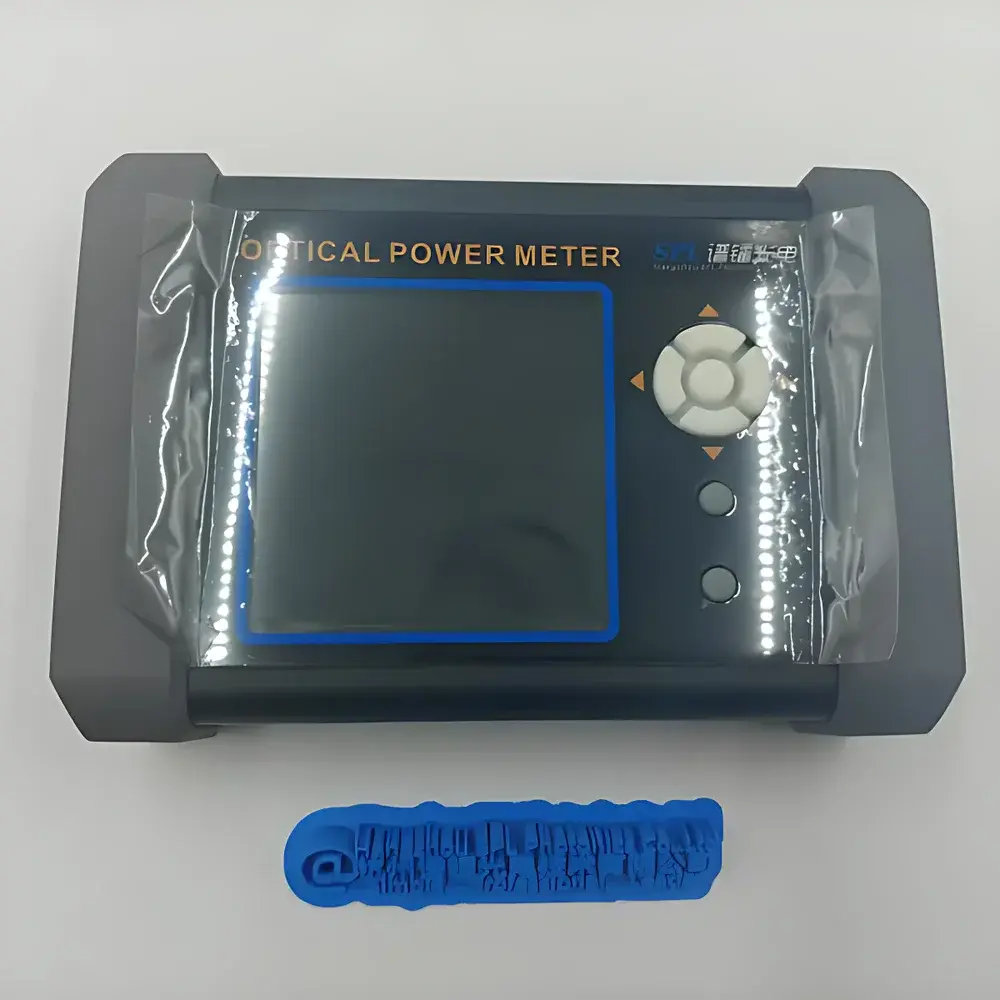

SPL SPL-8201-02 Handheld Optical Power Meter

Overview

The SPL SPL-8201-02 Handheld Optical Power Meter is a precision-engineered instrument designed for reliable, field-deployable measurement of optical power across laser, fiber-optic, and photonic component testing applications. Based on calibrated photodetector or thermopile sensor input—paired with high-stability analog-to-digital conversion and real-time digital signal processing—the SPL-8201-02 delivers traceable optical power readings in both absolute (W) and logarithmic (dBm) units. Its architecture supports dual-mode operation: standalone handheld use with internal battery autonomy, and benchtop integration via USB 2.0 or RS232 for automated data acquisition. The device implements hardware-level digital filtering to suppress noise during low-level signal capture, ensuring high reproducibility in environments where ambient light, thermal drift, or electrical interference may compromise measurement integrity. Designed for compliance with general laboratory instrumentation requirements, it meets IEC 61000-4 electromagnetic compatibility standards and operates within ISO/IEC 17025-aligned calibration workflows when used with SPL-certified detectors.

Key Features

• High-resolution 4-inch HD LCD display (70 mm × 70 mm) with configurable brightness and contrast for indoor and semi-outdoor visibility
• Triple power options: integrated 7200 mAh Li-polymer rechargeable battery (up to 12 hours continuous operation), USB bus-powered mode, and universal AC adapter (100–240 VAC input)
• Real-time statistical analysis: simultaneous display of instantaneous, minimum, maximum, average, and peak-to-peak (PTP) power values at 10 Hz sampling rate
• Dual-signal interface support: digital communication with SPL-series detectors (e.g., SPL-8202 photodiode, SPL-8203 thermopile, SPL-8205 integrating sphere) and analog 0–2.5 V output via SMA905 connector for external monitoring systems
• Onboard storage for up to 10,000 measurement records with timestamping; no external memory card required
• Auto-ranging functionality with seamless switching between W and dBm units; user-selectable averaging window (1–100 samples)
• Rugged industrial enclosure (IP52-rated dust resistance) with ergonomic form factor (160 × 120 × 40 mm, 650 g) optimized for one-handed operation and vibration-damped bench use

Sample Compatibility & Compliance

The SPL-8201-02 is engineered to interface with a defined family of calibrated optical sensors, including silicon photodiode-based SPL-8202 (350–1100 nm), thermopile-type SPL-8203 (190–20,000 nm), and integrating sphere-coupled SPL-8205 (200–2500 nm), each supplied with NIST-traceable calibration certificates. Detector interchangeability is maintained through standardized digital handshake protocols and analog voltage scaling. While the meter itself does not carry CE marking for medical or hazardous-location use, its electrical safety conforms to IEC 61010-1:2010 (Measurement Category II, Pollution Degree 2). For regulated environments—including GLP/GMP laboratories and telecom infrastructure QA/QC labs—the device supports audit-ready data export and time-stamped logging compatible with FDA 21 CFR Part 11-compliant software configurations when deployed with validated third-party acquisition platforms.

Software & Data Management

The included OpticalPowerMeter PC software (Windows 10/11, 64-bit) enables synchronized multi-channel acquisition from up to four SPL-8201-02 units or detector channels. It provides real-time waveform visualization, statistical summary tables (mean, std. deviation, min/max), and CSV/Excel export with metadata (date, time, unit, detector ID, calibration date). Raw data files include embedded checksums for integrity verification. Software supports configurable trigger modes (level, edge, timeout), batch file naming rules, and folder-based project organization. For system integrators, SPL provides documented USB HID and virtual COM port APIs (C/C++, Python, LabVIEW drivers available), enabling OEM embedding into automated test benches or custom GUI applications without proprietary runtime dependencies.

Applications

• Laser diode and DPSS laser output power verification during production and field service
• Insertion loss and return loss characterization of passive optical components (isolators, couplers, WDM filters)
• Fiber optic link commissioning and maintenance, including PON and FTTH network power budget validation
• Photovoltaic cell spectral responsivity mapping when paired with monochromator-scanned SPL-8203 thermopile detectors
• UV radiation dosimetry in solar simulation and sterilization equipment qualification (using UV-enhanced SPL-8202 variants)
• Calibration transfer between reference-grade power meters and working standards in metrology labs

FAQ

What calibration standards does the SPL-8201-02 support?
It accepts detectors calibrated against NIST-traceable reference standards; SPL provides individual calibration reports per detector with uncertainty budgets compliant with ISO/IEC 17025 requirements.
Can the SPL-8201-02 operate without a connected PC?
Yes—it functions fully autonomously with onboard display, statistics, and 10,000-record storage; USB connection is only required for data export or remote control.
Is analog output available simultaneously with digital readout?
Yes—the SMA905 0–2.5 V analog output mirrors the primary digital reading in real time and remains active during battery-only operation.
Does the device support custom wavelength correction factors?
Yes—users can load wavelength-dependent responsivity tables (CSV format) into detector profiles via the PC software for spectral compensation.
What is the typical measurement uncertainty when using SPL-8202 with 633 nm HeNe laser?
When used with factory-calibrated SPL-8202 and operated within 23 ± 2 °C ambient conditions, expanded uncertainty (k=2) is ≤±3.5% for powers between 10 nW and 200 mW.
