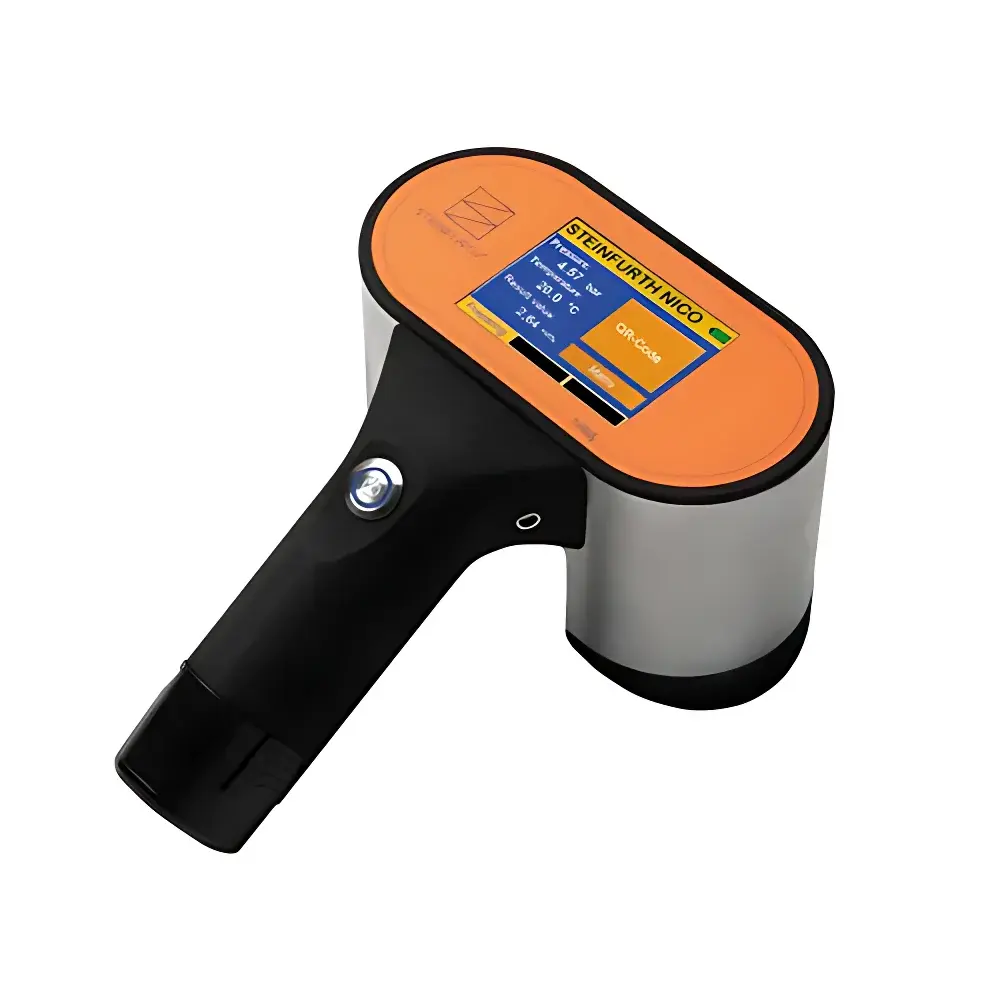

Steinfurth NICO Handheld Non-Destructive CO₂ Analyzer for Beverages

Overview

The Steinfurth NICO Handheld Non-Destructive CO₂ Analyzer is an engineered solution for real-time, in-container carbonation analysis of sealed transparent beverage packages—primarily beer, sparkling water, cider, and soft drinks. Unlike conventional destructive methods requiring sample extraction or headspace gas sampling, the NICO employs a proprietary non-invasive laser-based optical sensing principle grounded in Henry’s Law and Dalton’s Law of Partial Pressures. It simultaneously measures internal package pressure and equilibrium temperature at the headspace–liquid interface, then computes dissolved CO₂ concentration (g/L or vol%) using a validated thermodynamic model calibrated for common beverage matrices. This physics-based approach eliminates calibration drift associated with electrochemical sensors and avoids cross-contamination risks inherent in puncture-based systems. Designed for operational continuity across production lines, quality control labs, and warehouse audits, the NICO delivers traceable, repeatable results without compromising package integrity—enabling true end-to-end CO₂ monitoring from filler exit to point-of-sale.

Key Features

• Non-destructive measurement on fully sealed, transparent containers (glass, PET, clear HDPE)
• Integrated high-stability pressure transducer and Pt1000-grade temperature sensor with real-time thermal compensation
• Class 1M laser module compliant with IEC 60825-1:2014 for safe industrial use
• Touchscreen interface with intuitive workflow guidance and on-device data logging (≥10,000 measurements)
• Battery-powered operation (rechargeable Li-ion, >8 h runtime) enabling mobility across filling lines, cold rooms, and retail distribution centers
• Wi-Fi 802.11 b/g/n and QR-code-assisted data export for integration into LIMS or MES platforms
• Automatic equilibrium detection algorithm that validates thermal and pressure stability before result calculation
• Robust aluminum-magnesium alloy housing rated IP54 for resistance to humidity, condensation, and incidental splashes

Sample Compatibility & Compliance

The NICO is validated for use with standard beverage containers ranging from 200 mL glass bottles to 2 L PET bottles, provided wall transparency permits optical access to the headspace region. It is not suitable for opaque, metallized, or heavily textured packaging. All measurement algorithms adhere to fundamental thermodynamic principles defined in ISO 22675:2021 (Carbonated beverages — Determination of carbon dioxide content) and align with ASTM D5927–22 (Standard Test Method for Carbon Dioxide Content of Carbonated Beverages). The device supports audit-ready data management: timestamps, operator ID, container ID (via manual entry or barcode scan), ambient conditions, and raw sensor outputs are stored with cryptographic integrity. Firmware complies with FDA 21 CFR Part 11 requirements for electronic records and signatures when used in GMP-regulated environments.

Software & Data Management

NICO firmware includes embedded data management tools supporting CSV export via Wi-Fi or micro-USB. Optional Steinfurth Analytics Suite (Windows/macOS) enables batch reporting, statistical process control (SPC) charting, trend analysis across shifts or SKUs, and deviation alerts based on user-defined CO₂ tolerance bands. Audit logs record all configuration changes, firmware updates, and calibration events with immutable timestamps. Data encryption (AES-256) and role-based access control ensure compliance with GDPR and internal QA protocols. Integration with enterprise systems is supported through RESTful API endpoints for automated ingestion into SAP QM, LabWare LIMS, or custom SCADA dashboards.

Applications

• Real-time verification of carbonation levels post-filler to prevent under-/over-carbonation rejects
• In-line QC checks during palletizing and cold storage to monitor CO₂ loss due to temperature cycling or seal degradation
• Shelf-life studies tracking CO₂ migration over time under accelerated aging conditions
• Supplier qualification of preforms, closures, and bottle designs based on CO₂ retention performance
• Regulatory submissions requiring documented CO₂ consistency across batches (e.g., EU Food Information to Consumers Regulation No. 1169/2011)
• Technical support diagnostics for troubleshooting carbonation instability in craft brewing or RTD production

FAQ

Does the NICO require calibration against reference standards?
Yes—initial factory calibration is traceable to NIST-certified pressure and temperature references. Field recalibration is recommended every 12 months or after 5,000 measurements, using Steinfurth-certified calibration kits (part no. CAL-NICO-KIT).

Can the NICO measure CO₂ in cans or aluminum bottles?
No—the optical measurement principle requires direct line-of-sight to the headspace; metal or opaque packaging blocks the laser path and invalidates the pressure/temperature interface reading.

How does the device handle temperature gradients between liquid and headspace?
The NICO’s adaptive acquisition protocol monitors thermal variance for ≥3 seconds before initiating computation. If ΔT exceeds 0.15 °C, it prompts the operator to gently invert or swirl the container to re-establish equilibrium—consistent with ISO 22675 procedural guidance.

Is the battery replaceable by the end user?
Yes—the sealed Li-ion pack is field-replaceable using Torx T8 tools and standard service documentation (available under NDA via Steinfurth Technical Support Portal).

What validation documentation is supplied with each unit?
Each NICO ships with a Certificate of Conformance, Factory Calibration Report (including uncertainty budgets per ISO/IEC 17025), and EU Declaration of Conformity (CE marked under 2014/30/EU EMC Directive and 2014/53/EU RED).
