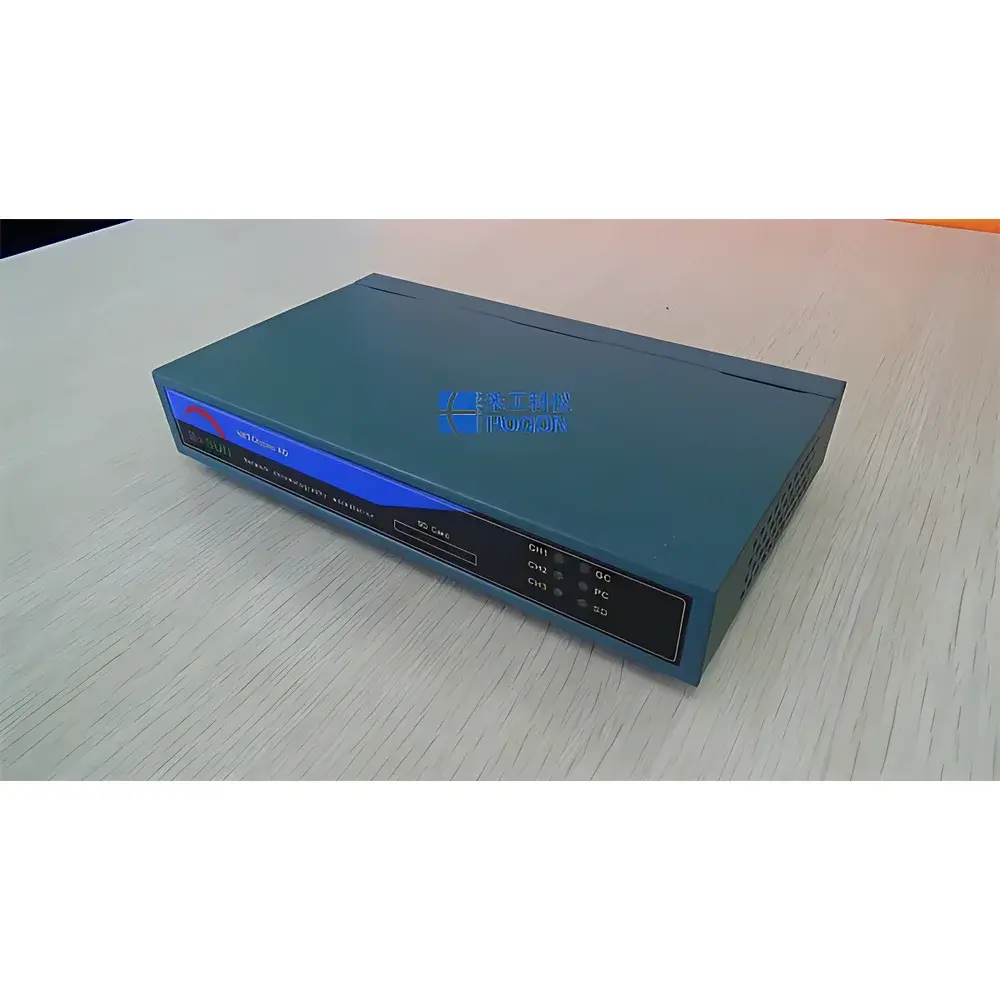

STI-netchrom Networked Chromatography Data System

Overview

The STI-netchrom Networked Chromatography Data System is a purpose-built, enterprise-grade chromatography data system (CDS) engineered for distributed laboratory and industrial process environments. Unlike legacy RS-232–based chromatography workstations—whose point-to-point architecture, low bandwidth (≤115.2 kbps), and hardware obsolescence limit scalability and interoperability—STI-netchrom implements a native Ethernet-based communication architecture compliant with IEEE 802.3 and TCP/IP v4. It operates as a centralized, multi-client server application capable of acquiring, processing, archiving, and distributing chromatographic data from up to 5,000 concurrent networked data acquisition units (e.g., analog-to-digital converters, embedded chromatograph controllers, or third-party instrument modules). The system supports real-time bidirectional control (including method download, valve sequencing, oven ramping, and detector parameter adjustment) over standard 10/100 Mbps auto-sensing Ethernet, enabling distances exceeding 100 meters without signal degradation. Its core measurement fidelity derives from high-resolution analog front-end design: ±1.25 V input range, 0.05 µV·s integration sensitivity, ≤1 µV baseline noise (at ±1.25 V full scale), and ≤3 µV/h baseline drift—meeting ISO/IEC 17025 traceability requirements for quantitative chromatographic analysis.

Key Features

• Native Ethernet architecture with TCP/IP stack—eliminates dependency on legacy serial ports and enables seamless integration into existing IT infrastructure.
• Multi-threaded real-time kernel supporting simultaneous data acquisition (up to 320 Hz sampling), mathematical processing, user authentication, and audit trail logging.
• Automated hierarchical data organization: dynamic folder creation by instrument ID, acquisition timestamp (YYYY-MM-DD_HH-MM-SS), autosampler sequence number, and injection ID—ensuring ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) compliance.
• Integrated MODBUS/TCP server module for direct integration with DCS/SCADA systems—enabling real-time transfer of component concentrations, retention times, peak areas, and alarm states to plant-level control systems.
• Advanced peak detection engine featuring adaptive baseline estimation, deconvolution of co-eluting peaks using iterative curve fitting, and intelligent peak identification based on retention time windows and spectral similarity scoring.
• Digital filtering algorithm optimized for chromatographic signals—including cascaded FIR filters with adjustable cutoff frequencies and noise suppression thresholds—to resolve peaks with amplitudes approaching baseline RMS noise levels.
• Comprehensive quantitation suite: normalization, corrected normalization, single-point internal/external standardization, and multi-point calibration curves (linear, quadratic, and weighted least-squares regression).

Sample Compatibility & Compliance

STI-netchrom processes raw chromatographic signals from gas chromatographs (GC), liquid chromatographs (LC), and ion chromatographs (IC) equipped with analog voltage outputs (±1.25 V or ±2.0 V full scale). It imports standardized CDF (ChemStation Data Format) files conforming to ASTM E1947 and AIA/Analog Devices specifications—ensuring interoperability with Agilent ChemStation, Waters Empower, and Thermo Chromeleon archives. The software adheres to GLP/GMP principles through configurable electronic signatures, role-based access control (RBAC), and immutable audit trails meeting FDA 21 CFR Part 11 requirements for record retention, change tracking, and operator accountability. All data exports—including PDF reports, CSV tables, and XML metadata—are timestamped, digitally signed, and cryptographically hashed for integrity verification.

Software & Data Management

The system deploys as a Windows Server–hosted service (Windows Server 2016/2019/2022 recommended) with optional client installations on Windows 10/11 workstations. A browser-based thin client (via HTTPS) provides remote monitoring and report review capabilities without local software installation. Data persistence uses SQL Server or PostgreSQL backends with automated daily backups, incremental log shipping, and point-in-time recovery. The API layer exposes RESTful endpoints and COM/DCOM interfaces for custom integrations—supporting extensions such as LIMS synchronization, ERP batch release workflows, and MES-driven reanalysis triggers. All user actions—including method edits, integration parameter adjustments, and result approvals—are logged with ISO 8601 timestamps, IP addresses, and Windows Active Directory credentials.

Applications

STI-netchrom is deployed in regulated manufacturing environments including fine chemical synthesis, petrochemical refining, pharmaceutical API production, and food safety testing. Typical use cases include: continuous monitoring of distillation column effluents via online GC; real-time composition feedback control in catalytic reactors; automated QC release testing of intermediate batches; and regulatory submission-ready reporting for ICH Q2(R2) method validation packages. Its MODBUS/TCP interface enables closed-loop analytics in process analytical technology (PAT) frameworks, satisfying FDA PAT guidance for multivariate statistical process control (MSPC) and real-time release testing (RTRT).

FAQ

Does STI-netchrom support FDA 21 CFR Part 11 compliance?
Yes—through electronic signature enforcement, audit trail immutability, and role-based permission sets configured per user group.
Can it acquire data from non-HOGON instruments?
Yes—via RS-232 (for legacy devices) or analog voltage input; CDF import enables post-acquisition analysis of data from Agilent, Waters, and Shimadzu systems.
What is the maximum number of acquisition channels supported per data collector?
Each networked data acquisition unit supports up to 16 analog input channels; the system scales to 5,000 such units.
Is cloud deployment supported?
On-premises deployment is standard; private cloud hosting (Azure/AWS) is available under validated virtual machine configurations.
Does it provide trending and SPC charting?
Yes—integrated X-bar/R charts, histogram analysis, and specification limit overlays are available for all quantitative results.
