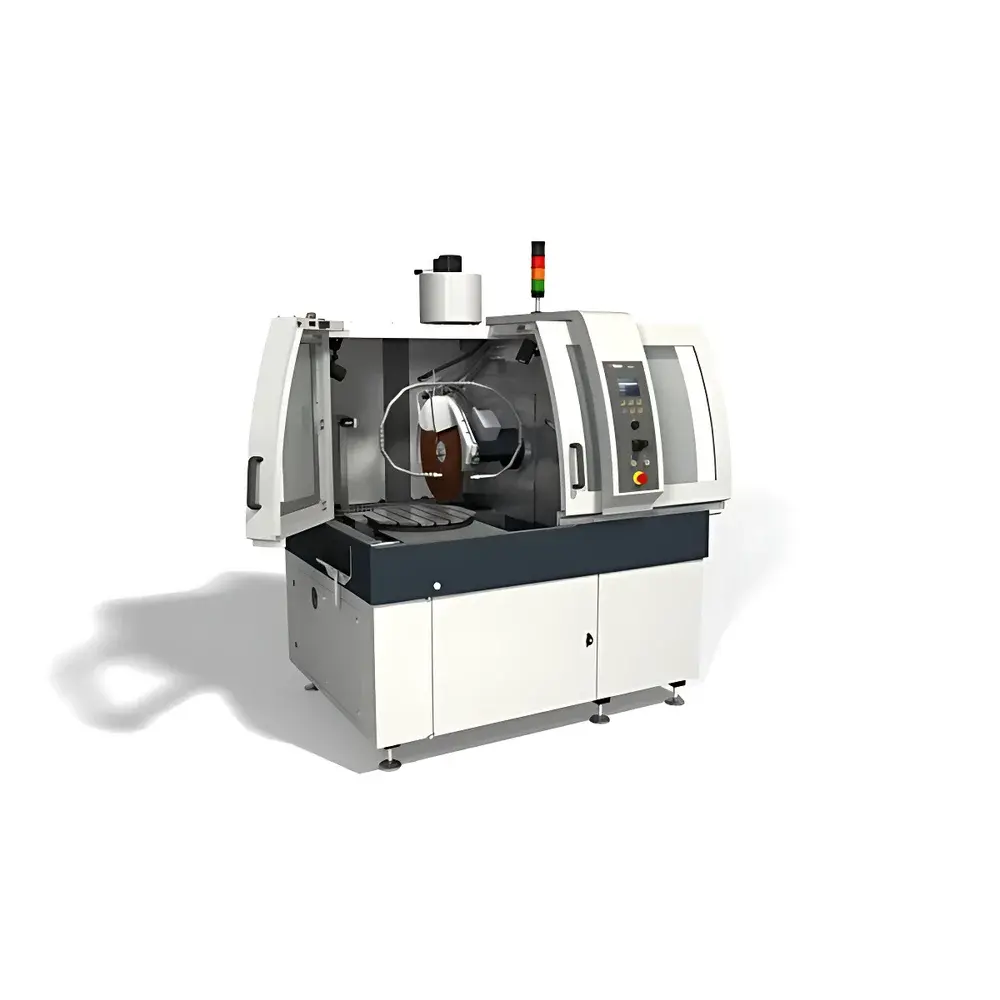

Struers Magnutom-5000 Fully Automated Large-Capacity Metallographic Cutting System

Overview

The Struers Magnutom-5000 is a fully automated, large-capacity metallographic cutting system engineered for precision, repeatability, and operational efficiency in high-throughput metallurgical laboratories. Built on Struers’ decades of expertise in materials sample preparation, the Magnutom-5000 employs a robust 4-axis kinematic architecture (X, Y, Z, and rotary table) combined with real-time motion simulation and closed-loop wear monitoring to execute complex, multi-step cutting sequences without manual repositioning or iterative trial cuts. Its core measurement and control principle centers on deterministic path planning—where each cut trajectory is digitally defined, visually simulated, validated, and then executed with micron-level positional fidelity. The system integrates laser-assisted alignment, joystick-guided programming, and adaptive spindle speed regulation to maintain consistent material removal rates across varying wheel wear states—ensuring both dimensional accuracy and extended consumable life.

Key Features

• Fully automated 4-axis motion control (linear X/Y/Z + motorized rotary table) enabling unattended execution of parallel, angled, stepped, or contour-specific cuts
• 1000 mm wide cutting chamber with sliding front access—designed for seamless integration with forklifts or overhead cranes when handling heavy or oversized specimens (e.g., castings, weldments, or turbine components)
• Icon-based AxioWash programming interface with integrated simulation engine: users define cut paths via intuitive graphical input, preview full sequence behavior before activation, and modify parameters without physical intervention
• Real-time joystick-driven trajectory recording: operator guides the cutting head to target positions; software logs coordinates, feed rates, and depth-of-cut into executable sequences with sub-millimeter resolution
• Dual-motor drive system supporting simultaneous operation of two abrasive wheels—ideal for producing matched parallel sections or performing coarse/fine sequential cuts in one setup
• Adaptive wheel wear compensation algorithm: embedded sensors monitor wheel diameter loss and dynamically adjust rotational speed to preserve optimal peripheral velocity, extending usable wheel life by up to 31% when used with Struers-certified consumables
• Cutting-motion safety logic prevents unintended contact between wheel and fixture during non-cutting traverses, minimizing risk of wheel chipping or structural damage

Sample Compatibility & Compliance

The Magnutom-5000 accommodates a broad spectrum of metallic and composite specimens—including ferrous and non-ferrous alloys, sintered metals, additive-manufactured parts, and ceramic-metal composites—up to 500 kg in mass and 900 mm in maximum height. Its rigid frame and vibration-damped base ensure stability during high-force sectioning of hardened steels or brittle intermetallics. The system complies with international standards governing metallographic specimen preparation, including ISO 14827 (metallographic sectioning procedures), ASTM E3 (standard guide for preparation of metallographic specimens), and EN ISO 643 (microstructural assessment of steels). It supports GLP/GMP-aligned documentation through optional audit-trail-enabled software modules compliant with FDA 21 CFR Part 11 requirements.

Software & Data Management

AxioWash software serves as the central command layer for the Magnutom-5000, offering an icon-driven, touch-optimized interface that eliminates syntax-based programming barriers. Each cutting program stores full metadata—including operator ID, timestamp, wheel type/lot number, coolant flow rate, feed speed, and final cut dimensions—for traceability and process validation. Exportable XML log files integrate with LIMS platforms and enterprise MES systems. Optional software upgrades provide remote diagnostics, predictive maintenance alerts based on cumulative wheel usage metrics, and batch reporting aligned with ISO/IEC 17025 quality management frameworks.

Applications

• High-volume production labs preparing specimens for optical microscopy, SEM-EDS, or microhardness testing in aerospace, automotive, and energy sectors
• Failure analysis laboratories requiring reproducible cross-sections from weld joints, heat-affected zones, or corrosion-damaged components
• Research institutions conducting serial sectioning for 3D microstructure reconstruction or phase distribution mapping
• Quality control departments validating casting integrity, coating adhesion, or powder metallurgy density uniformity
• Accredited testing labs fulfilling contractual or regulatory obligations under ISO/IEC 17025, Nadcap AC7101, or AS9100

FAQ

Can the Magnutom-5000 perform angled cuts without manual re-clamping?
Yes. Its integrated rotary table enables precise angular positioning of the specimen relative to the cutting plane, allowing multi-angle sequences (e.g., 0°, 15°, 30°, 45°) within a single automated program.
Is offline simulation required before actual cutting?
No. Simulation occurs natively within AxioWash during programming—users visualize every cut path, collision envelope, and tool engagement zone in real time prior to machine activation.
Does the system support third-party abrasive wheels?
While compatible with industry-standard ISO 5211 flange-mounted wheels, full adaptive wear compensation and optimized speed profiles are validated only with Struers-certified consumables.
How is data integrity ensured for regulated environments?
With optional software licensing, the system provides electronic signatures, immutable audit trails, user-access controls, and exportable PDF reports meeting FDA 21 CFR Part 11 and ISO/IEC 17025 documentation requirements.
What maintenance intervals are recommended for long-term reliability?
Scheduled preventive maintenance is advised every 1,200 operating hours or annually—whichever occurs first—with firmware updates and calibration verification included in Struers’ certified service packages.
