Summa Canister Sampling Controller GHD-3200

Overview

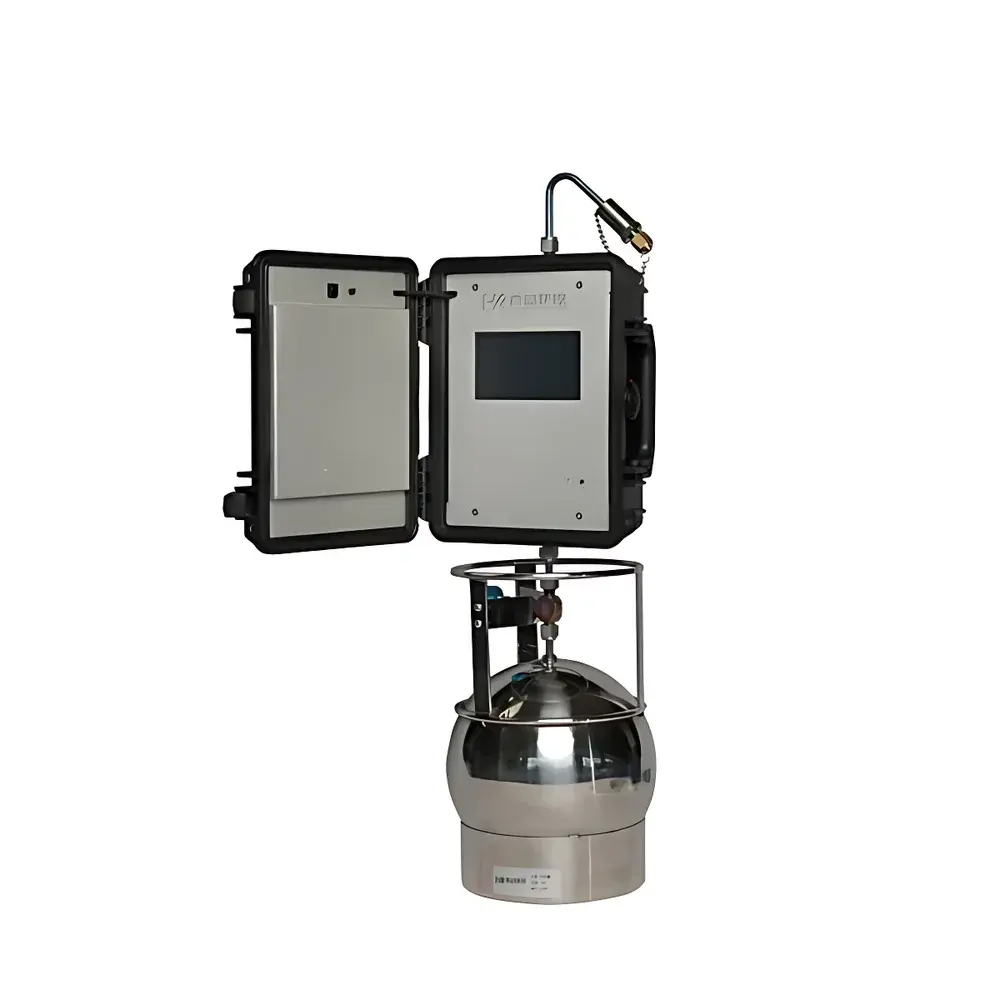

The Summa Canister Sampling Controller GHD-3200 is an engineered field-deployable instrument designed for automated, quantitative collection of volatile organic compounds (VOCs) from ambient air, fugitive emissions, and source perimeter environments. It operates on the principle of pressurized canister sampling—drawing air through a calibrated mass flow controller into electropolished, silanized stainless steel Summa canisters under controlled pressure and flow conditions. This methodology ensures quantitative recovery of C2–C12 hydrocarbons, halocarbons, oxygenates, and other priority VOCs without adsorptive loss or surface reactivity—critical for regulatory-grade analysis by gas chromatography–mass spectrometry (GC–MS) or GC–flame ionization detection (GC–FID). The GHD-3200 meets the stringent performance criteria outlined in Chinese standard HJ 759–2015 and U.S. EPA Methods TO-14A and TO-15, including flow accuracy (±2% of setpoint), pressure stability (<±0.5 psi over 24 h), and zero carryover between sampling events.

Key Features

• Programmable sampling modes: scheduled time-based sampling (up to 99 programmable start/stop events per session) and event-triggered sampling via external analog/digital input or real-time VOC concentration thresholds
• Precision mass flow control with thermal MFC technology, linear range 2–150 mL/min, full-scale repeatability ±0.5% RSD
• Integrated rechargeable 8800 mAh lithium-ion battery system supporting >168 hours of uninterrupted operation at 50 mL/min flow; optional solar charging kit available for extended deployments
• Universal Summa canister interface accommodating 0.5 L, 1 L, 3 L, and 6 L canisters with standardized Swagelok VCR fittings and helium-leak-tested connections
• Entire sample path constructed from electropolished 316 stainless steel, internally passivated with dimethyldichlorosilane (DDS) to minimize analyte adsorption and moisture retention
• Automated leak verification protocol compliant with EPA TO-15 Appendix A: performs pressure decay test pre- and post-sampling with pass/fail logging and timestamped audit trail
• IP54-rated enclosure with conformal-coated PCBs, silica-gel desiccant chambers, and hydrophobic membrane venting for reliable operation in high-humidity, dusty, or temperature-variable field conditions

Sample Compatibility & Compliance

The GHD-3200 is validated for use with all commercially available Summa canisters meeting ASTM D5466 specifications—including those certified by NIST-traceable calibration laboratories. Its silanized flow path ensures compatibility with reactive species such as aldehydes, terpenes, and chlorinated solvents. Regulatory compliance extends beyond method adherence: data acquisition firmware supports GLP-compliant metadata tagging (operator ID, location GPS coordinates, barometric pressure, temperature, relative humidity), and raw flow/pressure logs are stored in non-volatile memory with write-protection. The device satisfies documentation requirements for ISO/IEC 17025-accredited laboratories conducting ambient air monitoring under national emission inventories or urban air quality networks.

Software & Data Management

Field configuration and data retrieval are managed via USB-C or Bluetooth 5.0 connection using the HUANKONG FieldLink™ Desktop Utility (Windows/macOS). The software enables batch programming of multi-canister sequences, remote firmware updates, and export of CSV-formatted sampling logs with ISO 8601 timestamps. All operational parameters—including actual vs. setpoint flow, chamber pressure, battery voltage, and leak test results—are recorded at 1-second intervals and embedded in encrypted binary files compliant with FDA 21 CFR Part 11 Annex 11 principles (electronic signatures, audit trails, data integrity validation). Raw datasets integrate natively with common LIMS platforms via ODBC drivers.

Applications

• Ambient air quality monitoring networks requiring unattended, time-integrated VOC profiling across urban, rural, and background sites
• Fenceline monitoring at petrochemical facilities, refineries, and chemical manufacturing plants per EPA OTM-33 and EU IED Directive requirements
• Atmospheric chemistry research campaigns involving spatially resolved sampling grids (e.g., mobile lab deployments, drone-mounted arrays)
• Emergency response scenarios where rapid deployment, battery autonomy, and trace-level detection readiness are essential
• Method validation studies supporting laboratory accreditation under CNAS CL01 or UKAS M10 standards

FAQ

Does the GHD-3200 support dual-canister sequential sampling?
Yes—firmware v2.3+ enables automatic valve switching between two canisters based on elapsed time or integrated volume, preserving temporal resolution without manual intervention.
Can it be integrated with third-party VOC sensors for trigger-based sampling?
Yes—the analog input port accepts 0–5 V or 4–20 mA signals from PID, FID, or MOS sensors; configurable threshold logic initiates sampling within <1.2 s of trigger event.
Is calibration certificate included with shipment?
Each unit ships with a factory calibration report traceable to NIM (National Institute of Metrology, China) for MFC and pressure transducer, valid for 12 months under normal operating conditions.
What maintenance is required between sampling campaigns?
No routine consumables—only periodic verification of O-rings, cleaning of VCR face seals with IPA, and annual recalibration of MFC and pressure sensor recommended.
Is remote firmware update supported over cellular network?
Not natively; however, optional LTE-enabled gateway modules (GHD-GW-LTE) provide secure OTA updates and live telemetry via TLS 1.2-encrypted MQTT broker.
