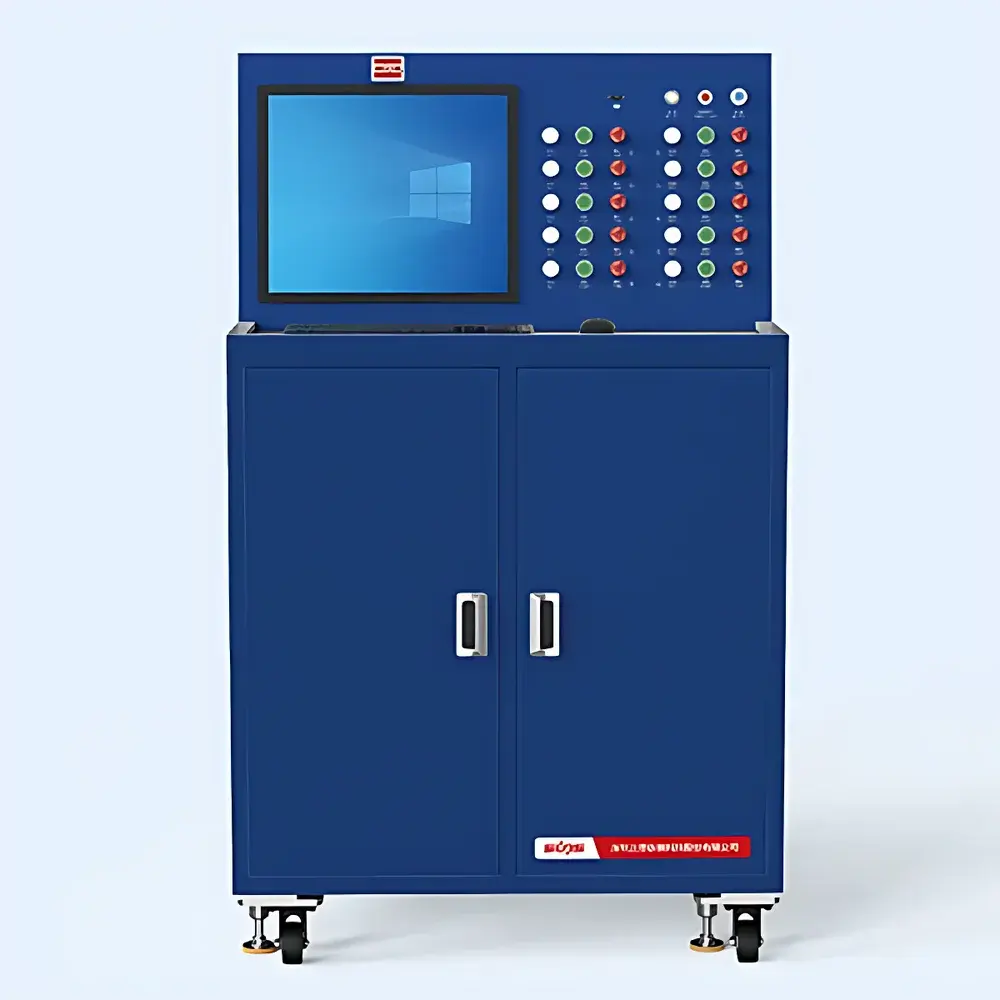

SUNS SB015-E10 Multi-Channel Pneumatic Pressure Loading Test System

Overview

The SUNS SB015-E10 Multi-Channel Pneumatic Pressure Loading Test System is an engineered platform for precise, synchronized, and programmable pneumatic pressure application across up to ten independent test stations. Designed for materials science laboratories, quality control departments, and R&D facilities, the system operates on a closed-loop pressure control architecture grounded in high-fidelity transducer feedback and real-time PID regulation. It delivers calibrated loading profiles—ranging from static hold (constant-pressure), ramped gradients (variable-pressure), stepwise escalation (burst testing), to fully user-defined time–pressure sequences—enabling rigorous mechanical integrity evaluation of seals, flexible packaging, medical tubing, inflatable devices, pressure vessels, and elastomeric components. Its core measurement principle relies on piezoresistive pressure transduction with temperature-compensated signal conditioning, ensuring traceable accuracy per ISO 9001–certified calibration protocols.

Key Features

• 10 electrically isolated pressure channels, each with dedicated pressure sensor, solenoid valve, and safety relief mechanism—eliminating cross-talk and enabling parallel multi-sample testing under distinct conditions.
• High-resolution pressure control (0.1 kPa resolution) and metrological-grade accuracy (±0.001 MPa) validated against NIST-traceable standards.
• Dual regulation options: manual mechanical fine-tuning for operational simplicity, or closed-loop electric actuation with programmable ramp rates (0.01–5.0 MPa/s) and dwell stability < ±0.0005 MPa over 60 min.
• Industrial 19-inch capacitive touchscreen PC with embedded Windows OS, preloaded with SUNS TestMaster v4.2 software—supporting intuitive drag-and-drop test sequence design, live multi-curve overlay, and real-time pass/fail logic monitoring.
• Comprehensive I/O interface (6 DI / 6 DO) for hardware synchronization with external equipment—e.g., triggering high-speed cameras upon pressure threshold breach or interfacing with environmental chambers via dry-contact signals.
• Robust mechanical architecture: powder-coated steel frame, vibration-damped base plate, and integrated silencer modules to maintain acoustic compliance (<120 dB(A)) even during rapid pressure cycling.

Sample Compatibility & Compliance

The SB015-E10 accommodates standard and custom fixtures for cylindrical, flat, and contoured specimens—including ASTM D3473 (inflatable bag burst), ISO 11607-2 (sterile barrier systems), and GB/T 1040.2 (plastic tensile properties under hydrostatic load). All pressure pathways employ FDA-compliant 316L stainless-steel manifolds and EPDM-free fluoropolymer diaphragms to prevent leaching or degradation during prolonged exposure to aggressive media. The system conforms to CE machinery directive 2006/42/EC, EMC directive 2014/30/EU, and meets essential requirements of ISO/IEC 17025 for test equipment used in accredited laboratories. Optional audit trail and electronic signature modules support 21 CFR Part 11 compliance for pharmaceutical and medical device validation environments.

Software & Data Management

TestMaster v4.2 provides full lifecycle data governance: automatic timestamped logging of raw sensor values (100 Hz sampling), derived metrics (burst pressure, creep strain rate, relaxation modulus), and event markers (valve actuation, limit triggers, operator annotations). Data exports natively to CSV, Excel (.xlsx), and PDF report formats—with configurable templates aligned to ISO/IEC 17025 reporting clauses. Network deployment enables centralized database archiving via SQL Server or cloud SFTP, while local storage utilizes encrypted SSD with write-cycle protection and automatic rollover to prevent overflow. Audit logs record all user actions—including method edits, calibration interventions, and result overrides—with immutable timestamps and operator ID tagging.

Applications

• Package integrity validation: seal strength assessment of pouches, blister packs, and thermoformed trays under dynamic pressure stress.
• Medical device qualification: burst testing of catheters, IV bags, and implantable balloon components per ISO 10993-1 and USP .
• Automotive component verification: pressure cycle endurance of fuel lines, brake hoses, and HVAC expansion valves.
• Research on viscoelastic behavior: time-dependent deformation analysis of polymeric foams, gels, and soft robotics actuators under controlled pneumatic loading.
• Regulatory submission support: generation of GLP-compliant datasets for FDA 510(k), CE Marking technical files, and MDR Annex II documentation.

FAQ

Is the SB015-E10 suitable for high-pressure applications beyond 3 MPa?
Yes—while the standard configuration supports up to 3 MPa, SUNS offers factory-engineered variants rated for 10 MPa and 25 MPa, incorporating reinforced manifold blocks, ceramic-coated transducers, and ASME BPVC Section VIII–compliant pressure housings.
Can test data be integrated into a LIMS or MES environment?
Absolutely—the system supports OPC UA and Modbus TCP protocols out-of-the-box, enabling bidirectional communication with laboratory information management systems (LIMS) and manufacturing execution systems (MES) without middleware.
What calibration documentation is provided upon delivery?
Each unit ships with a Certificate of Conformance, NIST-traceable calibration certificate for all pressure sensors (covering full 0–3 MPa range), and a full set of as-built mechanical drawings and electrical schematics.
Does the system support automated pass/fail decision logic based on pressure thresholds?
Yes—users define multiple conditional rules per channel (e.g., “fail if pressure drop >0.05 MPa within 30 s after hold phase”), with immediate visual/audio alerts and automatic test termination upon violation.
How is firmware updated and version control managed?
Firmware updates are delivered via signed .pkg files through the embedded update manager; all versions are SHA-256 hashed, logged in the audit trail, and rolled back automatically if integrity checks fail.
