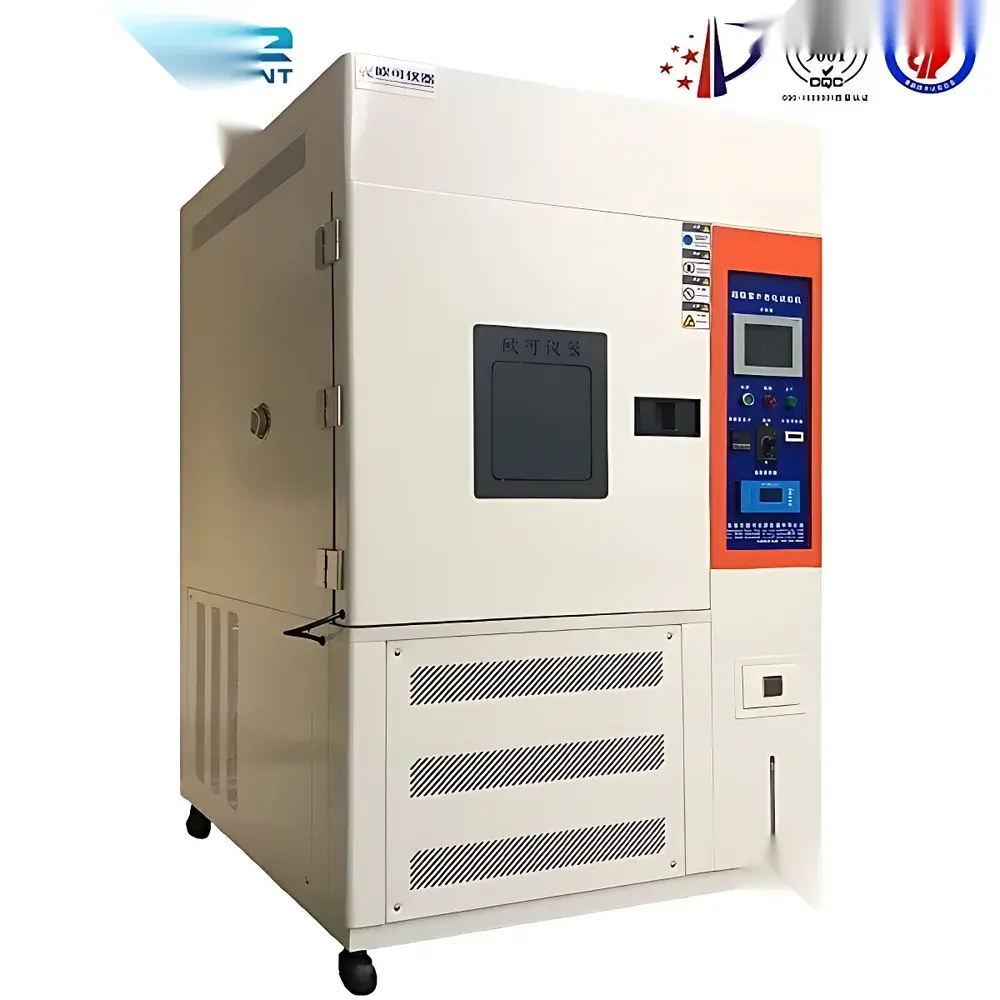

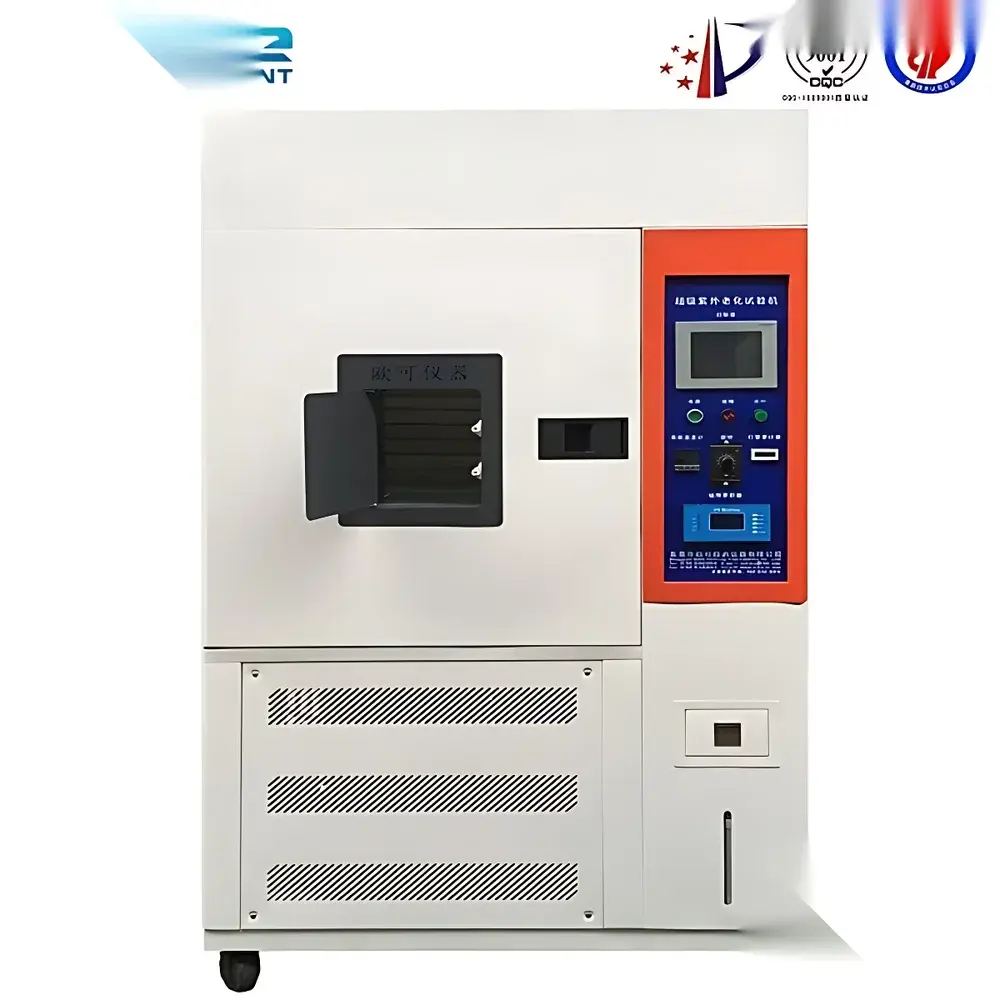

Super UV Aging Test Chamber

Overview

The Super UV Aging Test Chamber is an engineered environmental simulation system designed for accelerated weathering evaluation of polymeric materials, coatings, adhesives, automotive interior/exterior components, and architectural finishes. Unlike conventional fluorescent UV chambers limited to narrow UVA-340 or UVB-313 spectral bands, this chamber employs a high-intensity 2.5 kW air-cooled metal halide lamp to replicate the full solar ultraviolet spectrum from 295 nm to 450 nm — encompassing critical UVC, UVB, UVA, and near-visible violet/blue regions. This broad-spectrum irradiance enables realistic simulation of photochemical degradation mechanisms including chain scission, oxidation, and chromophore disruption under controlled thermal and hygric stress. The chamber integrates three distinct exposure phases — irradiation with active temperature/humidity control, condensation cycling via cold surface-induced dew formation, and optional water spray (simulating rain erosion and thermal shock) — all programmable in sequence to mirror real-world outdoor aging profiles per ISO 4892-2, ASTM G155, and SAE J2527.

Key Features

• High-fidelity solar-spectrum simulation using a single 2.5 kW metal halide lamp with spectral output closely matching terrestrial global solar irradiance below 450 nm
• Precise dual-climate control: independent regulation of black-panel temperature (50 ± 10 °C operational setpoint) and relative humidity (40–70 % RH during irradiation; 50–90 % RH during dark/condensation cycles)
• Advanced PID-controlled heating system achieving ±0.5 °C temperature accuracy and ±2.0 % RH humidity accuracy over the working volume
• Optimized optical geometry: top-mounted lamp with parabolic reflector ensures ≥90 % irradiance uniformity across the 500 × 400 mm stainless steel sample tray
• Condensation cycle capability via chilled chamber walls, enabling realistic moisture absorption/desorption kinetics without external humidifiers
• Optional integrated water spray system compliant with ASTM D4329 wetting protocols, delivering calibrated droplet size and impact pressure
• Robust stainless-steel construction with double-wall insulation and tempered quartz viewing window rated for continuous UV exposure

Sample Compatibility & Compliance

The chamber accommodates flat-panel specimens up to 500 × 400 mm and 50 mm thickness, supporting standard ASTM D6675, ISO 11341, and GB/T 16422.2 specimen holders. It meets essential requirements for GLP-compliant testing environments, including hardware-level audit trail logging (via optional data logger), password-protected parameter locking, and time-stamped event records. While not certified as FDA 21 CFR Part 11 compliant out-of-the-box, the system supports integration with validated third-party software platforms for electronic signatures and secure data archiving. All operational parameters align with the test condition specifications defined in ISO 4892-2 (Method A: Xenon-arc equivalent spectral weighting) and ASTM G155 Cycle 1 (Metal Halide Lamp Exposure).

Software & Data Management

The embedded controller provides intuitive touchscreen operation with preloaded test profiles for common standards (e.g., ISO 4892-2 Cycle 1A, ASTM G155 Cycle 4). Real-time monitoring includes irradiance (W/m²), black-panel temperature, chamber air temperature, and relative humidity — all logged at user-selectable intervals (1 s to 60 min). Export formats include CSV and PDF reports with digital signature fields. For enterprise integration, RS-485 Modbus RTU and Ethernet TCP/IP interfaces enable connection to LIMS or MES systems. Optional PC-based software adds advanced features: spectral irradiance mapping visualization, failure mode correlation analytics, and automated compliance reporting against ISO/IEC 17025 documentation requirements.

Applications

• Automotive OEMs validating dashboard trim, headlamp lenses, and paint clearcoats per SAE J2527 and PV3929
• Coating manufacturers assessing gloss retention, chalking resistance, and color ΔE*ab stability per ISO 11341
• Polymer compounders evaluating UV stabilizer package efficacy in PP, PE, and PVC formulations
• Architectural product developers qualifying sealants, gaskets, and cladding materials per ASTM D4329 and EN 1504-2
• Academic research labs investigating photooxidation kinetics and wavelength-dependent degradation thresholds

FAQ

What spectral irradiance standard does the metal halide lamp follow?
The lamp’s spectral power distribution conforms to the “Solar Simulation” classification per CIE Publication 85, with weighted irradiance in the 295–450 nm band traceable to NIST-calibrated reference detectors.
Can the chamber operate without water spray or condensation cycles?
Yes — users may configure standalone UV/thermal exposure, UV/thermal/humidity, or UV/thermal/condensation protocols independently.
Is lamp calibration required, and how often?
Annual recalibration of irradiance output using a NIST-traceable UV radiometer is recommended; lamp replacement interval is typically 1,200–1,500 hours of operation.
Does the system support multi-step cyclic programs?
Yes — up to 99 segments per program, each with independent control of irradiance level, temperature setpoint, humidity setpoint, and phase duration.
What safety interlocks are included?
UV lamp shutdown on door opening, overtemperature cutoff (100 °C), overhumidity limiter (95 % RH), and lamp cooling-fan failure detection.
