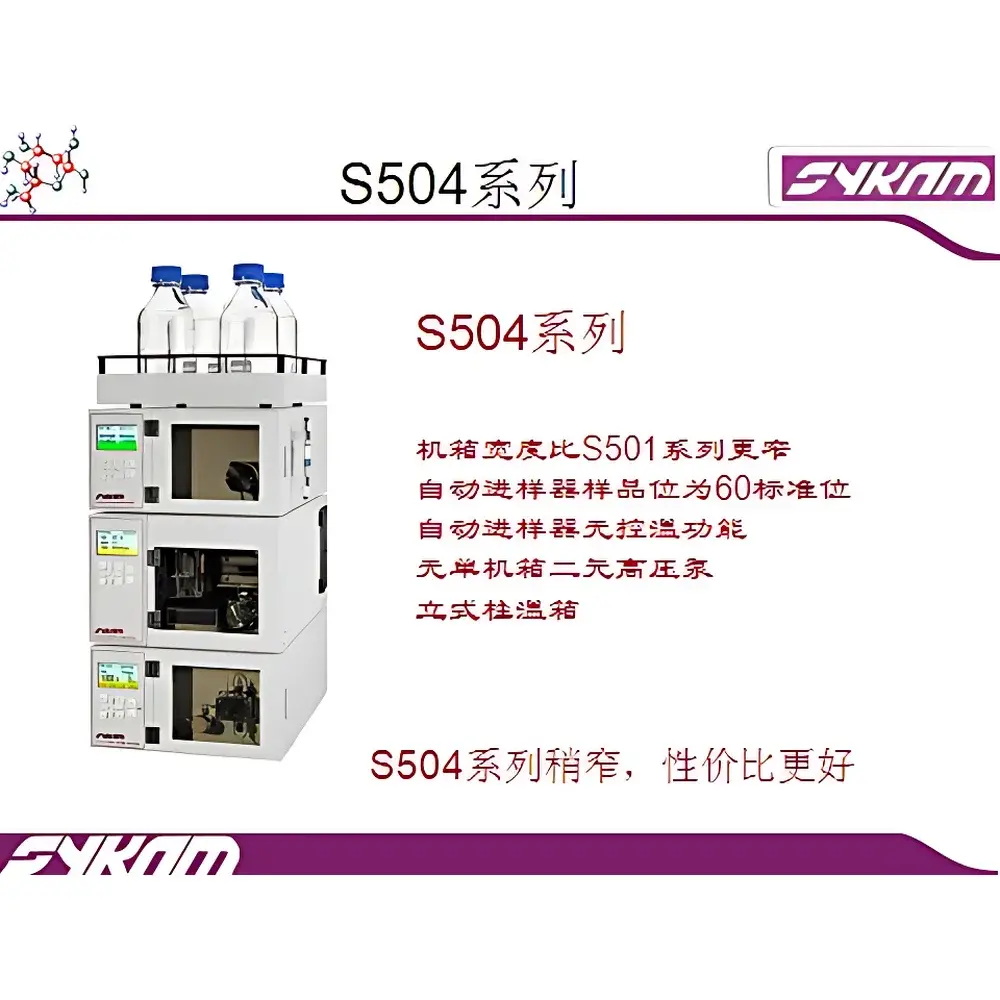

Sykam S-504 HPLC System

Overview

The Sykam S-504 HPLC System is a modular, high-precision liquid chromatography platform engineered for reproducible separation, robust quantitation, and long-term operational stability in regulated and research environments. Based on classical reversed-phase, normal-phase, and ion-exchange chromatographic principles, the system employs dual-piston reciprocating pump technology with floating short-stroke design to deliver exceptional flow accuracy (<0.07% RSD) and gradient fidelity across wide solvent polarity ranges—including high-salt and extreme pH mobile phases. Its fully sealed, self-lubricating pump drive eliminates routine maintenance while maintaining pressure stability up to 40 MPa (5800 psi), enabling compatibility with sub-2 µm particle columns and UHPLC-capable method transfer. The system architecture supports both isocratic and low-pressure quaternary gradient configurations, with integrated online degassing and dynamic proportioning valve control ensuring <0.15% gradient composition RSD over extended runs.

Key Features

• Floating dual-piston short-stroke pump technology for superior flow precision and pulse-free delivery
• DiaDur™ diamond-coated rotor seal in the high-duty injection valve—extending service life beyond 100,000 injections under routine use
• Non-stop flow NFI (No-Flow Interruption) valve design minimizing baseline disturbance during injection
• XYZZ four-axis independent drive autosampler with separate air needle and sample needle actuators—achieving ≤0.25% RSD in injection volume repeatability
• Column oven with internal pre-heater, ±0.05 °C temperature stability, and vertical 3-column capacity (up to 300 mm length)
• UV/Vis detector featuring dual-beam optical path, deuterium and tungsten lamps, and sealed optical chamber for extended lamp lifetime and minimal drift
• Active plunger wash system compatible with ammonium acetate, phosphate buffers, and organic-aqueous gradients
• Variable-volume mixing technology with real-time feedback-controlled proportioning valves for high-fidelity gradient formation

Sample Compatibility & Compliance

The S-504 accommodates diverse sample matrices—from small-molecule pharmaceuticals and natural product extracts to peptides, oligonucleotides, and carbohydrates—when paired with appropriate column chemistries and detection modules (UV/Vis, PDA, RI). Its autosampler supports standard 1.5 mL and 0.5 mL vial formats, with optional thermostatted sample tray (40–60 °C) and post-injection derivatization capability for amino acid or carbonyl analysis. All hardware and software components are designed to support compliance with international regulatory frameworks: the system meets ISO 9001:2015 quality management requirements; its Clarity chromatography data system (CDS) implements full audit trail, electronic signatures, user role-based access control, and 21 CFR Part 11-compliant data integrity features. Routine operation aligns with ASTM E2631, USP , and ICH Q2(R2) guidelines for method validation and instrument qualification.

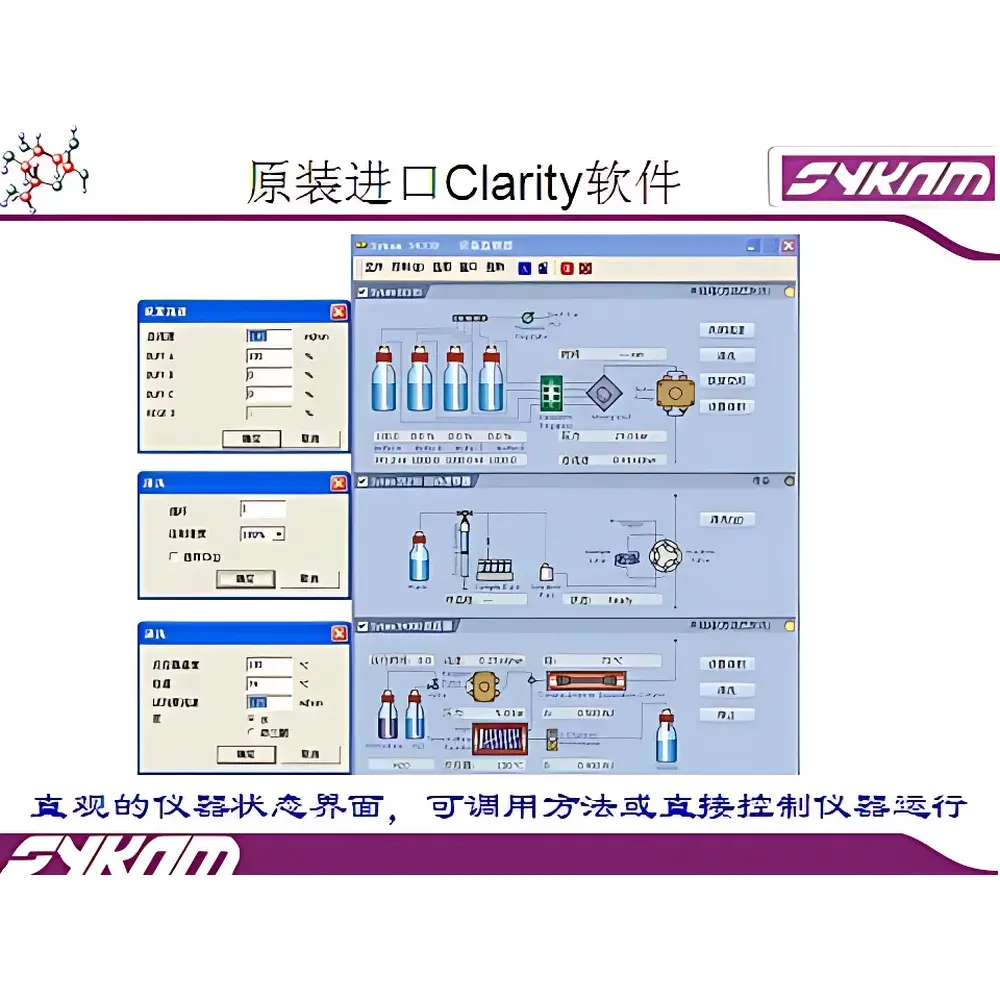

Software & Data Management

The Sykam Clarity CDS is a fully localized English-language (with optional multilingual UI) chromatography workstation certified for GLP and GMP environments. It provides real-time monitoring via web browser or dedicated mobile application—enabling remote instrument status checks, sequence initiation, and alarm notification. Raw data files are stored in vendor-neutral .cdf format compliant with ASTM E1946-21, supporting third-party reprocessing. Built-in report templates follow customizable PDF/Excel export logic, including integration of calibration curves, system suitability results, and peak purity assessments. Advanced processing tools include spectral deconvolution (for PDA), baseline correction algorithms (e.g., asymmetric least squares), and retention time alignment across multi-batch datasets. All user actions—including method edits, sequence changes, and result approvals—are logged with timestamp, operator ID, and IP address for full traceability.

Applications

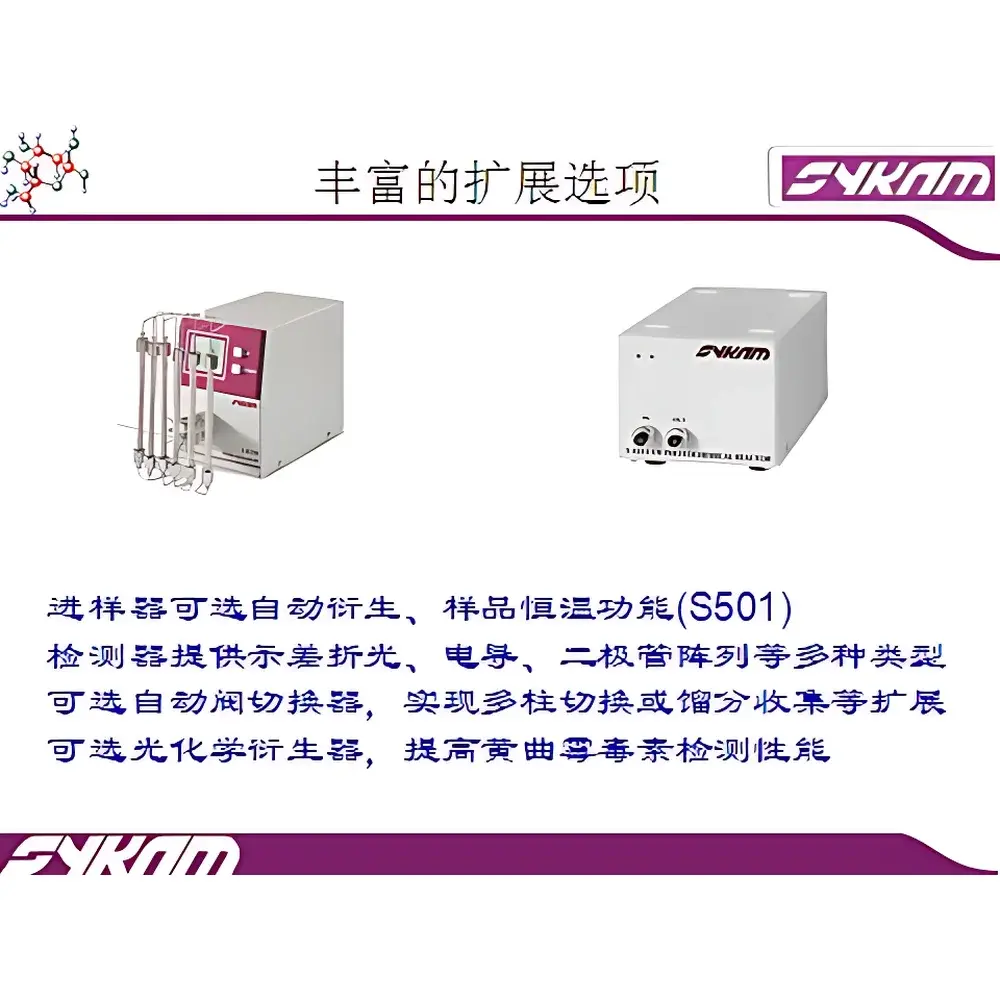

The S-504 serves as a primary analytical tool in QC laboratories for release testing of active pharmaceutical ingredients (APIs), excipients, and finished dosage forms per pharmacopoeial monographs (EP, USP, JP). Its high-pressure capability and gradient reproducibility make it suitable for stability-indicating assays, impurity profiling, and forced degradation studies. In academic and biotech settings, the system supports metabolomics workflows (with PDA detection), glycan analysis (using RI detection and HILIC columns), and peptide mapping (with heated column oven and low-diffusion flow cells). Optional accessories—including column switching valves, fraction collectors, and electrochemical detectors—extend utility into environmental analysis (e.g., PAHs, pesticides), food safety (mycotoxins, vitamins), and polymer characterization (SEC/GPC).

FAQ

Does the S-504 support method transfer from legacy HPLC systems?

Yes—the modular architecture and standardized flow cell dimensions, dwell volume calibration, and pressure-compensated gradient programming enable seamless migration of validated methods from other major vendors.
Is the Clarity software qualified for 21 CFR Part 11 compliance?

Yes—Clarity includes configurable electronic signature workflows, immutable audit trails, and password-protected user roles, with documentation packages available for IQ/OQ/PQ validation.
Can the system operate unattended overnight?

Yes—autonomous sequence execution, automatic shutdown protocols, and real-time error logging allow for extended unattended operation with full data integrity preservation.
What maintenance intervals are recommended for the DiaDur™ valve?

Under typical usage (≤10 injections/hour, aqueous/organic mobile phases), the DiaDur™ rotor seal requires inspection every 12 months or after 50,000 injections; no routine lubrication is needed.
Is PDA detection available as a factory-installed option?

Yes—PDA modules are fully integrated into the S-504 chassis, sharing the same optical bench and data acquisition architecture as the UV/Vis detector, with identical software control and reporting logic.
