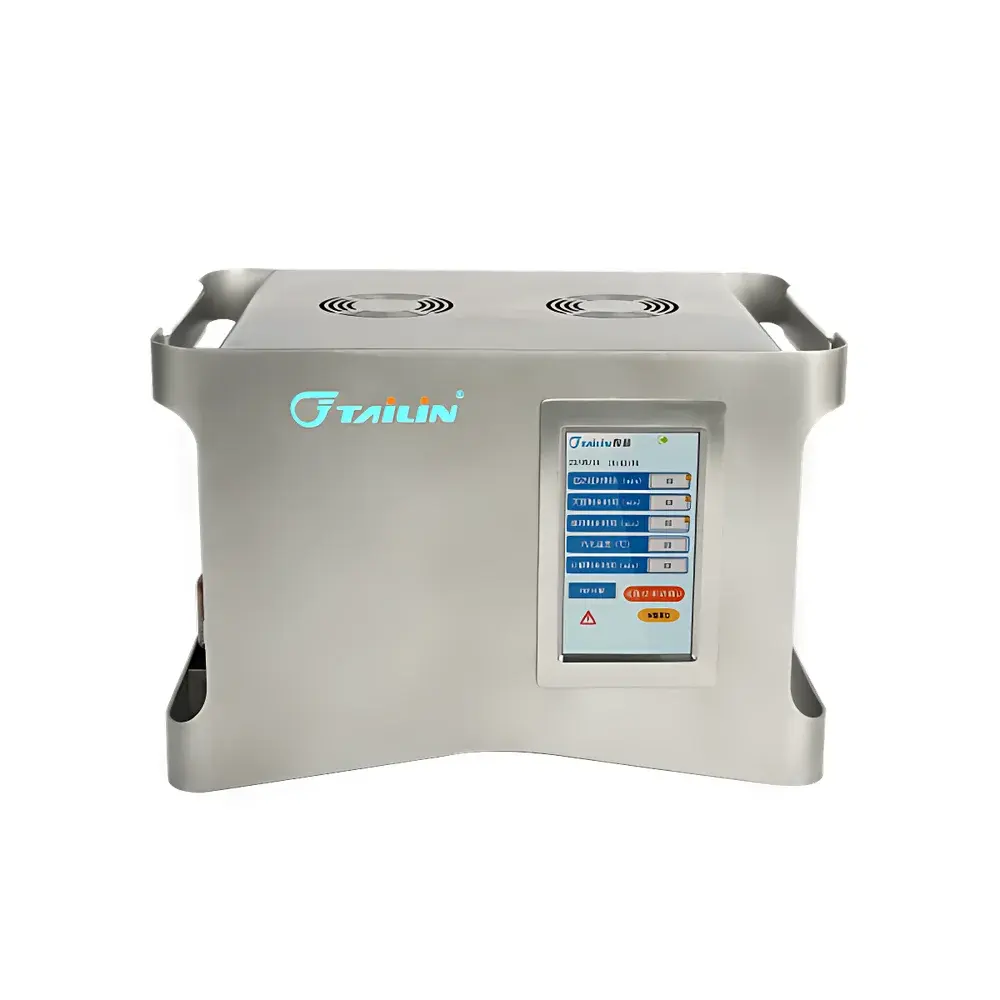

Tailin VHPS-Mini Portable Hydrogen Peroxide Vapor Sterilizer

Overview

The Tailin VHPS-Mini Portable Hydrogen Peroxide Vapor Sterilizer is an engineered solution for low-volume, high-integrity decontamination of confined laboratory enclosures. It operates on the principle of vapor-phase hydrogen peroxide (VHP®) sterilization—generating and delivering a controlled concentration of hydrogen peroxide vapor (typically 30–35% w/w aqueous solution, vaporized at sub-boiling temperatures) into sealed environments. Unlike liquid or UV-based methods, VHP achieves sporicidal efficacy through oxidative damage to microbial proteins, lipids, nucleic acids, and enzymatic systems—particularly targeting catalase- and peroxidase-deficient organisms such as *Geobacillus stearothermophilus* spores. The system is validated to deliver ≥6-log reduction of biological indicators (BIs), meeting ISO 14644-3 Annex B and ISO/IEC 17025-aligned verification protocols for cleanroom and containment equipment requalification.

Key Features

• Compact footprint: Total plan view area < 210 × 297 mm (A4-size envelope), enabling direct placement inside standard 150 L CO₂ incubators, biosafety cabinets (Class II A2/B2), gloveboxes (ISO Class 4–5), and laminar flow hoods without disassembly.
• Dual-stage catalytic decomposition: Integrated platinum-group multi-element catalyst module reduces residual H₂O₂ vapor to <1 ppm within ≤30 minutes post-cycle—fully compliant with OSHA PEL (1.0 ppm TWA) and NIOSH REL thresholds; catalyst exhibits no measurable attrition over ≥5,000 cycles under nominal operating conditions.
• Tailin proprietary “Dry-Flash” VHPS® micro-vaporization technology: Utilizes resistive thin-film heating and pulsed aerosol shearing to achieve >95% vaporization efficiency at ≤85°C surface temperature—minimizing thermal load on sensitive interior components while maximizing hydroxyl radical (•OH) yield per gram of H₂O₂ consumed.
• Self-contained operation: No external air supply, vacuum pump, or condensate drain required; cycle initiation, vapor dispersion, dwell, and catalytic purge phases are fully automated via embedded microcontroller with real-time vapor concentration feedback (electrochemical sensor).

Sample Compatibility & Compliance

The VHPS-Mini is designed for non-porous, thermally stable interior surfaces commonly found in life science containment systems—including stainless steel (304/316L), borosilicate glass, polycarbonate viewing windows, and silicone gaskets. It is not intended for use with cellulose-based filters, uncoated aluminum, or epoxy-coated interiors without prior material compatibility testing. The sterilization process conforms to ISO 14644-3 (cleanroom testing), ISO 15883-1 (reprocessing of medical devices), and supports GLP/GMP documentation requirements through optional audit-trail-enabled firmware (21 CFR Part 11-compliant data logging available upon configuration). All validation reports—including BI placement maps, cycle mapping (temperature/humidity/H₂O₂ distribution), and lethality calculations—are generated per ANSI/AAMI ST58:2023 guidelines.

Software & Data Management

The device features an onboard LCD interface with six-button navigation and real-time graphical display of vapor concentration (ppm), internal chamber humidity (%RH), ambient temperature (°C), and elapsed cycle time. Optional USB-C data export enables transfer of full-cycle logs—including timestamped sensor readings, phase transitions, alarm events, and catalyst health metrics—to CSV or PDF formats. When integrated with Tailin’s LabSteriLink™ Suite (v3.2+), users gain remote monitoring, multi-device scheduling, electronic signature support, and automated report generation aligned with FDA 21 CFR Part 11 Annex 11 expectations for electronic records and signatures.

Applications

• Routine decontamination of CO₂ incubators between cell culture runs to eliminate mycoplasma and fungal contaminants.
• Post-maintenance revalidation of biosafety cabinets following filter replacement or structural servicing.
• Pre-use conditioning of anaerobic gloveboxes to suppress aerobic spore outgrowth during microbiome isolation workflows.
• Emergency response decon of portable isolators used in high-containment (BSL-2+/BSL-3) diagnostic labs handling emerging pathogens.
• Supporting ISO 13485-certified medical device manufacturing cleanrooms for periodic environmental challenge testing.

FAQ

What is the recommended hydrogen peroxide concentration for optimal sporicidal activity?
Standard operation uses 30–35% w/w pharmaceutical-grade hydrogen peroxide; higher concentrations do not improve log-reduction and increase residual decomposition time.
Can the VHPS-Mini be used inside a running CO₂ incubator?
No—incubators must be powered off, door sealed, and internal CO₂ purged prior to cycle initiation to prevent interference with vapor distribution and sensor accuracy.
Is catalyst replacement required during the product lifecycle?
No—platinum-group catalyst modules are maintenance-free and rated for ≥5,000 sterilization cycles under standard operating conditions (25°C, 40–60% RH ambient).
Does the system meet international regulatory requirements for pharmaceutical QC labs?
Yes—when configured with audit-trail firmware and operated per validated protocols, it satisfies EU GMP Annex 1 (2022), USP <1211>, and ISO 14644-3 requirements for equipment requalification.
How is cycle reproducibility verified across multiple units?
Tailin provides factory-installed calibration certificates traceable to NIST standards, including vapor concentration linearity (±2% FS), temperature sensor accuracy (±0.3°C), and dwell-phase stability (±0.5 ppm over 10 min).
