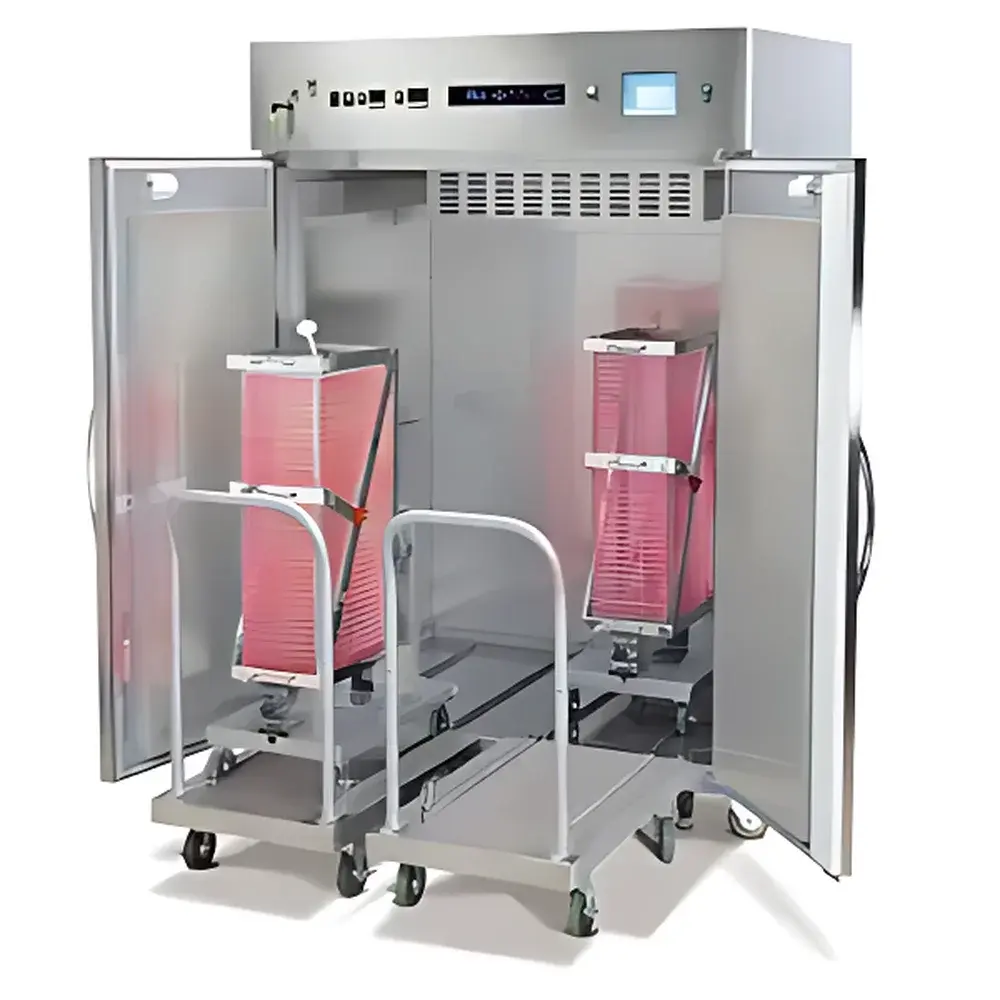

TAITEC MG-1300M-2A Cell Factory Incubator

Overview

The TAITEC MG-1300M-2A Cell Factory Incubator is a high-capacity, precision-engineered CO₂ incubation system specifically designed for scalable adherent cell culture in biopharmaceutical manufacturing and advanced cell therapy R&D. Unlike conventional benchtop or stacked-chamber incubators, the MG-1300M-2A employs a dual-vessel, forced-gas-perfusion architecture that delivers conditioned atmosphere directly into two independent 40-layer multilayer culture vessels—enabling production-scale cultivation of monoclonal antibodies, viral vectors, or recombinant proteins without compromising physiological fidelity. Its core thermal design integrates quadruple-wall air-jacketed heating with inline gas-stream preheating, ensuring rapid equilibration and exceptional spatial stability (±0.5°C chamber uniformity; ±0.2°C measured within vessel culture medium under standard operating conditions). The system operates on a closed-loop gas management principle: NDIR-based CO₂ sensing and zirconia O₂ detection provide real-time feedback to proportional solenoid valves, maintaining setpoint accuracy across dynamic load conditions typical of multi-day bioreactor-grade runs.

Key Features

• Simultaneous operation of two 40-layer multilayer culture vessels (e.g., TAITEC CellMASSter, Thermo Fisher Cell Factory, Corning CellSTACK), each requiring dedicated 2 L/min regulated gas supply
• Quadruple-wall air-jacketed heating combined with heated gas-path elements ensures minimal thermal gradient across large-volume culture surfaces
• Horizontal laminar airflow system optimized for uniform temperature distribution and low-turbulence gas exchange at vessel interfaces
• Integrated dual-channel gas delivery with automatic cylinder switchover—eliminates process interruption due to CO₂ depletion during unattended operation
• Motorized rotating platforms for 40-layer vessels, featuring programmable angular positioning, horizontal alignment maintenance, and integrated transport carts for GMP-compliant handling
• Built-in industrial PC (Windows XP embedded, 6.5″ resistive touchscreen) logging timestamped records of chamber temperature, CO₂ concentration, O₂ level, and gas flow rates in CSV/TXT format
• Stainless steel (SUS304) construction throughout interior and exterior surfaces, supporting rigorous cleaning protocols and ISO Class 5 cleanroom compatibility

Sample Compatibility & Compliance

The MG-1300M-2A is engineered exclusively for use with forced-aeration multilayer culture systems certified for high-density adherent cell expansion. It accommodates both 10-layer (≈6,000 cm² total surface area) and 40-layer (≈25,000 cm²) configurations—provided the vessel incorporates integrated gas inlet/outlet manifolds and is validated for pressurized perfusion. Compatible platforms include TAITEC’s CellMASSter series (with optional DO/pH probe ports), Thermo Fisher’s Cell Factory™ Advanced system, and Corning’s CellSTACK® with forced ventilation option. The incubator itself does not include humidity control; users must implement external humidification strategies—such as pre-saturated gas blending or auxiliary reservoirs—when cultivating moisture-sensitive lines. From a regulatory standpoint, the system’s deterministic thermal response, nonvolatile data logging, and mechanical safety redundancies align with foundational requirements for GLP and early-phase GMP workflows. While the embedded OS lacks native 21 CFR Part 11 validation, its raw log files serve as auditable primary records when exported to validated third-party LIMS or electronic lab notebook (ELN) platforms.

Software & Data Management

Data acquisition and operational oversight are managed through the onboard industrial PC running a custom Windows XP Embedded interface. All critical process parameters—including start/stop timestamps, chamber temperature, CO₂ concentration (3.0–8.0%, 0.1% resolution), O₂ reading (1–25%), and dual-channel gas flow—are sampled at user-configurable intervals (default: 1 minute) and stored locally on flash memory. Export functionality supports direct USB transfer of comma-separated values (CSV) or plain-text (TXT) files, enabling downstream analysis in MATLAB, Python pandas, or commercial bioprocess analytics suites. No cloud connectivity or remote access capabilities are included; all communication remains isolated to local hardware—consistent with cybersecurity best practices for controlled biomanufacturing environments. Audit trail integrity is maintained via immutable timestamping and sequential file naming; however, full electronic signature enforcement and role-based access control require integration with externally validated software layers.

Applications

• Large-scale production of therapeutic monoclonal antibodies in CHO or SP2/0 cell lines
• Expansion of human mesenchymal stem cells (hMSCs) and induced pluripotent stem cells (iPSCs) for regenerative medicine applications
• Viral vector manufacturing (lentivirus, AAV) requiring high-multiplicity-of-infection (MOI) consistency across large surface areas
• Process development and tech transfer studies comparing multilayer platform performance under identical environmental controls
• Stability testing of cell-based products under defined CO₂/O₂ tension profiles
• Training and qualification of personnel in GMP-aligned cell culture operations using production-representative equipment

FAQ

Does the MG-1300M-2A support humidity control?
No. The system is not equipped with active humidification; users must integrate external saturated gas blending or auxiliary water reservoirs if relative humidity maintenance is required.
Can the incubator accommodate 10-layer vessels without modification?
Yes. One standard shelf is included for 10-layer vessel use; however, forced-gas perfusion remains mandatory—only vessels with dedicated gas inlets/outlets are compatible.
What CO₂ and O₂ sensors are used, and what are their calibration requirements?
NDIR (non-dispersive infrared) for CO₂ and zirconia electrochemical for O₂. Calibration is performed using certified reference gases; TAITEC recommends annual verification against NIST-traceable standards.
Is the built-in PC compliant with FDA 21 CFR Part 11?
No. The embedded Windows XP system provides raw data logging but lacks electronic signatures, audit trail encryption, and role-based permissions. Validation for regulated use requires supplementary software qualification.
What safety mechanisms prevent thermal or gas-related damage to cultures?
Dual-redundant overtemperature protection: primary electronic cutoff at +45°C and secondary mechanical liquid-expansion device at +55°C; plus door-open interlock halting gas delivery and triggering audible alarm.
