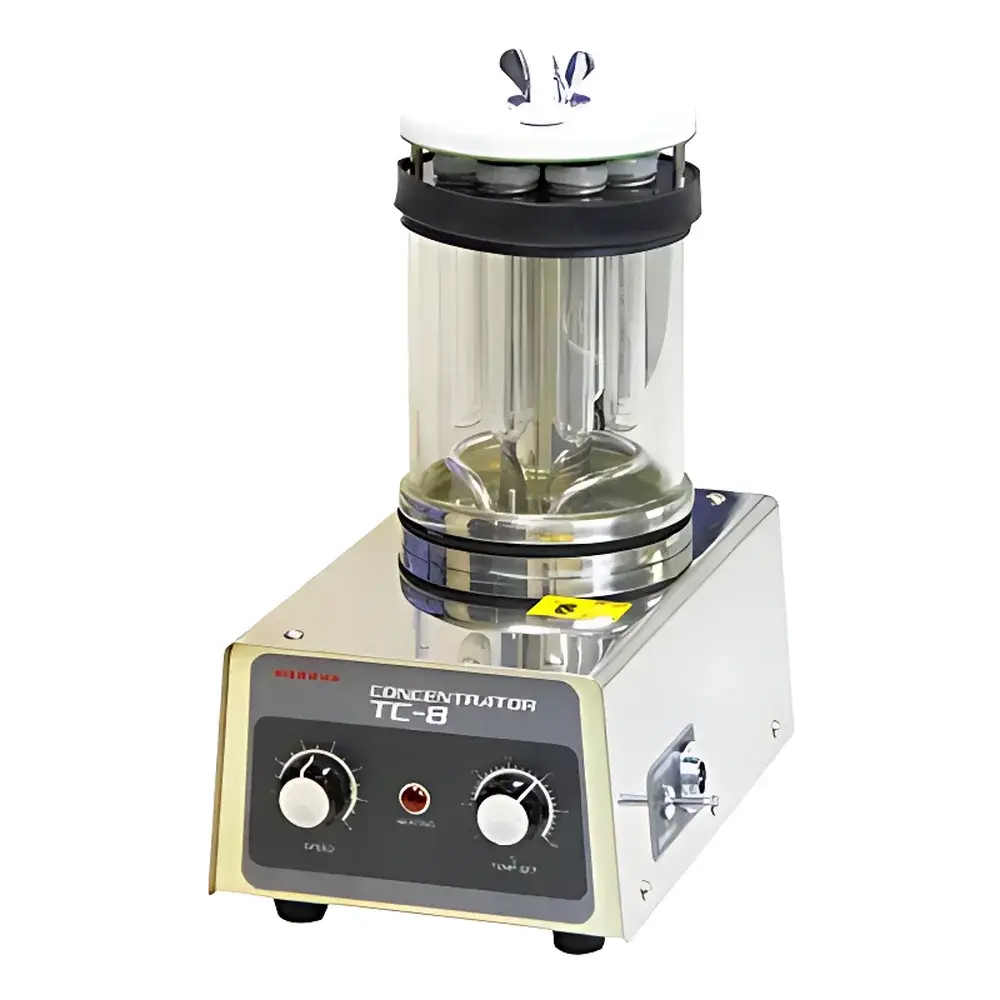

Taitec TC-8F/TC-8G Vacuum Concentration System with Heated Stirring and Cold Trap Integration

Overview

The Taitec TC-8F and TC-8G are precision-engineered vacuum concentration systems designed for reproducible, low-temperature sample processing in analytical, biochemical, and pharmaceutical laboratories. These instruments combine simultaneous vacuum evacuation, controlled heating (up to +60 °C), and uniform mechanical agitation via a patented umbrella-shaped eccentric vibration mechanism—enabling rapid, gentle concentration of heat-sensitive analytes without thermal degradation or cross-contamination. Unlike centrifugal or nitrogen-based concentrators, the TC-8F/G series operates on a principle of reduced-pressure evaporation under isothermal conditions, where solvent removal kinetics are governed by vapor pressure differentials, temperature stability, and surface-area-enhanced agitation. This architecture ensures high reproducibility across replicate runs—a critical requirement for GLP-compliant sample preparation workflows involving glycoproteins, oligosaccharides, peptides, and small-molecule extracts.

Key Features

• Simultaneous vacuum, heating, and orbital stirring: Integrated Q-1-compatible vacuum interface (or alternative pumps), PTC-heated aluminum block, and continuously variable eccentric vibration drive deliver consistent energy input across all tube positions.
• Dual-platform design: TC-8F requires full 8-tube loading with edge-rimmed tubes (φ17.5–18 mm) for mechanical stability; TC-8G accepts standard round-bottom or flat-bottom test tubes (φ12–18 mm), enabling flexible single-sample or parallel processing with optional cold trap integration for solvent recovery.
• Precision thermal control: PID-regulated heating system maintains setpoint accuracy within ±0.2–0.3 °C over ambient to +60 °C, minimizing thermal drift during extended runs (e.g., overnight concentration of labile biomolecules).
• Modular cold trap compatibility: TC-8G supports connection to recirculating chillers or tap-water-cooled glass condensers (included), enabling efficient capture and recovery of volatile organic solvents such as chloroform, acetone, ethanol, and ethyl acetate—reducing hazardous waste generation and operational costs.
• Robust mechanical architecture: Stainless steel housing, corrosion-resistant PTFE-coated components, and vibration-dampened base ensure long-term reliability in shared core facilities and regulated environments.

Sample Compatibility & Compliance

The TC-8F/G accommodates aqueous and organic solvent systems—including methanol, acetonitrile, dichloromethane, and tetrahydrofuran—provided appropriate cold trapping and ventilation protocols are followed. Tube compatibility spans φ12–18 mm diameters with standardized lengths (130 mm L), supporting common borosilicate glass and polypropylene formats. The system meets fundamental safety requirements per IEC 61010-1 for laboratory electrical equipment and is routinely deployed in workflows aligned with ISO/IEC 17025 method validation, USP Analytical Instrument Qualification, and FDA 21 CFR Part 11–compliant data integrity frameworks when paired with validated LIMS or ELN platforms. No internal software logging is embedded; however, external timestamped run records (start/end time, set temperature, vacuum level via external gauge) satisfy audit-trail expectations for QC/QA documentation.

Software & Data Management

The TC-8F/G operates as a standalone hardware platform with manual parameter setting via front-panel controls—no onboard microprocessor, firmware, or digital interface is present. This analog design eliminates cybersecurity vulnerabilities and simplifies IQ/OQ/PQ validation in GMP-regulated labs. Users maintain full traceability through external logbooks or electronic lab notebooks (ELNs), recording parameters including target temperature, vacuum source model and measured kPa, tube type and fill volume, and total run duration. For laboratories requiring automated data capture, integration with third-party vacuum gauges (e.g., MKS Baratron) and temperature dataloggers (e.g., Omega OM-CP) enables CSV export and trend analysis compatible with JMP, Python pandas, or LabArchives.

Applications

• Post-extraction concentration of HPLC and GC sample fractions prior to MS analysis.
• Gentle desalting and buffer exchange of glycopeptides and sialylated oligosaccharides without denaturation.
• Preparative-scale drying of synthetic intermediates under mild vacuum to preserve stereochemical integrity.
• Routine concentration of environmental water extracts (e.g., EPA Method 525.3) containing semi-volatile organics.
• Stabilization of unstable metabolites (e.g., NADH, ATP analogs) during bioprocess monitoring.

FAQ

What vacuum pumps are compatible with the TC-8F/G?
The system is optimized for use with the Taitec Q-1 water aspirator (6–7 L/min, ultimate vacuum 3.2–38.7 kPa), but other diaphragm or rotary vane pumps meeting minimum flow and vacuum specifications may be substituted—consult technical support for compatibility verification.
Can I concentrate samples at temperatures below ambient?
No—the TC-8F/G provides only heating functionality (ambient to +60 °C). For sub-ambient concentration, integrate an external chiller with the TC-8G’s cold trap port or use cryogenic condensation accessories.
Is the TC-8F suitable for single-tube processing?
No—mechanical balance and vibration coupling require all eight designated tube positions to be occupied with identical edge-rimmed tubes. Use the TC-8G for low-throughput applications.
How is solvent recovery achieved with the TC-8G?
By connecting a glass condenser (supplied) to a recirculating chiller or cold tap water supply, vapors condense and collect in the condenser receiver, enabling reuse or safe disposal per local EH&S guidelines.
Are calibration certificates available for temperature and vacuum sensors?
Taitec provides factory calibration reports for the heating block sensor. Third-party accredited calibration (e.g., ISO/IEC 17025) of temperature and vacuum transducers can be performed using standard reference equipment prior to installation qualification.
