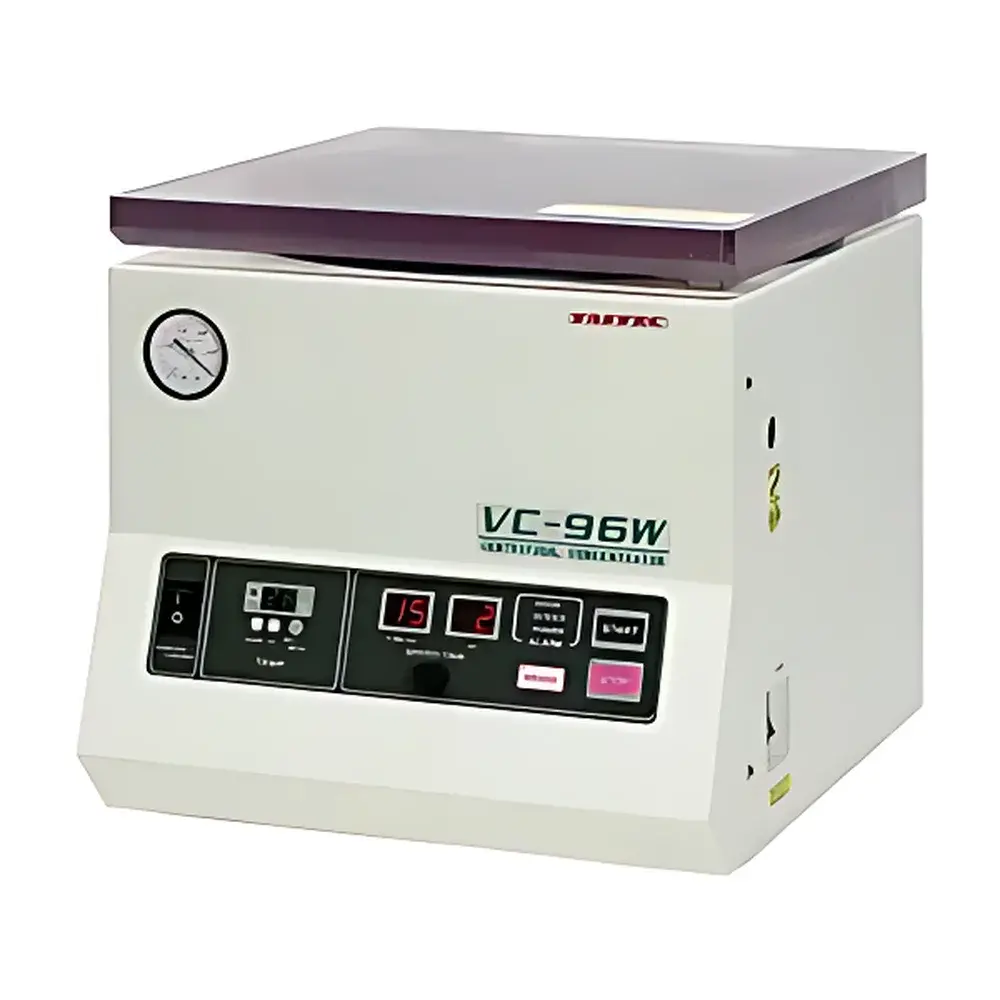

TAITEC VC-96W Vacuum Centrifugal Concentrator for Microplates

Overview

The TAITEC VC-96W is a purpose-engineered vacuum centrifugal concentrator optimized for high-throughput processing of microplate-based samples—including 96-well deep-well plates, PCR plates, and standard microtiter formats—while maintaining compatibility with individual tubes (1.5–50 mL) via interchangeable rotors. It operates on the principle of simultaneous centrifugal force, controlled vacuum, and far-infrared heating to accelerate solvent removal without thermal degradation of labile biomolecules. Unlike conventional concentrators that rely on convection or conductive heating—ineffective under low-pressure conditions—the VC-96W’s integrated far-infrared emitter delivers energy directly through the vessel wall, enabling efficient heat transfer even in polymer-based deep-well plates (e.g., polypropylene) where thermal conductivity is inherently poor under vacuum. This design significantly reduces concentration time while preserving sample integrity across nucleic acids, proteins, glycans, peptides, and microbial pellets. The unit meets structural and operational benchmarks typical of Class II laboratory centrifugation equipment, including mechanical safety interlocks, fail-safe thermal monitoring, and electromagnetic drive architecture eliminating belt wear or lubrication requirements.

Key Features

• Far-infrared heating system engineered for uniform, vacuum-compatible thermal delivery—enabling rapid, reproducible concentration of heat-sensitive biologicals.
• Dual-safety thermal architecture: independent PID temperature sensor and dedicated overheat cutoff circuit prevent runaway conditions even if primary control fails.
• Lid interlock power management: heating and rotation are disabled unless lid is fully secured; motor power remains active during deceleration to avoid sample boil-over upon abrupt stop.
• Magnetic drive motor ensures maintenance-free operation, zero oil contamination risk, and consistent torque delivery up to 800 × g (with 96S swing rotor).
• Real-time process monitoring: digital display alternates between elapsed time (HH:MM format) and set parameters; chamber temperature is continuously visible during operation.
• Manual vacuum release valve prevents aerosolization or splashing of precious samples during venting—critical for RNA, plasmid preps, and low-volume assays.
• SUS316 chamber with PTFE coating resists corrosion from organic solvents (e.g., ethanol, acetone, ethyl acetate) and acidic/basic buffers commonly used in nucleic acid and protein workflows.

Sample Compatibility & Compliance

The VC-96W accommodates diverse container geometries via five optional rotor configurations (96AW–96EW, 96S), supporting standardized microplates (e.g., ANSI/SLAS-compliant 96- and 24-well formats), microcentrifuge tubes (1.5–2.0 mL), conical tubes (15–50 mL), and glass centrifuge vessels. Its mechanical and thermal design aligns with ISO 22870:2016 (in vitro diagnostic medical devices — requirements for quality and competence of medical laboratories) and supports GLP/GMP-aligned documentation practices when paired with external audit-ready vacuum pumps and cold traps. While the instrument itself does not include 21 CFR Part 11-compliant software, its analog controls and discrete safety circuits facilitate integration into validated environments where electronic records are managed externally.

Software & Data Management

The VC-96W is a stand-alone hardware platform with no embedded firmware or network interface. All operational parameters—including speed, temperature setpoint, and timer—are configured via front-panel push-button controls with LED feedback. Time logging is limited to elapsed runtime display (HH:MM); no data export, USB connectivity, or PC interface is provided. This minimalist architecture enhances long-term reliability and simplifies qualification (IQ/OQ) in regulated labs where software validation burdens must be minimized. Users requiring electronic record retention typically pair the VC-96W with external time-stamped loggers or integrate it into facility-wide environmental monitoring systems via its pump联动 socket (rated ≤7 A).

Applications

• Concentration and lyophilization-prep of DNA, RNA, and oligonucleotides from enzymatic reactions or column eluates.
• Rapid pelleting and solvent removal from bacterial or yeast cultures grown in deep-well plates (e.g., for plasmid isolation or metabolite extraction).
• Downstream processing of glycoproteins, glycopeptides, and carbohydrate standards prior to MS or HILIC analysis.
• Pre-concentration of dilute peptide digests prior to LC-MS/MS injection—reducing matrix effects and improving signal-to-noise ratios.
• High-throughput sample cleanup in assay development workflows involving ELISA, qPCR, or NGS library prep where plate-based handling is standard.

FAQ

What vacuum pump is recommended for optimal performance?
A dry, oil-free diaphragm pump with ultimate vacuum ≤5 mbar and flow rate ≥20 L/min is recommended. TAITEC specifies compatibility with pumps equipped with 0.2 µm inline sterilizing filters.
Can the VC-96W be used for solvent removal with chloroform or DMSO?
Yes—provided appropriate chemical resistance verification is performed. The SUS316/PTFE chamber withstands short-term exposure to chloroform, DMSO, and acetonitrile; prolonged use requires validation per ICH Q5C stability guidelines.
Is the 96S swing rotor compatible with SBS-standard deep-well plates?
Yes—the 96S rotor accepts ANSI SLAS-format 96-well deep-well plates (max depth 44 mm) and EM-1524 microtube carriers, enabling dual-plate processing per run.
Does the unit support unattended overnight operation?
No—timer maximum is 99 minutes; continuous operation requires manual restart. This design reflects ISO 13849-1 functional safety principles for laboratory equipment without autonomous shutdown logic.
How is temperature calibration verified?
Users perform periodic verification using traceable NIST-calibrated thermocouple probes inserted into dummy wells filled with thermal paste; TAITEC provides calibration certificate templates compliant with ISO/IEC 17025.
