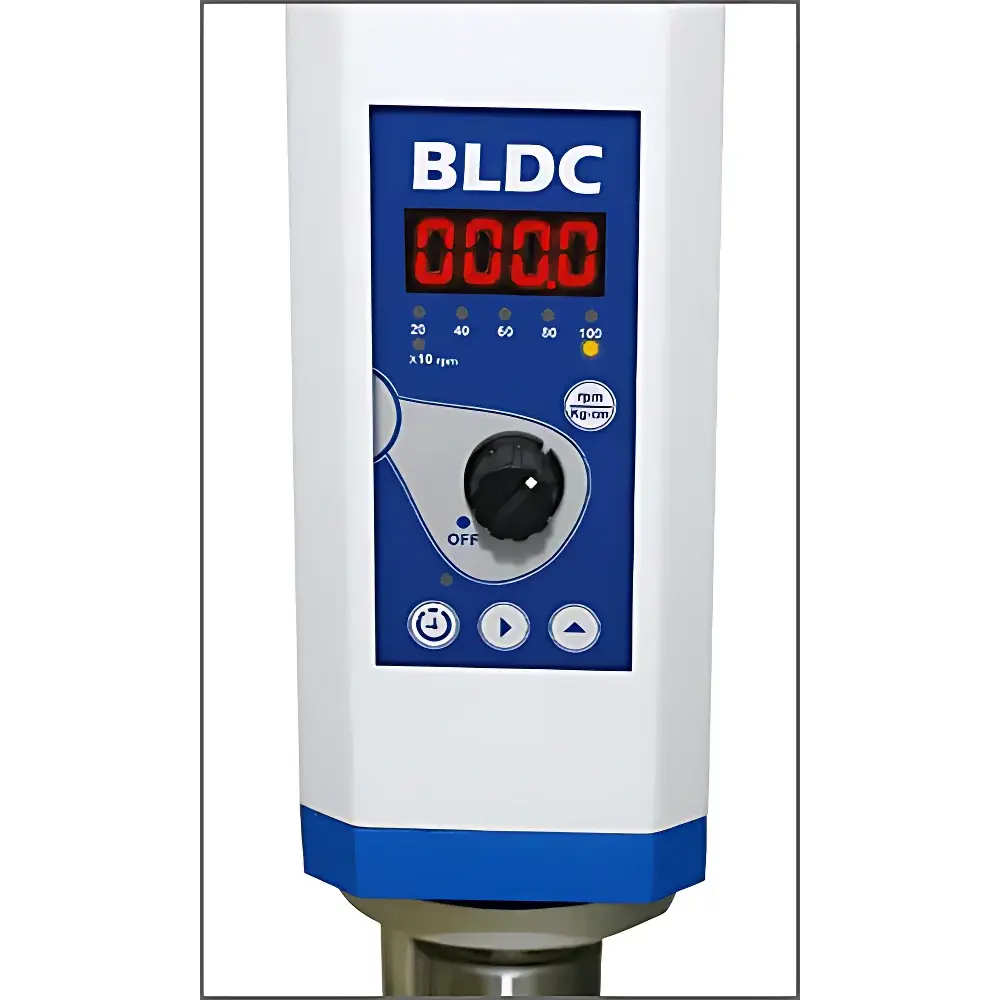

Taiwan-Made BLDC High-Torque Laboratory Stirrer Model BLDC 201

Overview

The Taiwan-made BLDC 201 High-Torque Laboratory Stirrer is an engineered solution for demanding low-speed, high-viscosity mixing applications in R&D laboratories, pilot-scale formulation development, and quality control environments. Built around a brushless DC (BLDC) motor architecture, this stirrer eliminates mechanical commutation—removing carbon brush wear, sparking, and associated particulate generation. Its core motion control system integrates a precision microcontroller-based feedback loop that ensures closed-loop speed regulation with zero drift across extended operation cycles. Unlike brushed motors or AC induction units, the BLDC 201 delivers consistent torque output even under variable load conditions—critical when processing non-Newtonian fluids, polymer melts, pastes, or suspension gels. Designed for ISO Class 5–8 cleanroom compatibility and volatile organic compound (VOC)-sensitive settings, it meets stringent electromagnetic compatibility (EMC) standards to prevent interference with adjacent analytical instrumentation such as HPLC systems, mass spectrometers, or pH meters.

Key Features

• Auto-Torque Compensation: Maintains set rotational speed within ±0.5% deviation across dynamic viscosity shifts—enabled by real-time current sensing and PWM-driven torque modulation.
• Load Monitoring Interface: Digital display toggles between RPM and percentage-based torque loading (20%, 40%, 60%, 80%, 100%), allowing operators to assess rheological resistance without external sensors.
• Precision Timing Control: Programmable timer supports intervals from 1 minute to 9999 minutes (≈7 days), supporting unattended batch homogenization protocols compliant with ASTM D1200 and ISO 2557-2.
• Triple-Layer Protection Architecture: Integrated overcurrent foldback, thermal cutoff at 110°C (motor winding temperature), and redundant fuse protection prevent thermal runaway or winding failure during overload events (error code E-03 indicates transient overtorque; unit resumes operation after manual reset).
• Zero-Maintenance Drive System: Sealed BLDC motor requires no lubrication, brush replacement, or periodic commutator cleaning—validated for >20,000 hours of continuous duty per IEC 60034-18-41 insulation life estimation.

Sample Compatibility & Compliance

The BLDC 201 is validated for use with shear-thinning, thixotropic, and yield-stress materials—including lithium battery slurries, pharmaceutical ointments, ceramic suspensions, and food-grade batters. Its sealed motor housing and spark-free operation meet requirements for Class I, Division 2 hazardous locations per NEC Article 500. All electrical interfaces conform to IEC 61010-1:2010 for laboratory equipment safety, including reinforced insulation and creepage/clearance distances exceeding 8 mm. The unit supports GLP-compliant workflows via optional audit-trail-enabled firmware upgrades (not standard), and its EMC certification ensures co-location with FDA 21 CFR Part 11–governed instruments without signal degradation.

Software & Data Management

While the BLDC 201 operates as a standalone analog-digital hybrid controller, its RS-485 serial interface (optional module) enables integration into centralized lab automation platforms via Modbus RTU protocol. Logged parameters—including cumulative runtime, peak torque events, and thermal history—can be exported for trend analysis in LIMS or ELN systems. Firmware updates are performed via secure USB bootloader, maintaining traceability per ISO/IEC 17025 clause 5.9.2. No cloud connectivity or proprietary software is required; configuration remains accessible through front-panel keypad navigation with tactile feedback and LED status indicators.

Applications

• Preparation of high-solid-content electrode slurries for lithium-ion battery R&D (ASTM D7897)
• Homogenization of thermosetting resin composites prior to rheological characterization
• Batch dispersion of nanocellulose or graphene additives in polymer matrices
• Stabilization of pharmaceutical suspensions under GMP Annex 1 environmental controls
• Viscosity calibration verification using NIST-traceable silicone oil standards (ISO/IEC 17025 accredited labs)

FAQ

Is the BLDC 201 suitable for explosion-proof environments?

Yes—the absence of brushes and sparks, combined with IP54-rated enclosure integrity, permits use in Zone 2 / Class I, Div 2 areas when installed with certified conduit fittings.

Can the unit be integrated into a PLC-controlled process line?

Yes—via optional RS-485 Modbus RTU interface, enabling start/stop commands, speed setpoint modulation, and fault status polling.

What is the warranty coverage and service support model?

Two-year limited warranty covering parts and labor; lifetime technical support includes firmware patches, calibration guidance, and application engineering consultation.

Does it support ISO/IEC 17025-compliant calibration documentation?

Factory calibration certificates (traceable to NMI Taiwan) are provided; on-site verification services available through authorized regional partners.

Are custom impeller geometries supported?

Yes—standard ISO 228/1 thread mounting allows retrofitting of helical ribbon, anchor, or retreat-curve impellers; dimensional drawings and torque-load curves provided upon request.
