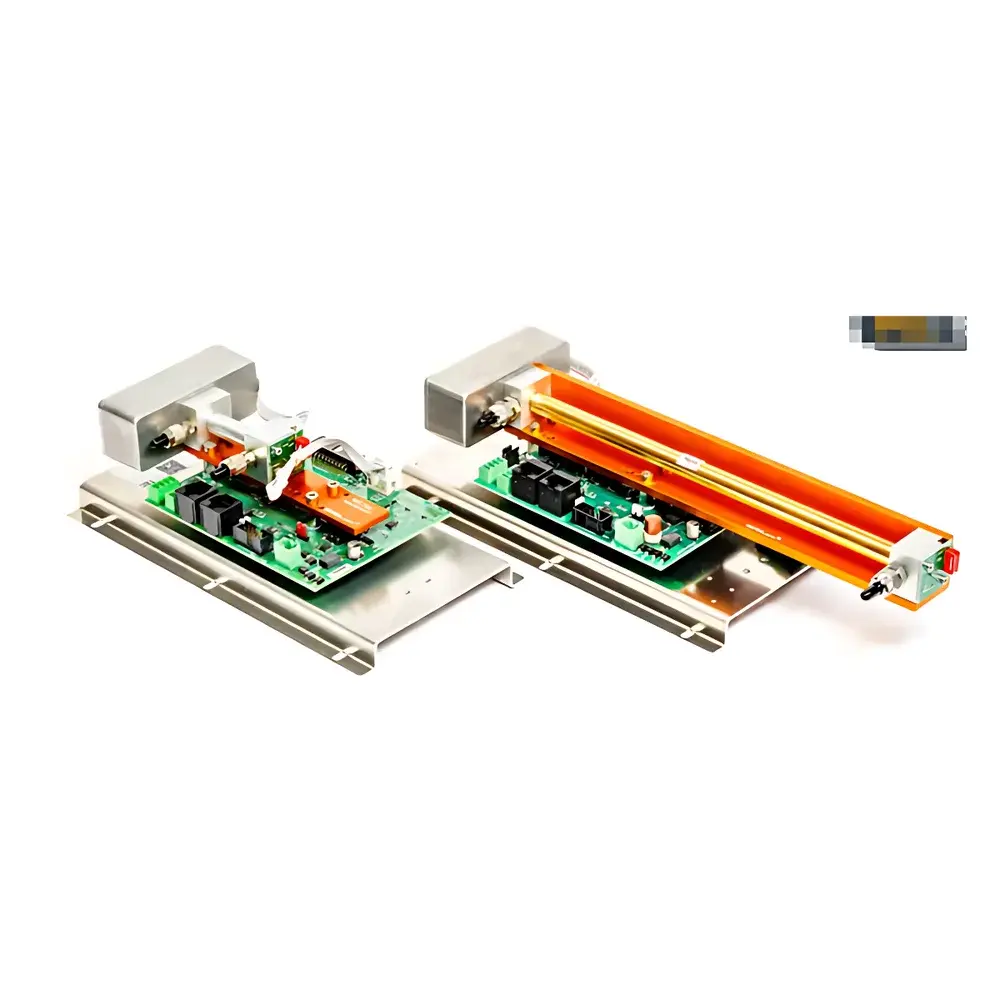

TCT NDIR200 Non-Dispersive Infrared Gas Analysis Platform

Overview

The TCT NDIR200 Non-Dispersive Infrared (NDIR) Gas Analysis Platform is an engineered optical measurement system designed for quantitative, real-time detection of specific gaseous analytes in industrial, environmental, and laboratory settings. It operates on the fundamental principle of absorption spectroscopy: target gas molecules absorb infrared radiation at characteristic vibrational-rotational transition wavelengths within the mid-infrared region (2–14 µm). Unlike dispersive systems employing gratings or prisms, the NDIR200 utilizes broadband infrared emitters—high-stability IR LEDs and micro-thermoelectric emitters—paired with narrowband optical interference filters and thermopile or pyroelectric detectors. This architecture eliminates moving parts and spectral scanning mechanisms, delivering inherent long-term stability, low drift, and high reproducibility in continuous operation. The platform is optimized for trace-level detection down to single-digit ppm concentrations for gases including CO₂, CO, CH₄, CₙHₘ hydrocarbons, N₂O, SF₆, and CF₄—making it suitable for applications demanding regulatory-grade reliability without requiring cryogenic cooling or vacuum optics.

Key Features

• Optimized mid-IR spectral range: 2–14 µm, covering fundamental absorption bands of major greenhouse and industrial gases
• Dual-emitter configuration: Combines high-output IR LEDs with micro-thermoelectric sources for enhanced signal-to-noise ratio and thermal stability
• Interference-filter-based detection: Precision bandpass filters isolate gas-specific absorption windows (e.g., 4.26 µm for CO₂, 4.67 µm for CO), minimizing cross-sensitivity
• Thermopile detector architecture: Solid-state, zero-bias operation with no external power requirement for sensing element; compatible with analog and digital output interfaces
• Modular optical path design: Standardized sample cell interface (e.g., 10 cm–20 cm path length options) supports customization for pressure, flow, and temperature control integration
• Low-power, embedded electronics: Designed for 24 V DC operation and compatibility with industrial PLCs, SCADA systems, and data loggers

Sample Compatibility & Compliance

The NDIR200 platform is validated for use with dry, non-corrosive gas matrices across ambient to moderately elevated temperatures (up to 50 °C inlet gas temperature) and pressures (0.8–1.2 bar absolute). Condensation, particulate loading, and aggressive halogenated compounds must be excluded via upstream filtration, drying, and chemical scrubbing. The system complies with electromagnetic compatibility standards IEC 61326-1 (industrial environments) and meets mechanical robustness requirements per IEC 60068-2 for vibration and shock resistance. While not intrinsically safe certified out-of-box, it may be integrated into ATEX/IECEx Zone 2 compliant enclosures when paired with appropriate barrier systems. For regulated emissions monitoring (e.g., CEM), users must validate method equivalence per EN 15267-3 or EPA Method 10, as final compliance depends on full system integration—including calibration protocol, span gas traceability (NIST-traceable), and QA/QC documentation.

Software & Data Management

The NDIR200 operates as a sensor-level platform and does not include proprietary closed-source firmware or cloud-dependent software. It delivers calibrated analog outputs (4–20 mA, 0–10 V) and optional RS-485 Modbus RTU digital communication for direct integration into existing process control infrastructure. Configuration of zero/span offsets, linearization coefficients, and alarm thresholds is performed via DIP switches or external potentiometers—ensuring deterministic behavior and auditability. When deployed in GLP/GMP or FDA-regulated environments, the device supports 21 CFR Part 11-compliant data acquisition when connected to validated third-party DAQ systems featuring electronic signatures, audit trails, and secure user access controls. Raw detector voltage signals are accessible for advanced users performing custom chemometric modeling or multivariate correction algorithms.

Applications

• Continuous Emissions Monitoring (CEM) for stack gases in power generation and cement manufacturing
• Automotive exhaust analysis during engine development and OBD-II diagnostic validation
• Leak detection and quantification in refrigerant handling, SF₆-insulated switchgear, and biogas upgrading facilities
• Environmental air quality networks measuring urban CO, CH₄, and N₂O concentrations
• Total Organic Carbon (TOC) analyzers using catalytic oxidation + NDIR CO₂ detection for wastewater treatment
• Process gas monitoring in semiconductor fabrication (e.g., CF₄ etch gas recovery)
• Renewable gas certification (biomethane, hydrogen blends) via compositional verification
• In-line moisture measurement in compressed air and natural gas pipelines using H₂O-specific NDIR channels (optional configuration)

FAQ

Does the NDIR200 require periodic recalibration?
Yes—calibration interval depends on application severity. For fixed-installation CEM use, quarterly zero/span checks with certified reference gases are recommended; for lab benchtop use, annual verification suffices.
Can the NDIR200 measure multiple gases simultaneously?
It supports up to four independent gas channels via multi-filter wheel or parallel detector arrays—each requiring dedicated optical path and calibration; standard configuration is single-gas optimized.
Is the instrument compatible with humid or corrosive sample streams?
No—sample conditioning (drying, particulate filtration, acid gas removal) is mandatory prior to inlet; unconditioned wet or acidic streams will degrade optical surfaces and detector responsivity.
What is the typical response time (T90) for CO₂ measurement?
Under standard 10 cm path length and 1 L/min flow, T90 is ≤15 seconds; reduced path lengths or higher flow rates can achieve sub-5-second dynamics.
Does TCT provide ISO/IEC 17025-accredited calibration certificates?
Calibration services are available through TCT’s authorized metrology partners; certificates include uncertainty budgets traceable to NIST or PTB standards.
