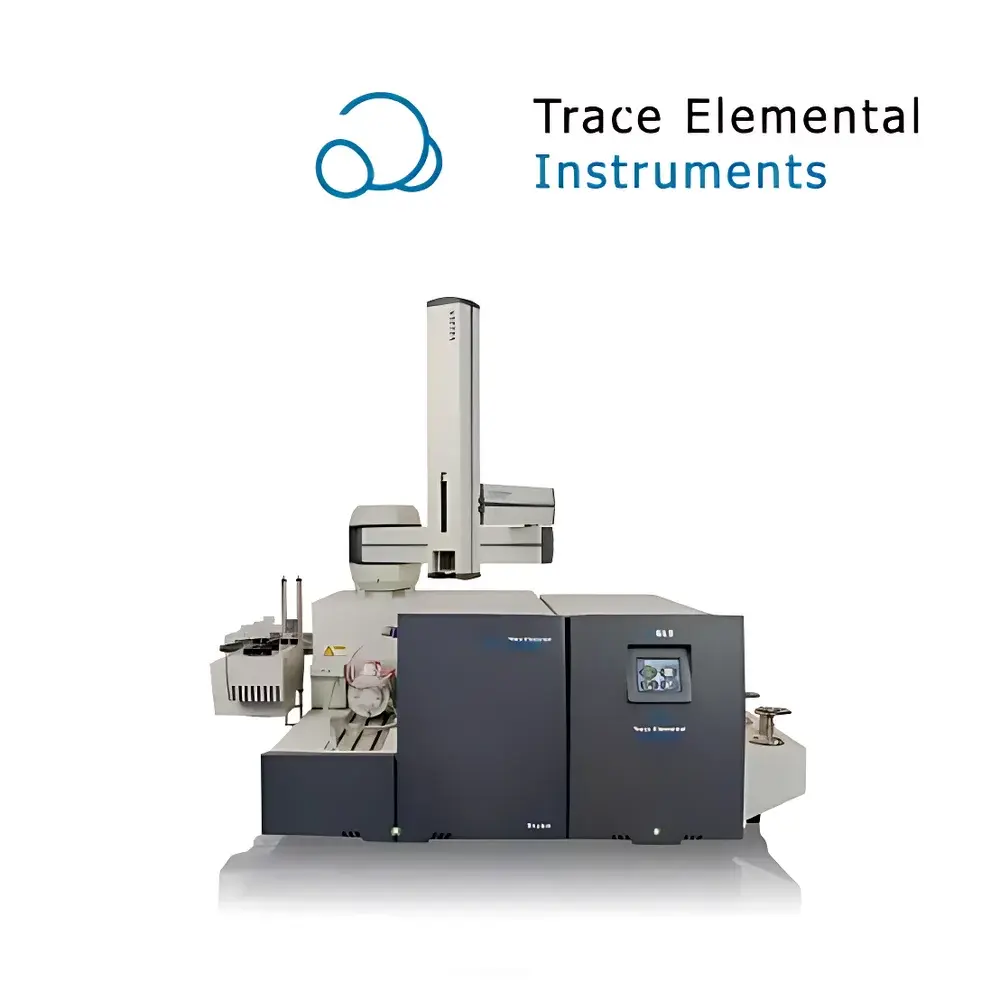

TE XPLORER TS Total Sulfur Analyzer

Overview

The TE XPLORER TS Total Sulfur Analyzer is a high-precision benchtop instrument engineered for quantitative determination of total sulfur content in petroleum products and related hydrocarbon matrices using combustion microcoulometric detection. Based on the principle of controlled high-temperature oxidation (1050 °C) followed by electrochemical titration of generated SO₂ in a microcoulometric cell, the system delivers trace-level sensitivity and exceptional reproducibility across diverse sample states—gaseous, liquefied petroleum gas (LPG), liquid fuels (e.g., gasoline, diesel, jet fuel, crude oil), and solid samples (e.g., catalysts, residues, or polymer-bound sulfur). Designed for compliance-driven laboratories operating under regulatory frameworks such as EPA, EU Fuel Quality Directive, and refinery quality control mandates, the XPLORER TS supports routine analysis from sub-ppb to high-ppm sulfur concentrations without manual intervention or method reconfiguration.

Key Features

• Combustion microcoulometry platform with integrated 1050 °C quartz furnace and temperature-stabilized coulometric detector featuring closed-loop feedback control for baseline stability and low-noise signal resolution
• Fully automated modular architecture: interchangeable autosamplers for liquids (105-position 2 mL vial XYZ stage with auto-dilution and auto-calibration), gases/LPG (pressurized loop injection with mass-flow-controlled sampling), and solids (20-position ceramic boat loader with programmable ashing protocol)
• TEIS 2 software suite providing full method lifecycle management—from sequence definition and real-time instrument control to audit-trail-enabled data acquisition, calibration curve validation, and report generation compliant with 21 CFR Part 11 requirements
• Compact footprint with front-access service design; all critical components—including combustion tube, electrolytic cell, and gas purification modules—are accessible without disassembly
• Robust sulfur recovery (>95%) across matrix types verified per ASTM D5453 and ISO 20846; no chemical modifiers or carrier gas blending required for standard operation
• Self-diagnostic routines monitor cell efficiency, electrode polarization, furnace thermocouple drift, and gas flow integrity—triggering maintenance alerts prior to performance deviation

Sample Compatibility & Compliance

The XPLORER TS accommodates heterogeneous sample forms without modification to core detection hardware: volatile gases (natural gas, refinery off-gas), pressurized LPG streams, distillate fuels, heavy crudes, lubricants, biofuels, and solid-phase materials including spent catalysts and petrochemical intermediates. All operational protocols adhere strictly to internationally recognized standards: ASTM D5453 (light hydrocarbons), ASTM D7039 (gasoline and diesel), ASTM D3229 (residual fuels), ISO 20846 (petrol), ISO 20884 (diesel), IP 512 (kerosene), UOP 97 (naphtha), EN ISO 20846 (EU-wide fuel specification), and SH/T 0689 (Chinese national standard for gasoline). System validation documentation includes IQ/OQ/PQ templates aligned with GLP and refinery QA/QC workflows.

Software & Data Management

TEIS 2 is a Windows-based, role-based application supporting multi-user environments with configurable access levels (operator, supervisor, administrator). It implements electronic signatures, time-stamped audit trails, and immutable raw data storage in encrypted binary format. Calibration verification includes linearity assessment (r² ≥ 0.999), repeatability (RSD ≤ 2% at 10 mg/kg), and intermediate precision checks across batches. Data export options include CSV, PDF analytical reports, and LIMS-compatible XML output. Optional integration with enterprise chromatography data systems (CDS) enables centralized review of sulfur results alongside other fuel spec parameters.

Applications

• Refinery process monitoring: real-time sulfur tracking in hydrotreater feed/effluent, FCC slurry oils, and alkylation acid settler streams
• Fuel certification: batch release testing for ultra-low-sulfur diesel (ULSD), marine distillates (IMO 2020), and aviation turbine fuel (ASTM D1655 Annex A1)
• Research & development: sulfur speciation support via coupling with GC-SCD or as standalone quantification tool in catalyst deactivation studies
• Contract laboratory services: accredited testing per ISO/IEC 17025 with built-in uncertainty estimation per GUM guidelines
• Environmental compliance: measurement of sulfur emissions precursors in refinery flare gas and sour water stripper overheads

FAQ

What sample introduction methods are supported?
Liquid samples use XYZ autosamplers with 2 mL vials; gases and LPG employ pressure-regulated loop injectors; solids are introduced via ceramic boat loaders with optional pre-ashing cycles.
Is the system compliant with 21 CFR Part 11?
Yes—TEIS 2 provides full electronic signature capability, audit trail logging, and secure user authentication meeting FDA requirements for regulated environments.
Can the XPLORER TS analyze sulfur in biofuels containing oxygenates?
Yes—method validation confirms accurate recovery in ethanol-blended gasoline (E10/E15) and FAME-dosed diesel without interference from oxygenated compounds.
What maintenance intervals are recommended?
Daily: cell electrolyte check and furnace purge verification; quarterly: combustion tube inspection and detector cleaning; annually: full system calibration verification with NIST-traceable standards.
Does the analyzer require external gas supplies beyond oxygen?
Only ultra-high-purity oxygen (≥99.995%) is required for combustion; no auxiliary gases (e.g., argon, helium) or chemical reagents are needed for standard operation.
