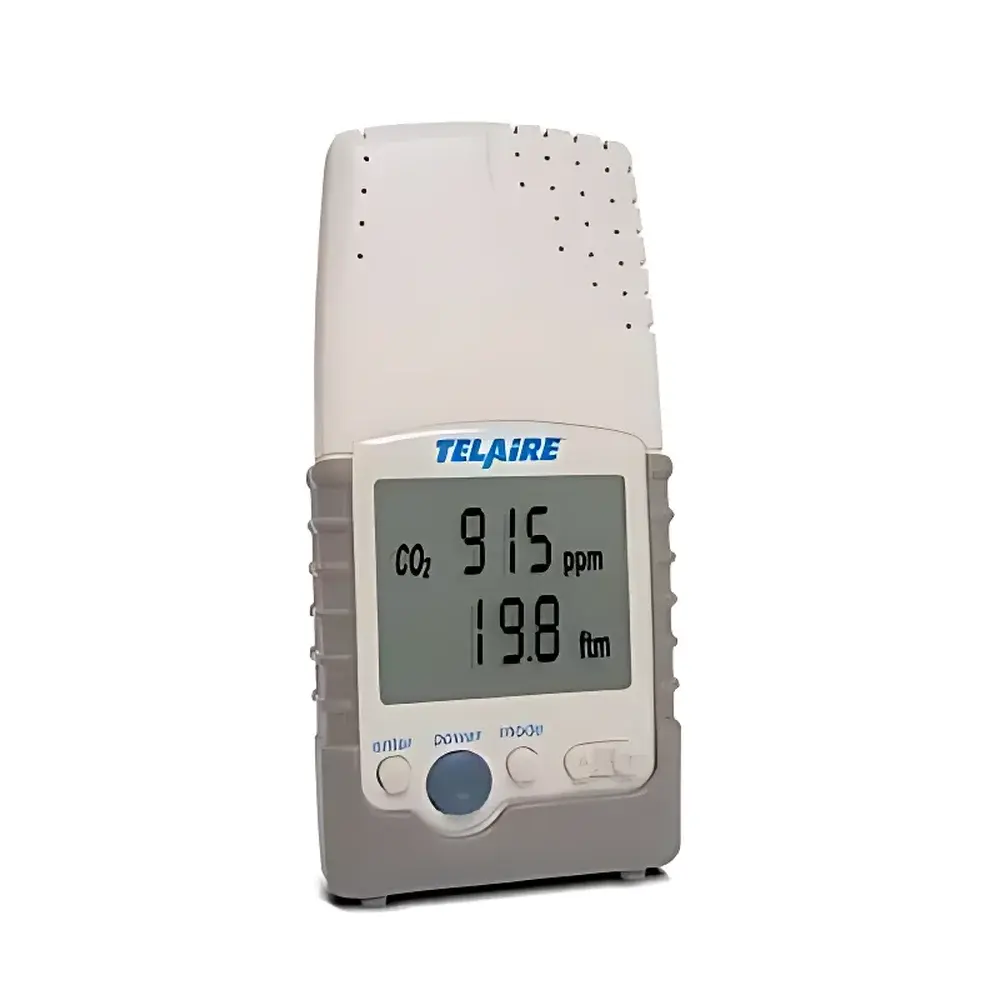

Telaire 7001 Portable Dual-Beam Infrared CO₂ Analyzer

Overview

The Telaire 7001 Portable Dual-Beam Infrared CO₂ Analyzer is an industrial-grade, handheld gas measurement instrument engineered for high-fidelity carbon dioxide monitoring in indoor air quality (IAQ), HVAC commissioning, building automation, and environmental health & safety applications. It employs dual-beam, dual-wavelength non-dispersive infrared (NDIR) absorption spectroscopy — a principle compliant with ISO 8573-1 Annex B and ASTM D6245-19 for CO₂ quantification in ambient air. The optical architecture features two matched infrared detectors operating at distinct wavelengths: one tuned to the primary CO₂ absorption band near 4.26 µm, and the other referencing a non-absorbing spectral region. This differential design actively compensates for lamp aging, dust accumulation on optics, and ambient thermal drift — delivering long-term baseline stability without requiring frequent zero-gas recalibration. Integrated temperature sensing (±1°C accuracy) enables real-time compensation of CO₂ signal per ISO 16000-23, and the unit calculates ventilation rate (air changes per hour, ACH) using ASHRAE Standard 62.1-derived algorithms. Designed for field-deployable reliability, the 7001 operates across 0–50°C and 0–95% RH (non-condensing), meeting FCC Part 15 Subpart B electromagnetic compatibility requirements.

Key Features

• Handheld ergonomic form factor with integrated fold-out stand for benchtop or wall-mounted operation
• Backlit LCD display showing simultaneous CO₂ concentration (ppm), ambient temperature (°C/°F), and calculated ventilation rate (ACH)
• Dual-mode sampling: passive diffusion or active pump-assisted flow-through (50–100 mL/min) for rapid response in low-concentration or stagnant environments
• On-device calibration mode supporting single-point zero adjustment using certified 0–1000 ppm CO₂ span gas — traceable to NIST SRM standards
• Configurable outdoor CO₂ reference setting (default 400 ppm) to improve differential ventilation calculations in variable ambient conditions
• RS-232 serial interface (RJ-45 connector) compatible with Telaire’s legacy CO₂ ChartView software for time-series logging, trend analysis, and report generation
• Dual analog outputs: 0–4 VDC linear signals for CO₂ (1 mV/ppm, max 4000 ppm) and temperature (0–4 VDC over 0–40°C), each with 100 Ω output impedance
• Power flexibility: 4×AA alkaline batteries (80-hour runtime) or optional 6 VDC external AC/DC adapter — enabling continuous operation in laboratories, construction sites, or mobile inspection vehicles

Sample Compatibility & Compliance

The Telaire 7001 is validated for direct measurement of CO₂ in clean, dry, non-corrosive air matrices. It is not rated for use in explosive atmospheres (ATEX/IECEx), high-humidity condensing environments (>95% RH), or gas streams containing particulates >10 µm or volatile organic compounds (VOCs) above 100 ppmv — which may coat optical surfaces or interfere with IR absorption. The analyzer complies with FCC Part 15 Class B emissions limits and carries CE marking under the EMC Directive 2014/30/EU. While not FDA 21 CFR Part 11–compliant out-of-the-box, its data export functionality supports integration into GLP/GMP workflows when paired with validated third-party data acquisition systems that implement audit trails, electronic signatures, and secure storage per ISO/IEC 17025:2017 clause 7.5.2.

Software & Data Management

Data acquisition is supported via the legacy Telaire CO₂ ChartView software (Windows-compatible), which receives real-time streaming via RS-232 at configurable baud rates (default 9600 bps). ChartView enables timestamped logging, customizable graph overlays (CO₂ vs. temperature), export to CSV/Excel, and basic statistical reporting (min/max/avg/std dev). For modern compliance needs, users may integrate the 7001 into SCADA or BMS platforms using its analog voltage outputs and documented scaling equations. All firmware and calibration coefficients are factory-programmed and immutable; no user-accessible flash memory or internal storage exists — ensuring data integrity and eliminating risks associated with unauthorized configuration changes.

Applications

• Indoor Air Quality (IAQ) audits per ASHRAE Standard 62.1 and EN 13779
• HVAC system balancing and demand-controlled ventilation (DCV) validation

<liSchool and office occupancy monitoring for energy efficiency optimization

• Green building certification documentation (LEED EQ Credit 1, BREEAM HEA 02)
• Post-occupancy evaluation (POE) studies in healthcare, education, and commercial facilities
• Environmental health & safety (EHS) assessments in laboratories, server rooms, and confined spaces
• Field validation of fixed CO₂ monitoring networks prior to permanent installation

FAQ

What is the recommended calibration frequency?
Annual calibration using certified zero gas (e.g., nitrogen) and span gas (0–1000 ppm CO₂) is recommended per manufacturer specifications and aligns with ISO/IEC 17025:2017 clause 7.7.1 for measurement traceability.
Can the Telaire 7001 measure CO simultaneously?
No — the 7001 is a dedicated CO₂ and temperature analyzer. It does not include electrochemical or NDIR channels for carbon monoxide detection.
Is humidity compensation built-in?
The instrument does not include an integrated humidity sensor; however, its CO₂ measurement algorithm incorporates temperature-dependent correction per ISO 16000-23, and users must manually account for relative humidity effects when interpreting results in high-moisture environments.
Does it support MODBUS or BACnet protocols?
No — native communication is limited to RS-232 ASCII protocol and analog voltage outputs. Protocol conversion requires external gateways.
What is the warm-up time before stable readings?
Less than 60 seconds at 22°C ambient, as verified per ASTM D6245-19 section 7.3.1 for portable CO₂ analyzers.
