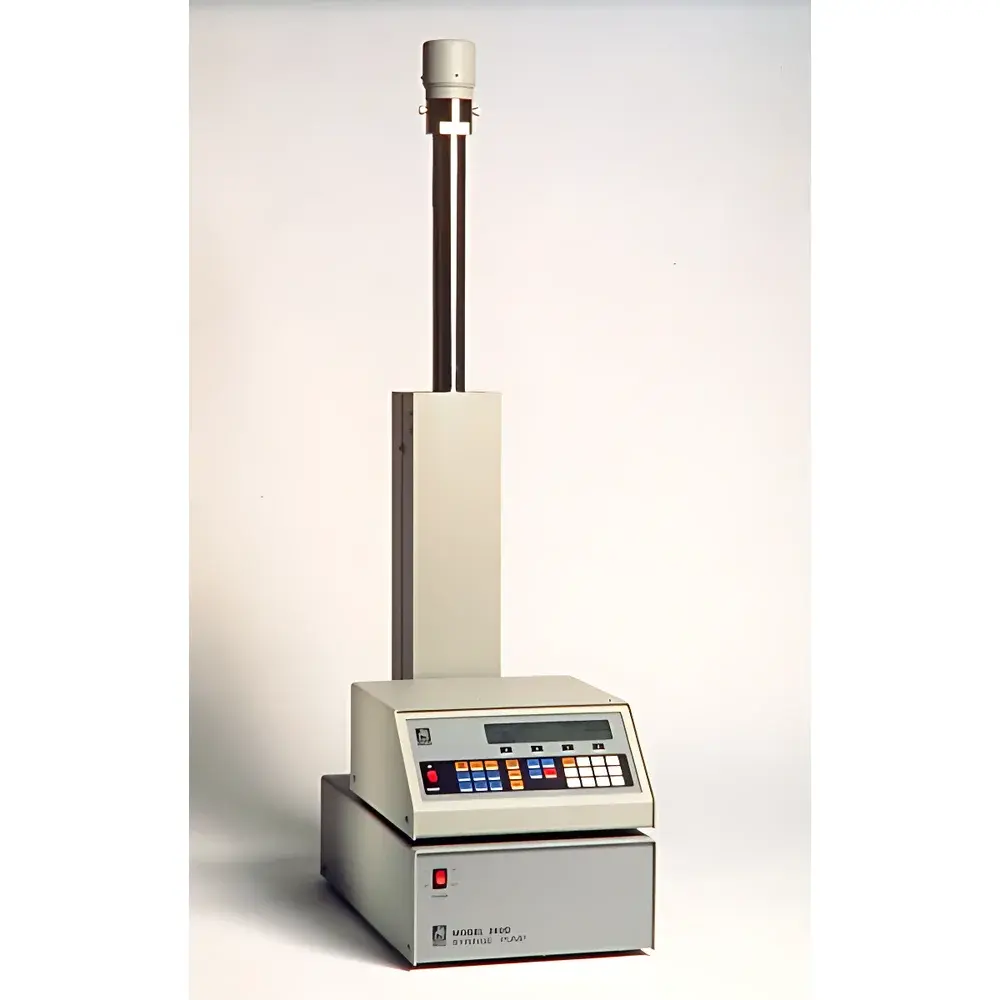

Teledyne ISCO D-Series High-Pressure Precision Syringe Pumps

Overview

The Teledyne ISCO D-Series High-Pressure Precision Syringe Pumps are engineered for laboratory-scale fluid delivery requiring exceptional accuracy, stability, and pressure resilience across demanding analytical, preparative, and process development applications. Based on positive displacement via digitally controlled stepper-motor-driven syringe actuation, these pumps operate on a true constant-flow principle—eliminating inherent pulsation, flow overshoot, or pressure transients common in peristaltic, diaphragm, or gear-driven systems. Each model employs a single-ratio, self-lubricating gear train coupled with a high-resolution optical encoder and closed-loop digital position servo control. This architecture ensures consistent volumetric displacement regardless of backpressure, viscosity, or temperature drift—critical for ultra-low-flow microfluidic dosing, supercritical fluid chromatography (SFC), high-pressure liquid chromatography (HPLC) method development, core flooding experiments, and reactive synthesis under confinement. The D-Series is not a “pulse-dampened” solution; its pulse-free performance is intrinsic to mechanical design and verified by independent acoustic emission testing—residual flow noise is 10–20× lower than competing micro-volume piston pumps.

Key Features

• Pulse-free operation across full flow and pressure range—no check valves, no dampeners, no flow smoothing required
• Digital position servo control with DC motor drive ensures sub-nanoliter resolution and <±0.1% annual motor stability
• Integrated high-fidelity pressure transducer enables real-time closed-loop pressure monitoring and automatic shutdown at user-defined thresholds
• Modular controller supports up to four independent pumps in a single chassis, configurable for single-pump constant-flow/constant-pressure, dual-pump continuous-flow, triple-pump gradient reagent addition, or quad-pump parallel operation
• Robust wetted path constructed from Nitronic 50 (a nitrogen-strengthened austenitic stainless steel), graphite-impregnated PTFE seals, and optional Hastelloy C-276 components for aggressive chemical compatibility
• Fail-safe hardware protection: motor current limiting (6 A max), overpressure cutoff (20% above rated max), and dual-parameter monitoring (motor speed + cylinder pressure)
• Front-panel interface with real-time display of flow rate, pressure, elapsed time, and operational mode—no PC dependency for basic operation

Sample Compatibility & Compliance

The D-Series accommodates a broad spectrum of fluids without compromise: aqueous and organic solvents, corrosive acids and halogenated media, liquefied gases (e.g., CO₂, N₂O), abrasive slurries, thermally sensitive biologics, and highly viscous polymer melts (up to 10⁶ cP). Optional wetted-path upgrades—including Hastelloy C-276 cylinder assemblies, titanium plungers, and gold-plated valve seats—extend service life in hydrofluoric acid, hot concentrated chlorides, and molten salt environments. All models conform to IEC/EN 61326-1 (EMC for laboratory equipment), EN 1010-1 (safety requirements for lab instrumentation), UL 61010-1, and CSA C22.2 No. 1010.1. For regulated environments, the controller supports audit-trail-capable operation when integrated with compliant SCADA or LIMS platforms—meeting foundational expectations for GLP/GMP-aligned method validation workflows.

Software & Data Management

The fourth-generation ISCO controller provides native RS-232, RS-485, analog voltage (0–10 V), 4–20 mA I/O, and digital contact closure interfaces—enabling seamless integration into automated reactor systems, chromatographic stacks, or custom-built process skids. Optional Ethernet and USB connectivity allow remote configuration, script-based sequence execution, and time-synchronized data logging at up to 10 Hz. Flow and pressure profiles can be programmed as linear ramps, step gradients, or multi-segment timed events—with programmable refill cycles and bidirectional direction control. Data export supports CSV and ASCII formats compatible with MATLAB, Python (pandas), and commercial analytics suites. While the pump does not embed FDA 21 CFR Part 11-compliant electronic signatures out-of-the-box, its deterministic behavior, hardware-enforced parameter limits, and traceable event logs facilitate qualification under Part 11 when deployed within validated system architectures.

Applications

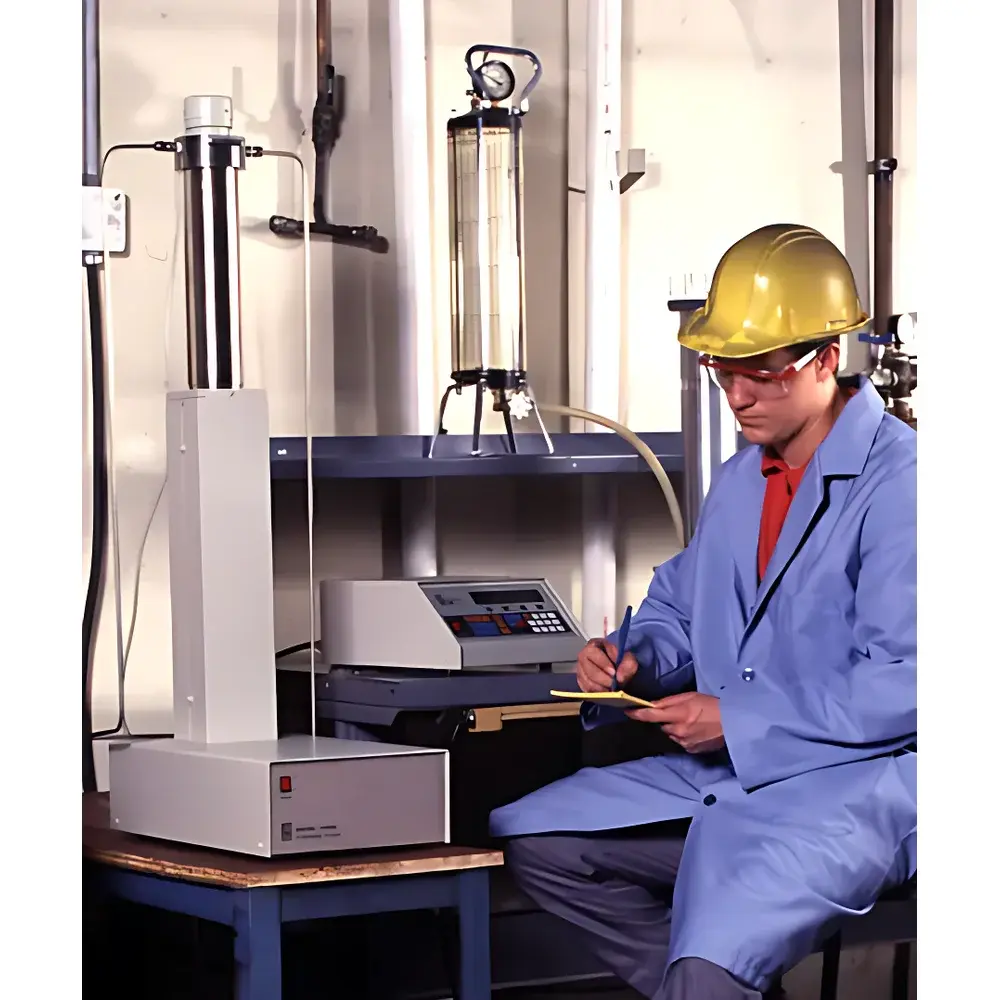

• Core flooding and enhanced oil recovery (EOR) studies under reservoir-relevant pressures (up to 30,000 psi)
• Supercritical fluid extraction (SFE) and SFC mobile phase delivery with precise co-solvent blending
• Microreactor feeding for continuous-flow synthesis, including exothermic or gas-evolving reactions
• Calibration and verification of flow meters, pressure transducers, and mass spectrometer sample introduction systems
• Long-duration stability testing of nanosuspensions, liposomal formulations, and colloidal dispersions
• Geochemical reaction kinetics under elevated pT conditions using in situ spectroscopic coupling
• Automated solvent exchange in cryo-EM grid preparation and serial sectioning workflows

FAQ

What distinguishes the D-Series from other high-pressure syringe pumps?
Its intrinsic pulse-free delivery stems from direct-drive, non-reciprocating syringe actuation—no valving, no dwell time, no flow interruption—even during dual-pump switchover in continuous-flow mode.
Can the D-Series handle abrasive slurries or particulates?
Yes—models equipped with hardened Nitronic 50 barrels and optional ceramic-coated plungers maintain accuracy and seal integrity with particles up to 50 µm in diameter when operated within specified shear-rate limits.
Is remote operation supported over industrial networks?
Standard RS-485 and optional Ethernet modules support Modbus RTU/TCP protocols, enabling integration into PLC-controlled infrastructure without proprietary middleware.
How is calibration traceability maintained?
Each pump ships with NIST-traceable flow and pressure calibration certificates; field recalibration uses gravimetric or timed-volume methods per ISO 4064-2, with documented uncertainty budgets available upon request.
What safety certifications apply to hazardous-area use?
The base unit is not intrinsically safe; however, explosion-proof enclosures (Class I, Div 1, Groups B/C/D) and purged cabinet configurations are available through authorized system integrators for Class I, Division 2 deployment.
