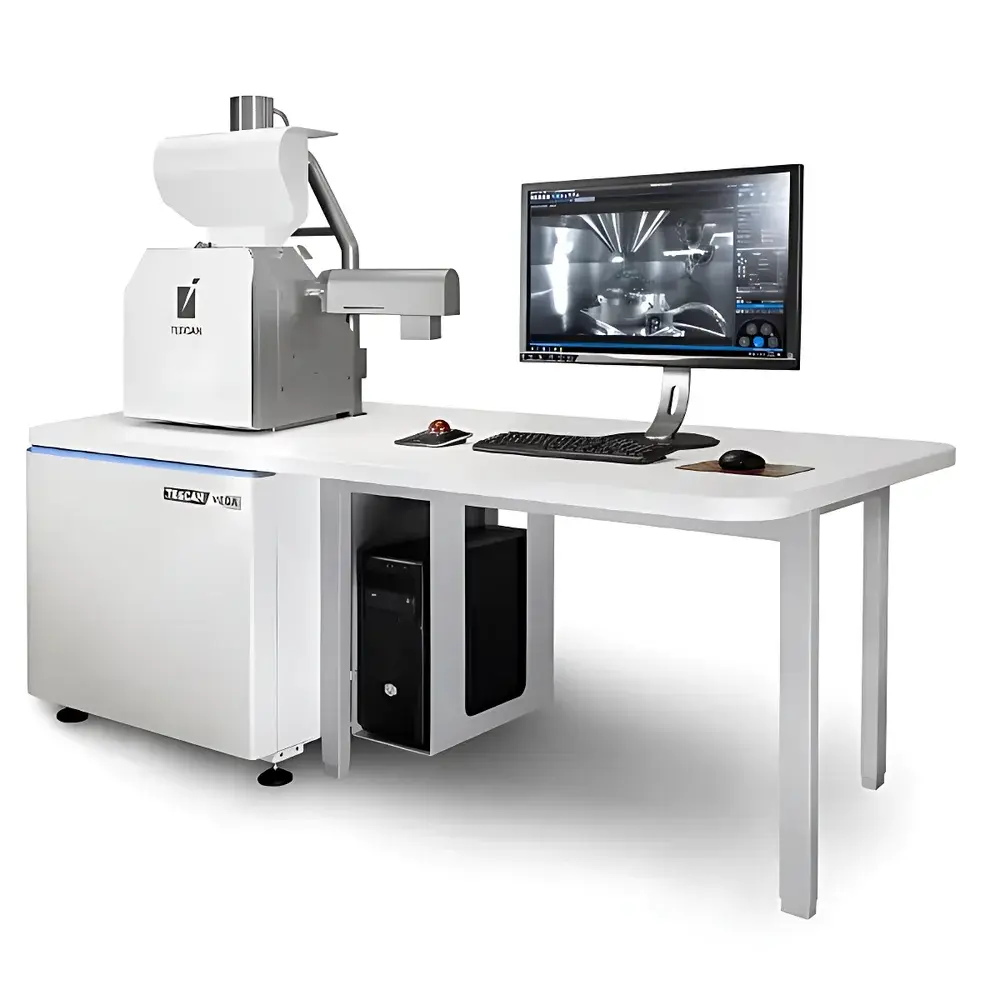

TESCAN VEGA Scanning Electron Microscope (SEM)

Overview

The TESCAN VEGA Scanning Electron Microscope (SEM) is a fourth-generation tungsten-filament SEM engineered for high-resolution surface imaging and integrated microanalysis in routine laboratory environments. Operating on the principle of raster-scanned electron beam interaction with solid specimens, the VEGA generates topographic, compositional, and crystallographic contrast through detection of secondary electrons (SE), backscattered electrons (BSE), and characteristic X-rays. Designed for robustness, ease of operation, and analytical versatility, it serves as a foundational platform for materials characterization where nanoscale morphological fidelity and elemental correlation are required—without the operational complexity or cost premium associated with field-emission systems.

Key Features

• Essence™ Unified Software Platform: A single-window interface integrates real-time SEM imaging with energy-dispersive X-ray spectroscopy (EDS) acquisition and quantification, enabling simultaneous morphological and compositional analysis without workflow interruption.
• In-Flight Beam Tracing™ Technology: Eliminates mechanical apertures and replaces them with dynamic beam modeling, allowing automatic optimization of probe current, spot size, and stigmation—reducing setup time and enhancing reproducibility across users and sessions.
• Wide Field Optics™: Delivers true optical-level navigation down to 2× magnification using the primary electron column alone—no auxiliary optical camera required—enabling rapid region-of-interest selection and precise stage positioning.
• SingleVac™ Mode: Standard low-vacuum capability permits direct imaging of non-conductive, hydrated, or beam-sensitive samples (e.g., polymers, biological tissues, ceramics) without metal coating or cryo-preparation.
• 3D Beam Technology: Enables real-time stereo imaging via synchronized dual-beam tilt and dynamic perspective rendering, supporting intuitive depth perception and quantitative surface topography assessment.
• Essence™ 3D Collision Avoidance: Real-time 3D visualization of detector positions, stage coordinates, and sample geometry within the chamber prevents physical interference during automated stage movement or multi-detector alignment.
• Vacuum Buffering System: Reduces mechanical pump runtime by up to 70% through intelligent vacuum hold-and-release cycles—lowering power consumption, noise, and maintenance frequency while extending pump service life.
• Modular Detector Architecture: Supports seamless integration of optional detectors including cathodoluminescence (CL), cooled BSE, STEM-in-SEM, and Raman spectroscopy modules—enabling correlative multimodal analysis within a single platform.

Sample Compatibility & Compliance

The VEGA accommodates a broad range of specimen types—from bulk metallic alloys and geological thin sections to uncoated polymers, freeze-dried biological specimens, and porous environmental particulates. Its SingleVac™ mode supports pressures up to 130 Pa, facilitating analysis under conditions compliant with ASTM E1508 (standard guide for quantitative elemental analysis by EDS) and ISO 16700 (microbeam analysis — EDS — quantification procedures). The system meets IEC 61000-6-3 (EMC emission standards) and IEC 61000-6-2 (immunity), and its software architecture supports audit trail generation and user access control—aligning with GLP and GMP documentation requirements per FDA 21 CFR Part 11 when configured with appropriate IT validation protocols.

Software & Data Management

Essence™ provides full control over acquisition, processing, and reporting workflows. All image and spectral data are stored in vendor-neutral formats (e.g., TIFF, .emsa, .msa) with embedded metadata—including accelerating voltage, working distance, dwell time, detector type, and calibration references. Batch processing, scripting via Python API, and export to third-party platforms (e.g., Thermo Scientific Avizo, Oxford Instruments AZtec) ensure interoperability with institutional data management systems. Raw datasets retain full traceability for reprocessing, inter-laboratory comparison, and regulatory submission.

Applications

• Materials Science: Fractography of metals and composites; porosity and grain boundary analysis in sintered ceramics; dispersion uniformity in polymer nanocomposites; phase identification in multiphase alloys.
• Life Sciences: Cellular ultrastructure imaging of fixed or critical-point-dried tissues; particle-cell interaction studies in drug delivery systems; morphometric analysis of plant stomata and fungal hyphae.
• Earth & Environmental Sciences: Mineral phase mapping in polished rock sections; microplastic identification and classification in wastewater sludge; fossil microstructure reconstruction in paleontological specimens.
• Industrial Quality Control: Coating thickness verification; solder joint integrity assessment; contaminant particle sourcing in semiconductor packaging; wear debris analysis in lubricants.

FAQ

What vacuum modes does the VEGA support?
The VEGA operates in high vacuum (HV), low vacuum (LV), and variable pressure (VP) modes, with SingleVac™ enabling seamless switching between HV and LV without venting the chamber.
Is EDS analysis fully integrated into the imaging workflow?
Yes—Essence™ synchronizes EDS acquisition with SEM scanning at the pixel level, allowing live elemental overlay, point-and-click spectrum acquisition, and standardless quantification without interrupting imaging.
Can the VEGA be used for automated particle analysis?
With optional ParticleMetric™ software, the system performs automated morphology-based particle recognition, sizing, classification, and statistical reporting—compliant with ISO 13322-1 for image analysis.
What maintenance intervals are recommended for the tungsten filament?
Filament lifetime averages 150–200 hours under typical operating conditions (20–30 kV, 1–2 nA); replacement is tool-free and completed in under 10 minutes without breaking vacuum.
Does the system support remote operation and monitoring?
Yes—Essence™ includes secure remote desktop access, real-time session sharing, and instrument status dashboards accessible via web browser on LAN or VPN-connected networks.
