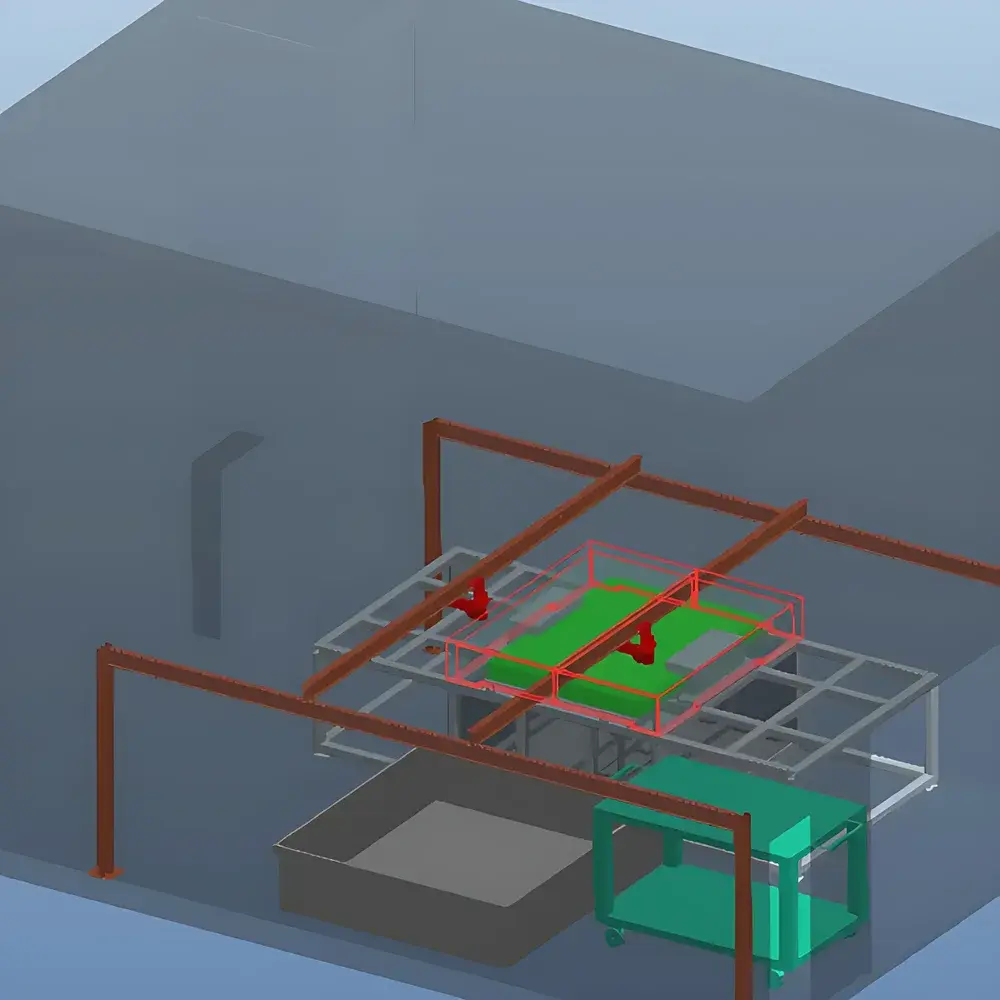

TESTech TTech-GB38031-JY Hydraulic Battery Crush & Penetration Test Platform for Lithium-ion Battery Safety Validation

Overview

The TESTech TTech-GB38031-JY Hydraulic Battery Crush & Penetration Test Platform is a fully integrated safety validation system engineered for rigorous mechanical abuse testing of lithium-ion battery cells, modules, and packs under controlled thermal and dynamic conditions. Designed in strict alignment with GB/T 38031–2020 (Chinese national standard for electric vehicle battery safety), UN 38.3 Section 38.3.4 (UN Manual of Tests and Criteria), and supplementary requirements from ISO 1210 and ASTM D790, the platform executes standardized crush, nail penetration, and spherical impact protocols to evaluate thermal runaway initiation, structural integrity, and failure mode propagation. Its dual-mode hydraulic actuation architecture enables precise force-controlled compression (up to 80 kN) and velocity-regulated penetration (10–40 mm/s), while synchronized thermal conditioning—via optional high-low temperature explosion-proof chambers—supports testing across operational and extreme storage temperature ranges (−40°C to +85°C). All test sequences are executed under real-time force-displacement-temperature data acquisition at 1000 Hz, ensuring traceable, repeatable, and audit-ready results required for regulatory submissions and internal safety gate reviews.

Key Features

• Hydraulic servo-controlled actuation system delivering stable, programmable force output up to 80 kN with ±0.5% accuracy over full range
• Dual-indenter configuration: interchangeable solid hemispherical impactors (Φ150 mm and Φ180 mm), each coated with PET film or certified dielectric material to prevent unintended short-circuiting during impact
• High-resolution displacement measurement: 0.001 mm resolution, ±0.5% linearity, with closed-loop speed control calibrated per ISO 6892-1
• Modular thermal integration: compatible with externally mounted explosion-proof environmental chambers meeting IEC 60079-0 and GB 3836.1 standards
• Real-time multi-channel synchronization: simultaneous acquisition of load, displacement, surface temperature (via embedded thermocouples), and high-speed video (≥1000 fps)
• Structural rigidity optimized for minimal frame deflection (<0.02 mm under 80 kN load), ensuring measurement fidelity during high-force crush events

Sample Compatibility & Compliance

The TTech-GB38031-JY accommodates cylindrical (18650, 21700, 4680), prismatic, and pouch-format battery units up to 1200 mm in length and 600 mm in width. Its 3000 × 2000 mm test bed and 500 mm vertical stroke provide ample clearance for module-level and small-pack evaluations. All test procedures conform to mandatory clauses in GB/T 38031–2020 (Clause 7.3 Crush Test, Clause 7.4 Nail Penetration Test), UN 38.3 Section 38.3.4 (Mechanical Shock and Crush), and supplementary guidance from UL 1642 and IEC 62619. The system supports GLP-compliant operation through timestamped audit trails, user-access-controlled parameter locking, and electronic signature-capable reporting—fully aligned with FDA 21 CFR Part 11 data integrity requirements when deployed in GMP-regulated R&D environments.

Software & Data Management

The proprietary TESTech TestSuite v4.2 software provides ISO/IEC 17025-aligned test sequencing, real-time curve overlay (force vs. displacement, temperature vs. time), and automated pass/fail evaluation per defined acceptance criteria (e.g., no fire, no explosion, no venting, ΔT < 150°C). Raw data is exported in CSV and HDF5 formats; metadata includes operator ID, calibration certificate IDs, environmental chamber setpoints, and hardware firmware versions. Integrated video synchronization allows frame-accurate correlation between mechanical event onset and thermal anomaly detection. Audit logs record all parameter modifications, test aborts, and calibration events with immutable timestamps—supporting third-party laboratory accreditation and OEM supplier qualification audits.

Applications

• Pre-release safety validation of EV battery cells and modules against mechanical abuse scenarios including crash-induced deformation and recycling-stage compaction
• Root-cause analysis of thermal runaway triggers during crush-induced internal short circuits
• Qualification of novel cell packaging materials (e.g., ceramic-coated separators, flame-retardant encapsulants) under dynamic loading
• Supporting DOE-funded battery durability programs requiring NIST-traceable mechanical test data
• Contract testing services for Tier-1 suppliers seeking GB/T 38031–2020 certification documentation

FAQ

Does the system support automated compliance reporting for GB/T 38031–2020?

Yes—TestSuite v4.2 generates PDF reports pre-formatted to match the evidentiary structure required by CNAS-accredited laboratories, including raw data annexes, calibration certificates, and pass/fail annotations mapped directly to Clause 7.3 and 7.4.

Can the platform perform combined thermal-mechanical tests (e.g., crush at −20°C)?

Yes—when integrated with an optional explosion-proof environmental chamber, the system maintains synchronized control of temperature ramping, dwell, and mechanical actuation with sub-minute coordination accuracy.

Is the 80 kN force rating applicable across the full 500 mm stroke?

Yes—the hydraulic power unit and reinforced C-frame structure maintain rated force capacity throughout the entire stroke range without derating.

What data security protocols are implemented for audit readiness?

All user actions trigger SHA-256 hashed log entries; report exports include digital signatures compliant with RFC 3161; system clocks are synchronized via NTP to UTC sources traceable to NIST.

Are spare impactors and PET film coatings available as consumables?

Yes—TESTech supplies certified replacement hemispheres (Φ150/Φ180 mm), stainless-steel penetration needles (2–8 mm diameter), and ISO 10993-5 compliant PET film rolls with lot-specific CoA documentation.
