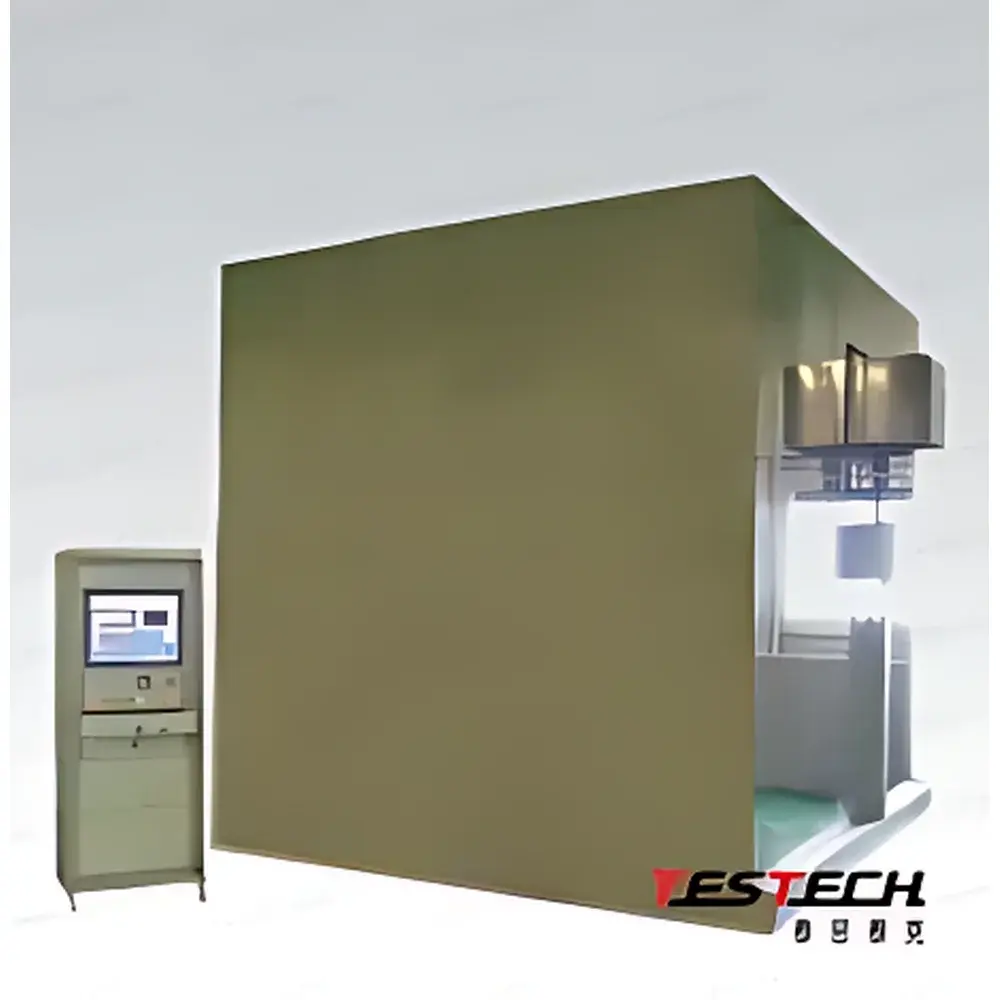

TESTech TTech-GBT17927 Mattress and Sofa Ignition Resistance Test Chamber

Overview

The TESTech TTech-GBT17927 Mattress and Sofa Ignition Resistance Test Chamber is a purpose-built combustion test system engineered to evaluate the ignition resistance of upholstered furniture—specifically mattresses and sofas—under standardized smoldering and flaming ignition sources. It operates in strict accordance with GB/T 17927–2011 Soft Furnishings — Evaluation of Ignition Resistance for Mattresses and Sofas, and is also aligned with IMO Resolution A.652(16) for maritime applications. The chamber simulates two primary ignition scenarios: cigarette-induced smoldering ignition and match-flame-induced flaming ignition. Its design emphasizes repeatability, operator safety, environmental containment, and regulatory traceability—critical requirements for laboratories conducting fire safety assessments in compliance with national and international fire performance specifications.

Key Features

• Large-scale test enclosure (3000 mm × 3000 mm × 2700 mm H) constructed from fire-rated, heat-resistant color-coated rock wool sandwich panels, providing structural integrity and thermal insulation during extended combustion events.
• Integrated ventilation system with adjustable exhaust fan and external duct connection to ensure controlled removal of smoke, combustion byproducts, and residual gases—maintaining safe ambient conditions inside and outside the chamber.
• Sealed, tempered observation window enabling real-time visual monitoring without compromising chamber integrity or operator exposure.
• Extra-wide access door facilitating safe loading/unloading of full-size mattresses and sectional sofas—eliminating the need for sample disassembly or dimensional compromise.
• Stainless steel sample support tray (2200 mm × 2000 mm × 100 mm) with integrated drainage channel and floor-level outlet port, designed to retain extinguishing water, ash, and char residue while preventing cross-contamination of chamber surfaces.
• Modular gas control cabinet featuring precision mass flow instrumentation: imported digital flowmeter calibrated to deliver (42 ± 2) mL/min propane or butane at stable 2.8 kPa supply pressure; stainless steel cooling jacket (optional) maintains consistent gas temperature (~20 °C) to minimize volumetric drift.
• Adjustable stainless steel burner assembly (OD 8.0 ± 0.1 mm, ID 6.5 ± 0.1 mm, L 200 ± 5 mm) with dual-axis orientation capability—enabling precise positioning relative to fabric surface geometry per test protocol requirements.
• High-reliability timing system with ±1 s resolution, synchronized with ignition initiation and flame extinction detection points to support objective pass/fail evaluation per GB/T 17927–2011 Clause 6.

Sample Compatibility & Compliance

The TTech-GBT17927 accommodates full-dimension commercial and institutional-grade soft furnishings—including spring-core and foam-based mattresses, multi-layered upholstered sofas, and modular seating systems—without requiring sample sectioning. Its large internal volume ensures representative airflow dynamics and thermal boundary conditions during testing, minimizing edge effects that may distort ignition propagation behavior. The system supports both horizontal and inclined test configurations as specified in GB/T 17927–2011 Annex A and B. All hardware components—including tray, burner mount, and gas delivery lines—meet corrosion resistance requirements for long-term exposure to combustion residues and cleaning agents. Documentation packages include calibration certificates for flowmeters and timers, traceable to national metrology institutes. The chamber design satisfies laboratory safety prerequisites under GB 50016 (China’s Fire Protection Code for Building Design) and aligns with ISO/IEC 17025:2017 clause 6.4.1 regarding environmental condition control during testing.

Software & Data Management

This model operates in manual and semi-automated modes, prioritizing procedural fidelity over software abstraction. All operational parameters—including gas flow rate, burner position, ignition timing, and environmental monitoring—are recorded manually in standardized test logs compliant with GLP principles. Optional data acquisition modules (available upon request) integrate with PC-based logging software supporting CSV export, timestamped event tagging, and audit trail generation—meeting minimum documentation expectations for ISO 17025-accredited laboratories. While no proprietary closed-loop control software is embedded, the system architecture allows integration with third-party LIMS platforms via RS-232 or Ethernet interfaces for centralized test record archiving and report generation.

Applications

• Regulatory conformance testing for public-use upholstered furniture supplied to hotels, hospitals, educational institutions, and transportation interiors (e.g., rail coaches, cruise cabins).
• Pre-market R&D validation of flame-retardant textile treatments, barrier fabrics, and resilient foam formulations.
• Quality assurance screening for OEM upholstery suppliers prior to final assembly.
• Fire safety certification support for CCC (China Compulsory Certification), CE marking (under EN 1021 series where applicable), and IMO Type Approval submissions.
• Comparative analysis of ignition thresholds across material combinations—e.g., polyester vs. modacrylic face fabrics, latex vs. polyurethane core layers—under repeatable thermal insult conditions.

FAQ

Does this chamber support both cigarette and match-flame ignition protocols per GB/T 17927–2011?
Yes—the burner system and sample positioning fixtures are configured to execute both Clause 6.1 (cigarette smoldering) and Clause 6.2 (match flame) test sequences without hardware modification.
Is the gas flow calibration traceable to national standards?
All delivered units include factory calibration certificates for the mass flowmeter, referencing CNAS-accredited calibration laboratories in accordance with JJG 1056–2010 (Chinese national verification regulation for gas flowmeters).
Can the chamber be used for tests beyond GB/T 17927–2011?
While optimized for GB/T 17927–2011 and IMO A.652(16), its physical configuration permits adaptation to ASTM E1352, BS 5852, or CAL TB 117–2013 methodologies with minor procedural adjustments and supplementary instrumentation.
What maintenance intervals are recommended for the stainless steel burner and gas lines?
Visual inspection and ultrasonic cleaning of the burner orifice are advised after every 20 test cycles; gas line integrity checks—including leak testing at 1.5× operating pressure—should occur quarterly per manufacturer service guidelines.
Is explosion-proof electrical certification available for hazardous area installation?
Standard configuration meets IP54 ingress protection and includes explosion-proof lighting; optional ATEX/IECEx-certified variants (Zone 2 / Class I Div 2) can be supplied upon technical review and site-specific hazard assessment.
