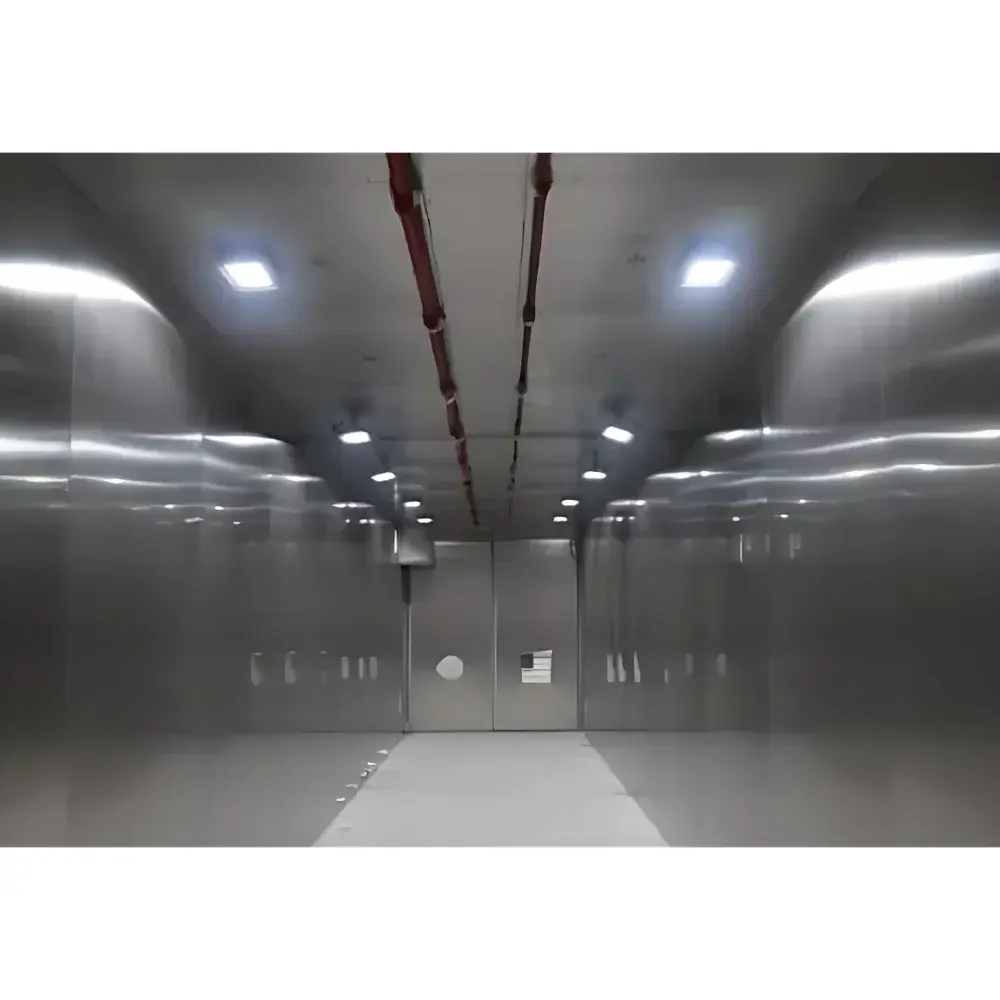

TESTech TTech-JZX Energy Storage Container Physical Simulation Test Chamber
| Brand | TESTech |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TTech-JZX |
| Price Range | USD 1,400 – 2,800 (FOB) |
Overview
The TESTech TTech-JZX Energy Storage Container Physical Simulation Test Chamber is a purpose-built, full-scale engineering test platform designed to replicate real-world operational and failure conditions of lithium-ion battery energy storage systems (ESS) housed in standardized 20-ft or 40-ft shipping container formats. Engineered for high-fidelity physical simulation—not merely environmental emulation—the chamber enables controlled initiation and comprehensive characterization of thermal runaway propagation under representative mechanical, thermal, electrical, and ventilation boundary conditions. Its architecture integrates structural integrity testing (wind resistance ≥ Grade 12, seismic rating ≥ Level 7), active hazard containment (pressure relief, gas venting, fire suppression), and multi-modal real-time diagnostics (infrared thermography, high-resolution video, distributed temperature sensing, and dual-gas (H₂/CO) detection). This system supports validation of cell-to-module-to-container safety strategies per UL 9540A, IEC 62933-5-2, and GB/T 36276–2018 requirements, serving as a critical infrastructure asset for battery pack developers, fire safety engineers, and third-party certification laboratories.
Key Features
- Structurally reinforced test enclosure: 12,000 × 2,400 × 2,700 mm (L×W×H), fabricated from high-strength steel with wind resistance ≥ Beaufort Scale 12 and seismic compliance ≥ China Seismic Design Code Level 7; service life ≥ 10 years.
- Dedicated battery cabinet: Galvanized steel construction (1.0 mm thickness), 100 mm height, static load capacity ≥ 100 kN—designed for mounting standard 19-inch or custom battery racks.
- Explosion-relief subsystem: Stainless-steel (304) burst panel with calibrated rupture pressure;泄爆 window dimensions ≥ 470 × 460 mm, conforming to EN 14491 and NFPA 68 design guidelines.
- Active exhaust system: Dual axial fans (front/rear), corrosion- and heat-resistant (rated ≥ 150°C continuous), integrated with motorized stainless-steel dampers for dynamic airflow control and leak-tight sealing.
- Modular fire suppression network: 316 stainless-steel piping mounted on ceiling grid, featuring 10 standardized nozzle mounting positions—compatible with aerosol, gaseous (e.g., Novec 1230), or water-mist discharge heads.
- Multi-spectrum monitoring suite: Synchronized visible-light HD video + uncooled microbolometer IR imaging (640 × 480 resolution, ±2°C accuracy), time-stamped and georeferenced against thermal event progression.
Sample Compatibility & Compliance
The TTech-JZX chamber accommodates full-size commercial ESS containers (up to 40 ft equivalent footprint) and modular battery cabinets ranging from 10 kWh to 3 MWh configurations. It supports both air-cooled and liquid-cooled battery enclosures, with provisions for external coolant loop integration. All embedded sensors—including Class I, Division 1 rated H₂/CO dual-gas detectors (ATEX/IECEx certified), PT100 temperature arrays (±0.15°C accuracy), and flame/heat/smoke detectors—comply with IEC 60079-0, UL 217, and EN 54-22 standards. The structural frame meets ISO 1496-1 container strength specifications, while the electrical control architecture adheres to IEC 61508 SIL2 functional safety requirements.
Software & Data Management
The system operates via dual-control architecture: a deterministic PLC-based real-time layer (32 I/O points, 18 NPN inputs, 14 transistor outputs) managing safety-critical actuators (valves, fans, suppressants), and a LabVIEW-based supervisory layer for experiment orchestration, synchronized data acquisition (≥ 1 kHz sampling across 64+ channels), and post-event forensic analysis. All sensor logs—including thermographic sequences, gas concentration traces, pressure transients, and video metadata—are stored in HDF5 format with embedded UTC timestamps and cryptographic hash integrity verification. Audit trails comply with FDA 21 CFR Part 11 and ISO/IEC 17025 documentation requirements, supporting GLP/GMP-aligned reporting workflows.
Applications
- Thermal runaway propagation mapping across multi-tier battery architectures (cell → module → rack → container)
- Evaluation of passive fire barriers (aerogel, intumescent coatings) and active suppression efficacy under realistic venting dynamics
- Validation of BMS fault-response latency and cascade mitigation logic under forced failure scenarios
- Calibration and benchmarking of CFD thermal/fire models (e.g., ANSYS Fluent, Fire Dynamics Simulator)
- Third-party type testing for UL 9540A Section 9 (container-level fire testing) and GB/T 36276 Annex D certification
- Development of AI-driven early-warning algorithms using multimodal sensor fusion datasets
FAQ
Does the TTech-JZX chamber support automated thermal runaway triggering via external current source or laser heating?
Yes—it provides configurable DC power feedthroughs (up to 1,000 A) and optical access ports for external laser diode coupling, enabling controlled Joule heating or localized thermal abuse per UL 1642 and UN 38.3 T5 protocols.
Can the gas detection system be extended to monitor additional species such as HF, VOCs, or electrolyte vapors?
The base configuration includes H₂ and CO detection; optional OEM-integrated photoionization (PID) and FTIR modules are available for expanded chemical speciation, subject to pre-validation per ISO 16000-6.
Is remote operation and data streaming supported for off-site monitoring during long-duration tests?
All control interfaces and data streams are accessible via TLS 1.3-secured Ethernet/IP; OPC UA server implementation enables integration into enterprise SCADA or cloud-based digital twin platforms.
