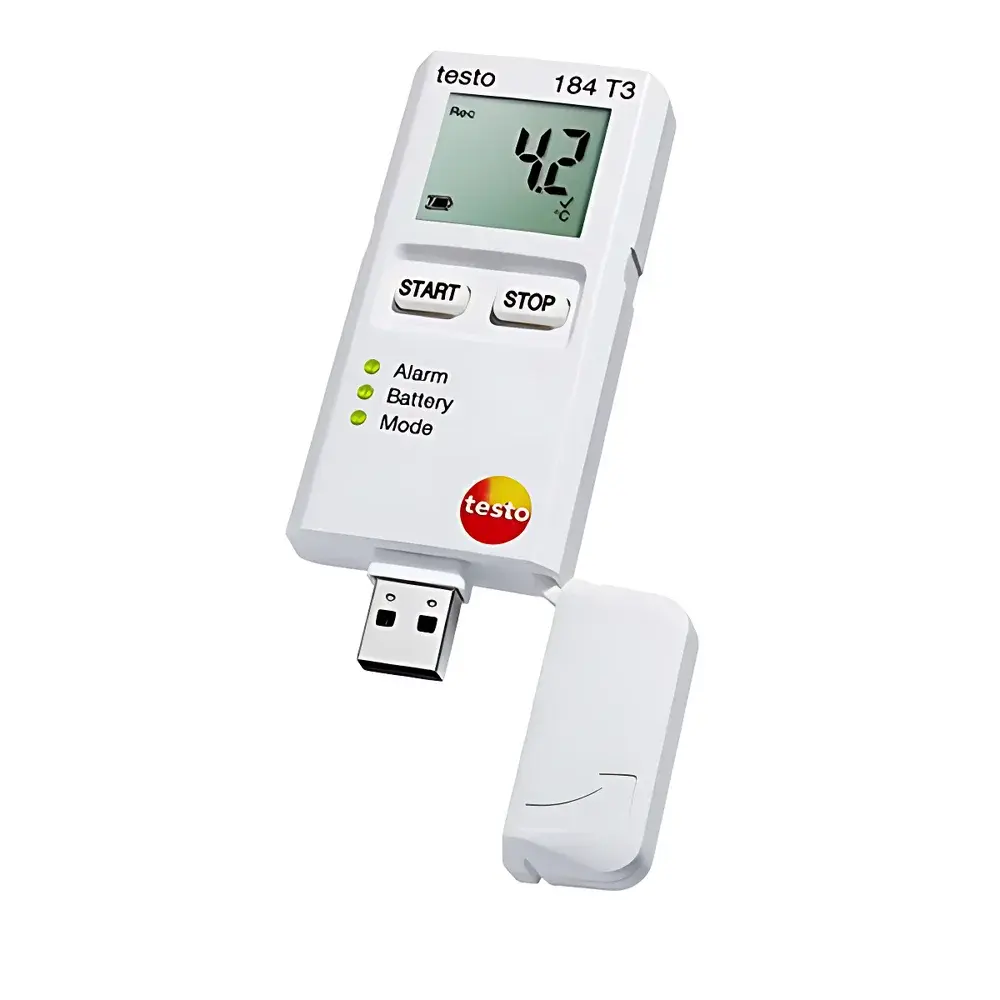

testo 184 T3-USB Temperature Data Logger (Model 0572 1843)

Overview

The testo 184 T3-USB is a compact, self-contained temperature data logger engineered for continuous, unattended monitoring of temperature-sensitive shipments—including pharmaceuticals, biologics, vaccines, chilled and frozen foodstuffs, and precision electronics. Operating on the principle of high-stability NTC thermistor sensing, it delivers traceable, metrologically sound measurements across a wide operational range (−35 to +70 °C) with ±0.5 °C accuracy and 0.1 °C resolution. Its sealed, IP67-rated ABS housing ensures mechanical robustness and resistance to dust and transient water immersion—critical for logistics environments where environmental exposure is unavoidable. Unlike PC-dependent loggers, the testo 184 T3-USB functions autonomously: configuration, logging, alarm triggering, and report generation are fully embedded within the device firmware. No external software installation is required for basic operation, eliminating IT compatibility constraints and reducing validation overhead in regulated settings.

Key Features

• Plug-and-play USB interface: Direct connection to any Windows/macOS/Linux computer enables immediate PDF report generation without driver or software installation.
• On-device configuration storage: A preloaded configuration file resides permanently in internal memory—no need to download, install, or manage external profiles.
• Visual compliance verification: Dual-status LED indicator provides real-time pass/fail feedback against user-defined upper/lower limits; no interpretation required upon arrival.
• Long-term autonomy: 500-day battery life (at 15-min logging interval, 25 °C ambient) using a replaceable 3 V lithium coin cell—field-serviceable without tools or calibration interruption.
• Embedded documentation: ISO-accredited calibration certificate, user manual, and configuration history are stored internally and exported alongside measurement data.
• NFC-enabled data transfer: Optional wireless readout to compatible testo Quick Printers (e.g., testo 184 Printer) for on-site thermal receipt printing—ideal for cold chain handover points.
• PDF/A-compliant reporting: Exported reports conform to ISO 19005-1, ensuring long-term readability and archival integrity per regulatory document retention requirements.

Sample Compatibility & Compliance

The testo 184 T3-USB is designed exclusively for ambient and product-surface temperature monitoring—not for direct immersion or aggressive chemical exposure. Its NTC sensor is optimized for air and stable thermal mass contact (e.g., packaging interior, pallet surface, refrigerated container walls). It meets stringent international standards governing temperature validation in regulated supply chains: EN 12830 (performance requirements for portable temperature recorders used in refrigerated transport), CE marking under the EMC Directive 2014/30/EU, and electromagnetic compatibility per DIN EN 61326-1:2013. For GxP environments—including clinical trial logistics, vaccine distribution, and FDA-regulated food transport—the device supports full 21 CFR Part 11 compliance when paired with testo ComSoft CFR software, enabling electronic signatures, audit trails, and role-based access control. Internal calibration certificates adhere to ISO/IEC 17025 principles and are traceable to national standards (DKD/DAkkS-accredited labs). The device also satisfies HACCP prerequisite program requirements for temperature deviation detection and corrective action documentation.

Software & Data Management

Data retrieval and reporting rely entirely on the built-in USB interface and embedded firmware—no proprietary runtime or background services are deployed on host systems. Upon USB connection, the device mounts as a standard mass-storage device; the generated PDF report includes timestamped measurement series, statistical summaries (min/max/mean), limit violation annotations, and metadata (device ID, configuration parameters, calibration status). All reports embed digital signatures and checksums to prevent tampering. While standalone operation requires no software, optional testo ComSoft CFR software extends functionality for enterprise deployment: centralized fleet management, automated report distribution via SMTP, CSV export for LIMS integration, and full 21 CFR Part 11 audit trail generation—including user login events, parameter changes, and report generation timestamps. Internal memory retains full 40,000-point datasets even during battery replacement—zero data loss risk.

Applications

• Pharmaceutical cold chain monitoring: Real-time validation of 2–8 °C or −20 °C shipping conditions for APIs, finished dosage forms, and mRNA vaccines.
• FDA-mandated food transport: HACCP-compliant verification of refrigerated (0–4 °C) and frozen (−18 °C) cargo per FSMA Rule 21 CFR Part 117.
• Electronics logistics: Ensuring temperature excursions remain within manufacturer-specified storage limits (e.g., JEDEC J-STD-033 for moisture-sensitive devices).
• Clinical trial sample transport: Audit-ready documentation for biospecimen integrity across multi-leg international shipments.
• Warehouse and distribution center spot-checking: Temporary deployment on outbound pallets or containers to verify HVAC performance and loading practices.

FAQ

Does the testo 184 T3-USB require software installation to generate reports?
No. Reports are generated natively upon USB connection using embedded firmware—no drivers or applications needed.
Can the device be reconfigured after deployment?
No. Configuration is fixed at initialization; the device operates in “set-and-forget” mode to ensure data integrity and prevent post-deployment tampering.
Is the calibration certificate included with each unit?
Yes—an ISO-accredited calibration certificate is stored internally and exported with every report; physical copies are not shipped separately.
What happens if the battery depletes mid-shipment?
The device retains all logged data in non-volatile memory; replacing the battery restores operation without data loss.
How is 21 CFR Part 11 compliance achieved?
Through use of testo ComSoft CFR software, which adds electronic signatures, system audit trails, and secure user authentication—required for FDA-submitted documentation.
