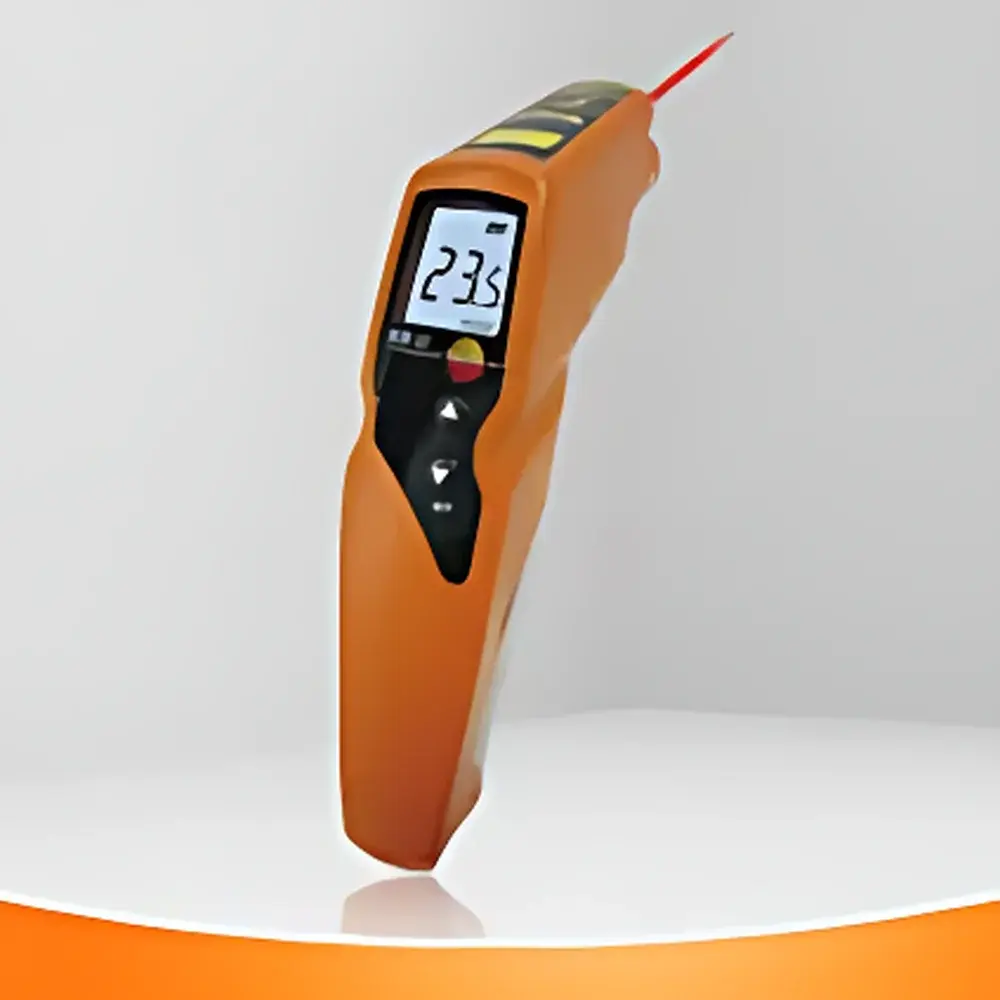

testo 830-S1 Portable Infrared Thermometer
| Brand | testo |
|---|---|
| Origin | Germany |
| Model | testo 830-S1 |
| Type | Portable Infrared Thermometer |
| Housing Material | Anodized Aluminum |
| Laser Targeting | Single-Point |
| Alarm Function | Adjustable Upper/Lower Limit with Audible Alert |
| Measurement Principle | Non-Contact Infrared Pyrometry (8–14 µm Spectral Range) |
| Emissivity Adjustment | Fixed at 0.95 (optimized for common industrial surfaces) |
| Distance-to-Spot Ratio | 12:1 |
| Operating Temperature Range | 0 to 50 °C |
| Storage Temperature Range | -20 to 70 °C |
| Relative Humidity Limit | ≤95 % RH (non-condensing) |
| Power Supply | 2 × AAA batteries |
| Battery Life | Approx. 10 hours continuous use |
| Display | Backlit LCD with hold function |
| Compliance | CE, RoHS, ISO/IEC 17025 traceable calibration options available |
Overview
The testo 830-S1 is a compact, handheld infrared thermometer engineered for rapid, non-contact surface temperature measurement in industrial maintenance, HVAC commissioning, food safety checks, and laboratory pre-screening applications. It operates on the principle of passive infrared radiation detection within the 8–14 µm atmospheric transmission window—optimized for accurate readings across common organic, painted, and oxidized metallic surfaces. With a fixed emissivity setting of 0.95, the device delivers consistent results without user calibration overhead, while its 12:1 optical resolution ensures reliable targeting of objects as small as 25 mm from a distance of 300 mm. Designed and assembled in Germany, the instrument reflects testo’s long-standing commitment to metrological integrity, mechanical robustness, and field-deployable ergonomics.
Key Features
- Single-point laser sighting system for precise targeting—visually aligned with the instrument’s 12:1 measurement spot geometry
- Adjustable high/low temperature limit alarm with audible beep and on-screen indicator—enabling immediate pass/fail assessment during routine inspections
- Anodized aluminum housing providing enhanced thermal stability, scratch resistance, and ESD-safe operation in workshop environments

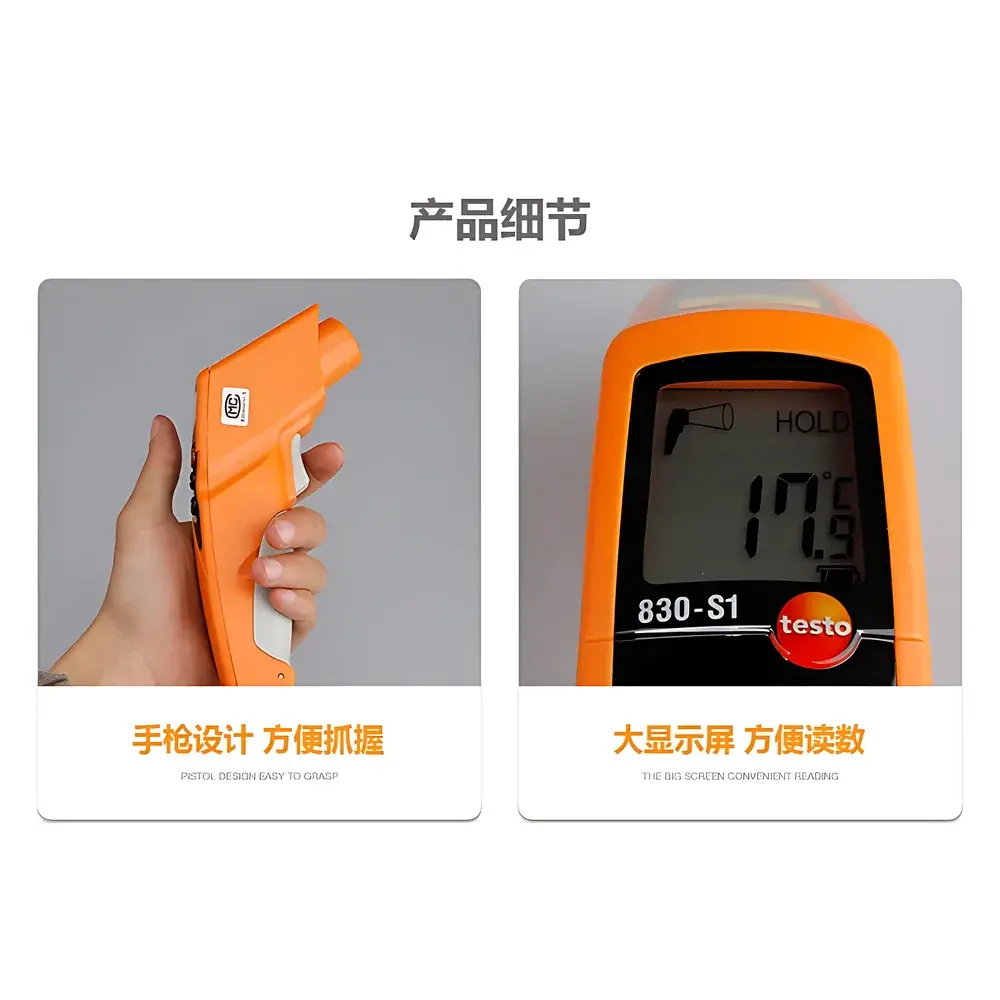

- Backlit LCD display with HOLD function—freezes the current reading for documentation or comparison without requiring external logging tools
- Low-power design powered by two standard AAA batteries, supporting approximately 10 hours of continuous operation under typical ambient conditions
- Integrated ergonomic grip and intuitive one-button interface—minimizing operator fatigue during extended shift-based usage
Sample Compatibility & Compliance
The testo 830-S1 is intended for non-contact measurement of solid and semi-solid surfaces with stable emissivity characteristics near 0.95—including painted steel, rubber belts, plastic housings, insulation cladding, and food-grade packaging materials. It is not suitable for transparent media (e.g., glass, thin plastic films), highly reflective metals (e.g., bare aluminum or copper), or moving targets where dwell time is insufficient for thermal equilibrium. The device complies with EU Directive 2014/30/EU (EMC), 2011/65/EU (RoHS), and bears the CE marking. While not a certified metrology standard, it supports optional ISO/IEC 17025-accredited calibration services through authorized testo service centers—ensuring traceability to national standards (e.g., PTB, NIST) for quality assurance programs aligned with ISO 9001, ISO 14001, and internal GLP protocols.
Software & Data Management

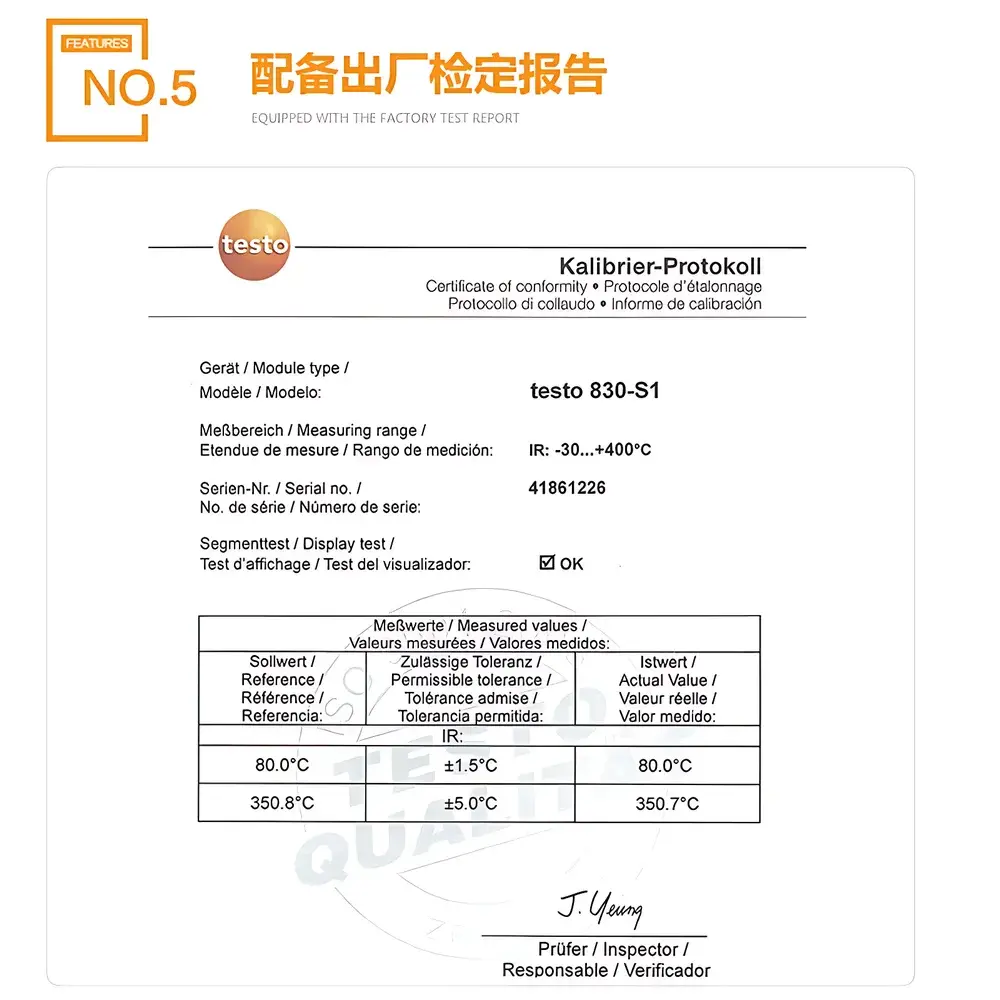

The testo 830-S1 operates as a standalone instrument with no onboard data storage or Bluetooth/Wi-Fi connectivity. However, its real-time display output and HOLD functionality are fully compatible with manual transcription into digital logbooks, LIMS entries, or preventive maintenance records. For organizations requiring audit-ready documentation, testo offers complementary calibration certificates (including uncertainty budgets) and optional traceable calibration reports compliant with ISO/IEC 17025. These reports support FDA 21 CFR Part 11 readiness when integrated into validated electronic record systems via controlled manual entry procedures. No proprietary software installation or firmware updates are required—reducing IT overhead and validation burden in regulated environments.
Applications
- HVAC system diagnostics—verifying duct surface temperatures, coil performance, and insulation integrity
- Electrical panel screening—identifying overheated breakers, busbars, and connections prior to failure
- Food service compliance—spot-checking holding temperatures of hot/cold holding units per HACCP guidelines
- Mechanical maintenance—monitoring bearing housings, motor casings, and pump bodies for abnormal thermal signatures
- Building envelope assessment—detecting thermal bridging and moisture-related anomalies in façades and roofs
- Educational laboratories—introducing fundamental principles of radiative heat transfer and emissivity effects
FAQ
What is the spectral response range of the testo 830-S1?
The sensor is optimized for the 8–14 µm long-wave infrared band, matching the peak emission spectra of objects between –30 °C and +250 °C.
Can emissivity be adjusted on this model?
No—the testo 830-S1 uses a fixed emissivity value of 0.95, selected to provide optimal accuracy for common industrial and building materials without user intervention.
Is the laser Class 2 compliant?
Yes—the single-point aiming laser meets IEC 60825-1:2014 Class 2 requirements (<1 mW output), posing no hazard under normal operating conditions.
Does the device meet any international quality standards?
It conforms to CE and RoHS directives; optional calibration services are traceable to national metrology institutes per ISO/IEC 17025.
How is battery life affected by ambient temperature?
Battery performance remains stable between 0 °C and 40 °C; below 0 °C, alkaline AAA cells may exhibit reduced voltage output, potentially shortening effective runtime.
