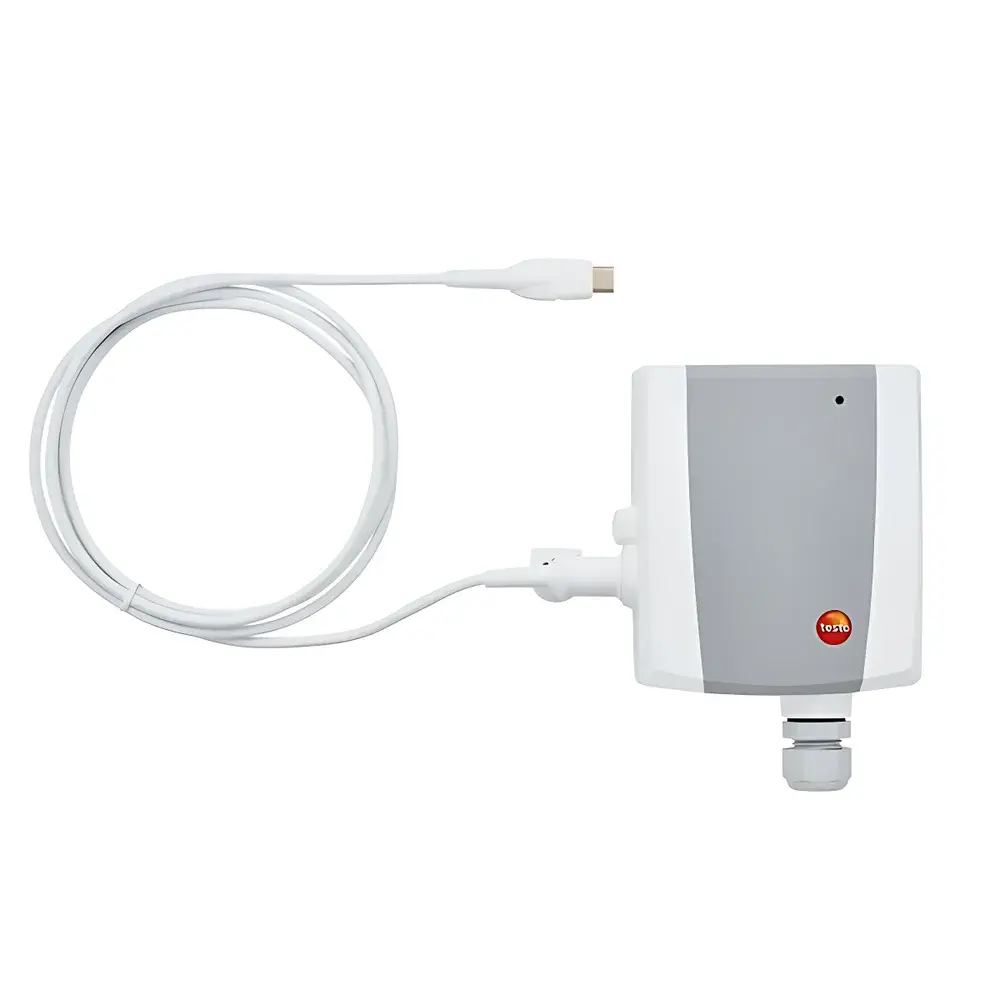

testo Digital-Analog Coupler 0572 2166
| Brand | testo |
|---|---|
| Origin | Germany |
| Model | 0572 2166 |
| Interface Type | 4–20 mA / 0–10 V analog input |
| Compatible Host Device | testo 150 TUC4 Data Logger |
| System Integration | testo Saveris Pharma Environmental Monitoring Platform |
| Communication | WLAN, LAN, or UltraRange radio (via testo 150 TUC4) |
| Input Signal Support | Standard industrial current/voltage transmitters (e.g., differential pressure, CO₂, airflow, liquid level) |
Overview
The testo Digital-Analog Coupler 0572 2166 is an industrial-grade signal interface module engineered to extend the sensor compatibility of the testo 150 TUC4 data logger within regulated environmental monitoring ecosystems. Designed specifically for integration into the testo Saveris Pharma platform, this coupler bridges legacy analog instrumentation—such as 4–20 mA or 0–10 V output transmitters—with digital data acquisition infrastructure. It operates on the principle of high-fidelity analog-to-digital conversion at the point of signal ingress, ensuring minimal noise coupling and metrological traceability across extended measurement chains. Unlike generic signal conditioners, the 0572 2166 adheres to functional safety requirements for continuous environmental validation in GxP environments, supporting uninterrupted data continuity during qualification, routine monitoring, and audit-ready reporting.
Key Features
- Galvanically isolated analog inputs compliant with IEC 61000-4 immunity standards for electromagnetic compatibility in laboratory and cleanroom settings
- Simultaneous support for 4–20 mA loop-powered and 0–10 V voltage-input transmitters without external power supply dependency
- Configurable input scaling and linearization via testo Saveris configuration software, enabling direct engineering-unit mapping (e.g., Pa, ppm, %RH, °C)
- Integrated status LED indicators for input signal presence, power integrity, and communication handshake with testo 150 TUC4
- Compact DIN-rail mountable housing (IP20 rated) with UL/CSA recognized construction materials for use in controlled pharmaceutical manufacturing zones
- Firmware upgradable via testo Saveris Cloud or local network, ensuring long-term compliance with evolving Annex 1 and EU GMP Chapter 4 requirements
Sample Compatibility & Compliance
The 0572 2166 interfaces with any analog-output transmitter conforming to NAMUR NE 43 or IEC 60381-1 specifications—including differential pressure sensors for HVAC duct monitoring, infrared CO₂ modules for incubator validation, and thermal mass flow meters for compressed air systems. Its signal conditioning architecture meets EN 61326-1:2013 for electromagnetic compatibility in industrial environments and supports full audit trail generation per FDA 21 CFR Part 11 when deployed with testo Saveris Pharma’s ALM (Audit Log Management) module. All calibration events, configuration changes, and alarm triggers are time-stamped with UTC-synchronized precision and stored redundantly across local flash memory and cloud archive.
Software & Data Management
Data from the coupler is ingested exclusively through the testo 150 TUC4’s embedded firmware stack and appears natively in testo Saveris Web-based dashboards as user-defined virtual channels. No third-party OPC servers or custom drivers are required. The system supports automated report generation (PDF/CSV) aligned with ISO 14644-3 and ASTM E2500-21 validation frameworks. Alarm logic—including configurable hysteresis, delay timers, and escalation routing—is defined at the channel level and enforced independently of upstream IT infrastructure. Raw ADC values, scaled engineering units, and diagnostic metadata (e.g., input impedance drift, supply voltage variance) are retained for ≥36 months per internal retention policy and available for export during regulatory inspections.
Applications
- Continuous monitoring of cleanroom pressure differentials across ISO Class 5–8 suites using DP cells with 4–20 mA outputs
- Integration of CO₂ concentration transmitters in stability chambers and environmental test cabinets for ICH Q1/Q5 compliance
- Validation of HVAC airflow velocity and filter integrity via analog anemometers in Grade A/B production areas
- Monitoring of glycol/water loop temperatures and pressures in cold chain storage facilities using industrial RTD transmitters
- Legacy equipment retrofitting where existing 0–10 V humidity sensors or pH transmitters must be incorporated into modern SIS (Supervisory Instrumentation System) architectures
FAQ
Is the testo 0572 2166 certified for use in sterile manufacturing environments?
Yes—it complies with EN ISO 14644-1:2015 for particulate cleanliness in housings and carries CE marking under the EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU.
Can multiple 0572 2166 units be connected to a single testo 150 TUC4?
Yes—up to four couplers may be daisy-chained via the TUC interface bus, enabling scalable expansion of analog channel count without additional network ports.
Does the coupler require periodic recalibration?
No scheduled recalibration is mandated; however, users must perform documented function checks per SOP prior to each qualification cycle, verifying zero/span response against NIST-traceable reference sources.
Is Modbus RTU or other fieldbus protocol supported?
No—the device implements testo’s proprietary TUC (Testo Universal Coupling) protocol only; it does not expose serial or industrial Ethernet fieldbus interfaces.
How is firmware updated, and what version control mechanisms are in place?
Firmware updates are delivered via signed packages through testo Saveris Cloud or local SFTP; each release includes SHA-256 hash verification and rollback capability to previous validated versions.
