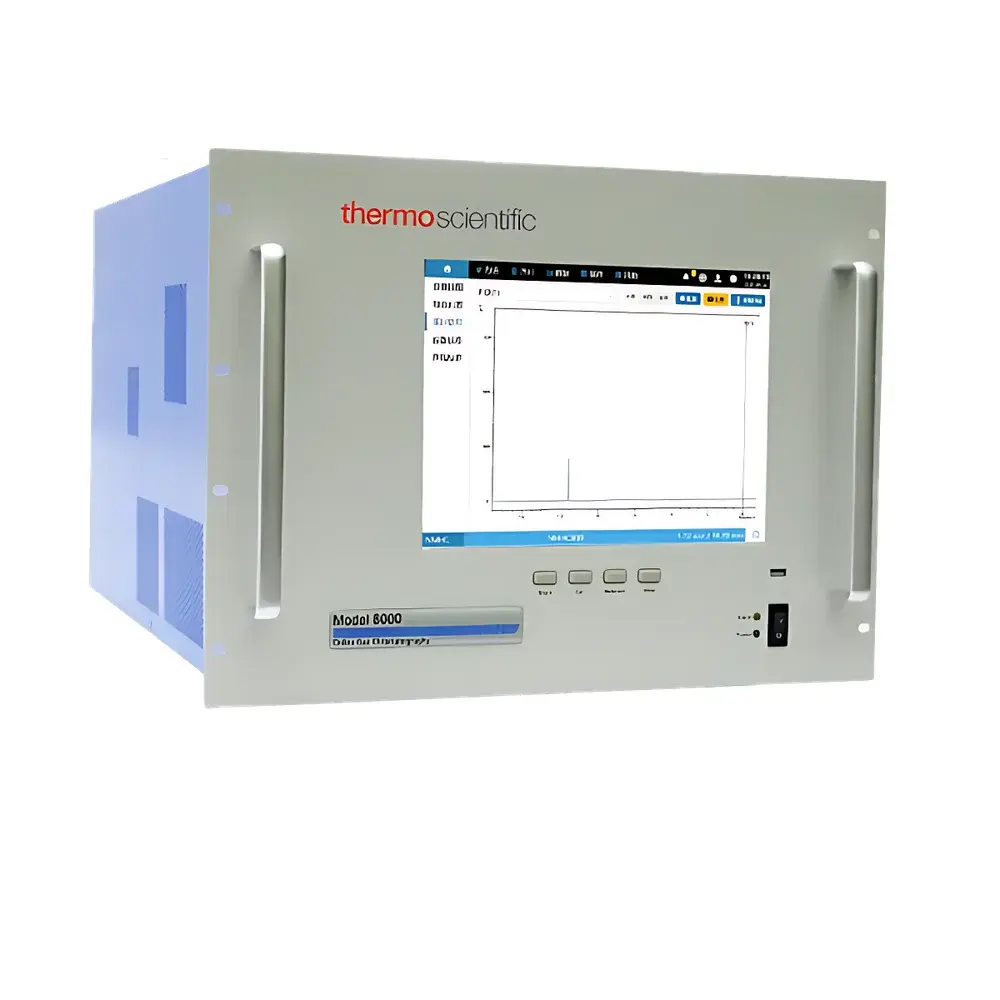

Thermo Fisher 8000 Series Online Gas Chromatograph

Overview

The Thermo Fisher 8000 Series Online Gas Chromatograph is a robust, industrial-grade analytical platform engineered for continuous, unattended hydrocarbon and impurity analysis in high-purity electronic specialty gases and bulk process streams. Built upon proven gas chromatography (GC) separation principles—utilizing capillary column partitioning and selective detection—the system delivers reliable, trace-level quantification of volatile organic compounds (VOCs), permanent gases, and reactive species in real time. Designed specifically for integration into 19-inch standard instrumentation racks, the 8000 Series operates as a fully automated online analyzer within distributed control systems (DCS) or supervisory control and data acquisition (SCADA) environments. Its architecture supports mission-critical applications in semiconductor manufacturing, photovoltaic production, and high-purity gas supply facilities where compliance with SEMI F57, ASTM D7607, and ISO 8573-5 is essential.

Key Features

• 19-inch rack-mountable chassis compliant with IEC 60297-3-100 mechanical standards, enabling seamless integration into centralized control rooms and modular analyzer shelters.
• Modular detector configuration supporting flame ionization detection (FID), pulsed discharge helium ionization detection (PDHID), thermal conductivity detection (TCD), and electron capture detection (ECD) — selected per analyte sensitivity and matrix compatibility requirements.
• Full-stream electronic pressure and flow control (EPC) across all carrier, make-up, and detector gas lines, ensuring retention time stability < ±0.02 min over 72-hour continuous operation.
• Integrated dynamic dilution module with programmable multi-point calibration capability, enabling automated span verification and drift correction without manual intervention.
• Industrial-grade temperature control system with oven ramp rates up to 40 °C/min and isothermal precision of ±0.1 °C across a range of 30–250 °C.
• Explosion-proof and corrosion-resistant construction options available for Class I, Division 1/Zone 1 hazardous area installations (ATEX/IECEx certified variants).

Sample Compatibility & Compliance

The 8000 Series accommodates a broad spectrum of background matrices including helium, argon, nitrogen, hydrogen, oxygen, carbon dioxide, and complex mixtures such as XCDA (xenon-chlorine-difluoro-acetylene) blends. Sample introduction is compatible with both direct injection and permeation-based sampling interfaces, with optional heated sample lines (up to 150 °C) to prevent condensation of high-boiling impurities. The system meets functional safety requirements per IEC 61511 (SIL2 capable), supports audit-ready data integrity under FDA 21 CFR Part 11 via secure user authentication and electronic signature workflows, and aligns with GLP/GMP documentation practices through embedded calibration log archiving and version-controlled method storage.

Software & Data Management

Operated via Thermo Fisher’s ChromaLink™ Online GC Software, the platform provides browser-based remote access, real-time chromatogram visualization, and automated peak integration using adaptive baseline algorithms. All raw data—including detector voltage traces, valve timing sequences, and EPC setpoint logs—are stored in vendor-neutral HDF5 format with embedded metadata (ISO/IEC 11179 compliant). Historical trend analysis, alarm threshold management, and report generation (PDF/CSV) are configurable per ISA-88/ISA-95 batch and unit operation definitions. Data export supports OPC UA connectivity for bidirectional integration with MES and LIMS platforms.

Applications

• Real-time monitoring of dopant gases (e.g., silane, phosphine, arsine) for contamination control in CVD and epitaxy tool clusters.
• Trace-level O₂, H₂O, CO, and total hydrocarbon (THC) verification in ultra-high-purity (UHP) bulk gas delivery systems (≥99.9999% purity grade).
• Residual solvent and monomer analysis in polymer production purge streams.
• Hydrogen purity certification per ISO 8573-8 for fuel cell feedstock qualification.
• Automated QC release testing of cylinder-filling batches in gas manufacturing plants.

FAQ

What types of detectors can be configured on the 8000 Series?
FID, PDHID, TCD, and ECD modules are factory-installable and software-recognized; detector selection is finalized during system specification based on required detection limits and compound classes.
Is the system compatible with third-party SCADA systems?
Yes — native Modbus TCP and OPC UA server functionality enables direct integration with Emerson DeltaV, Honeywell Experion, Yokogawa CENTUM VP, and Siemens PCS7 without middleware.
How often does the system require calibration verification?
Calibration interval is application-dependent but typically ranges from 24 to 168 hours; dynamic dilution automation supports scheduled zero/span checks with full traceability to NIST-traceable standards.
Can the 8000 Series operate in ambient temperatures exceeding 40 °C?
Standard units are rated for 5–40 °C ambient; extended-temperature variants with active cooling and reinforced thermal shielding are available for outdoor or non-climate-controlled enclosures.
Does the software support audit trail and electronic signature features?
Yes — ChromaLink™ Online GC implements ALCOA+ principles with immutable audit trails, role-based access control, and 21 CFR Part 11-compliant electronic signatures for method changes, calibration events, and result approvals.
