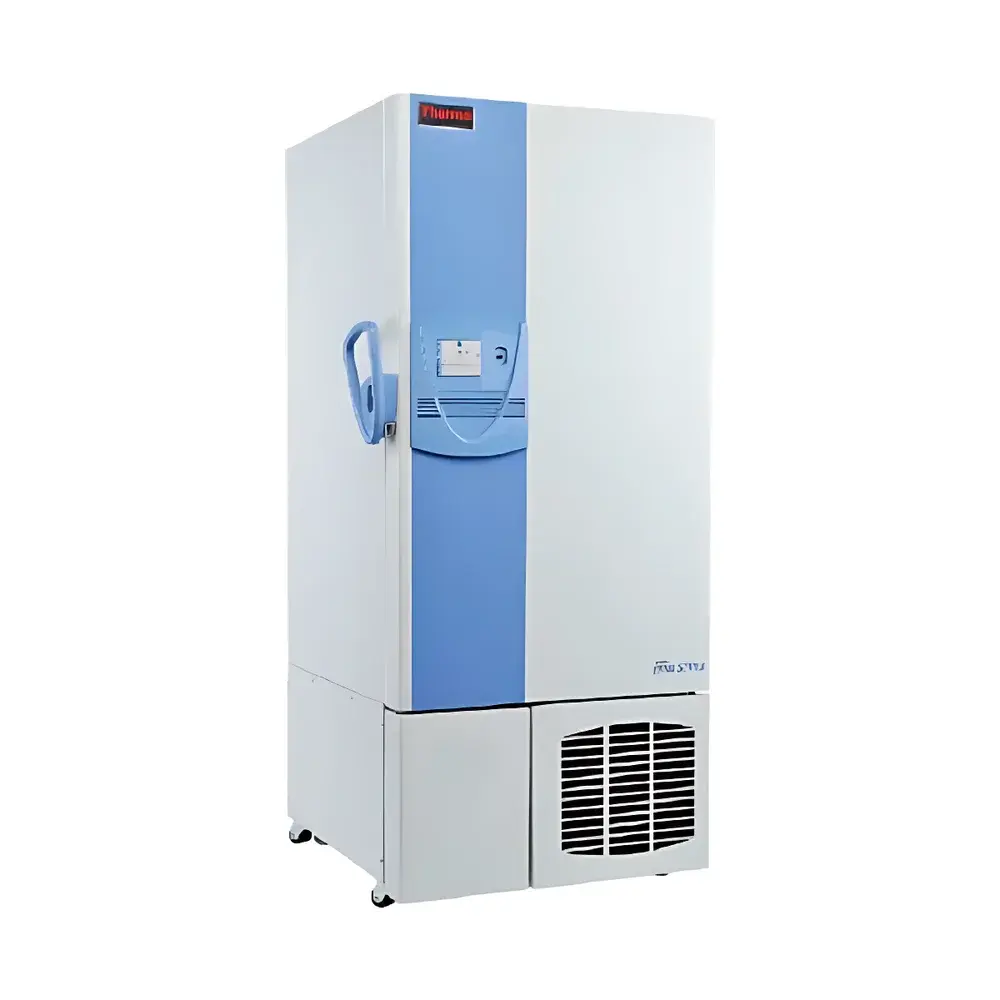

Thermo Fisher Forma 88000 Series Ultra-Low Temperature Freezer

Overview

The Thermo Fisher Forma 88000 Series Ultra-Low Temperature Freezer is an engineered solution for long-term biobanking, clinical sample preservation, and pharmaceutical stability storage. Designed and manufactured in the United States, this freezer operates continuously across a validated temperature range of −50 °C to −86 °C, meeting stringent requirements for cryogenic storage of sensitive biological materials including primary cells, stem cell lines, plasma, genomic DNA, and mRNA-based therapeutics. Its core thermal architecture employs dual-stage cascade refrigeration with Copeland® industrial-grade scroll compressors—selected for high reliability, low vibration, and extended service life under continuous duty cycles. The system integrates precision electronic expansion valves and adaptive evaporator fan control to ensure uniform temperature distribution (±2.5 °C max variation across all zones per ICH Q5C and ISO 13384-1 validation protocols) and rapid recovery following door openings.

Key Features

• 949-liter internal capacity with optimized interior geometry supporting up to 700 standard 2-inch cryogenic boxes (100 × 100 mm), enabling scalable biorepository operations without compromising accessibility.
• Vacuum Insulated Panel (VIP) technology reduces wall thickness by >40% versus conventional polyurethane foam, delivering superior thermal resistance (R-value >35 m²·K/W) while minimizing footprint—critical for space-constrained GMP cleanrooms and core facilities.
• Intelligent dual-mode operation: Eco Mode dynamically adjusts compressor speed and fan duty cycle to reduce average power consumption by up to 15%, while High-Performance Mode prioritizes temperature stability and recovery time (<15 min to return to −80 °C after 30-second door opening at 25 °C ambient).
• Integrated voltage regulation system (Boost/Buck) maintains stable compressor and controller operation across input fluctuations from 208 V to 240 V AC—eliminating need for external line conditioners in global laboratory environments.
• Full-color capacitive touchscreen interface with multi-level access control (operator, supervisor, administrator), configurable alarm thresholds, and on-device event logging compliant with 21 CFR Part 11 audit trail requirements.

Sample Compatibility & Compliance

The Forma 88000 Series supports storage of diverse biospecimens in accordance with ISO 20387:2018 (biobanking), ASTM F2643 (cryogenic freezer performance), and CLSI GP44-A4 (temperature monitoring in biomedical freezers). Its validated uniformity and stability support compliance with FDA guidance for investigational new drug (IND) applications requiring documented cold chain integrity. Internal shelving accommodates standard Nunc™, Corning®, and Thermo Scientific™ cryobox formats, as well as custom racks for vial-based or tube-based workflows. All models are CE-marked and listed under UL 61010-1 and UL 60335-2-24 safety standards.

Software & Data Management

The embedded firmware supports local data retention of temperature logs (1-minute intervals, 30-day buffer), alarm history, and user activity records. Optional connectivity via Ethernet enables integration with Thermo Fisher’s SampleManager LIMS or third-party platforms through Modbus TCP or HTTP REST API. Remote monitoring, email/SMS alerts, and automated report generation (PDF/CSV) are available via Thermo Fisher Connect cloud services—configured to meet GLP/GMP data integrity principles including ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Long-term archival of human tissue, PBMCs, and induced pluripotent stem cells (iPSCs) in academic biobanks and NIH-funded repositories.
• Cold chain assurance for Phase I–III clinical trial samples processed under CAP/CLIA-certified conditions.
• Stability testing of biologics, viral vectors, and lipid nanoparticle (LNP)-formulated mRNA vaccines per ICH Q5C and WHO TRS 1011 Annex 6.
• Supporting ISO/IEC 17025-accredited testing laboratories requiring traceable temperature validation and uncertainty budgets.

FAQ

What is the validated temperature uniformity across the chamber?
Per factory IQ/OQ documentation, spatial uniformity is ≤ ±2.5 °C at −80 °C (measured at 9 points per ICH Q5C Annex 1), with temporal stability of ±0.5 °C over 24 hours.
Does the freezer support 21 CFR Part 11-compliant electronic signatures?
Yes—the touchscreen interface supports role-based authentication, electronic signature capture for critical parameter changes, and immutable audit trails exportable in CSV format.
Can the unit operate reliably in tropical ambient conditions (e.g., 35 °C, 80% RH)?
It is rated for continuous operation at ambient temperatures up to 32 °C per UL 60335-2-24; performance validation above this requires site-specific HVAC assessment and optional condenser cooling kits.
Is remote firmware update capability available?
Firmware updates are performed via secure USB import only; network-based updates are disabled by default to maintain cybersecurity compliance per NIST SP 800-53 Rev. 5 controls.
