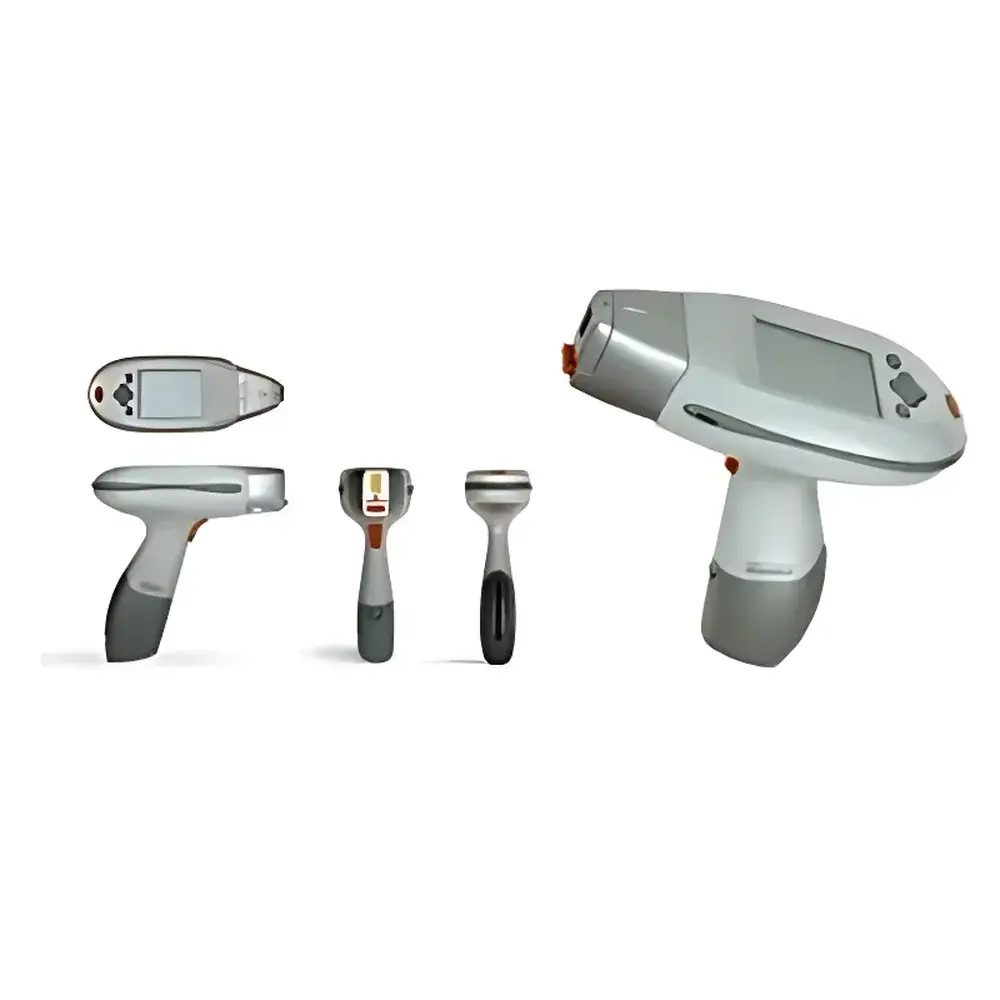

Thermo Fisher Niton XLt 797RWY Portable Wavelength Dispersive X-Ray Fluorescence (WDXRF) Spectrometer for RoHS & Halogen Compliance Testing

Overview

The Thermo Fisher Niton XLt 797RWY is a field-deployable, wavelength-dispersive X-ray fluorescence (WDXRF) spectrometer engineered for regulatory compliance verification in electronics manufacturing, recycling facilities, and supply chain quality assurance labs. Unlike energy-dispersive XRF (EDXRF) systems, the XLt 797RWY employs a high-stability gold-anode micro-focus X-ray tube coupled with a crystal-based wavelength dispersion system—enabling superior spectral resolution, reduced peak overlap, and enhanced quantification accuracy for light elements (e.g., Cl, Br, S, P) critical to halogen-free and RoHS 2.0 (EU Directive 2011/65/EU) compliance. Its design conforms to IEC 62321-5:2013 for XRF screening of restricted substances and supports method validation per ISO/IEC 17025 requirements when used within defined operating parameters and calibration protocols.

Key Features

• Gold-anode X-ray tube (40 kV / 50 µA max) with integrated Peltier-cooled Si-PIN detector delivering <250 eV resolution at Mn Kα—critical for resolving overlapping Cl Kα (2.62 keV) and Cr Kα (5.41 keV) peaks under halogen-free screening conditions.
• Dual-filter optical path system: Filter 1 for general metal/plastic screening; Filter 2 specifically optimized for Cl and Cr excitation and background suppression—aligned with IEC 61249-2-21 thresholds (Cl, Br < 900 ppm).
• Real-time thickness compensation algorithm enables direct analysis of thin polymer films (e.g., cable sheathing, PCB laminates) without stacking or substrate correction—reducing measurement uncertainty in low-mass samples.
• VGA touchscreen interface with on-device data entry via integrated barcode scanner and virtual keyboard—eliminating manual sample ID transcription errors and supporting traceability per GLP/GMP documentation standards.
• Battery-powered operation (two rechargeable Li-ion packs) supports continuous 6–12 h field use; hot-swappable design permits uninterrupted testing during production line audits or customs inspections.
• Onboard storage for up to 4,000 spectra and quantitative results—including full spectral archives—with timestamp, operator ID, and GPS metadata (optional).

Sample Compatibility & Compliance

The XLt 797RWY accommodates heterogeneous industrial samples without preparation: solid metals (solder joints, connectors), thermoplastics (ABS, PVC, PE), molded components, wire coatings, and powder residues. It meets ASTM F2857-22 for rapid screening of Pb, Cd, Hg, Cr(VI), Br, and Cl in EEE products and supports pre-screening workflows aligned with EU RoHS Annex II substance restrictions. For halogen analysis, the instrument’s Cl/Br detection capability satisfies Apple’s Regulated Substances Specification (RSS), Dell’s Environmental Standards, and IEC 61249-2-21 acceptance criteria. Radiation safety complies with ANSI N43.3 and IEC 62495:2010—maximum exposure at handle position is ≤8 µSv/hr under standard operating conditions (38 kV / 20 µA), eliminating need for external shielding during routine use.

Software & Data Management

Data acquisition and reporting are managed through Niton Data Transfer (NDT) software—a Windows-based application compliant with FDA 21 CFR Part 11 for electronic records and signatures. NDT provides audit-trail logging, user-role access control, customizable report templates (PDF/CSV/XLSX), and integration with LIMS via ODBC. Spectral libraries support matrix-matched calibrations for polymer, alloy, and soil matrices. Firmware updates preserve traceable calibration history, and all measurements include embedded uncertainty estimates based on counting statistics and inter-element interference corrections.

Applications

• Routine screening of solder alloys for Pb content (<1000 ppm limit per RoHS); achieves ~100 ppm LOD in 60 s for Sn-based matrices.
• Verification of halogen-free status in printed circuit board laminates, connectors, and enclosures per IPC-4101D and JEDEC J-STD-70.
• Supplier qualification audits—rapid verification of material declarations against purchase specifications and green procurement policies.
• Recycling stream sorting: identification of hazardous element concentrations in WEEE fractions prior to shredding or smelting.
• Regulatory enforcement: portable deployment at ports of entry for customs verification of CE-marked EEE imports.

FAQ

Does the XLt 797RWY comply with ISO/IEC 17025 for accredited testing?
Yes—when operated within validated methods, calibrated using certified reference materials (CRMs), and maintained per Thermo Fisher’s service schedule, the instrument supports measurement uncertainty budgets required for ISO/IEC 17025 accreditation.
Can it quantify bromine in flame-retardant polymers?
Yes—using Filter 2 and polymer-specific calibration curves, it achieves reliable Br quantification down to ~200 ppm in ABS and PC matrices, consistent with IEC 62321-5:2013 Clause 8.3.
Is external cooling required for the detector?
No—the integrated Peltier cooler maintains stable detector temperature across ambient ranges from 0 °C to 40 °C without liquid nitrogen or forced-air systems.
How is data integrity ensured during wireless transmission?
Bluetooth communication uses AES-128 encryption; all transmitted spectra and results are digitally signed and time-stamped to prevent tampering and support forensic audit trails.
What regulatory documentation accompanies the instrument?
Each unit ships with a Certificate of Conformance, Factory Calibration Report, Radiation Safety Test Report (per ANSI N43.3), and a traceable CRM verification record.
