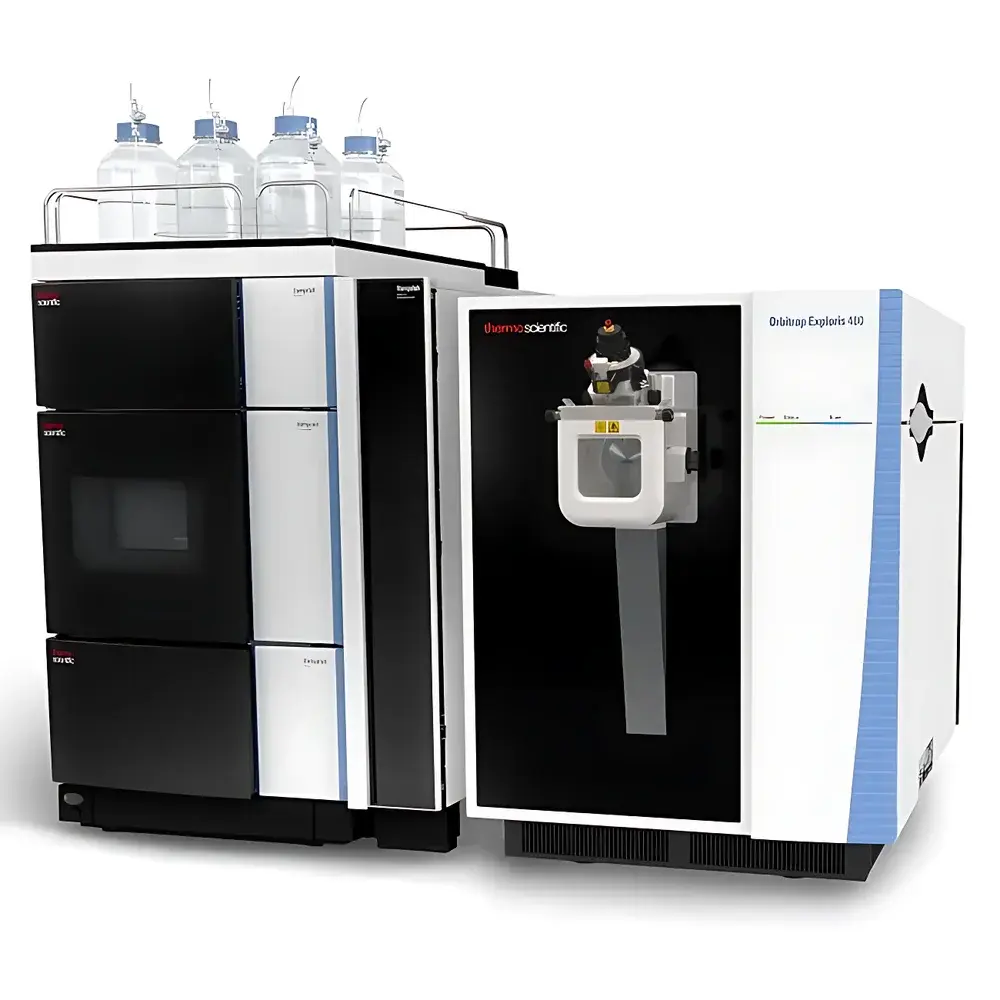

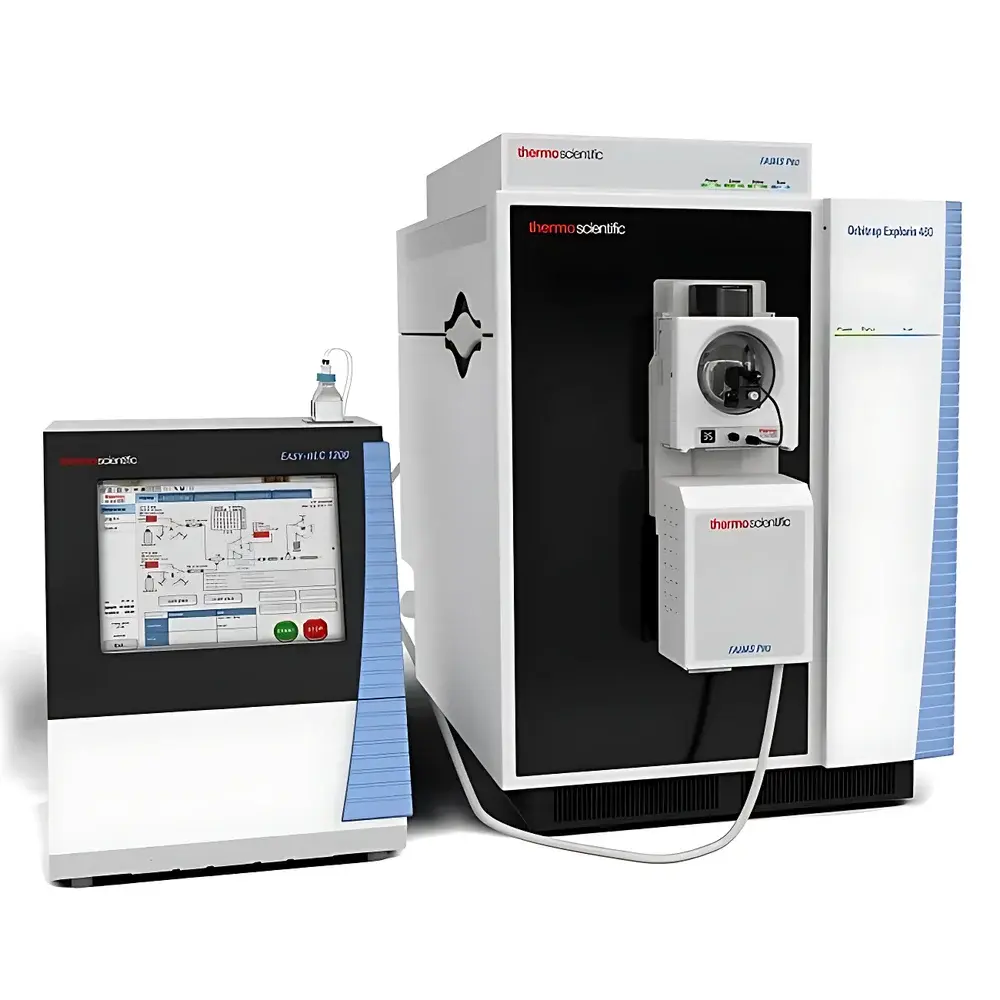

Thermo Fisher Orbitrap Exploris 480 High-Resolution Mass Spectrometer

Overview

The Thermo Fisher Orbitrap Exploris 480 is a next-generation hybrid high-resolution mass spectrometer engineered for demanding proteomics, biopharmaceutical characterization, and small-molecule applications. Built upon the proven Orbitrap mass analyzer architecture, it delivers ultra-high mass accuracy (< 3 ppm RMS error over 48-hour acquisition), exceptional spectral fidelity, and robust quantitative reproducibility—critical for longitudinal studies and regulated environments. Its core measurement principle combines electrospray ionization (ESI) or nanoelectrospray ionization (nanoESI) with dual-pressure linear ion trap (LIT) front-end for efficient precursor selection, followed by high-fidelity Orbitrap detection based on image current detection of trapped ions oscillating at frequency-dependent m/z values. The system is designed as a LC-MS platform compatible with standard nano-, micro-, and analytical-flow liquid chromatography systems, supporting both data-dependent acquisition (DDA) and data-independent acquisition (DIA) workflows—including advanced implementations such as BoxCar and SureQuant.

Key Features

• Compact footprint: 50% smaller than the Q Exactive platform, achieved via re-engineered vacuum architecture (optimized turbomolecular pump layout) and miniaturized ion optics—reducing lab space requirements without compromising sensitivity or resolution.
• Enhanced mass range: With optional Biopharma configuration, the m/z detection window extends to 8,000 Da, enabling intact monoclonal antibody (mAb) analysis, top-down proteomics, and large peptide fragment characterization.
• High-resolution performance: Delivers up to 480,000 full width at half maximum (FWHM) resolution at m/z 200, ensuring baseline separation of isobaric species and confident identification in complex biological matrices.
• Internal calibration (IC) readiness: Supports field-upgradable IC capability, allowing real-time mass recalibration during acquisition—improving long-run mass stability and reducing post-acquisition recalibration dependency.
• Intelligent acquisition framework: Integrated Thermo Scientific AcquireX software enables intelligent, decision-driven MS/MS triggering, adaptive duty cycle optimization, and automated method refinement based on signal intensity and chromatographic context.

Sample Compatibility & Compliance

The Exploris 480 supports a broad range of sample types—from low-abundance post-translational modification (PTM) peptides in cell lysates to highly heterogeneous glycoforms in therapeutic proteins. It is compatible with reversed-phase, HILIC, and SEC-based LC separations, as well as direct infusion for rapid screening. From a regulatory standpoint, the instrument complies with ISO/IEC 17025:2017 requirements for testing laboratories and supports audit-trail-enabled operation under FDA 21 CFR Part 11 when deployed with Thermo Scientific Chromeleon CDS v7.3 or later. System suitability tests, calibration verification protocols, and electronic signature workflows are fully configurable to meet GLP and GMP documentation standards for QC/QA labs engaged in biologics release testing or method validation.

Software & Data Management

Data acquisition is managed through Thermo Scientific Tune software (v4.x), which provides intuitive instrument control, real-time spectral visualization, and customizable method templates. Raw data files (.raw) are natively supported by Thermo Scientific Proteome Discoverer 2.5+ for bottom-up proteomics, as well as Byonic, PEAKS, and Spectronaut for targeted and DIA quantitation. The system integrates with Thermo Scientific Compound Discoverer for untargeted small-molecule workflows and supports vendor-neutral formats (mzML, mzXML) for cross-platform interoperability. All software modules enforce role-based access control, secure user authentication, and complete audit trail logging—including parameter changes, calibration events, and raw file modifications—to satisfy traceability requirements in regulated environments.

Applications

• High-throughput discovery proteomics: Enables identification and label-free quantification of >10,000 proteins per run from mammalian cell lysates using optimized DDA/DIA methods.
• Targeted protein quantification: SureQuant workflows deliver sub-femtomole sensitivity for biomarker verification across plasma, tissue, and CSF samples—validated against USP specificity and precision criteria.
• Biopharmaceutical characterization: Supports charge variant profiling, deamidation mapping, oxidation site localization, and disulfide bond analysis on intact mAbs and ADCs using native and denatured LC-MS approaches.
• Metabolomics and lipidomics: Resolves isomeric lipids (e.g., PC 34:1 vs. PE 36:2) and distinguishes structural isomers (e.g., glucose vs. fructose adducts) via retention time–mass correlation and MS² spectral library matching.

FAQ

What is the maximum achievable resolution specification for the Exploris 480?
The instrument achieves up to 480,000 resolution (FWHM) at m/z 200 under standard operating conditions; resolution scales inversely with m/z and may be adjusted dynamically during acquisition.
Can the Biopharma option be added post-purchase?
Yes—the Biopharma upgrade is hardware-enabled and can be installed in the field by certified Thermo Fisher service engineers, requiring only mechanical and firmware updates.
Does the system support internal calibration during acquisition?
Internal calibration (IC) is an optional feature enabled via software license and hardware module; once activated, it allows continuous mass axis correction using co-eluting reference ions without interrupting data collection.
Is the Exploris 480 compliant with 21 CFR Part 11 for regulated laboratories?
Yes—when operated with validated versions of Chromeleon CDS and associated security policies (e.g., electronic signatures, audit trails, and permission controls), the system meets the technical and procedural requirements of 21 CFR Part 11.
What LC systems are validated for use with this instrument?
The Exploris 480 is validated for seamless integration with Thermo Scientific UltiMate 3000 RSLCnano, Vanquish UHPLC, and Vanquish Flex systems; third-party LC platforms may be used if they provide stable ESI-compatible flow rates and timing synchronization via TTL or Ethernet interfaces.
