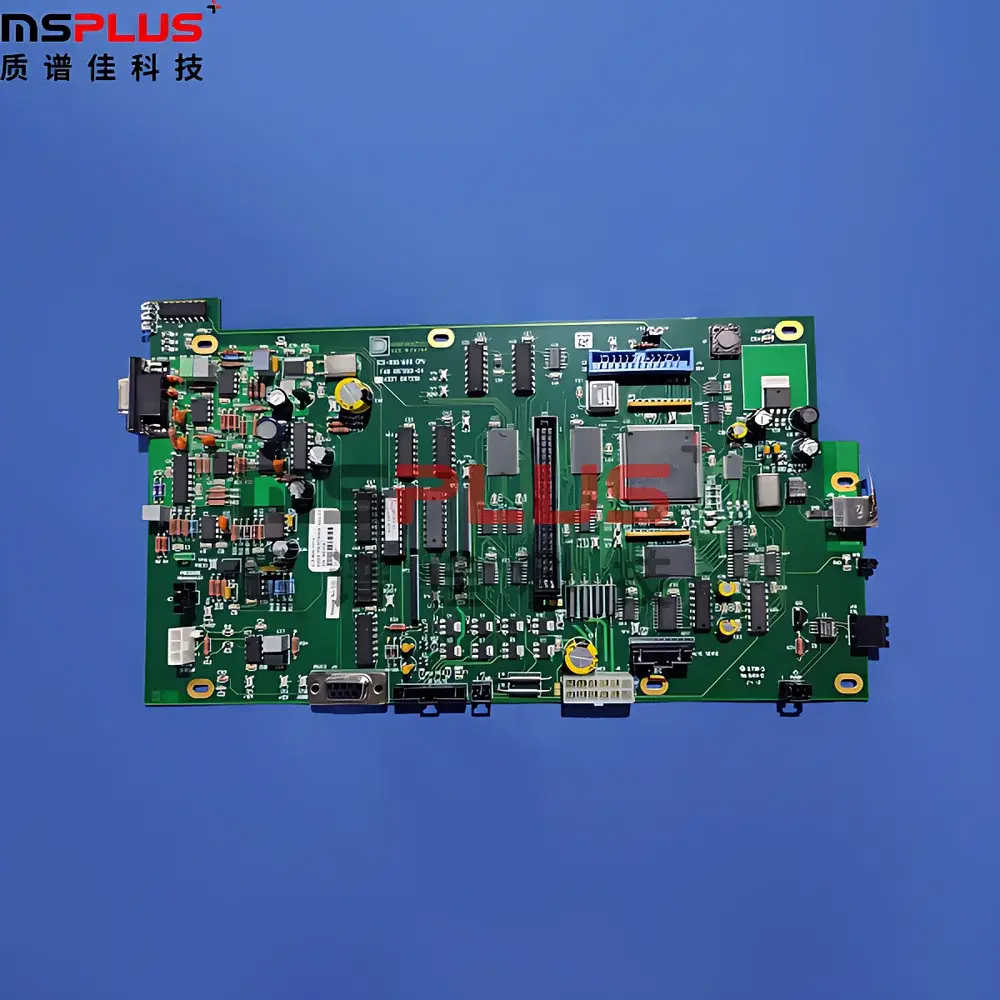

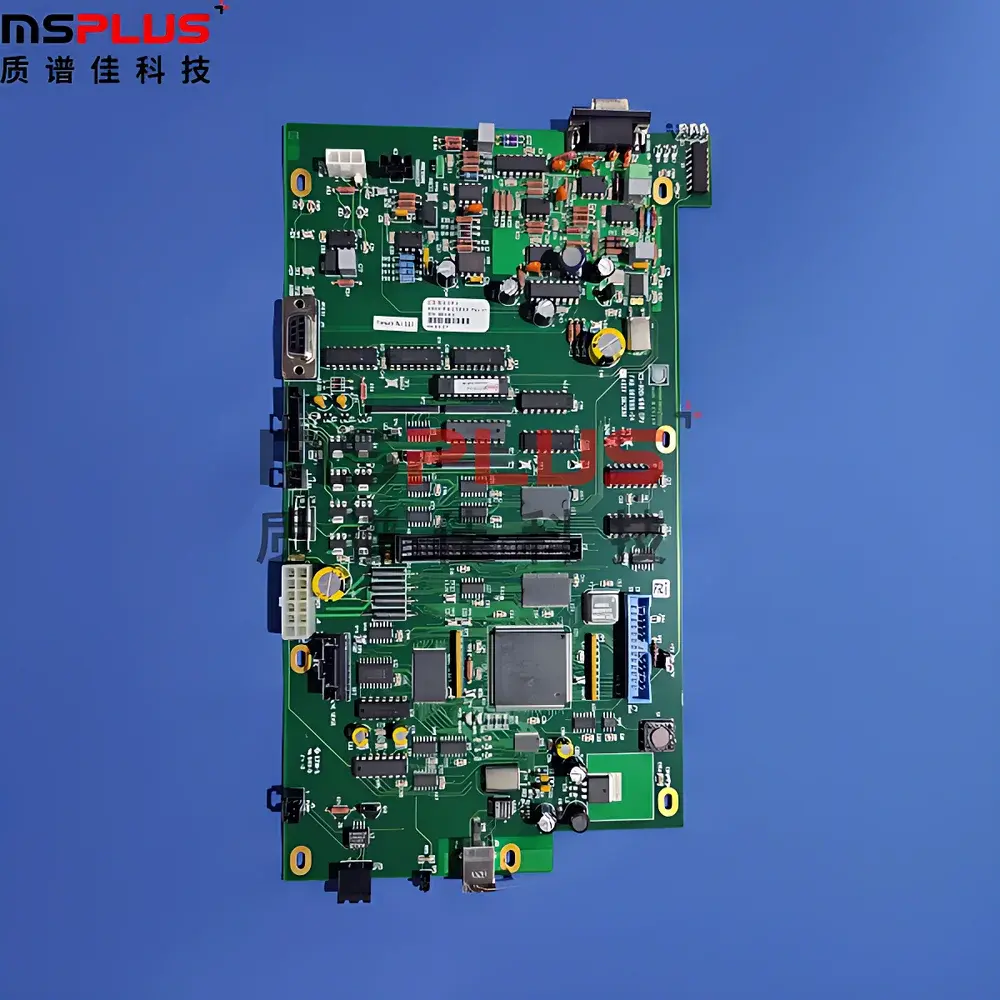

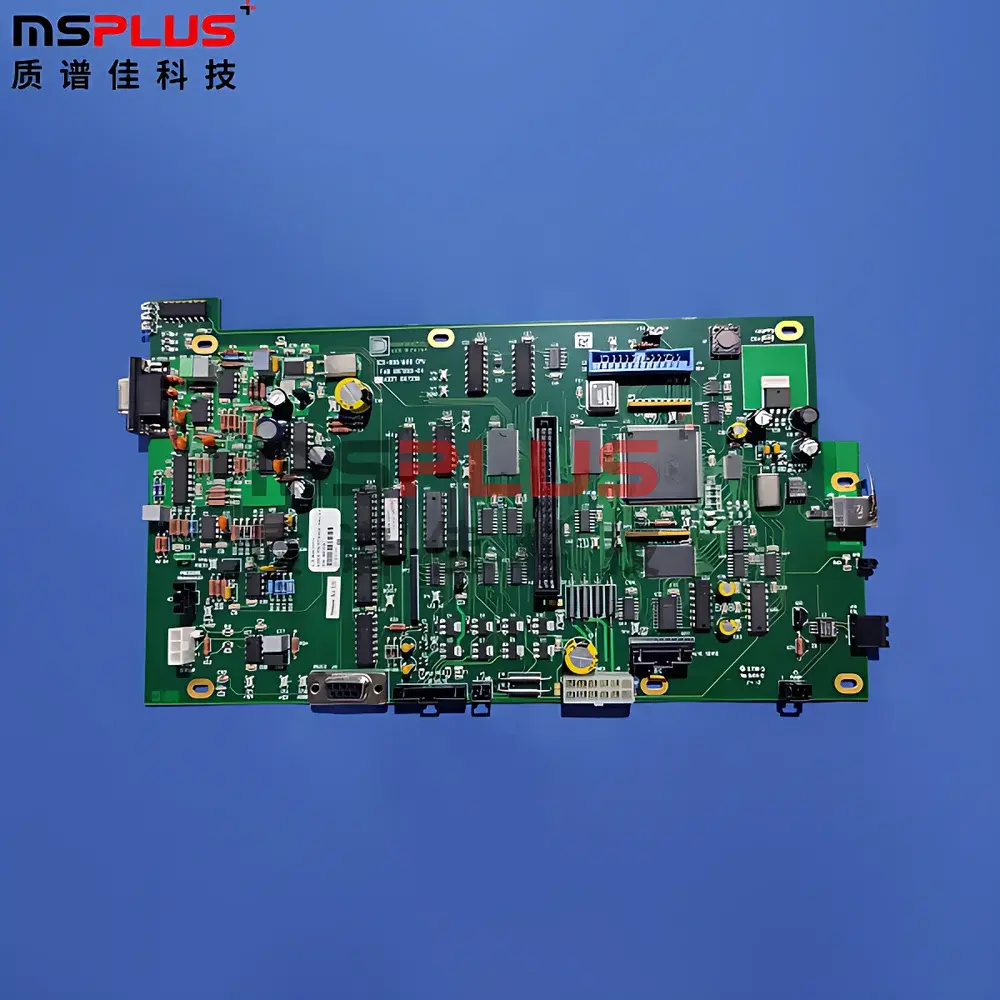

Thermo Fisher Original OEM Circuit Board for Mass Spectrometry Systems, Part No. 07884

Overview

The Thermo Fisher Original OEM Circuit Board (Part No. 07884) is a factory-specified electronic control module designed exclusively for integration into Thermo Fisher Scientific mass spectrometry platforms—including but not limited to the Orbitrap, TSQ, and DFS series. This board serves critical signal conditioning, power regulation, and communication interface functions within the instrument’s data acquisition and detector control subsystems. As an original equipment manufacturer (OEM) component, it conforms precisely to Thermo Fisher’s hardware revision specifications, electrical tolerances, firmware handshake protocols, and thermal management requirements. Its deployment ensures full compatibility with instrument boot sequences, diagnostic self-tests, and embedded calibration routines—critical for maintaining measurement integrity, regulatory compliance, and long-term system stability in GLP/GMP and ISO/IEC 17025 environments.

Key Features

• 100% Thermo Fisher–certified OEM design—no reverse-engineered or third-party clones
• Manufactured in Thermo Fisher’s U.S.-based electronics production facility, adhering to IPC-A-610 Class 3 standards for high-reliability instrumentation
• Pre-flashed with instrument-specific firmware binaries validated against Thermo Fisher’s internal release matrix (Revision ID traceable via onboard EEPROM)
• Integrated ESD protection (IEC 61000-4-2 Level 4 compliant) and conformal coating for operational robustness in laboratory environments with variable humidity and particulate exposure
• Pin-compatible replacement for legacy boards in field-service scenarios—no mechanical adaptation or firmware reflash required
• Supplied with Thermo Fisher–issued Certificate of Conformance (CoC), including lot number, manufacturing date, and RoHS/REACH compliance documentation

Sample Compatibility & Compliance

This circuit board is engineered for use in Thermo Fisher mass spectrometers deployed in regulated analytical laboratories. It supports full interoperability with Thermo Fisher’s Chromeleon CDS and Tune software suites, enabling seamless integration into workflows governed by FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 audit requirements. The board’s signal integrity and timing specifications meet ASTM E2657–22 (Standard Practice for Verification of Mass Spectrometer Performance) for baseline noise, peak shape fidelity, and dwell-time accuracy across m/z ranges. No recalibration of the mass analyzer or detector is required post-installation when replaced per Thermo Fisher Service Bulletin MS-2023-07884-REV2.

Software & Data Management

The board communicates via proprietary high-speed LVDS (Low-Voltage Differential Signaling) links to the main system controller, preserving real-time spectral data throughput without packet loss or latency-induced peak distortion. Firmware updates—when issued by Thermo Fisher—are applied exclusively through the instrument’s authenticated service mode using signed .bin files; no external programming tools or JTAG interfaces are exposed. Audit trails generated during board initialization and runtime diagnostics are logged in the instrument’s system event buffer and exported via Chromeleon’s eLogbook module, supporting full traceability for QA/QC review and regulatory inspection.

Applications

This component is routinely deployed in laboratories performing high-value quantitative and qualitative analyses where instrument uptime and data defensibility are mission-critical: pharmaceutical impurity profiling (ICH Q2(R2)), environmental PFAS monitoring (EPA Method 1633), forensic toxicology screening (SWGDAM guidelines), clinical metabolomics (CLIA-certified workflows), and reference material certification (NIST-traceable measurements). Its reliability directly impacts method transfer success between instruments, inter-laboratory reproducibility studies, and validation of LC-MS/MS methods under USP <1225> and ICH Q5E.

FAQ

Is this board compatible with non-Thermo mass spectrometers?
No. Part No. 07884 is electrically, mechanically, and firmware-locked to Thermo Fisher platforms and will not initialize in instruments from Agilent, Waters, AB Sciex, or Shimadzu.
Does installation require factory-level calibration?
No. When installed following Thermo Fisher’s Field Service Manual Section 4.8.2, the board auto-negotiates parameters during cold start and retains existing calibration coefficients stored in non-volatile memory.
Can this board be used in GMP-regulated environments?
Yes—provided installation is performed by qualified personnel and documented per your site’s SOP-INST-MS-009, with CoC retention for minimum 15 years per FDA guidance on electronic records.
What is the warranty coverage for this OEM part?
Thermo Fisher provides a 12-month limited warranty covering defects in materials and workmanship under normal laboratory use conditions, as defined in Thermo Fisher Warranty Policy W-MS-2022.
