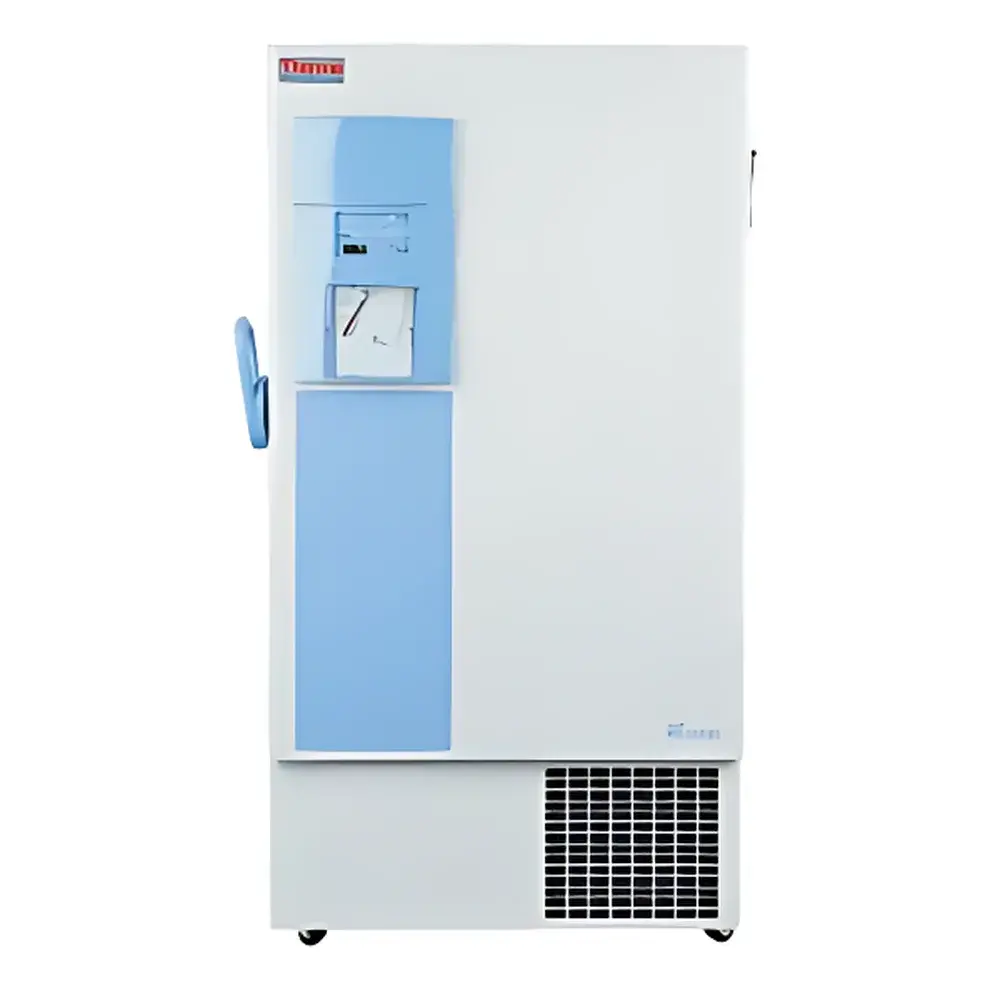

Thermo Scientific Forma™ Ultra Low Temperature Freezer

Overview

The Thermo Scientific Forma™ Ultra Low Temperature Freezer is an engineered solution for long-term, stable cryogenic storage of biologics, clinical specimens, cell lines, and other temperature-sensitive life science materials. Designed and manufactured in Germany under stringent ISO 13485-certified quality systems, this -80°C ultra-low temperature (ULT) freezer employs a dual-stage cascade refrigeration architecture with two independent 1.5 HP industrial-grade compressors. This configuration ensures rapid thermal recovery after door openings—critical for maintaining sample integrity in high-traffic clinical laboratories and biobanks. The system operates without liquid nitrogen or external coolant, delivering consistent temperature uniformity across the entire chamber while minimizing energy consumption per stored sample volume.

Key Features

• Dual-compressor cascade refrigeration system for enhanced reliability, redundancy, and faster pull-down/recovery times (≤30 min to return to –80°C after 30-sec door opening at ambient 25°C)
• 127 mm (5-inch) in-situ poured polyurethane insulation with optimized density gradient, providing industry-leading thermal resistance (R-value > 45 m²·K/W) and minimizing heat ingress
• Triple-point door gasket sealing system with precision-molded EPDM elastomer, ensuring leak-tight closure and uniform compression across all contact surfaces
• Integrated vacuum pressure equalization port located on the inner door panel, connected to a calibrated pressure-relief valve—eliminates suction effect during repeated access and enables effortless single-hand operation
• Microprocessor-controlled temperature management with ±0.5°C stability and real-time monitoring via embedded Pt100 sensors at multiple chamber locations
• Robust stainless-steel interior chamber (304 grade) and reinforced exterior cabinet with powder-coated steel, compliant with IEC 61010-1 safety standards for laboratory equipment

Sample Compatibility & Compliance

This ULT freezer supports storage of primary human tissues, plasma, serum, DNA/RNA extracts, stem cells, vaccines, and other biospecimens requiring sustained temperatures ≤ –70°C. It meets essential regulatory requirements for biorepository operations, including ISO 20387:2018 (Biobanking), CLSI GP44-A4 (Temperature Monitoring), and FDA 21 CFR Part 11–ready data logging when paired with optional Thermo Fisher Connect™ software. All models are CE-marked and comply with RoHS, REACH, and WEEE directives. The design facilitates GLP/GMP-aligned workflows through configurable alarm thresholds, event logging, and user-access controls.

Software & Data Management

When integrated with Thermo Fisher Connect™ Cloud Platform, the Forma™ ULT Freezer delivers secure remote monitoring, customizable alerting (SMS/email), and audit-trail-capable temperature history export in CSV or PDF formats. Data logs include timestamps, sensor IDs, setpoint deviations, compressor runtime, and door-open events—all traceable to individual users via role-based authentication. Optional Ethernet or Wi-Fi connectivity enables seamless integration into enterprise Laboratory Information Management Systems (LIMS) and centralized environmental monitoring networks. All firmware updates follow IEC 62304-compliant development lifecycle protocols.

Applications

• Clinical laboratory biobanking: Long-term archiving of patient-derived samples under CAP/CLIA-accredited conditions
• Pharmaceutical R&D: Storage of reference standards, potency assay materials, and stability study samples per ICH Q5C guidelines
• Academic research: Cryopreservation of induced pluripotent stem cells (iPSCs), organoids, and primary neuronal cultures
• Vaccine distribution hubs: Cold chain continuity for mRNA, viral vector, and adjuvanted formulations requiring –70°C transport staging
• Regulatory submissions: Generation of temperature compliance documentation for FDA BLA/MAA dossiers and EMA scientific advice requests

FAQ

What is the typical temperature range and stability specification?
The unit maintains a nominal operating setpoint of –80°C with ±0.5°C chamber uniformity (measured per ISO 10554:2021 Annex B) and ≤ ±1.0°C long-term stability over 24 h under standard loading conditions.
Does it support 21 CFR Part 11 compliance?
Yes—when configured with Thermo Fisher Connect™ and appropriate user administration settings, the system provides electronic signatures, audit trails, and role-based access control required for regulated environments.
How is door-opening frequency managed to prevent frost accumulation?
The vacuum pressure equalization port, combined with heated door seals and auto-defrost cycles triggered by evaporator temperature differentials, minimizes ice formation even under ≥15 daily accesses.
Is validation support available for IQ/OQ/PQ protocols?
Thermo Fisher provides factory-validated documentation packages, including as-installed temperature mapping reports, alarm verification checklists, and calibration certificates traceable to NIST standards.
Can the freezer be integrated into building management systems (BMS)?
Yes—via Modbus TCP or BACnet MS/TP communication modules (optional), enabling real-time status telemetry and centralized HVAC coordination within facility infrastructure.
