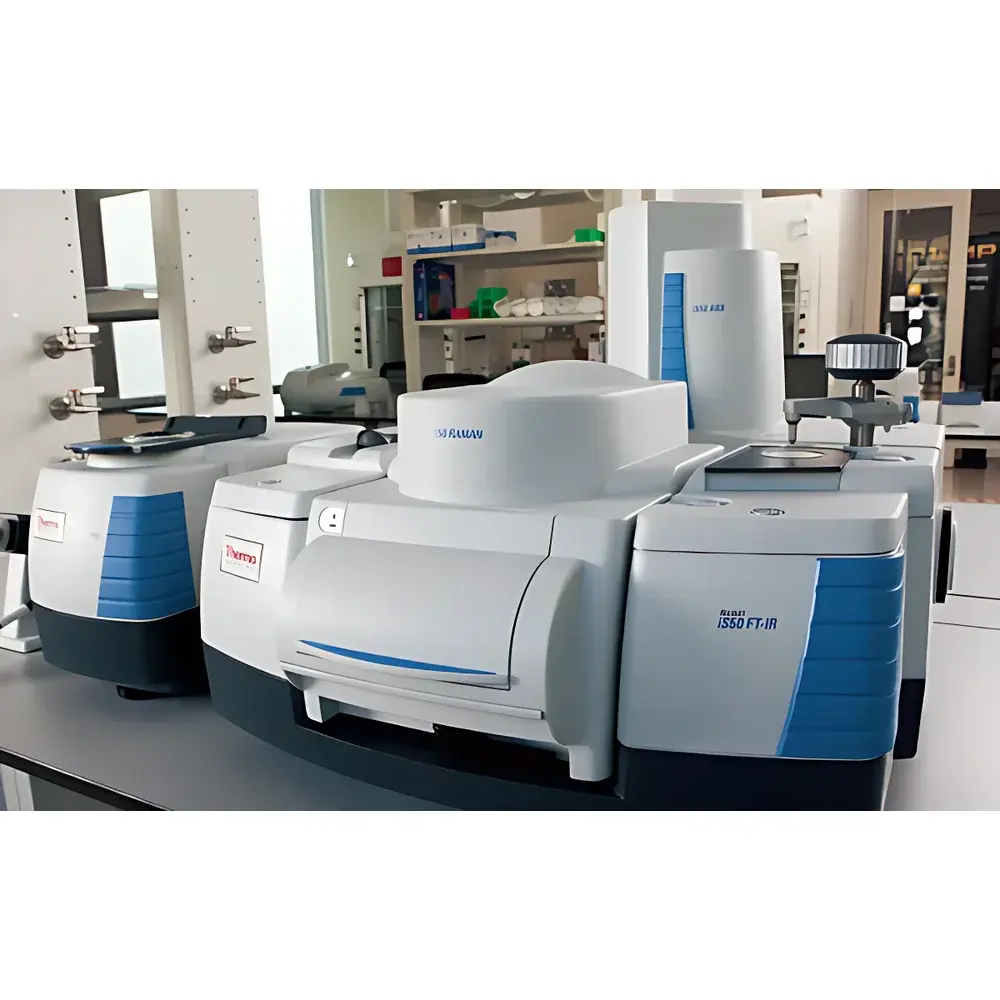

Thermo Scientific Nicolet iS50 Fourier Transform Infrared (FT-IR) Spectrometer

Overview

The Thermo Scientific Nicolet iS50 Fourier Transform Infrared (FT-IR) Spectrometer is an engineered platform for high-fidelity molecular characterization across research, quality control, and regulatory-compliant laboratories. Based on Michelson interferometry with a dynamically aligned optical path, the iS50 delivers quantitative and qualitative spectral data through precise measurement of infrared absorption, reflection, or transmission as a function of wavenumber. Its extended spectral coverage—from far-infrared (15 cm⁻¹) to near-ultraviolet (27,000 cm⁻¹)—enables seamless analysis of vibrational modes in organic, inorganic, polymeric, and biological matrices. Designed for long-term operational stability, the system features a thermally stabilized interferometer, sealed optics compartment, and vibration-damped baseplate—critical for maintaining alignment integrity during extended acquisitions or multi-modal workflows.

Key Features

• Dual-source architecture: Integrated Polaris long-life mid-IR source and tungsten-halogen visible/NIR source for broad-band excitation without manual lamp replacement.
• Triple-detector sample compartment: Supports simultaneous or sequential use of DTGS, MCT-A, and InSb detectors—enabling optimized signal capture across spectral regions.
• Automated beam modulation: Motor-driven attenuator wheel and filter wheel (optional) allow dynamic range optimization and stray-light suppression without user intervention.
• Gold-coated optical surfaces: Maximizes reflectivity across the IR spectrum; aluminum mirror option available for UV-VIS compatibility.
• Validation-ready hardware: Built-in validation wheel with NIST-traceable reference standards supports routine performance qualification per ASTM E1421 and ISO/IEC 17025 requirements.
• Modular expansion capability: Native support for ABX (Automatic Beam eXchanger), enabling rapid, software-controlled switching between mid-IR, far-IR, and NIR beams without realignment.
• Compact footprint: Base unit measures only 62.6 × 69.8 × 27.6 cm (25 × 27 × 11 in); ABX-equipped configuration adds height only—not width or depth.

Sample Compatibility & Compliance

The iS50 accommodates diverse sampling geometries—including transmission cells, specular reflectance accessories, diffuse reflectance integrating spheres, and fiber-optic probes—through its standardized 50-mm optical interface. Its fully motorized ATR module (diamond crystal, single-bounce geometry) enables rapid, solvent-resistant analysis of solids, pastes, and viscous liquids with minimal preparation. For regulated environments, the system complies with FDA 21 CFR Part 11 when operated with OMNIC Paradigm Software v3.0+, supporting electronic signatures, audit trails, and role-based access control. All firmware and calibration routines are documented per GLP/GMP guidelines, and spectral data files include embedded metadata (instrument ID, date/time stamp, operator ID, acquisition parameters) to satisfy ISO 17025 traceability mandates.

Software & Data Management

Controlled by OMNIC Paradigm Software, the iS50 provides a unified interface for instrument operation, spectral processing, multivariate analysis (PCA, PLS), and report generation. The software supports automated method sequencing, batch processing of hundreds of spectra, and direct export to LIMS via ASTM E1384-compliant .spc or .jdx formats. Spectral libraries—including polymer, pharmaceutical, forensic, and environmental reference sets—are integrated with intelligent search algorithms leveraging second-derivative correlation and hierarchical clustering. All raw interferograms and processed spectra are stored with SHA-256 checksums to ensure data integrity across archival storage media and network transfers.

Applications

• Pharmaceutical development: Identification of polymorphs, hydrates, and excipient interactions per USP and ICH Q5A guidelines.
• Polymers & elastomers: Quantitative determination of crystallinity, oxidation index, and additive migration using baseline-corrected peak area ratios.
• Forensic science: Discrimination of paint layers, ink formulations, and synthetic fibers via spectral subtraction and library matching.
• Food authenticity: Detection of adulteration in edible oils (e.g., palm oil in olive oil) using C–H stretching region fingerprinting (2800–3000 cm⁻¹).
• Materials failure analysis: Corrosion product identification on metal substrates using reflection-absorption FT-IR (RAIRS) in situ.
• Hyphenated techniques: Direct coupling to TGA (TGA-IR) and GC (GC-IR) for evolved gas analysis and volatile compound identification.

FAQ

What spectral resolution is achievable under routine operating conditions?
The iS50 achieves better than 0.09 cm⁻¹ unapodized resolution with the standard HeNe laser reference and fully aligned optics—verified daily using the built-in polystyrene film standard.
Can the system be validated for GMP environments?
Yes. With OMNIC Paradigm’s 21 CFR Part 11 mode enabled, the iS50 supports IQ/OQ/PQ documentation packages, electronic signature workflows, and full audit trail logging for regulated QC labs.
Is remote operation supported?
The instrument supports secure TCP/IP communication over LAN/WAN. Full remote control—including method execution, real-time spectrum preview, and diagnostic monitoring—is available via OMNIC Connect licensed modules.
How does the ABX module affect optical throughput?
ABX introduces ≤8% total energy loss per beam path due to optimized CaF₂ and KBr beam splitters; this is compensated by the system’s high-SNR detector architecture and adaptive co-addition algorithms.
Are legacy Nicolet accessories compatible?
All Nicolet 6700/8700-series accessories—including Smart Orbit, iD5, and Quest ATR—maintain mechanical and electrical interoperability with the iS50 via adapter kits supplied by Thermo Fisher.
