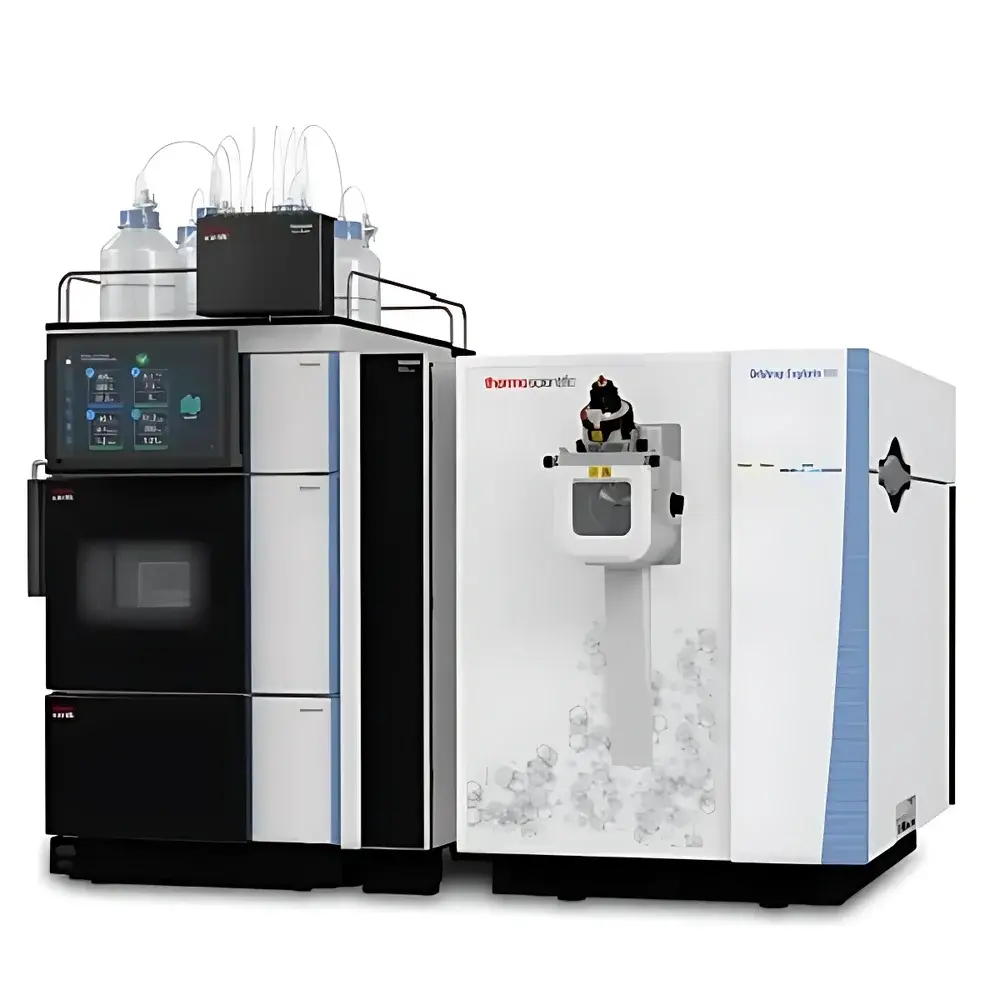

Thermo Scientific Orbitrap Exploris MX Mass Detector

Overview

The Thermo Scientific Orbitrap Exploris MX Mass Detector is a dedicated high-resolution accurate-mass (HRAM) detection module engineered for routine quality control (QC) laboratories in biopharmaceutical manufacturing and development. It leverages the proven Orbitrap mass analyzer technology—based on electrostatic trapping and image current detection—to deliver sub-ppm mass accuracy, high mass resolving power, and robust reproducibility under regulated operational conditions. Unlike research-grade platforms, the Exploris MX is purpose-built for method transfer integrity, instrument uptime, and compliance-ready operation across GLP/GMP environments. Its architecture integrates seamlessly with liquid chromatography systems—including Thermo Scientific Vanquish UHPLC—and operates as a drop-in detection unit compatible with existing Exploris 240 workflows. This ensures consistent retention time alignment, identical spectral acquisition parameters, and direct comparability of HRAM data between R&D and QC settings—critical for ICH Q5E comparability studies and regulatory submissions.

Key Features

• Orbitrap mass analyzer with electrostatic ion trapping and Fourier-transform-based signal detection, enabling simultaneous high resolution and high mass accuracy
• Dedicated QC firmware optimized for stability, minimal user intervention, and automated calibration validation
• Integrated EASY-IC (Electron Transfer Dissociation-Assisted Internal Calibration) for continuous real-time mass recalibration without interrupting acquisition
• Lock mass correction using internal reference ions (e.g., polysiloxane or proprietary calibrants) to maintain <1 ppm RMS mass error over 24-hour continuous operation
• Compact, service-accessible design with modular ion source interface (ESI/APCI-compatible) and reduced footprint for benchtop QC lab integration
• Pre-configured method templates aligned with USP <1058>, ASTM E2602, and ISO/IEC 17025 requirements for analytical instrument qualification (AIQ)

Sample Compatibility & Compliance

The Orbitrap Exploris MX supports analysis of intact proteins, reduced and denatured mAbs, antibody-drug conjugates (ADCs), peptides, glycans, oligonucleotides, and small-molecule impurities across native and denaturing LC conditions. It meets critical regulatory expectations for biopharmaceutical characterization, including ICH Q5B (protein primary structure), Q5C (stability), and Q5E (comparability). All calibration, tuning, and performance verification procedures are fully documented and traceable per FDA 21 CFR Part 11 requirements, with audit trail-enabled Chromeleon CDS software supporting electronic signatures, user role management, and secure data archiving. System suitability testing (SST) protocols are preloaded and compliant with USP <1225> and Ph. Eur. 2.2.46.

Software & Data Management

Controlled exclusively via Thermo Scientific Chromeleon Chromatography Data System (CDS) v7.3 or later, the Exploris MX enables full lifecycle data governance—from method creation and instrument control to raw data processing, reporting, and long-term storage. Chromeleon supports 21 CFR Part 11-compliant electronic records with immutable audit trails, automatic calibration history logging, and configurable user permissions. Quantitative and qualitative workflows—including peptide mapping, intact mass analysis, glycan profiling, and oligonucleotide purity assessment—are supported through validated plug-ins (e.g., BioPharma Finder, GlycoWorkbench integration, OligoAnalyzer). Raw data files (.raw) are stored in vendor-neutral formats compatible with third-party reprocessing tools (e.g., Skyline, MaxQuant) for independent verification.

Applications

• Intact mass analysis of monoclonal antibodies (mAbs), bispecifics, and fusion proteins under native and denaturing conditions
• Reduced and hinge-cleaved subunit characterization for charge variant and disulfide bond mapping
• Glycosylation profiling—including site-specific N-/O-glycan identification and relative quantitation
• Oligonucleotide drug substance and product analysis: full-length confirmation, n−1/n−2 impurity detection, and phosphorothioate modification verification
• Peptide mapping for sequence confirmation, post-translational modification (PTM) localization, and deamidation/oxidation monitoring
• Stability-indicating assays tracking degradation products during accelerated and real-time stability programs

FAQ

Is the Orbitrap Exploris MX compatible with non-Thermo LC systems?
Yes—it accepts standard analog voltage signals and digital triggers from third-party UHPLC systems via TTL or Ethernet interfaces, though optimal performance and full method transfer fidelity are achieved with Thermo Vanquish platforms.
Does the system support automated daily performance verification?
Yes—predefined QC check methods include sensitivity, resolution, mass accuracy, and peak shape tests that execute unattended and generate pass/fail reports aligned with internal SOPs.
Can calibration be performed without interrupting sample analysis?
Yes—EASY-IC enables continuous internal calibration using co-eluting reference ions, eliminating the need for periodic external calibration runs during batch acquisition.
What documentation is provided for regulatory audits?
A complete IQ/OQ/PQ protocol package, system configuration record, calibration certificate traceable to NIST standards, and Chromeleon Part 11 validation summary are included with delivery.
Is remote monitoring and troubleshooting supported?
Yes—via Thermo Connect cloud-enabled diagnostics (opt-in), allowing authorized service engineers to perform health checks, firmware updates, and log analysis with customer consent and encrypted session protocols.
