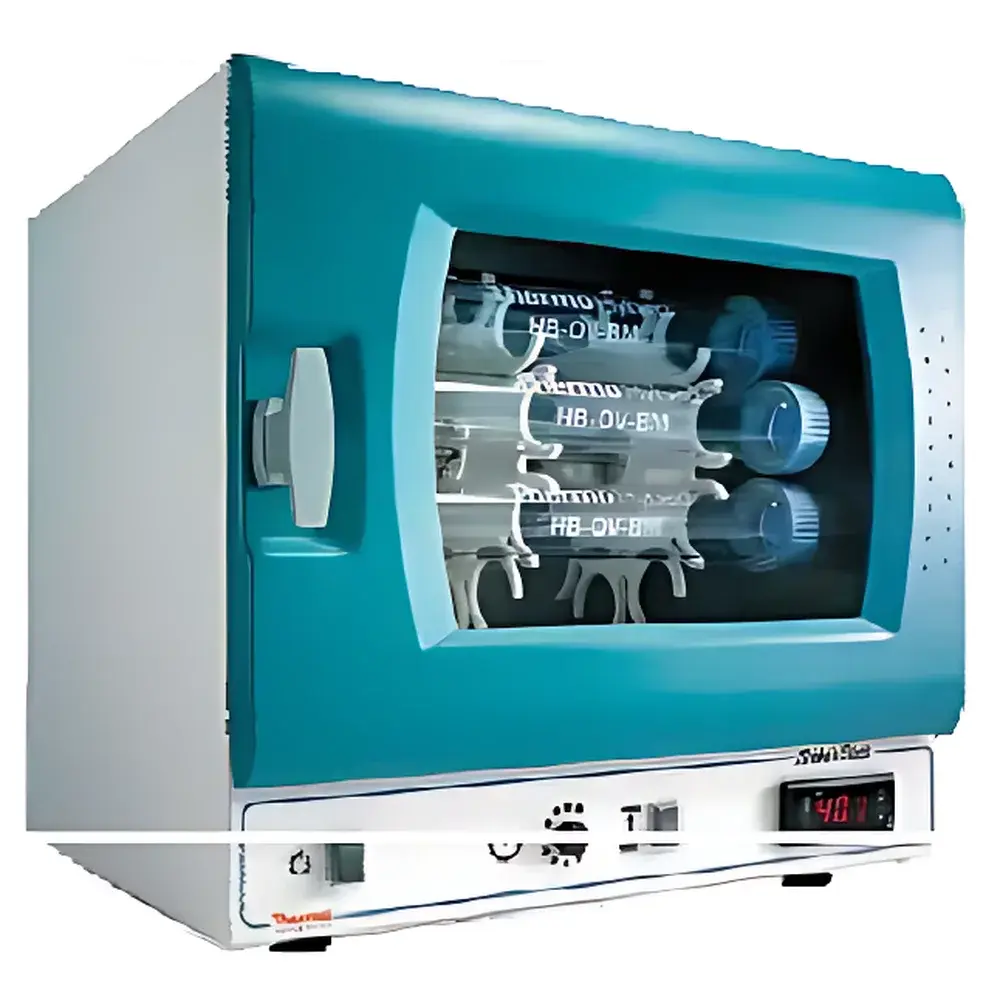

Thermo Scientific Shake n Stack Molecular Hybridization Oven

Overview

The Thermo Scientific Shake n Stack Molecular Hybridization Oven is an engineered solution for controlled, reproducible nucleic acid hybridization in molecular biology workflows. Designed around the principle of uniform convective heat transfer and mechanical agitation—either via rotating bottle carriers or horizontal oscillation—the instrument ensures consistent thermal exposure and fluid motion critical for high-fidelity DNA–DNA, DNA–RNA, and RNA–RNA hybridization reactions. Unlike static incubators, the Shake n Stack system actively enhances probe–target binding kinetics by maintaining laminar flow dynamics within sealed hybridization vessels while minimizing localized thermal gradients. Its compact, stackable architecture supports space-constrained core facilities and high-throughput labs without compromising thermal integrity or operational reliability.

Key Features

• Stackable modular design enables vertical expansion of hybridization capacity without additional footprint—ideal for shared-resource laboratories and multi-user environments.
• Dual-mode operation: Models 6242 (rotating wheel configuration) and 6240 (horizontal oscillation platform) offer application-specific agitation profiles optimized for membrane-based blotting (e.g., Southern, Northern, dot blots) or solution-phase hybridizations.
• Precision temperature control with ±0.25°C uniformity across the entire chamber volume—validated per ASTM E2251-21 for laboratory ovens—ensures compliance with stringent assay validation requirements in regulated research settings.
• Digitally controlled LED interface provides intuitive setpoint entry, real-time monitoring of chamber temperature, and independent speed adjustment for rotational or oscillatory motion.
• Robust stainless-steel construction with insulated double-wall housing minimizes energy consumption and external surface temperature rise during extended incubations (up to 72 h).
• Adjustable leveling feet and integrated drip tray support stable operation on uneven surfaces and prevent solvent spillage during high-humidity hybridization protocols.

Sample Compatibility & Compliance

The Shake n Stack accommodates standard 35 mm inner-diameter × 250 mm length hybridization bottles (up to 10 per run), as well as alternative formats including glass tubes and custom-sized containers when used with optional adapters. It supports all major membrane types (nitrocellulose, nylon, PVDF) and gel-based hybridization substrates. The system meets general laboratory safety standards per IEC 61010-1 and is compatible with GLP- and GMP-aligned workflows when paired with documented calibration procedures and audit-ready log files. While not FDA-cleared as a diagnostic device, its performance characteristics align with ISO/IEC 17025 method validation criteria for nucleic acid detection assays.

Software & Data Management

The instrument operates via embedded firmware with no external software dependency—ensuring deterministic timing, minimal failure points, and compatibility with air-gapped laboratory networks. All operational parameters (temperature setpoint, duration, agitation mode, speed) are retained in non-volatile memory and can be recalled via front-panel navigation. For traceability in regulated environments, users may integrate the oven into broader lab information management systems (LIMS) using RS-232 serial output (optional accessory). Time-stamped event logs—including door-open alerts, temperature deviation flags, and cycle completion signals—are exportable for 21 CFR Part 11-compliant recordkeeping when interfaced with validated third-party data acquisition platforms.

Applications

• Membrane hybridization for Southern, Northern, and Western blotting workflows.
• Prehybridization and post-hybridization wash steps requiring precise temperature ramping and gentle agitation.
• In situ hybridization (ISH) probe incubation under controlled humidity and thermal conditions.
• High-stringency washing of nitrocellulose membranes following antibody or oligonucleotide binding.
• Gel destaining and background reduction protocols where low-frequency horizontal oscillation prevents gel fracture.
• Long-duration hybridization reactions (e.g., overnight or 48-h protocols) demanding thermal stability and mechanical consistency.

FAQ

What is the difference between model 6242 and model 6240?

Model 6242 features a motorized rotating wheel designed for upright hybridization bottles; model 6240 replaces this with a horizontal oscillation platform suitable for flat membranes and gels.
Can both models be stacked physically?

Yes—both models share identical external dimensions and structural mounting points, enabling secure vertical stacking without auxiliary hardware.
Is calibration documentation provided with shipment?

Each unit ships with a factory calibration certificate covering temperature uniformity and timer accuracy, traceable to NIST standards.
Does the system support programmable ramping or multi-step temperature profiles?

No—the Shake n Stack is optimized for single-setpoint incubation; complex thermal gradients require external controllers or pre-conditioned reagents.
What maintenance is required to ensure long-term thermal accuracy?

Annual verification of sensor drift and heater response time is recommended; Thermo Fisher offers certified service contracts with ISO/IEC 17025-accredited calibration intervals.
