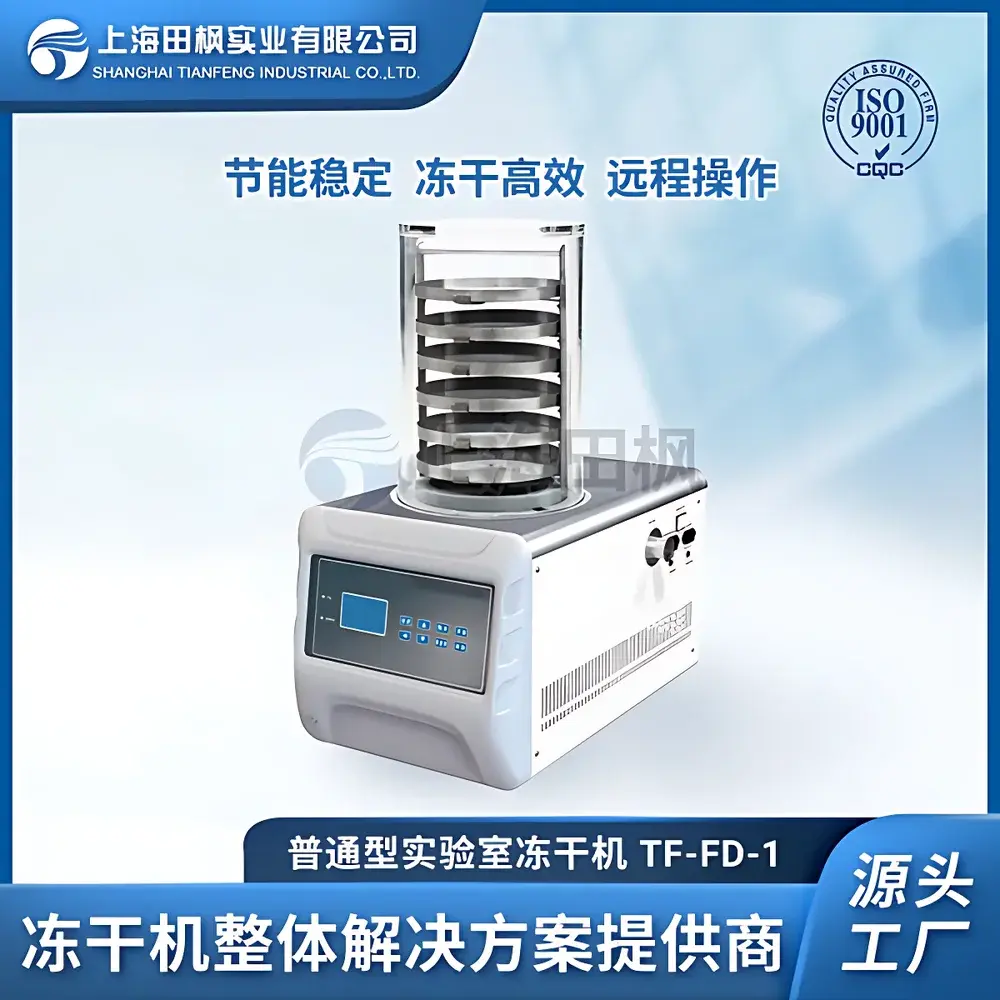

Tianfeng FD-1 Benchtop Laboratory Freeze Dryer

Overview

The Tianfeng FD-1 Benchtop Laboratory Freeze Dryer is a compact, air-cooled, shelf-type lyophilization system engineered for reproducible primary drying of small-batch samples in research and development environments. It operates on the principle of sublimation under deep vacuum—where frozen water is removed directly from the solid to vapor phase without passing through the liquid state—enabling structural preservation of thermolabile compounds, proteins, biologics, and sensitive organic matrices. Designed specifically for feasibility studies in pharmaceutical formulation, clinical trial material preparation, environmental sample stabilization (e.g., soil microbiota, aqueous extracts), and academic life science research, the FD-1 delivers controlled, scalable freeze-drying performance within limited laboratory footprints. Its dual-stage refrigeration architecture achieves stable cold trap temperatures below −50 °C, ensuring efficient vapor capture even from moderately volatile solvents such as acetone or ethanol—critical for non-aqueous lyophilization protocols.

Key Features

• Air-cooled, hermetically sealed refrigeration system eliminates dependency on external water cooling infrastructure, enhancing installation flexibility and reducing operational overhead.
• Transparent bell-jar chamber provides real-time visual monitoring of sublimation progress and ice formation without compromising vacuum integrity.
• Stainless steel cold trap and platform ensure corrosion resistance, ease of decontamination, and compliance with GLP hygiene standards.
• LED digital displays provide continuous, high-resolution readouts of cold trap temperature and chamber pressure—both essential parameters for process validation and troubleshooting.
• Intuitive touch-sensitive soft-key interface enables rapid configuration of vacuum hold times, pump-down sequences, and manual defrost cycles without software dependency.
• Adjustable stainless steel sample shelf spacing supports customizable tray stacking (up to four Ø200 mm trays), accommodating heterogeneous vial sizes and bulk powder pans.
• Standardized ISO-KF vacuum flange connections ensure compatibility with auxiliary components including vacuum gauges, solvent traps, and inert gas purging modules.

Sample Compatibility & Compliance

The FD-1 accommodates aqueous and low-boiling-point solvent-based formulations typical in preformulation screening, including buffer systems, monoclonal antibody intermediates, microbial cultures, botanical extracts, and diagnostic reagents. Its −50 °C cold trap offers sufficient condensation margin for common cryoprotectants (e.g., sucrose, trehalose) and co-solvent blends up to 15% v/v organic content. While not certified for GMP manufacturing, the system supports data integrity practices aligned with FDA 21 CFR Part 11 expectations when used with external logging tools—particularly during method development, stability testing, and analytical reference standard preparation. All wetted surfaces meet ISO 8573-1 purity class 4 for compressed air compatibility, and the unit complies with IEC 61010-1 safety requirements for laboratory electrical equipment.

Software & Data Management

The FD-1 operates as a stand-alone hardware platform with no embedded PC or proprietary software. Process parameters—including vacuum setpoints, hold durations, and manual defrost initiation—are recorded via external loggers or lab notebooks. For users requiring traceable cycle documentation, integration with third-party data acquisition systems (e.g., LabVIEW, MATLAB, or industrial SCADA platforms) is supported via analog voltage outputs (0–5 V) corresponding to cold trap temperature and chamber pressure. Optional RS-232 serial interface allows remote status polling and basic command execution (e.g., pump start/stop), facilitating inclusion in automated lab workflows compliant with ISO/IEC 17025 documentation frameworks.

Applications

• Pharmaceutical R&D: Lyophilization cycle scouting for injectables, nasal sprays, and ophthalmic suspensions.
• Biotechnology: Stabilization of plasmid DNA, CRISPR ribonucleoprotein complexes, and lyophilized cell lysates.
• Environmental Science: Preservation of soil metagenomic samples prior to DNA extraction and sequencing.
• Food & Agriculture: Pilot-scale dehydration of probiotic cultures, enzyme powders, and natural pigments.
• Academic Research: Teaching freeze-drying fundamentals, mass transfer modeling, and collapse temperature determination via manometric temperature measurement (MTM) add-ons.

FAQ

What is the maximum sample volume this unit can process per batch?
With four Ø200 mm trays at standard spacing, the FD-1 supports up to approximately 800 mL of evenly distributed aqueous solution—assuming 5–8 mm fill depth and 10–15% solids content.
Can the FD-1 handle samples containing acetonitrile or methanol?
Yes—its <−50 °C cold trap effectively condenses these solvents when present at ≤10% v/v; however, extended exposure above this threshold may reduce trapping efficiency and require more frequent manual defrosting.
Is the vacuum pump included with the system?
No—the FD-1 requires an external two-stage rotary vane vacuum pump (recommended ultimate vacuum ≤1 Pa) with appropriate oil mist filter and chemical-resistant diaphragm seals.
Does the unit support shelf-controlled freezing?
No—the FD-1 does not feature electrically heated shelves or programmable shelf temperature control; sample pre-freezing must be performed externally using ultra-low temperature freezers or cryogenic baths.
What maintenance intervals are recommended for long-term reliability?
Compressor oil inspection every 12 months, vacuum pump oil replacement every 3–6 months (depending on usage frequency), and cold trap cleaning after each 10–15 lyophilization cycles using ethanol-rinsed lint-free wipes.
