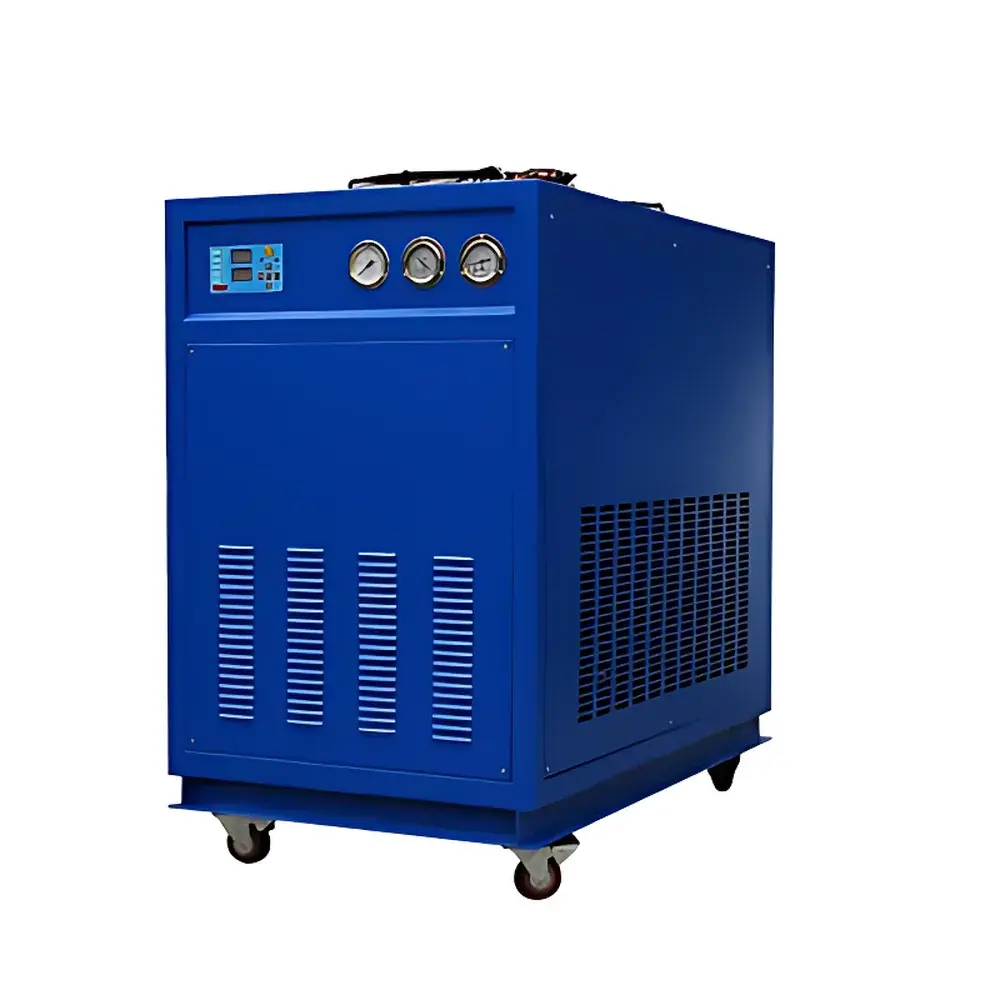

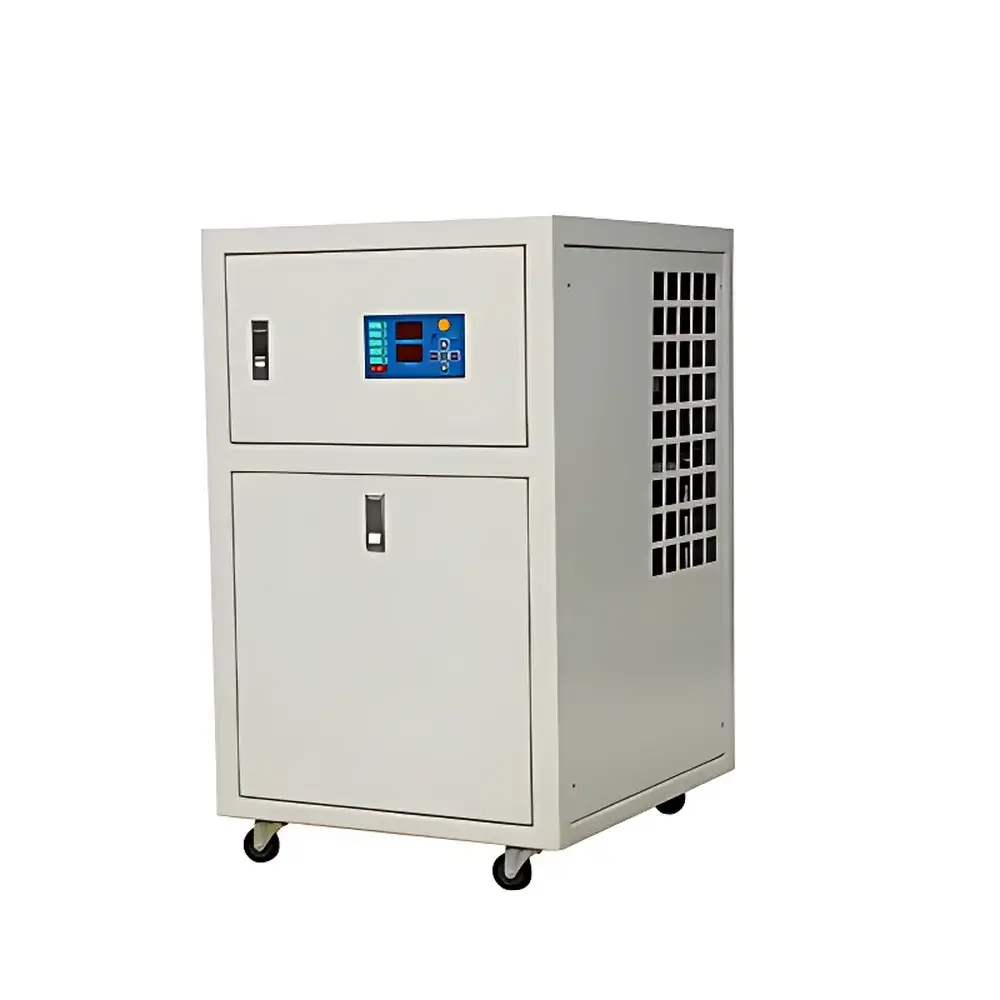

Tianfeng LS-2.5KW Integrated Circulating Chiller

Overview

The Tianfeng LS-2.5KW Integrated Circulating Chiller is a precision-engineered thermal management system designed for continuous-duty laboratory and analytical instrumentation cooling. It operates on the vapor-compression refrigeration cycle, utilizing a high-efficiency scroll compressor, thermostatic expansion valve, and copper-aluminum finned condenser to deliver stable, low-noise cooling performance. Unlike air-cooled chillers, this water-cooled model dissipates heat via an external cooling water loop—making it especially suitable for environments where ambient temperature control is constrained or where acoustic noise must be minimized. The chiller maintains setpoint accuracy within ±0.1 °C across its full operating range of 0–40 °C, ensuring consistent thermal conditions critical for sensitive instruments such as graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), X-ray diffractometers (XRD), scanning electron microscopes (SEM), and transmission electron microscopes (TEM). Its compact footprint (650 × 550 × 915 mm) and integrated architecture eliminate the need for remote condenser units or complex plumbing, enabling rapid deployment in benchtop, under-bench, or mobile lab configurations.

Key Features

• Stainless steel reservoir and circulation pump—resistant to corrosion from deionized water, glycol-water mixtures, and mild chemical coolants
• Digital PID temperature controller with real-time display of outlet fluid temperature and operational status
• Intelligent adaptive control mode: automatically modulates compressor speed and flow rate in response to thermal load fluctuations
• Two operational modes: constant-temperature (setpoint hold) and intelligent thermal tracking (dynamic setpoint adjustment)
• Comprehensive safety suite: compressor overheat protection, high/low refrigerant pressure cutoffs, overcurrent interruption, and sensor-fault detection with audible/visual alarm and relay fault output
• Low-noise design (<65 dB(A) at 1 m)—optimized for shared laboratory spaces and quiet-zone facilities
• Full compatibility with standard 1/2″–3/4″ NPT or BSP inlet/outlet ports; optional quick-connect fittings available
• Energy-efficient scroll compressor with >95% volumetric efficiency and extended service life under continuous 24/7 operation

Sample Compatibility & Compliance

The LS-2.5KW chiller is engineered to support a broad spectrum of laboratory instrumentation requiring precise coolant temperature regulation and stable flow dynamics. It is routinely deployed with high-power laser sources (e.g., CO₂, fiber, and ultrafast lasers), vacuum deposition systems, semiconductor wafer probers, and high-resolution mass spectrometry platforms—including ICP-MS and MALDI-TOF—where thermal drift directly impacts signal stability and mass calibration integrity. All electrical components comply with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity) standards. Mechanical construction adheres to ISO 9001:2000 quality management protocols throughout design, assembly, and final testing. While not certified to UL 61010-1 or CE Machinery Directive out-of-the-box, the unit may be configured for compliance upon request with third-party certification support. For regulated environments (e.g., GLP/GMP labs), optional audit-trail-capable controllers and 21 CFR Part 11–compliant software modules are available via integration with Tianfeng’s TFSuite™ platform.

Software & Data Management

The chiller supports analog (0–10 V / 4–20 mA) and digital (RS485 Modbus RTU) interface protocols for integration into centralized building management systems (BMS) or laboratory information management systems (LIMS). Optional TFSuite™ software enables remote monitoring of real-time parameters—including outlet temperature, flow rate, compressor runtime, fault logs, and energy consumption—via Ethernet or Wi-Fi. Data is timestamped and stored locally on an embedded SD card (up to 32 GB), with configurable export intervals (1 min to 24 h) in CSV format for traceability and trending analysis. Audit trails include operator login history, parameter change logs, and alarm event timestamps—fully aligned with FDA 21 CFR Part 11 requirements when paired with user authentication and electronic signature modules.

Applications

• Analytical Instrument Cooling: Maintains optimal detector and source temperatures in XRF, XRD, SEM, TEM, and ICP-based systems to minimize thermal noise and ensure spectral reproducibility
• Laser Systems: Provides stable coolant delivery for high-power CW and pulsed lasers used in materials processing, biomedical imaging, and spectroscopy
• Vacuum & Thin-Film Equipment: Regulates target and substrate temperatures during sputtering, evaporation, and CVD processes to improve film uniformity and adhesion
• Plastic & Polymer Testing: Controls mold and die temperatures in dynamic mechanical analyzers (DMA) and melt flow indexers (MFI) to ensure ASTM D792 and ISO 1133 compliance
• Pharmaceutical QC: Supports controlled cooling in dissolution testers (USP Apparatus II), stability chambers, and lyophilizer condensers per ICH Q5C guidelines

FAQ

What is the maximum allowable return water temperature for safe long-term operation?
The chiller is rated for continuous operation with return water ≤40 °C. Exceeding this threshold increases condensing pressure and reduces compressor efficiency; sustained exposure >45 °C may trigger high-pressure shutdown.
Can this chiller operate with ethylene glycol solutions?
Yes—up to 30% v/v glycol/water mixture is supported; however, flow rate and refrigeration capacity decrease by ~8–12% due to reduced specific heat and increased viscosity.
Is the unit suitable for cleanroom environments?
Its sealed scroll compressor, stainless steel wetted parts, and absence of oil mist venting make it compatible with ISO Class 5–7 cleanrooms when installed with HEPA-filtered intake air.
Does the chiller support external temperature feedback control?
Yes—via optional PT100 input port, enabling closed-loop control using a remote process sensor rather than internal reservoir temperature.
What maintenance schedule is recommended for uninterrupted 24/7 operation?
Biannual inspection of refrigerant charge, condenser coil cleanliness, and electrical connections; annual replacement of desiccant filter-drier and verification of PID tuning parameters.
