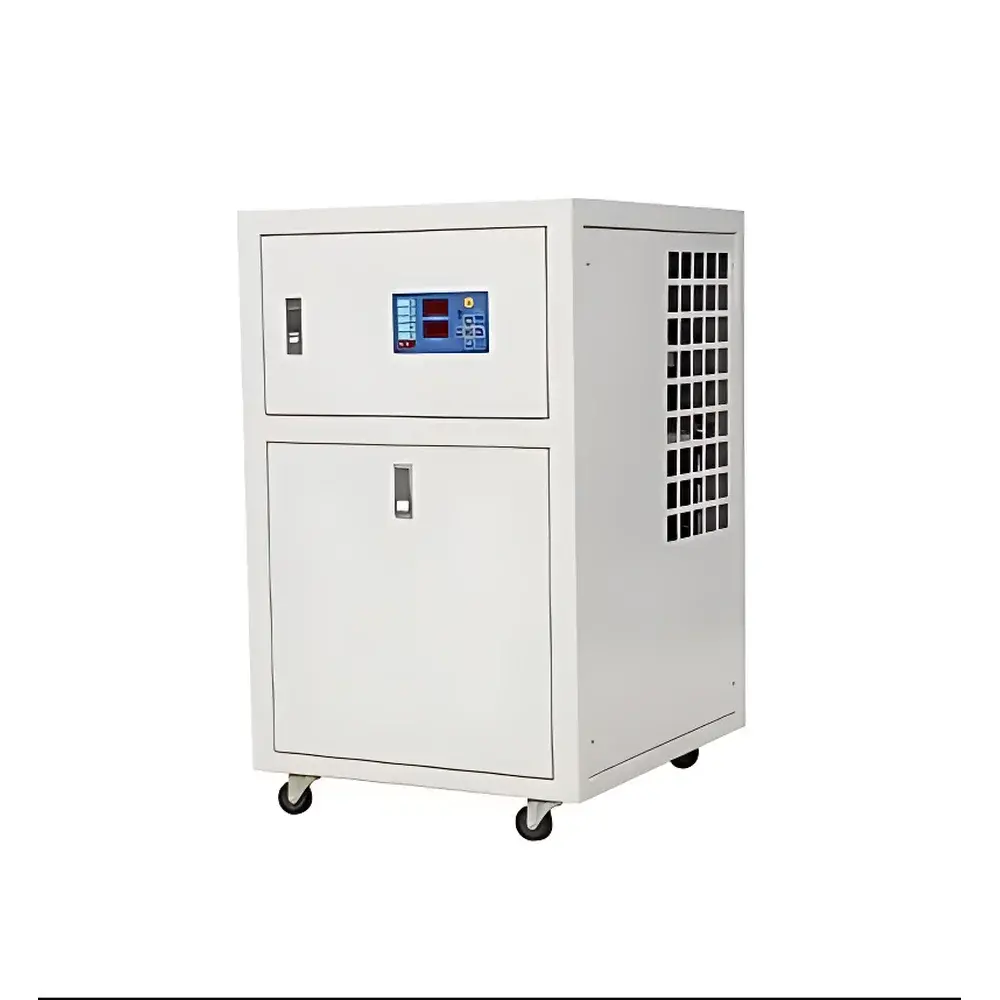

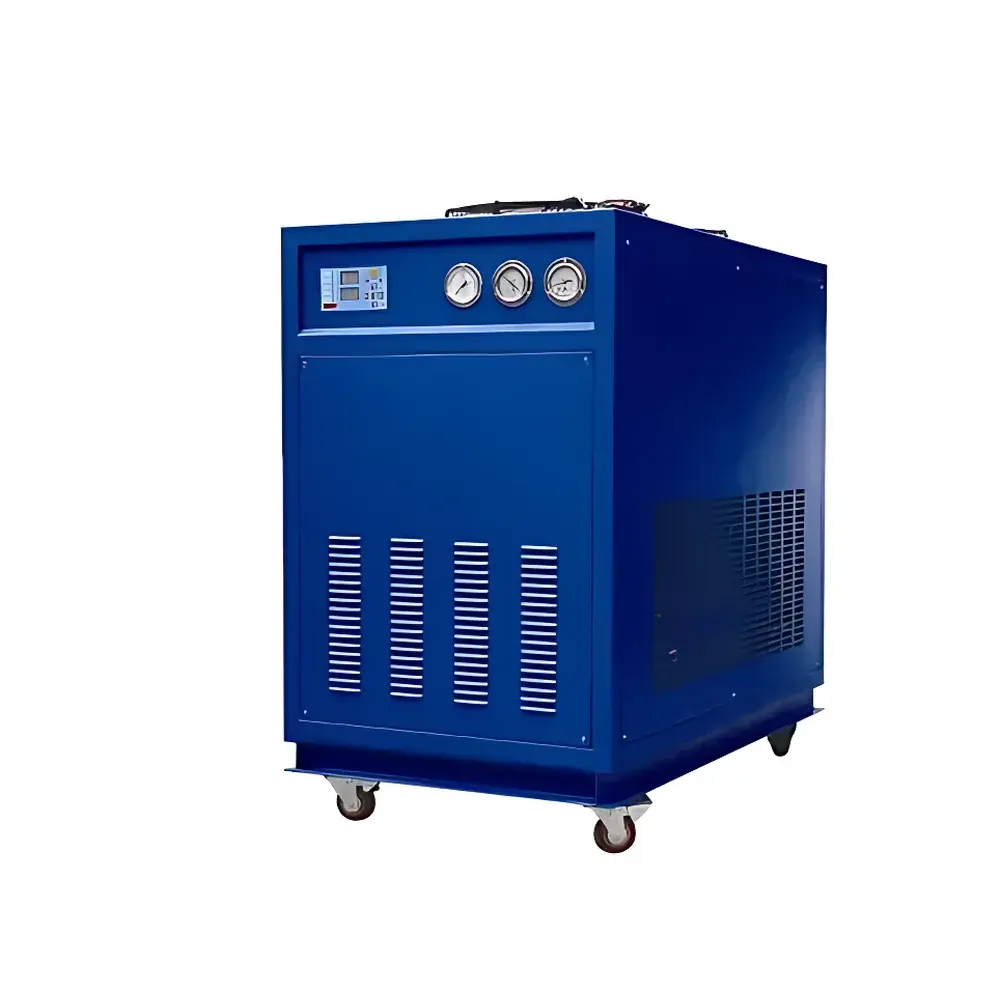

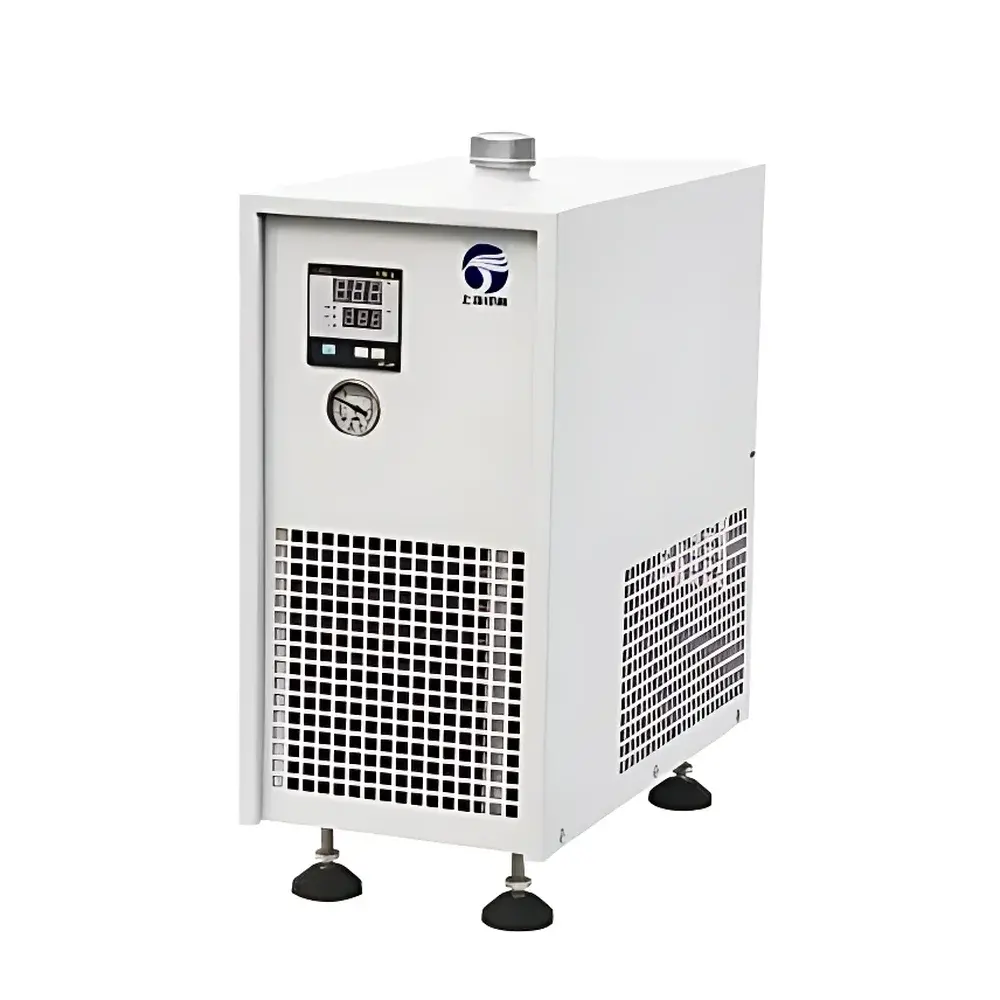

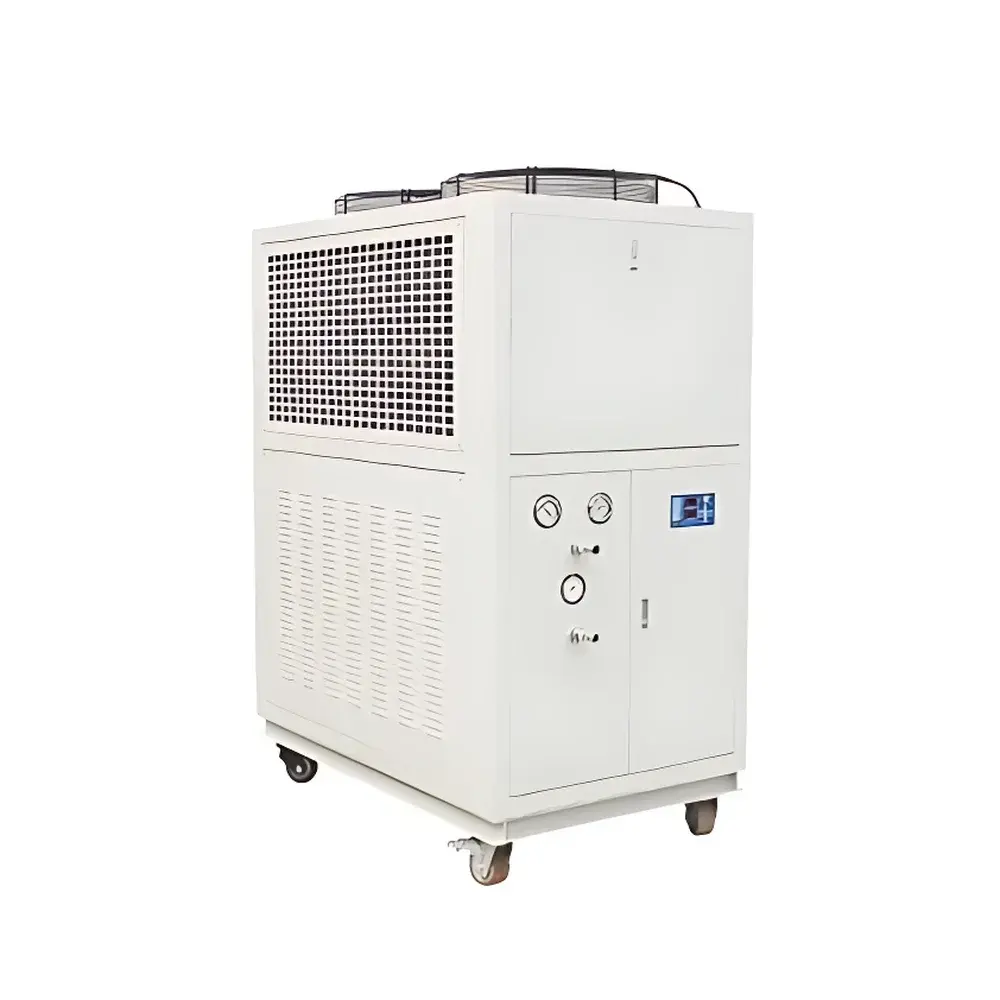

Tianfeng LS-40HP Air-Cooled Laser Chiller

Overview

The Tianfeng LS-40HP Air-Cooled Laser Chiller is an integrated, high-capacity circulating chiller engineered for precision thermal management of high-power laser systems and other heat-sensitive laboratory and industrial equipment. It operates on the vapor-compression refrigeration cycle, utilizing a hermetic scroll compressor and R22 refrigerant in conjunction with a high-efficiency plate-type evaporator and an optimized air-cooled condenser—comprising copper tubes with aluminum finned arrays and low-noise external-rotor fans. Designed to maintain stable coolant temperatures between 5 °C and 30 °C, the unit delivers a nominal refrigeration capacity of 126 kW under standard conditions (12 °C inlet / 7 °C outlet water; 30 °C ambient inlet / 40 °C outlet air). Its robust architecture supports continuous 24/7 operation in demanding environments, including analytical instrumentation labs, semiconductor fabrication support zones, and laser-based materials processing facilities.

Key Features

• Integrated all-in-one design with stainless steel reservoir (450 L capacity), corrosion-resistant internal plumbing, and dual-pump configuration (standard 2.2 kW circulation pump + optional user-specified auxiliary pump)
• Precision temperature control with ±0.3 °C stability over time, enabled by PID-driven digital controller (standard Chinese-made unit; optional RKC Japan controller available)
• Dual operational modes: constant-temperature mode for fixed-setpoint applications; intelligent adaptive mode that dynamically adjusts chilled water output based on real-time load feedback
• Comprehensive safety suite: high/low refrigerant pressure monitoring, compressor discharge temperature protection, phase sequence and phase loss detection, water flow interlock, and configurable alarm relay outputs
• Industrial-grade componentry: Italian/German expansion valves and solenoid valves; Siemens/Schneider/Omron electrical controls; high-efficiency plate heat exchanger with titanium-coated plates (optional)
• Low acoustic signature (≤78 dB(A)) achieved through vibration-dampened mounting, aerodynamically optimized fan shrouds, and insulated compressor housing

Sample Compatibility & Compliance

The LS-40HP is compatible with a broad spectrum of laboratory and production equipment requiring stable, high-flow chilled water delivery—including but not limited to graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), ICP-mass spectrometers (ICP-MS), X-ray fluorescence (XRF) analyzers, X-ray diffractometers (XRD), scanning electron microscopes (SEM), and transmission electron microscopes (TEM). Its closed-loop circulation system meets ISO 9001:2000 quality management system requirements and supports GLP-compliant operation when paired with validated temperature logging protocols. While not inherently FDA 21 CFR Part 11 compliant, its analog alarm outputs and relay interfaces enable integration into auditable control networks via third-party SCADA or LIMS platforms.

Software & Data Management

The chiller features a front-panel digital display showing real-time coolant temperature, flow status, and fault codes. It provides dry-contact alarm outputs for remote monitoring and integrates seamlessly with building management systems (BMS) or centralized lab infrastructure via optional 4–20 mA analog signals or Modbus RTU (RS-485). No proprietary software is required for basic operation; however, OEM-supplied configuration tools allow calibration offset adjustment, alarm threshold setting, and pump speed ramping profiles. All operational parameters—including cumulative runtime, compressor cycles, and thermal deviation logs—are stored locally and accessible via service port for audit-ready documentation.

Applications

• Laser systems: Thermal stabilization of CO₂, fiber, diode-pumped solid-state (DPSS), and ultrafast lasers used in micromachining, marking, welding, and ablation
• Analytical instrumentation: Cooling of RF generators in ICP sources, X-ray tube anodes, detector housings, and vacuum chamber jackets
• Materials science: Temperature control during in-situ SEM/TEM sample stage cooling or synchrotron beamline optics conditioning
• Pharmaceutical R&D: Precise thermal regulation of dissolution testers, stability chambers, and fermentation monitoring systems
• Plastics & composites testing: Mold temperature control for dynamic mechanical analysis (DMA) fixtures and rheological sample holders
• Electronics reliability testing: Stabilization of thermal shock chambers, burn-in ovens, and semiconductor probe station chill plates

FAQ

What is the maximum allowable return water temperature?
The recommended maximum return water temperature is 40 °C. Sustained inlet temperatures above this threshold may accelerate compressor wear and reduce system efficiency.
Can the chiller operate in ambient temperatures exceeding 35 °C?
Continuous operation is rated for ambient conditions up to 35 °C. Above this, refrigeration capacity declines progressively; derating curves are provided in the technical manual.
Is remote monitoring supported out-of-the-box?
Yes—dry-contact alarm relays and optional 4–20 mA or Modbus RTU interfaces support integration with facility-wide monitoring systems without additional gateways.
Does the unit comply with CE or UL safety standards?
The LS-40HP is manufactured to IEC 61000-6-2/6-4 EMC and IEC 60204-1 safety standards. CE marking is available upon request with EU Representative designation and full technical file submission.
What maintenance intervals are recommended?
Compressor oil and refrigerant filter driers should be replaced every 24 months under continuous operation; condenser coil cleaning is advised quarterly in dusty environments; annual verification of pressure switch calibration and PID tuning is recommended for critical applications.
