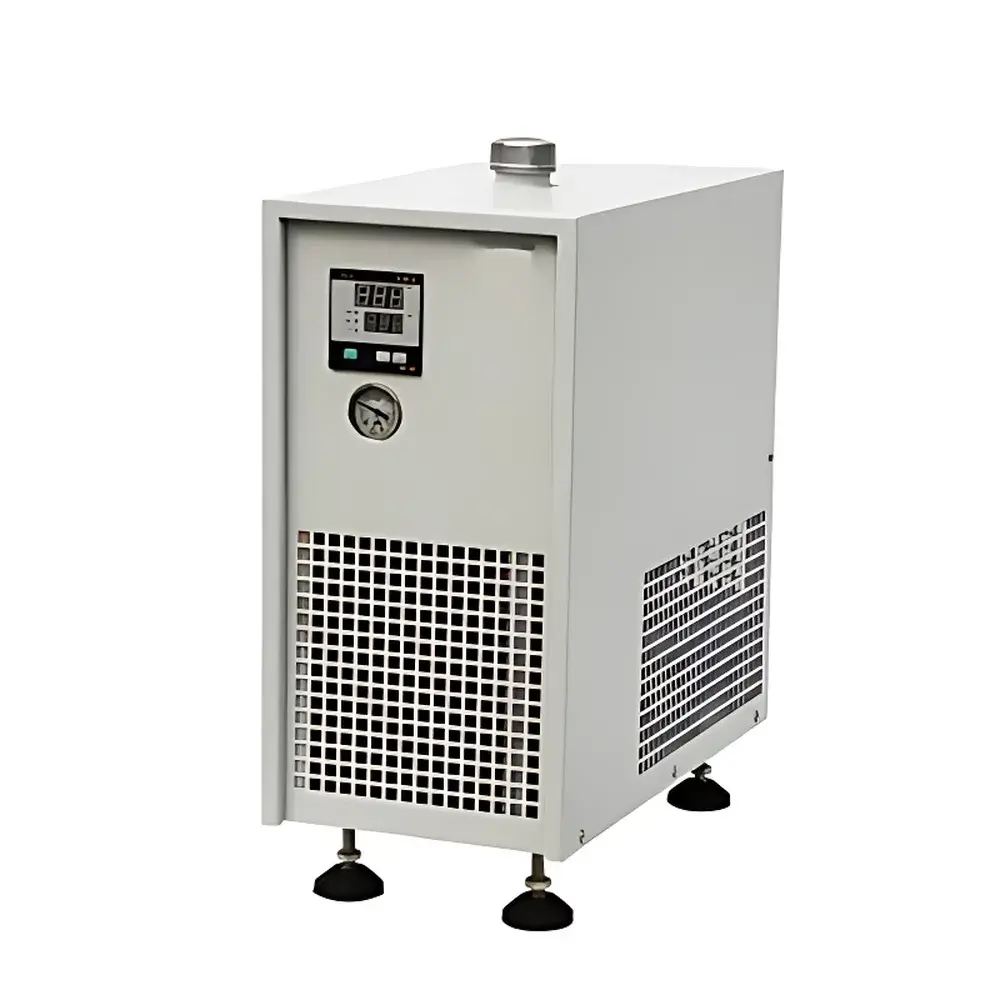

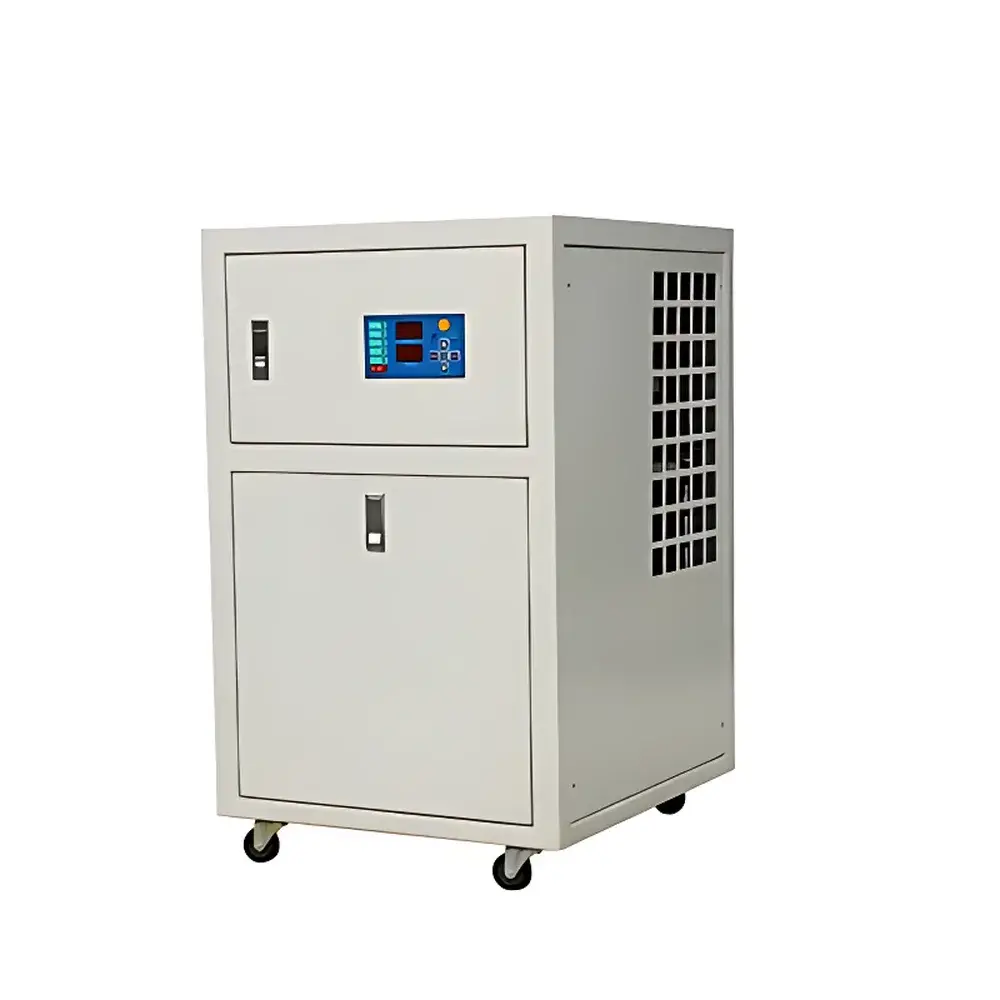

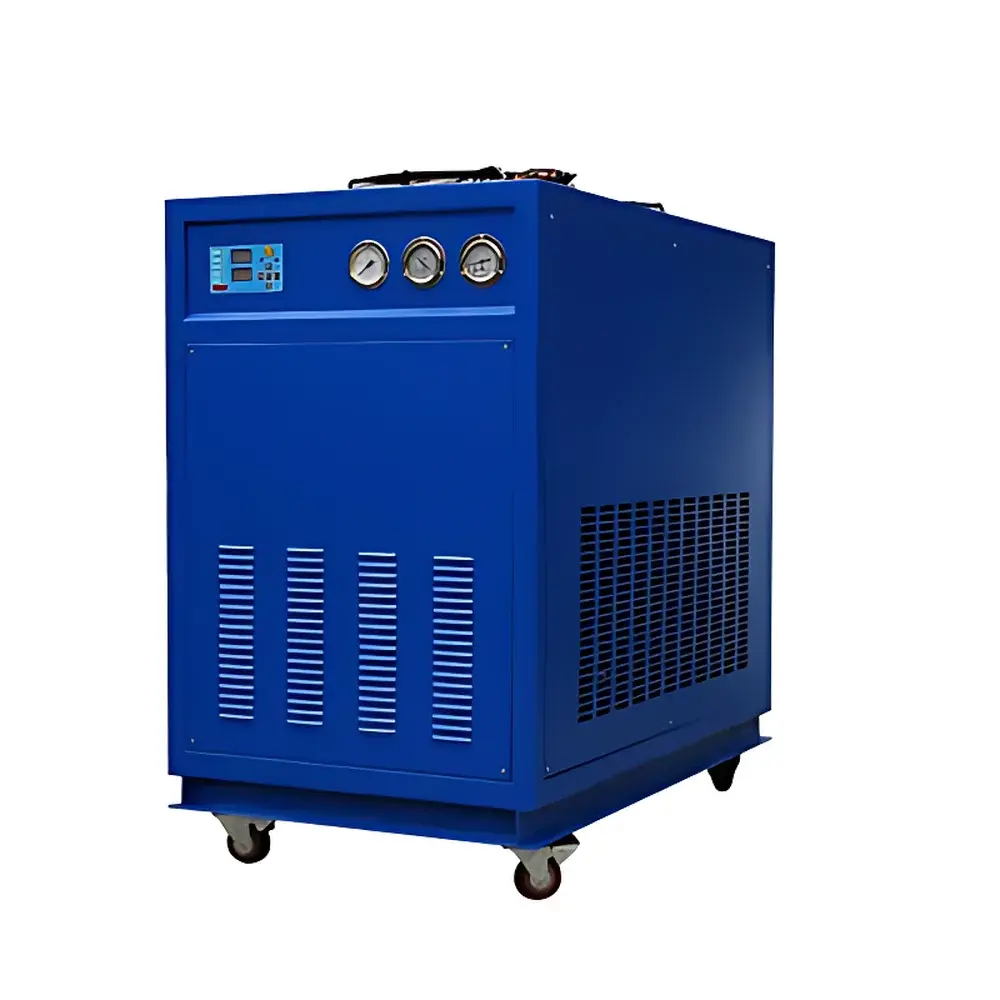

Tianfeng LS-6KW Integrated Circulating Chiller for Laser Systems

Overview

The Tianfeng LS-6KW Integrated Circulating Chiller is a precision-engineered thermal management system designed specifically for high-stability cooling of laser sources and other heat-sensitive laboratory and industrial equipment. It operates on a closed-loop refrigeration cycle utilizing R410A or R407C refrigerant (model-dependent), with thermodynamic control based on PID-regulated evaporator load balancing and real-time feedback from platinum resistance temperature sensors (PT100). The chiller maintains precise coolant temperature within a user-selectable range of 5–30°C, with typical thermal stability of ±0.3°C under steady-state conditions—critical for sustaining optical alignment, beam quality, and lasing threshold consistency in solid-state, fiber, and CO₂ lasers. Its integrated architecture eliminates external plumbing complexity while ensuring rapid thermal response and minimal thermal lag—attributes essential for applications requiring dynamic thermal load compensation, such as pulsed laser operation or multi-instrument sharing of a single chilled water loop.

Key Features

• High-efficiency scroll compressor with low-vibration operation and extended service life under continuous duty cycles
• Stainless steel reservoir (45 L capacity) and circulation pump—corrosion-resistant and compatible with deionized water, glycol-water mixtures (up to 30% v/v), and standard laboratory coolants
• Digital PT100-based temperature display with 0.1°C resolution and programmable setpoint memory
• Adjustable flow rate (0–60 L/min) and discharge pressure (0–2 kgf/cm²) via calibrated bypass and impeller control
• Comprehensive safety suite: high/low refrigerant pressure monitoring, compressor winding overtemperature cutoff, phase loss detection, and emergency overtemperature shutdown
• Modular electrical architecture featuring CE-certified components from Siemens, Schneider Electric, and Omron—ensuring EMC compliance and long-term reliability
• Optional RKC temperature controller upgrade for enhanced logging, ramp-soak profiles, and analog/digital I/O integration
• Acoustically damped enclosure achieving ≤65 dB(A) at 1 m—suitable for shared lab environments adjacent to sensitive instrumentation

Sample Compatibility & Compliance

The LS-6KW chiller is validated for thermal coupling with laser systems requiring stable coolant supply at flow rates ≥15 L/min and pressure head ≥0.8 kgf/cm²—including diode-pumped solid-state (DPSS) lasers, ultrafast Ti:sapphire oscillators, excimer laser gas cooling circuits, and fiber laser pump diode arrays. It is also widely deployed with analytical instruments demanding precise thermal regulation: graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), ICP-mass spectrometers (ICP-MS), X-ray fluorescence (XRF) and X-ray diffraction (XRD) systems, scanning and transmission electron microscopes (SEM/TEM), and high-resolution mass spectrometry platforms. The unit complies with ISO 9001:2015 quality management requirements and meets electromagnetic compatibility standards per EN 61326-1. While not intrinsically certified for GMP or FDA 21 CFR Part 11 environments, its hardware architecture supports audit-ready data logging when paired with optional external SCADA or LIMS-integrated controllers.

Software & Data Management

The base model features embedded firmware with local setpoint adjustment, real-time temperature/pressure/flow readouts, and fault-code diagnostics accessible via front-panel LCD. For advanced integration, the chiller supports 4–20 mA analog output (temperature), digital relay outputs (alarm status, run signal), and RS485 Modbus RTU communication—enabling seamless incorporation into centralized facility monitoring systems (e.g., LabVantage, Thermo Fisher SampleManager, or custom BMS platforms). Optional software packages provide time-stamped event logging, trend analysis of thermal performance over 30+ days, and configurable email/SNMP alerts for out-of-spec conditions. All operational parameters are traceable and exportable in CSV format, supporting GLP-aligned documentation workflows where required.

Applications

Beyond laser source cooling, the LS-6KW serves critical thermal regulation roles across multiple domains: maintaining dielectric coolant temperature in high-power RF amplifiers; stabilizing vacuum chamber wall temperatures during thin-film deposition (e.g., sputtering, e-beam evaporation); controlling hydraulic oil temperature in precision CNC machining centers to mitigate thermal drift; regulating bath temperature in accelerated stability chambers for pharmaceutical excipient testing; and managing coolant temperature in high-throughput DNA sequencers and PCR thermal cyclers. In materials science labs, it enables reproducible cooling of sample stages in synchrotron beamlines and cryo-EM specimen preparation systems. Its robust construction and wide operating envelope make it suitable for both benchtop deployment and rack-mounted integration in instrument clusters.

FAQ

What is the maximum allowable return water temperature for continuous operation?
The unit is rated for sustained operation with inlet water temperatures up to 40°C. Exceeding this threshold may trigger high-pressure cutout or accelerate compressor wear—particularly under ambient temperatures >35°C.
Can this chiller be used with deionized water or glycol mixtures?
Yes. The stainless steel wetted parts and EPDM/NBR seals are fully compatible with DI water and aqueous glycol solutions (ethylene or propylene glycol) at concentrations ≤30% by volume.
Is remote monitoring and control supported out of the box?
Standard configuration includes Modbus RTU (RS485) and analog I/O. Ethernet/IP or OPC UA interfaces require optional gateway modules—contact technical support for protocol-specific integration guidance.
What maintenance intervals are recommended for laboratory-grade operation?
Compressor oil and refrigerant charge verification every 24 months; condenser coil cleaning every 6 months in non-filtered environments; annual calibration check of PT100 sensor against NIST-traceable reference.
Does the chiller meet UL or CSA safety certification requirements?
The LS-6KW carries CE marking per Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. UL/cULus listing is available upon request for specific configurations—subject to additional factory testing and documentation.
