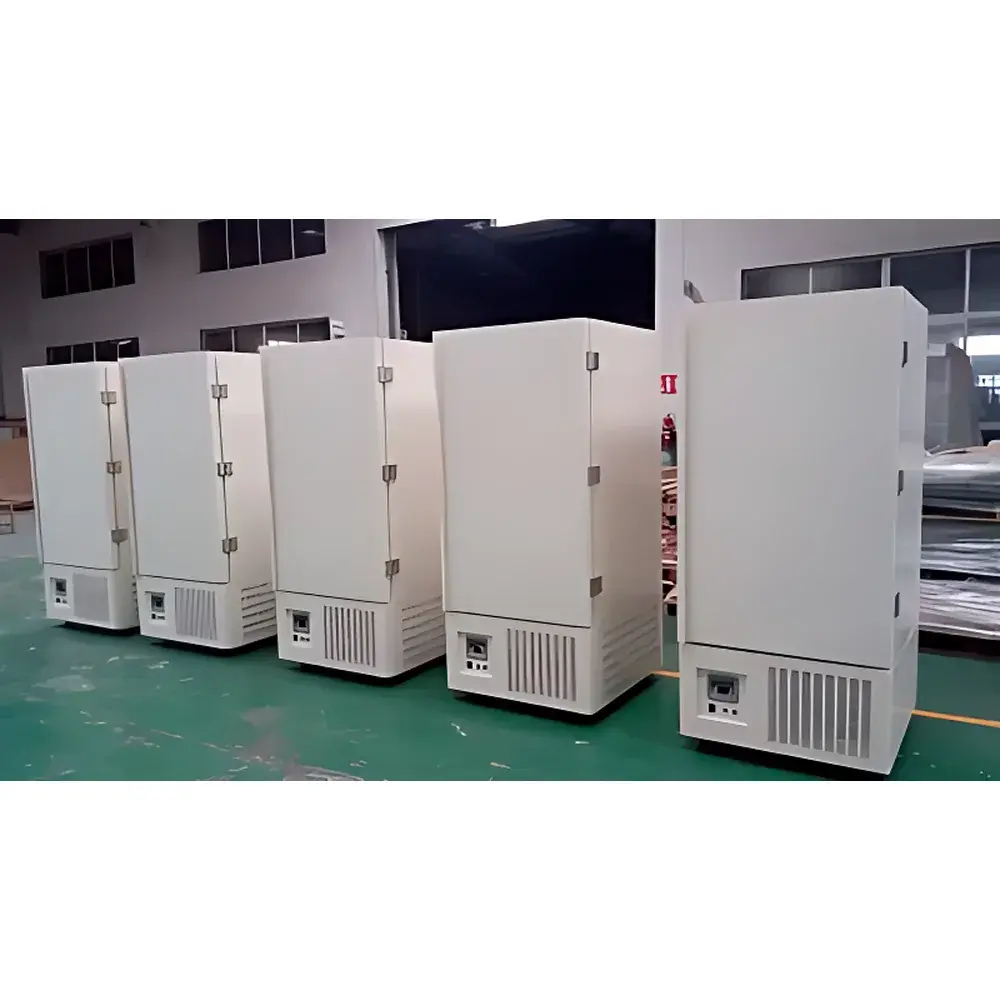

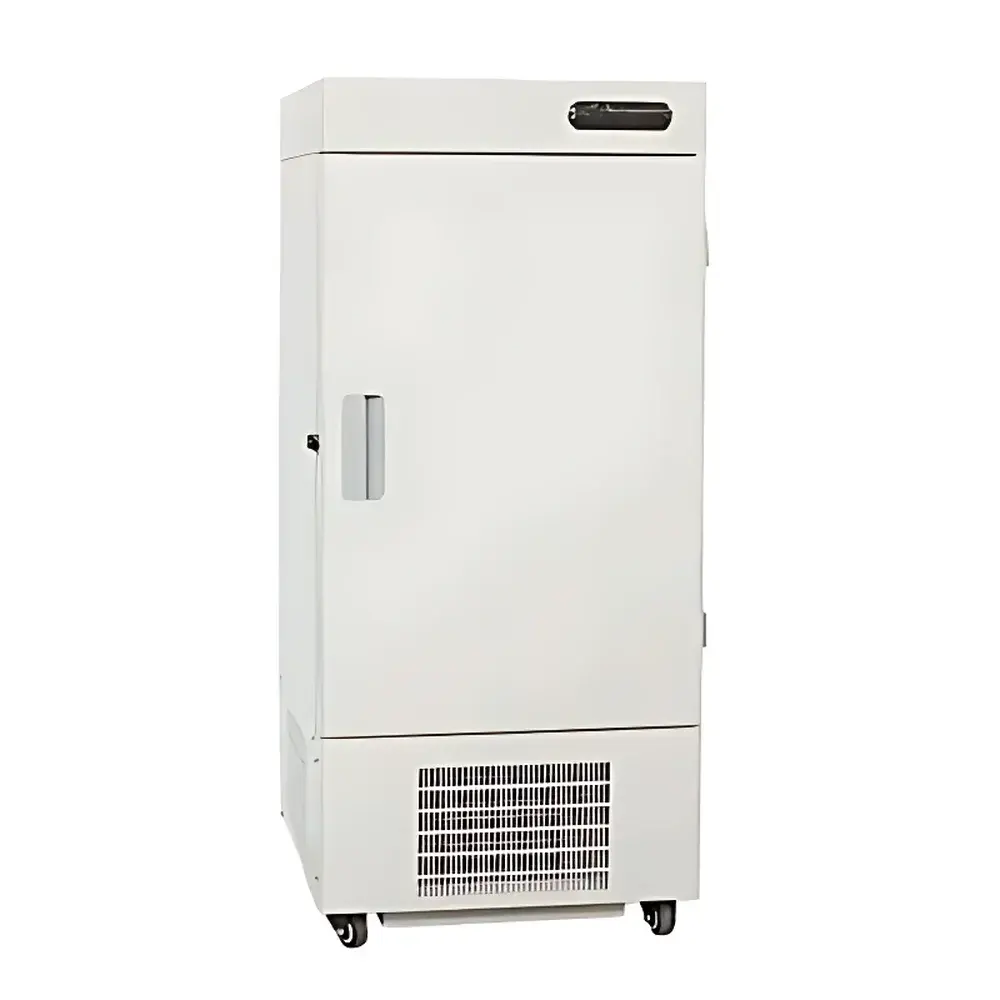

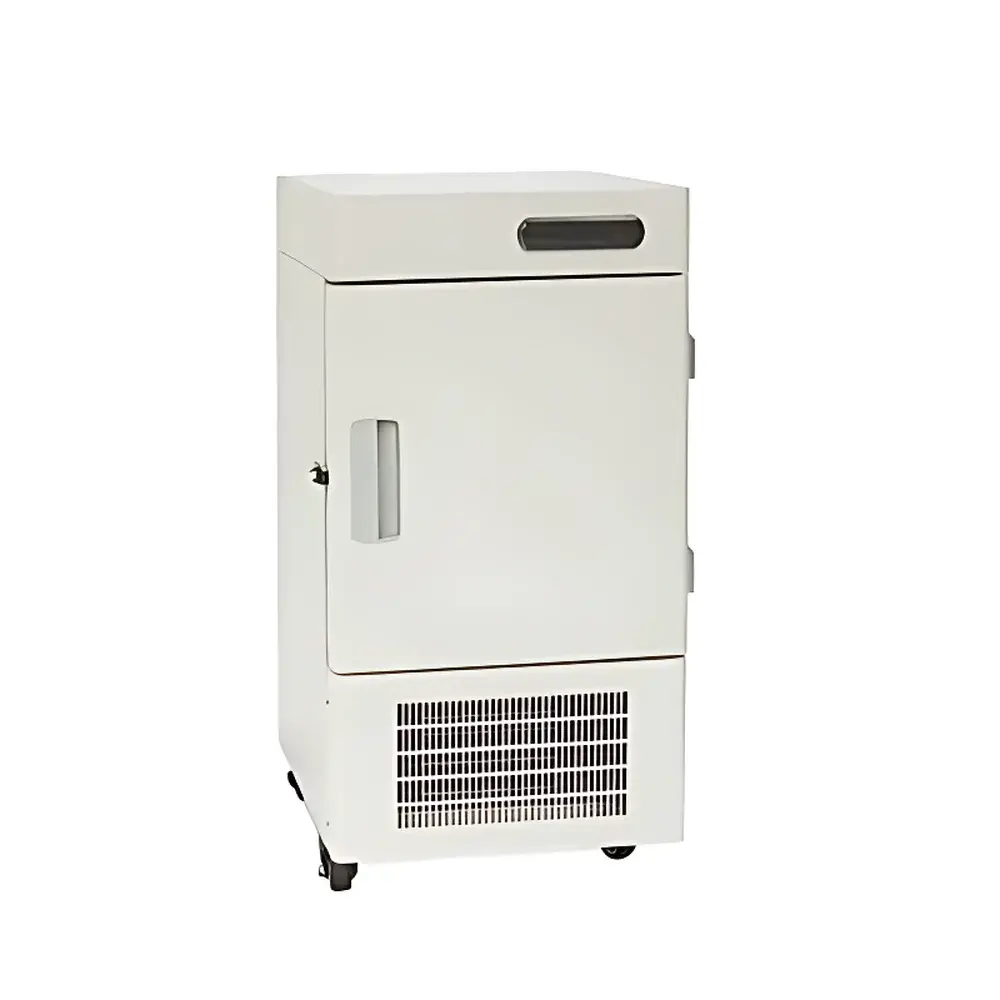

Tianfeng TF-40-938A-LA Ultra Low Temperature Freezer

Overview

The Tianfeng TF-40-938A-LA Ultra Low Temperature Freezer is an engineered solution for long-term cryogenic storage of temperature-sensitive biological and chemical materials at stable operating temperatures between −15 °C and −45 °C. Designed for laboratory and institutional use, it employs a dual-stage cascade refrigeration architecture—comprising imported ultra-low-temperature compressors and internationally certified components—to ensure thermal stability, energy efficiency, and operational resilience under variable ambient conditions (up to 35 °C ambient, 60% RH). Its hybrid heat dissipation system combines natural convection and regulated forced-air cooling across the condenser assembly, mitigating performance degradation in dusty or high-temperature environments—a critical advantage in field-deployed or non-climate-controlled lab spaces. The unit complies with ISO 9001:2000 quality management requirements and integrates design features aligned with GLP-compliant cold chain workflows, including traceable temperature logging readiness (via optional RS-232 interface), mechanical door locks, and redundant alarm signaling.

Key Features

• Stainless steel interior (AISI 304) with seamless, radius-corner construction for ease of decontamination and compliance with biosafety cleaning protocols.
• Four independently sealed inner doors minimize cold air loss during frequent access—reducing temperature recovery time and energy consumption per retrieval cycle.
• Dual-layer polyurethane insulation (≥120 mm thickness) provides superior thermal resistance, achieving ≤0.8 K/h temperature rise during 8-hour power interruption tests (per IEC 60068-2-14).
• Hybrid condenser design: 50% natural convection + 50% fan-assisted airflow ensures continued operation even if partial dust accumulation occurs on the finned surface—preventing compressor overload and extending service life.
• Acoustically optimized compressor mounting and vibration-dampened fan assembly limit operational noise to 57 dB(A) at 1 m distance—suitable for shared laboratory environments.
• Adjustable three-tier stainless steel shelving system supports flexible sample organization and accommodates standard cryoboxes, racks, and custom containers.
• Integrated safety interlocks include over-temperature alarm (audible/visual), door-open alert, power failure detection, and voltage fluctuation monitoring.

Sample Compatibility & Compliance

The TF-40-938A-LA is validated for storage of human-derived specimens (e.g., peripheral blood mononuclear cells, plasma, serum, tissue explants), microbial cultures (bacterial strains, yeast, fungi), vaccine formulations, diagnostic reagents, and electronic components requiring thermal stabilization below −20 °C. Its temperature uniformity profile (±2.5 °C across all zones at −40 °C setpoint, per internal mapping per ASTM F2697-21 Annex A1) meets minimum acceptance criteria for biobank-grade storage as referenced in ISBER Best Practices (4th ed.) and EU Directive 2004/23/EC Annex I. While not certified to UL 471 or NSF/ANSI 456, its construction adheres to general electrical safety principles outlined in IEC 61010-1 and incorporates grounding continuity verification per IEC 60335-1. All refrigerants used are non-ozone-depleting and comply with EU F-Gas Regulation (No. 517/2014) phase-down schedules.

Software & Data Management

The freezer includes a microprocessor-based digital controller with real-time temperature display, setpoint adjustment (1 °C increments), and event-triggered alarm logging. Optional RS-232 serial output enables integration with centralized environmental monitoring systems (EMS) supporting Modbus RTU or ASCII protocols. When connected to validated data acquisition software, the unit supports audit-trail-capable recording—including timestamped alarm events, door-open duration, and temperature excursions—facilitating alignment with FDA 21 CFR Part 11 requirements for electronic records where local validation is performed. No embedded operating system or cloud connectivity is provided; all data handling remains under end-user IT governance control.

Applications

This ultra-low-temperature freezer serves core functions across clinical, academic, and industrial laboratories: cryopreservation of hematopoietic stem cells and cord blood units in transfusion medicine; archival storage of reference standards in pharmaceutical QC labs; stabilization of thermolabile enzymes and monoclonal antibodies during process development; cold-chain holding for field-collected environmental microbiome samples; and extended shelf-life maintenance of calibration materials used in metrology labs. It is routinely deployed in blood banks, CDC-affiliated public health labs, GMP-compliant contract research organizations (CROs), and university core facilities managing biorepositories under NIH SPARC or HCA-compliant frameworks.

FAQ

What is the recommended ambient operating environment?
Operate within 10 °C–35 °C ambient temperature and ≤60% relative humidity. Maintain ≥10 cm clearance behind and on both sides for unimpeded airflow.
How often should the condenser filter be cleaned?
Inspect monthly; clean with dry compressed air or soft brush when visible dust accumulation exceeds 30% surface coverage.
Can this unit store samples at −80 °C?
No. The TF-40-938A-LA is rated for −15 °C to −45 °C. For −80 °C applications, refer to Tianfeng’s dedicated ULT series (e.g., TF-80-XXX models).
Is remote monitoring supported natively?
Not out-of-the-box. RS-232 output requires third-party EMS hardware and configuration; no built-in Ethernet/Wi-Fi module is included.
Does the unit support temperature mapping qualification?
Yes. The chamber geometry and sensor port locations (standardized per ISO 14644-3 Annex B) allow for IQ/OQ execution using calibrated thermocouples or data loggers per WHO TRS 961 Annex 9 guidelines.
