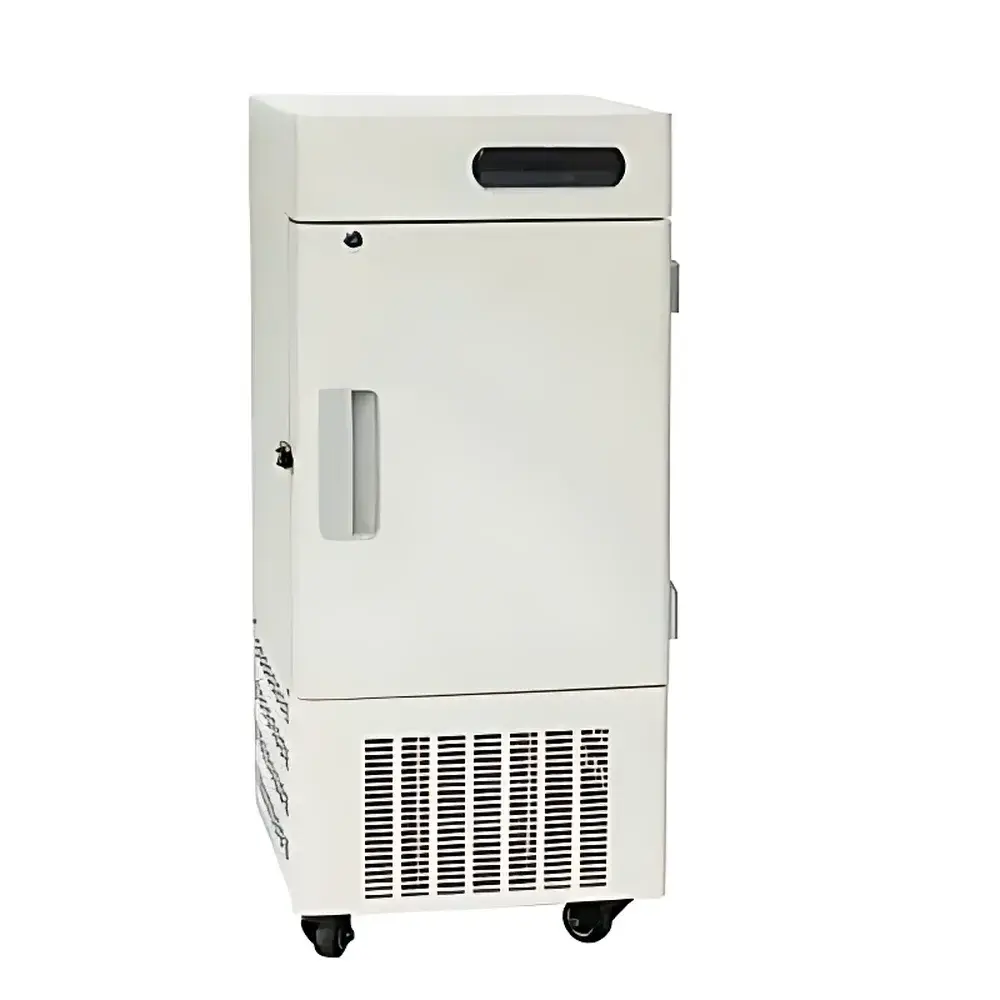

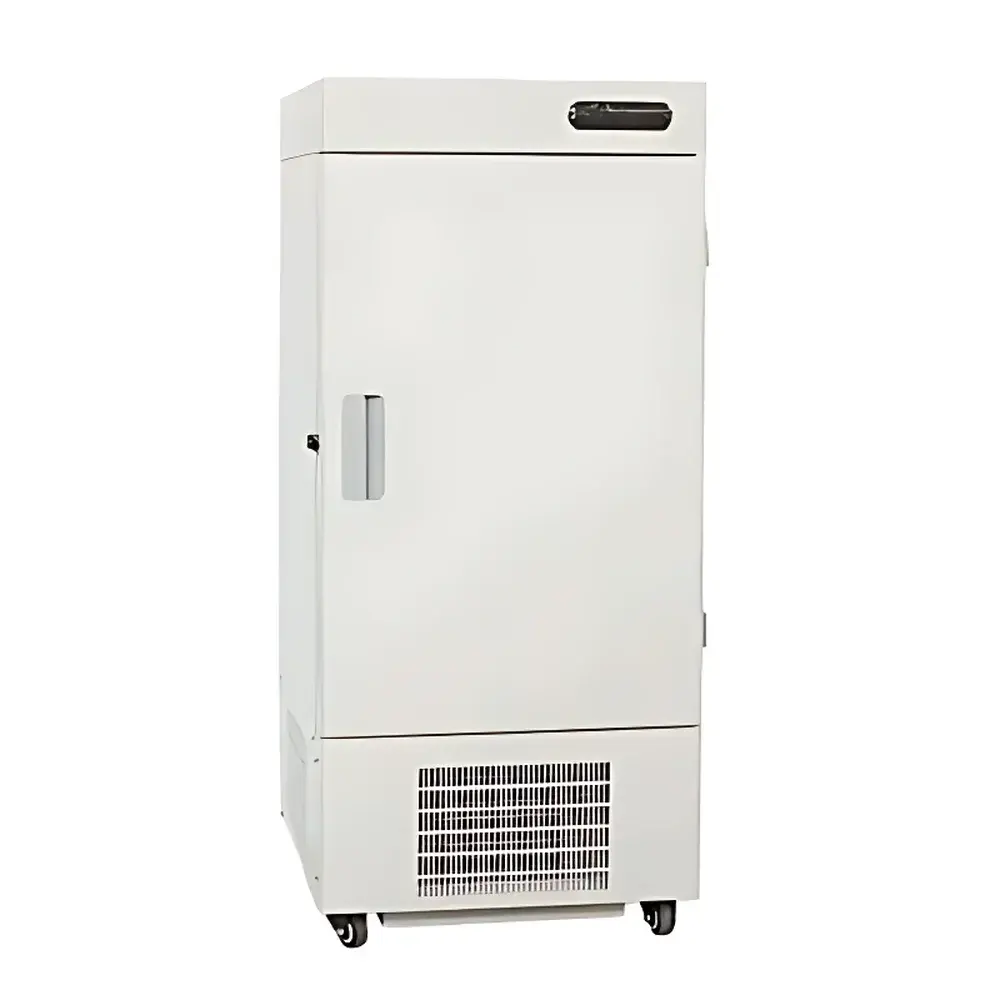

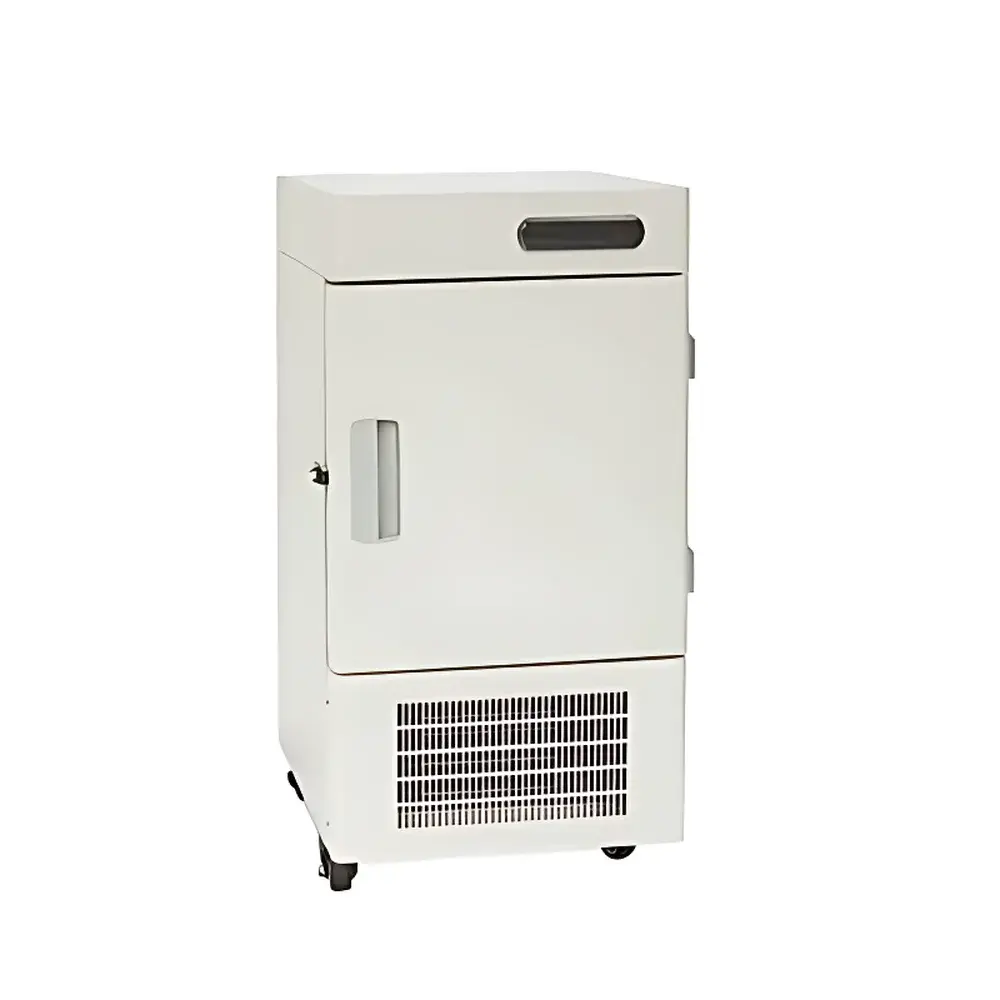

Tianfeng TF-60-598-LA Ultra Low Temperature Freezer

Overview

The Tianfeng TF-60-598-LA Ultra Low Temperature Freezer is an engineered solution for long-term cryogenic storage of biologics, clinical specimens, and temperature-sensitive research materials. Designed for stable operation at temperatures ranging from −40 °C to −86 °C, the unit employs a dual-stage cascade refrigeration system utilizing environmentally responsible hydrocarbon refrigerants (R290/R170), compliant with international ozone depletion and global warming potential (GWP) mitigation standards. Its thermodynamic architecture integrates both natural convection and forced-air condenser cooling—ensuring reliable heat dissipation even in ambient environments up to 35 °C and in settings with elevated particulate load or limited ventilation. The cabinet’s vacuum-insulated panels (VIPs) combined with high-density polyurethane foam provide thermal resistance exceeding 0.022 W/m·K, minimizing energy consumption while maintaining uniform internal temperature distribution (±2.5 °C across all zones per IEC 60068-2-1/2 testing protocols). This stability supports adherence to Good Laboratory Practice (GLP), Good Manufacturing Practice (GMP), and ISO/IEC 17025-compliant sample integrity requirements.

Key Features

• Stainless steel interior (304 grade) with seamless, radius-cornered construction for microbial control and ease of decontamination
• Four independently sealed inner doors minimize cold air loss during routine access; each door features magnetic gasket sealing and visual status indicators
• Three-tier adjustable stainless steel shelving system—optimized for flexible configuration of cryovials, racks, and storage boxes
• Dual-mode condenser: 50% natural convection + 50% fan-assisted airflow—enhances operational resilience under dust-prone or high-ambient-temperature conditions
• Low-noise acoustic design: sound pressure level ≤57 dB(A) at 1 m distance, suitable for shared laboratory environments
• Integrated safety systems including high/low temperature alarms, door-open alert, power failure notification, and compressor overheat protection
• RS-232 serial interface (optional) enables connection to laboratory information management systems (LIMS) for automated temperature logging and audit trail generation
• Comprehensive mechanical lock system: individual door locks plus main power switch lock—meets ISO 27001-aligned physical security expectations for biospecimen repositories

Sample Compatibility & Compliance

The TF-60-598-LA is validated for storage of human-derived biological materials including peripheral blood mononuclear cells (PBMCs), cord blood units, plasma fractions, viral vectors, and lyophilized reagents. Its temperature uniformity profile satisfies ASTM F2697-22 criteria for ultra-low temperature freezers used in clinical specimen banking. The unit conforms to electrical safety standard IEC 61010-1 and electromagnetic compatibility (EMC) directive EN 61326-1. All critical components—including compressors, expansion valves, and controllers—are sourced from Tier-1 European and Japanese suppliers, ensuring traceability and longevity. Manufacturing adheres to ISO 9001:2000 quality management system requirements, with full documentation available for regulatory submissions (e.g., FDA 21 CFR Part 11-compliant data integrity validation support upon request).

Software & Data Management

While the base model operates via a microprocessor-based digital controller with LED display, optional firmware upgrades enable real-time temperature monitoring via RS-232 communication. When interfaced with third-party environmental monitoring platforms (e.g., DicksonOne, SensiNet), the freezer supports configurable alarm thresholds, time-stamped event logging, and exportable CSV reports—facilitating compliance with CAP, CLIA, and AABB accreditation requirements. Audit trails include user ID, timestamp, parameter change history, and alarm acknowledgment records. No cloud-based functionality is embedded; all data remains on-premise unless explicitly routed through customer-approved IT infrastructure.

Applications

• Long-term archiving of primary cell lines and stem cell isolates in academic and contract research organizations (CROs)
• Clinical trial biobanking: storage of matched tumor-normal tissue pairs, cfDNA, and exosome isolates
• Vaccine development workflows: stabilization of mRNA-LNPs, viral vector intermediates, and adjuvant formulations
• Blood bank operations: cryopreservation of rare-donor erythrocytes and platelet concentrates
• Regulatory submission support: maintaining chain-of-custody integrity for GLP toxicology studies and GCP clinical sample sets
• Material science research: low-temperature characterization of superconducting ceramics and quantum dot suspensions

FAQ

What is the recommended ambient operating temperature range?
The unit is rated for continuous operation in ambient environments between 10 °C and 35 °C, with relative humidity ≤80% non-condensing.

How often should the condenser filter be cleaned?
Under typical laboratory conditions, inspect and clean the removable dust filter every 3 months; increase frequency to monthly in high-dust environments.

Can this freezer be integrated into a centralized building management system (BMS)?
Yes—via optional RS-232-to-Modbus RTU gateway, enabling integration with Siemens Desigo, Honeywell Enterprise Buildings Integrator, or similar BMS platforms.

Is validation documentation provided with shipment?
Factory-installed IQ/OQ documentation packages are available upon order confirmation; PQ protocol templates aligned with ISO/IEC 17025 are supplied for user execution.

What maintenance intervals are recommended for compressor service?
No scheduled oil changes are required—the hermetic compressors utilize sealed lubrication systems with 15-year design life expectancy under normal duty cycles.
