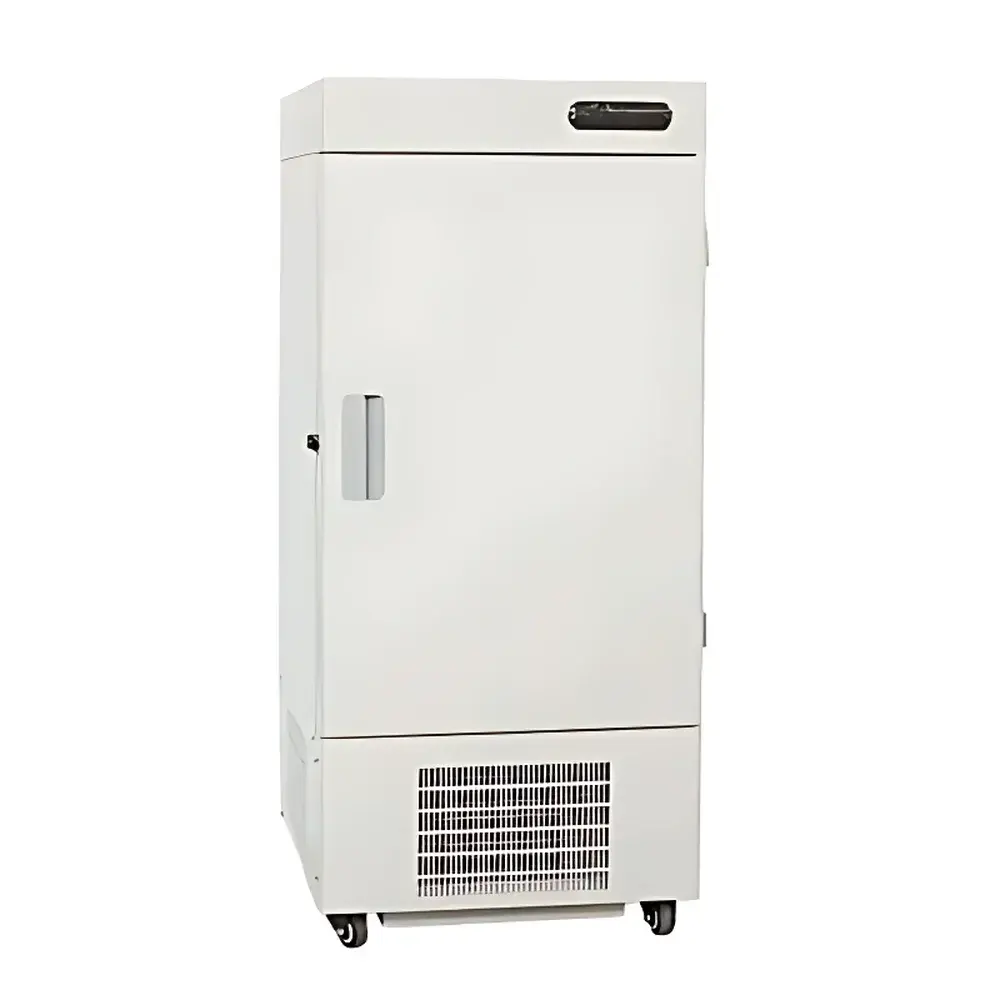

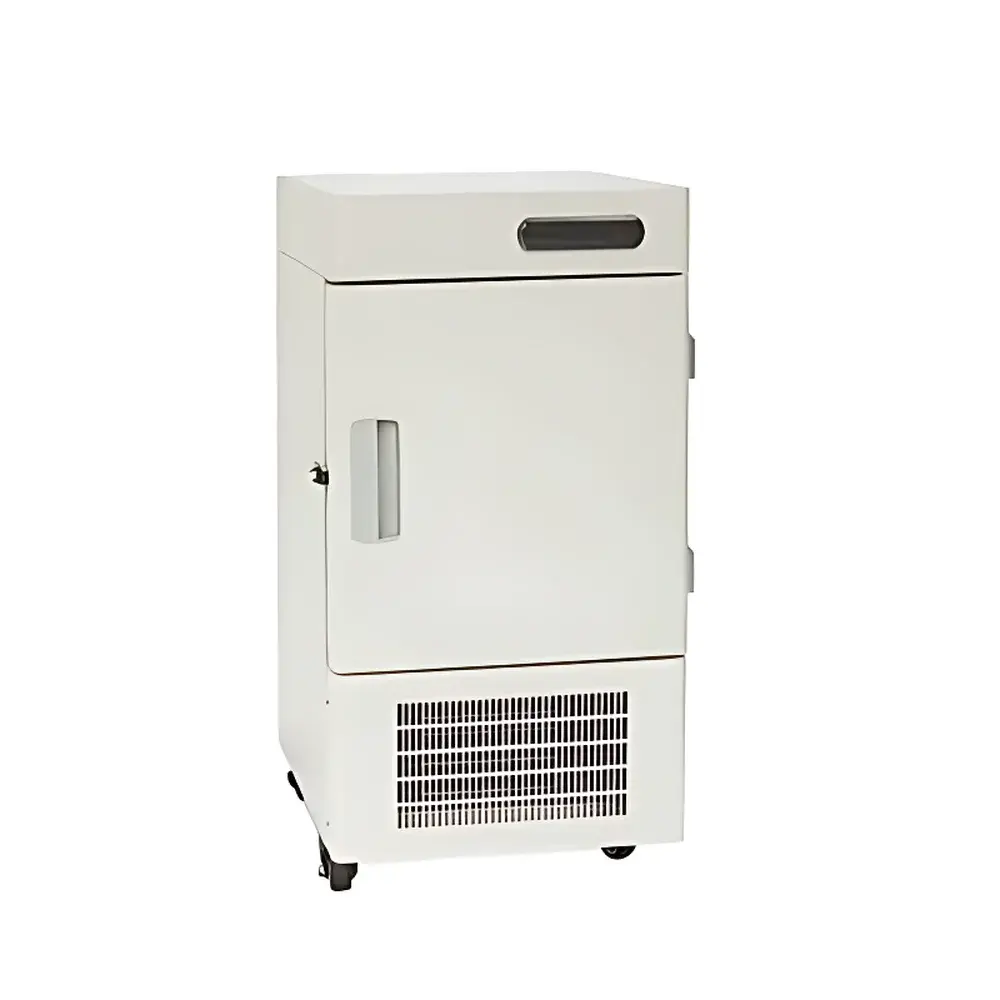

Tianfeng TF-60-938a-LA Ultra Low Temperature Freezer

Overview

The Tianfeng TF-60-938a-LA Ultra Low Temperature Freezer is an engineered solution for long-term cryogenic storage of sensitive biological and chemical specimens at stable temperatures ranging from −25 °C to −65 °C. Designed for laboratory-grade reliability and energy-efficient operation, it employs a dual-mode condensation system—part natural convection, part forced-air cooling—to maintain thermal stability under variable ambient conditions (up to 32 °C ambient, 60% RH). Its refrigeration architecture integrates high-efficiency twin-stage compressors sourced from internationally recognized manufacturers, paired with an optimized cascade refrigerant circuit utilizing environmentally compliant blends (e.g., R23/R508B), eliminating ozone-depleting substances and minimizing global warming potential (GWP). The unit meets ISO 9001:2000 certified manufacturing protocols and conforms to IEC 61010-1 safety standards for laboratory equipment. With its 938 L effective storage volume and stainless-steel interior, the freezer supports high-throughput biobanking workflows while maintaining strict temperature uniformity (±2.5 °C across chamber, per ASTM F745-22 test methodology).

Key Features

• Stainless-steel interior (304 grade) with seamless, radius-corner construction for easy decontamination and compliance with GLP cleaning validation requirements
• Four independently sealed inner doors with magnetic gaskets to minimize cold loss during frequent access
• Dual-mode heat dissipation system: hybrid natural convection + fan-assisted condenser ensures operational resilience in dusty, high-temperature, or poorly ventilated lab environments
• Adjustable three-tier wire shelving system with load-rated capacity (≤35 kg per shelf) and tool-free height repositioning
• Integrated mechanical lock and power switch lock for secure, auditable access control in regulated environments
• Low-noise operation at ≤57 dB(A) measured at 1 m distance—designed for placement in shared laboratory corridors or cleanroom-adjacent spaces
• RS-232 serial interface (optional) for integration with centralized environmental monitoring systems (EMS) and data logging platforms
• Removable, washable dust filter with quick-release mechanism—serviceable without tools and compliant with ISO 14644-1 particulate control guidelines
• Comprehensive alarm architecture including door-open, high-temperature, power-failure, and sensor-fault alerts with visual/audible notification and relay output for building management systems (BMS)

Sample Compatibility & Compliance

The TF-60-938a-LA is validated for storage of primary human biospecimens—including peripheral blood mononuclear cells (PBMCs), cryopreserved stem cell suspensions, plasma units, vaccine vials, microbial cultures, and tissue explants—as defined by ISBER Best Practices (2020) and AABB Standards for Cellular Therapy. Its temperature stability profile satisfies USP requirements for cold chain integrity verification and aligns with FDA 21 CFR Part 11 expectations when paired with compliant data acquisition software. The unit’s insulation design and door-seal performance meet EN 60068-2-1 (cold testing) and EN 60068-2-2 (dry heat testing) for environmental robustness. All electrical components comply with CE marking directives (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU). No internal water ingress points exist—eliminating risk of insulation degradation per IEC 60529 IPX0 classification.

Software & Data Management

While the base configuration operates via a microprocessor-based digital controller with LED display and manual setpoint adjustment, optional RS-232 connectivity enables bidirectional communication with third-party data loggers (e.g., DeltaTRAK, DicksonOne) or LIMS-integrated monitoring suites. When deployed in GxP-regulated facilities, the freezer supports audit-trail-enabled recording of temperature excursions, alarm events, door-open duration, and user-access timestamps—provided external software enforces 21 CFR Part 11 electronic signature and record retention policies. Firmware updates are performed locally via USB port (not network-connected), mitigating cybersecurity exposure. Calibration certificates for integrated PT100 sensors are available upon request and traceable to NIM (National Institute of Metrology, China) standards.

Applications

This ultra-low temperature freezer serves mission-critical roles across academic, clinical, and industrial life science infrastructures. It is routinely deployed in blood bank cold storage rooms for red blood cell glycerolization protocols (−65 °C hold), in virology labs for lyophilized virus stock preservation, and in biopharma QC labs for stability testing of monoclonal antibody formulations per ICH Q5C. Its dimensional footprint (2000 mm height) accommodates standard hospital corridor clearances and elevator thresholds, making it suitable for decentralized deployment across multi-floor research hospitals. In marine biotechnology settings, it maintains viability of deep-sea extremophile isolates; in electronics R&D, it provides thermal preconditioning for low-noise semiconductor characterization. Universities utilize its modular shelving and corrosion-resistant interior for long-duration undergraduate genetics sample archiving.

FAQ

What is the recommended ambient operating environment?
Operate within 10–32 °C ambient temperature and ≤60% relative humidity. Maintain ≥100 mm clearance on all sides, especially rear condenser zone, to ensure adequate airflow for hybrid cooling mode.
How often should the dust filter be cleaned?
Inspect weekly in high-dust environments; clean every 2–4 weeks using lukewarm water and neutral detergent. Reinstall only after complete air drying to prevent mold growth.
Does the unit support remote temperature monitoring?
Yes—via optional RS-232 interface. Integration with SCADA or EMS requires external protocol conversion (e.g., Modbus RTU gateway) and validation per site-specific IT security policy.
What maintenance intervals are required for compressor longevity?
No scheduled oil servicing is needed—the hermetic compressors use sealed lubrication. Annual inspection of condenser coil cleanliness, door gasket integrity, and alarm functionality is advised per ISO 13485 preventive maintenance guidelines.
Can this freezer be validated for IQ/OQ/PQ in GMP facilities?
Yes—Tianfeng provides factory calibration reports and mechanical drawings. Full qualification requires user-executed protocols per ASTM E2500-13, including mapping studies (minimum 9-point sensor grid), door-open recovery tests, and alarm response verification.
