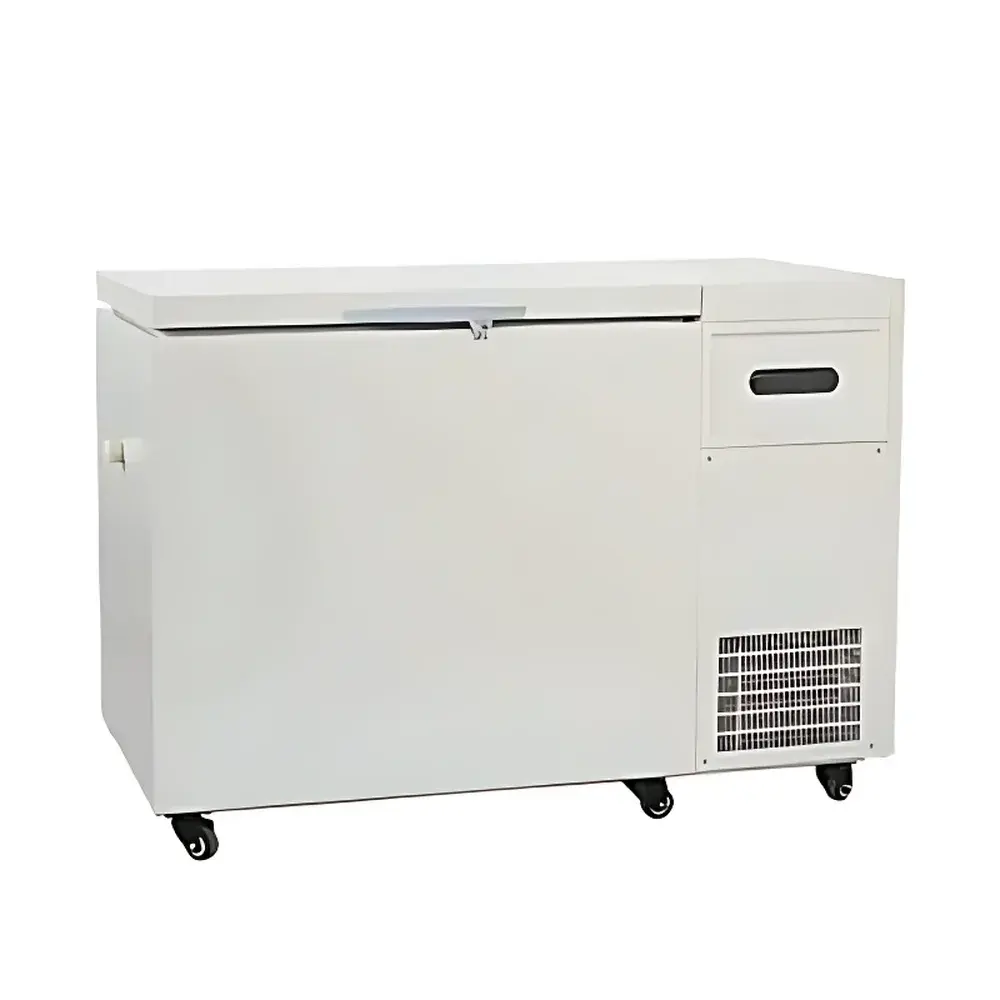

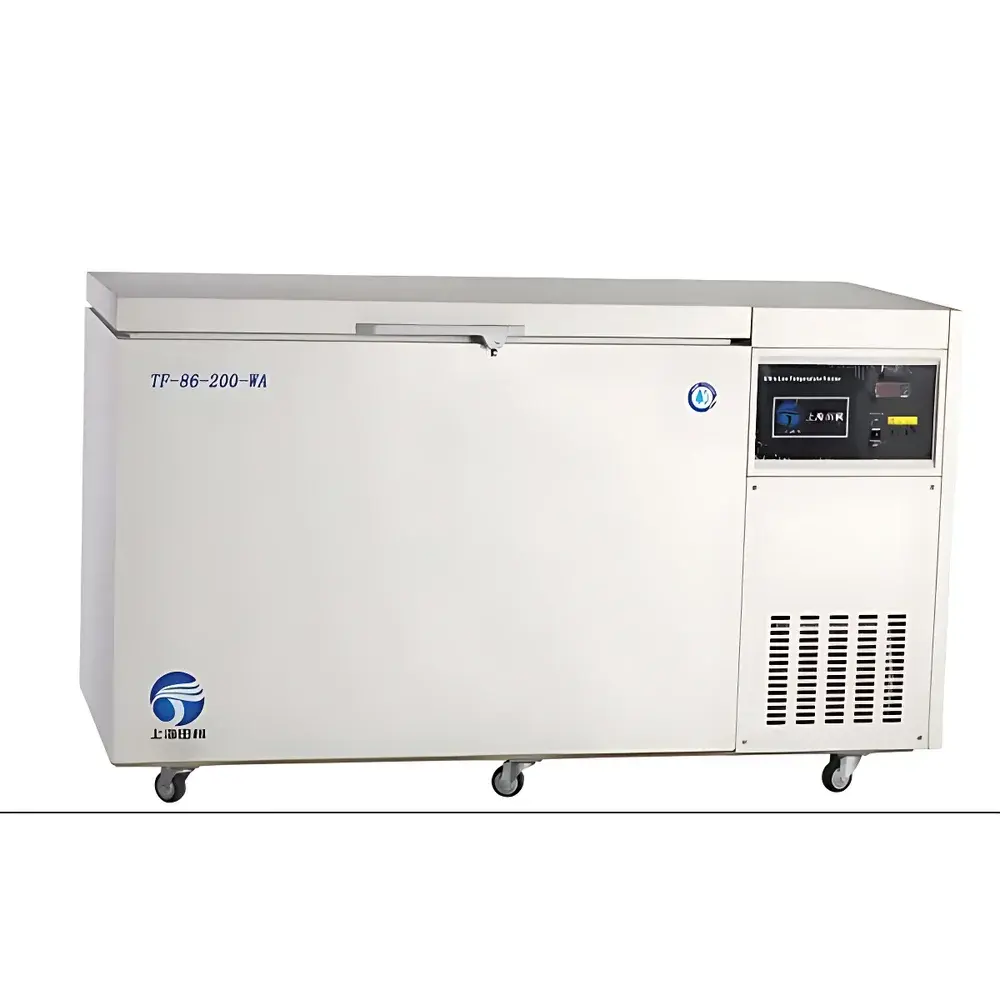

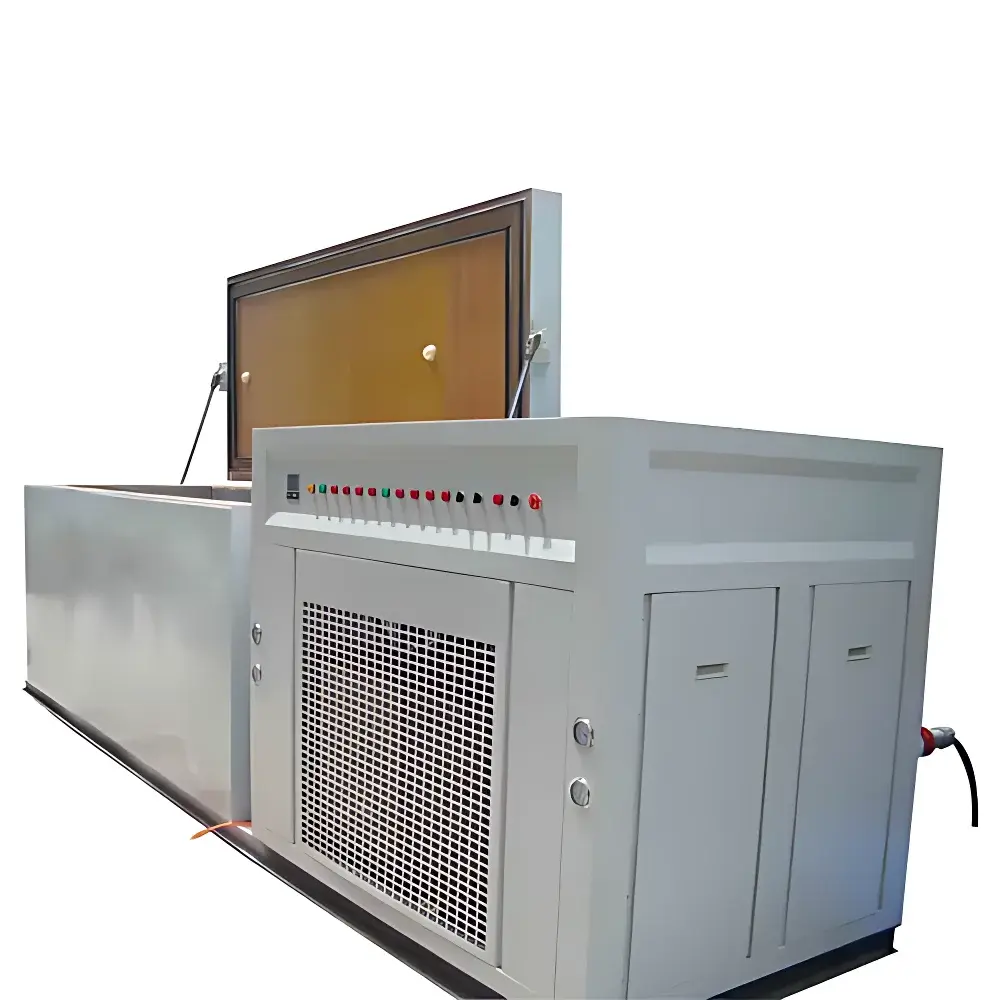

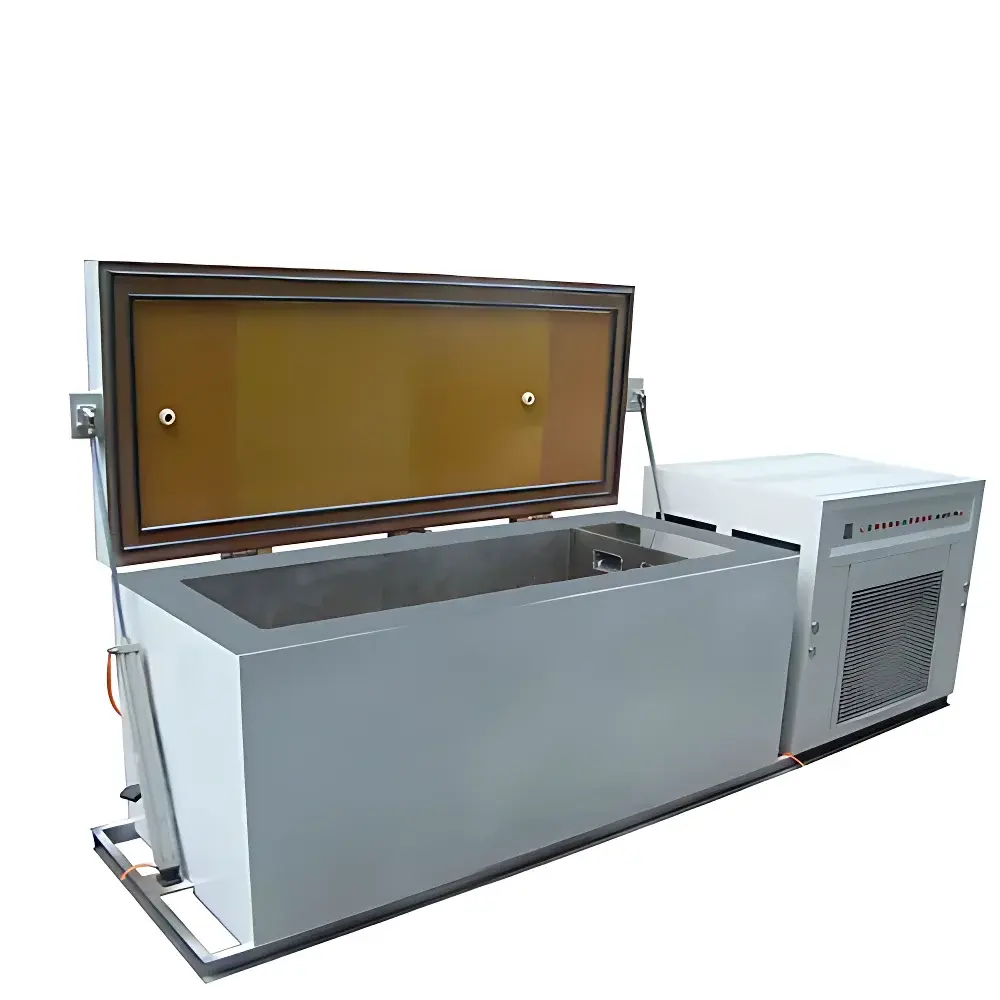

Tianfeng TF-86-258-WA Ultra-Low Temperature Freezer

Overview

The Tianfeng TF-86-258-WA Ultra-Low Temperature Freezer is an engineered solution for long-term cryogenic storage of biologics, clinical specimens, and temperature-sensitive research materials. Designed and manufactured in Shanghai under ISO 9001:2000–certified quality management systems, this unit operates within a stable, validated temperature range of –40 °C to –86 °C—meeting the stringent thermal stability requirements for preserving viable cells, plasma, vaccines, microbial cultures, and nucleic acid samples. Its refrigeration architecture employs a cascade two-stage compression system with imported high-efficiency compressors and an environmentally compliant refrigerant blend (non-ozone-depleting, low-GWP), eliminating reliance on R23 or R508B while maintaining thermodynamic performance across ambient conditions up to 35 °C. The hybrid condensation design—integrating both natural convection and controlled forced-air cooling—ensures operational resilience in non-climate-controlled laboratory environments, including those with elevated dust levels or inconsistent ventilation.

Key Features

• Stainless steel (AISI 304) interior chamber and inner doors—corrosion-resistant, non-porous, and compatible with standard laboratory disinfectants
• Four independently sealed inner doors minimize cold air loss during frequent access; each door features magnetic gasket sealing and visual status indicators
• Three-tier adjustable stainless steel shelving system with reinforced load capacity (up to 25 kg per shelf)
• Rounded internal corners and smooth-welded seams facilitate cleaning and reduce microbial retention points—aligned with GLP-compliant lab hygiene protocols
• Dual mechanical locking system: physical door lock plus integrated power lock to prevent unauthorized operation or accidental shutdown
• Real-time audible and visual alarm system with configurable thresholds for temperature deviation, door ajar, power interruption, and compressor fault
• RS-232 serial interface (optional) enables integration with centralized lab monitoring platforms for audit-ready data logging and remote diagnostics
• Energy-optimized design achieves ≤600 W nominal power draw at –80 °C setpoint—verified per IEC 60068-2-14 thermal cycling standards
• Acoustically damped cabinet structure limits operational noise to ≤57 dB(A) at 1 m distance—suitable for shared laboratory spaces

Sample Compatibility & Compliance

This freezer supports storage of primary human biospecimens (whole blood, PBMCs, serum, cord blood), cryopreserved tissues (skin, bone, cornea), viral vectors, monoclonal antibodies, and reference standards requiring continuous sub–70 °C stabilization. It complies with core regulatory expectations for cold chain integrity in clinical and preclinical settings, including alignment with ISO 13485 principles for medical device-associated storage, CLSI GP44-A4 guidelines for specimen refrigeration, and WHO Technical Report Series No. 961 Annex 9 (Good Storage Practices). While not FDA 21 CFR Part 11–validated out-of-the-box, the RS-232 interface supports third-party validation packages for electronic record integrity, audit trail generation, and user access control—enabling compliance with GxP environments when deployed with appropriate SOPs and periodic temperature mapping (IQ/OQ/PQ).

Software & Data Management

The TF-86-258-WA does not include embedded touchscreen software but provides deterministic analog sensor outputs (PT1000 temperature probes) and digital alarm states via its RS-232 port. When connected to external data acquisition systems (e.g., LabVIEW, DeltaV, or custom Python-based SCADA), users can achieve timestamped logging of chamber temperature, compressor runtime, alarm events, and door-open duration. All firmware logic is hard-coded—no cloud connectivity or OTA updates—to ensure deterministic behavior and eliminate cybersecurity exposure vectors common in networked lab equipment. Optional calibration certificates traceable to NIM (National Institute of Metrology, China) are available upon request for metrological assurance.

Applications

• Biobanking: Long-term archiving of human tissue repositories, stem cell lines, and genetically modified organisms
• Clinical Diagnostics: Storage of serum panels, CSF samples, and infectious disease reference materials under CAP-accredited workflows
• Vaccine Development: Cold-chain holding for lyophilized and liquid-phase vaccine candidates prior to stability testing (ICH Q5C)
• Pharmaceutical R&D: Preservation of high-value intermediates, peptide libraries, and unstable small-molecule compounds
• Marine & Agricultural Research: Cryo-storage of fish gametes, algal strains, and plant germplasm collections
• Electronics Reliability Testing: Low-temperature preconditioning of semiconductors and optoelectronic components per JEDEC JESD22-A119

FAQ

What is the recommended ambient operating environment?
This unit is rated for continuous operation in ambient temperatures from 10 °C to 35 °C and relative humidity ≤80% non-condensing. Clearance of ≥100 mm behind and ≥50 mm on each side is required for optimal heat dissipation.
How often should temperature mapping be performed?
Initial qualification (IQ/OQ) requires 24-hour static mapping with ≥9 thermocouples. For routine use, annual requalification is advised—or after any major maintenance, relocation, or firmware update.
Can the freezer be validated for GMP compliance?
Yes—when paired with documented procedures, calibrated sensors, and electronic loggers meeting 21 CFR Part 11 requirements, it supports full GMP validation. Tianfeng provides mechanical drawings, material certifications, and compressor OEM documentation to facilitate protocol development.
Is remote monitoring supported natively?
No native Ethernet/WiFi module is included. However, the RS-232 interface allows connection to industrial gateways (e.g., Siemens Desigo CC, Ignition SCADA) for secure, firewall-controlled telemetry.
What maintenance intervals are recommended?
Condenser cleaning every 3 months in dusty environments; door gasket inspection quarterly; full system leak check and refrigerant charge verification annually by authorized service personnel.
