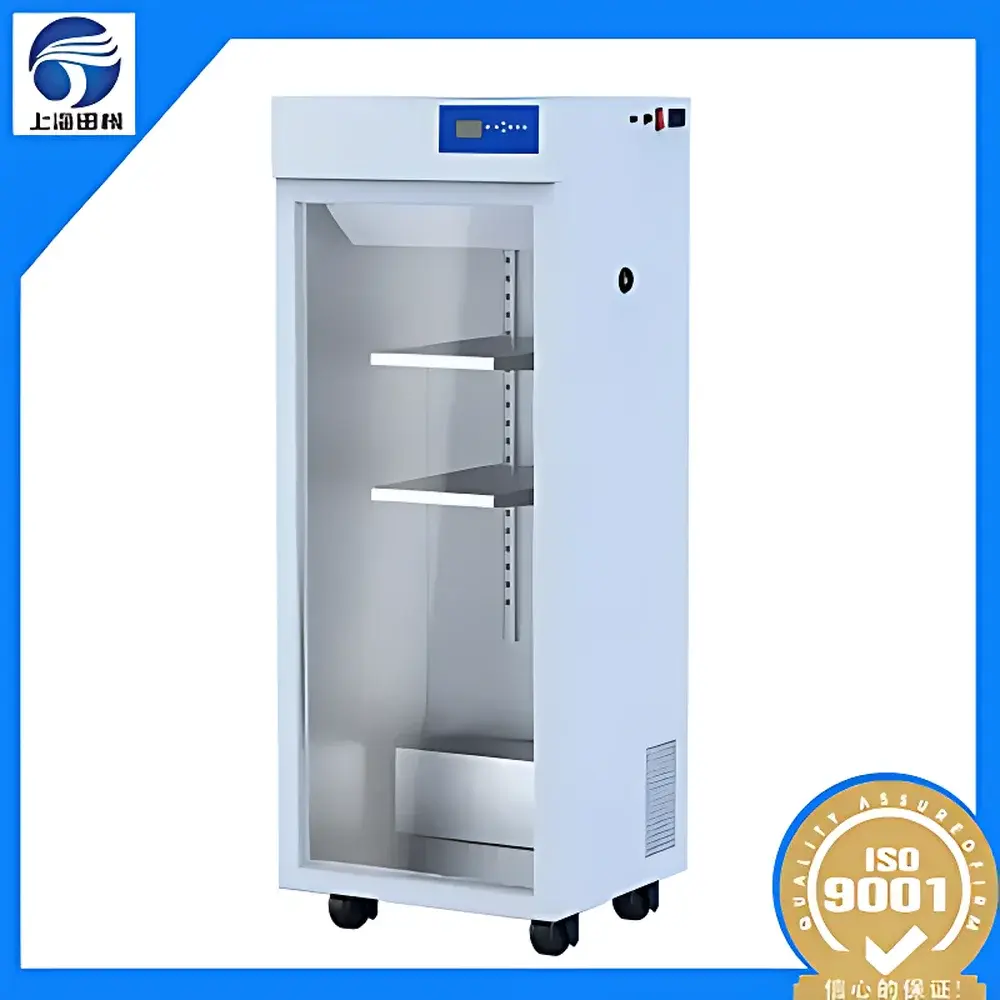

Tianfeng TF-CX-1 Stainless Steel Single-Door Chromatography Refrigerator

Overview

The Tianfeng TF-CX-1 Stainless Steel Single-Door Chromatography Refrigerator is an engineered environmental control system designed specifically for biomolecular separation workflows requiring stable, low-temperature operation. Unlike standard laboratory refrigerators, this unit integrates structural and thermal specifications aligned with chromatographic instrumentation deployment—supporting column packing, fraction collection, detector cooling, and mobile-phase temperature stabilization in applications such as gel filtration, ion exchange, affinity, and size-exclusion chromatography. Its refrigeration architecture employs a high-efficiency imported hermetic compressor with air-cooled condensation, eliminating dependency on external water lines while maintaining continuous 24-hour operation under load. The cabinet maintains a tightly regulated temperature range of 1–10 °C with ±1 °C uniformity across the full 800 L internal volume—a critical performance benchmark for preserving enzyme activity, nucleic acid integrity, and peptide conformation during extended runs. All internal surfaces are constructed from electropolished 304 stainless steel to ensure corrosion resistance, cleanability, and compliance with GLP-aligned hygiene protocols.

Key Features

• Full stainless steel interior—including walls, floor, and shelving—for chemical resistance, ease of decontamination, and long-term structural integrity
• Double-glazed, full-height transparent door with anti-fog coating to maintain optical clarity during prolonged cold operation without condensation interference
• Two fixed vertical chromatography support columns and two independently height-adjustable open-frame stainless steel shelves (550 × 350 mm) for secure mounting of peristaltic pumps, fraction collectors, and column manifolds
• Three additional removable mesh-type stainless steel shelves with locking support rods—enabling rapid reconfiguration from chromatography mode to general-purpose cold storage
• Integrated safety infrastructure: UV germicidal lamp (254 nm), LED interior lighting, dual 220 V AC power outlets (top and bottom), and caster-mounted base for controlled relocation within lab spaces
• Digital microprocessor-based temperature controller with LCD interface for simultaneous setpoint entry and real-time monitoring; includes programmable over-temperature audible alarm with latching function
• No external water supply required—air-cooled condenser ensures installation flexibility in non-plumbed laboratory zones

Sample Compatibility & Compliance

The TF-CX-1 supports temperature-sensitive biological samples including purified proteins, monoclonal antibodies, plasmid DNA, oligonucleotides, and labile metabolites commonly processed in academic and industrial bioprocessing labs. Its validated thermal stability meets operational requirements for ASTM D5236 (standard practice for chromatographic column conditioning) and aligns with ISO/IEC 17025 clause 5.4.2 regarding environmental condition control during analytical testing. While not inherently FDA 21 CFR Part 11 compliant as a standalone device, its digital temperature logging capability (via optional RS485 or USB data export) supports integration into validated LIMS or ELN platforms where audit-trail functionality is implemented at the system level. The unit’s ISO 9001:2000-certified manufacturing process ensures consistent build quality, traceable component sourcing, and documented calibration procedures for temperature sensors and control circuits.

Software & Data Management

The embedded temperature controller provides local setpoint adjustment, real-time display of chamber temperature, and alarm status indication—but does not include onboard data logging or network connectivity in its base configuration. For laboratories requiring electronic record retention, Tianfeng offers optional serial (RS485) or USB interface modules enabling periodic temperature snapshot export to CSV-compatible spreadsheets or third-party SCADA systems. When deployed within GxP-regulated environments, users typically integrate the refrigerator into facility-wide environmental monitoring systems (EMS) using calibrated external probes and validated acquisition software that satisfies ALCOA+ data integrity principles. No proprietary cloud platform or vendor-specific firmware updates are required; all firmware revisions adhere to IEC 62304 Class B medical device software standards for safety-critical embedded control.

Applications

• Column-based purification of recombinant proteins and therapeutic enzymes under temperature-controlled conditions (e.g., AKTA systems, Bio-Rad NGC)
• Low-temperature storage of pre-packed chromatography columns (e.g., Cytiva HiTrap, Thermo Fisher ProSwift) to extend shelf life and prevent ligand degradation
• Simultaneous operation of multiple low-power analytical devices—including fraction collectors, UV-Vis flow cells, and conductivity detectors—within a single thermally homogeneous zone
• Short-term holding of biological fractions prior to lyophilization, SDS-PAGE, or mass spectrometry analysis
• General-purpose cold storage of reagents, buffers, and cell lysates where precise 1–10 °C maintenance is required beyond standard refrigerator tolerances

FAQ

Is the TF-CX-1 suitable for GMP-compliant manufacturing environments?

Yes—when integrated with external validation protocols, calibrated sensors, and documented operational qualification (OQ/IQ), the unit meets foundational HVAC and equipment qualification criteria for cold-chain support in pharmaceutical process development.

Can the internal shelves be removed to accommodate tall chromatography systems?

Yes—the two primary open-frame shelves are fully detachable, and the three mesh shelves can be repositioned or omitted entirely to allow vertical clearance up to 1750 mm.

Does the unit support remote temperature monitoring?

Not natively—but optional RS485 or USB communication modules enable integration with centralized lab monitoring platforms.

What is the expected service life under continuous operation?

Based on accelerated life testing and field data from academic core facilities, the compressor and control system are rated for ≥15,000 hours of uninterrupted runtime with scheduled preventive maintenance every 12 months.

Are spare parts and technical documentation available internationally?

Yes—Tianfeng maintains English-language service manuals, exploded diagrams, and OEM component inventories for global distribution through authorized partners; lead time for critical spares is typically 4–6 weeks ex-warehouse Shanghai.
